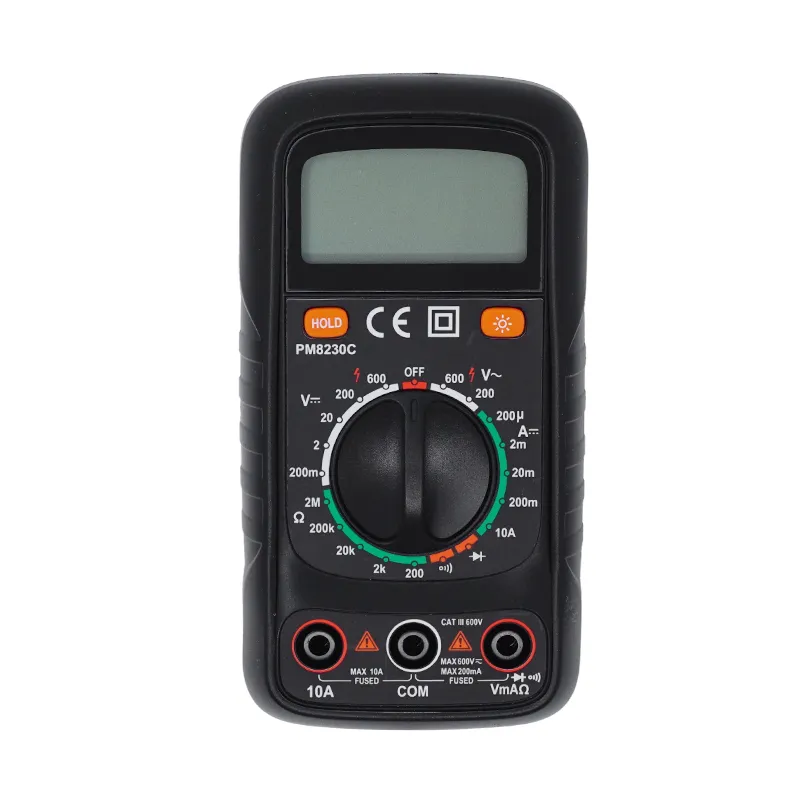

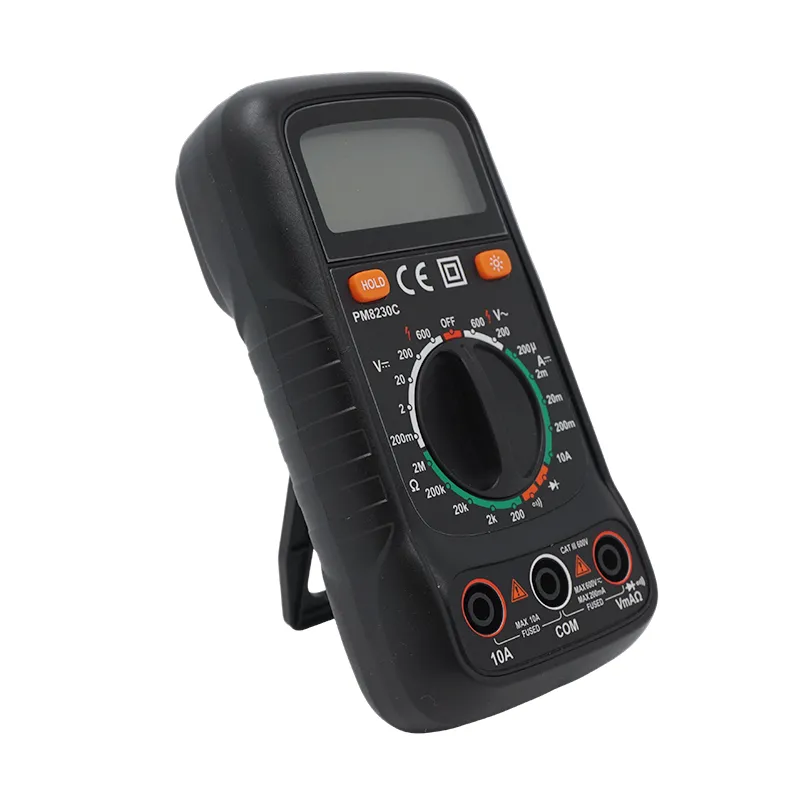

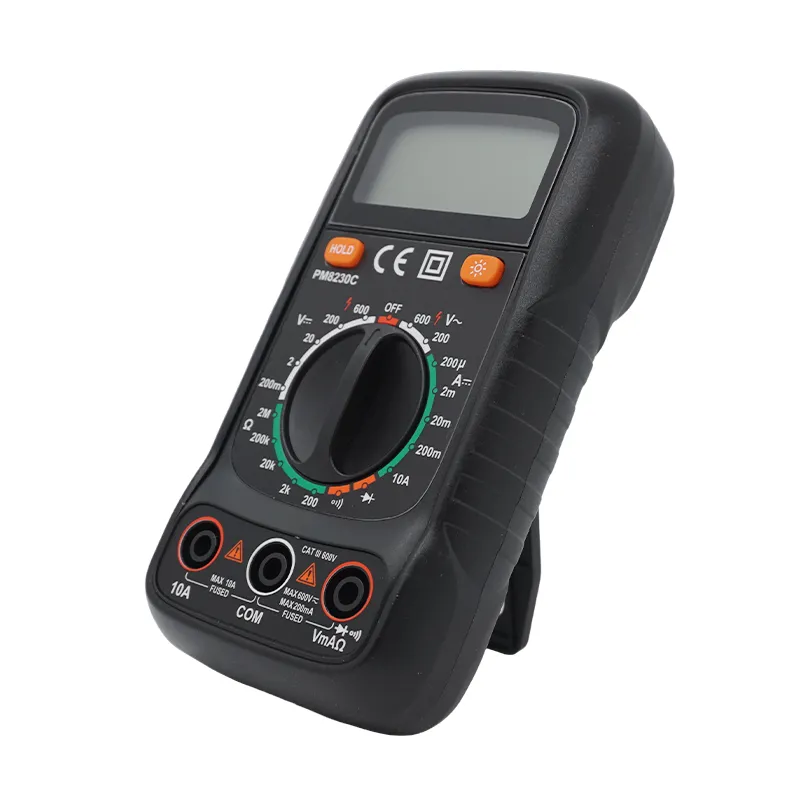

PM8230C is the upgraded variant of PM8230 series, adding backlight screen and reliable fuse overload protection on the basis of full basic measurement functions. It features higher testing accuracy for voltage, current and resistance, with data lock and audible continuity alarm. Compact and durable, perfect for beginner electricians, small appliance repair and dim environment field inspection work.
Display: 2000 Counts
Manual Range
Diode Test
Continuity Test
Low Battery Indication
Data Hold
Back Light
Fuse Protection
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV | ±（0.5%+3) |
| 2V/20V/200V | ±（0.5%+3） | |
| 600V | ±（0.8%+3) | |
| AC Voltage | 200V/600V | ±（1.2%+10） |
| DC Current | 200μA/2mA/20mA | ±（1.0%+3） |
| 200mA | ±（1.5%+5） | |
| 10A | ±（3.0%+8） | |
| 200Ω | ± (0.8%+5) | |
| Resistance | 2kΩ/20kΩ/200kΩ | ± (0.8%+2) |
| 2MΩ | ± (1.0%+5) | |
| FEATURES | ||
| Display | 2000 Counts | |
| Manual Range | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Backlight | √ | |
| Fuse | √ | |
| GENERAL | ||
| Power Supply | DC9V 6F22 battery | |
| Weight | Approx. 108g (no leather case and battery included) | |
| Product Size | 129X66X33mm (no leather case included) | |
| Safety Rating | IEC61010-1,IEC 61010-2-032 CAT.Ⅲ600v | |
| Package（PCS/carton） | ||
| Color Box Size | ||
| Carton Size | ||
| G.W | ||

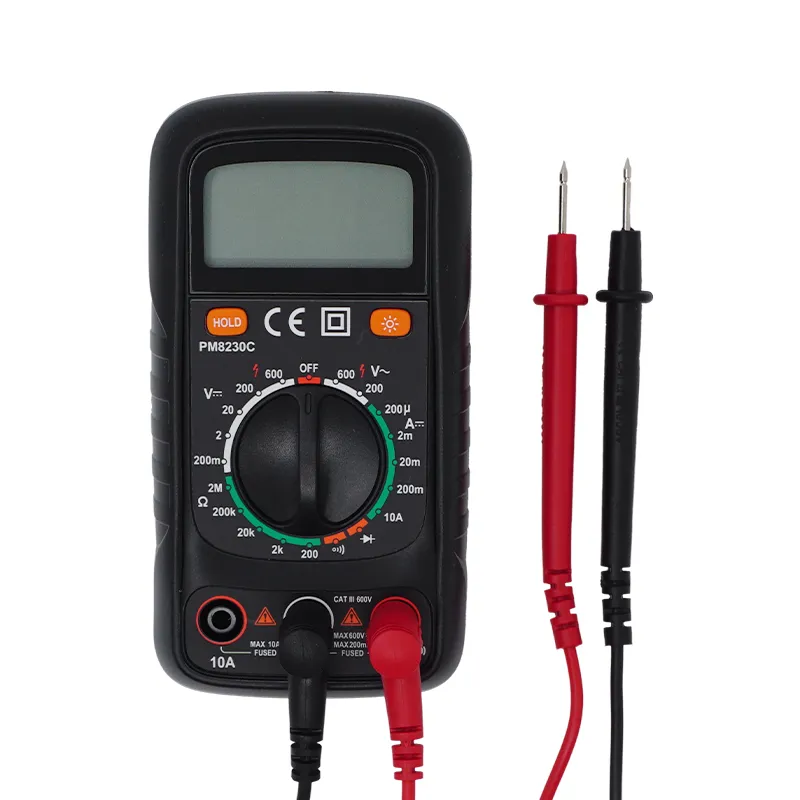

| Test Leads | Users Manual | DC 9V 6F22 Battery |
