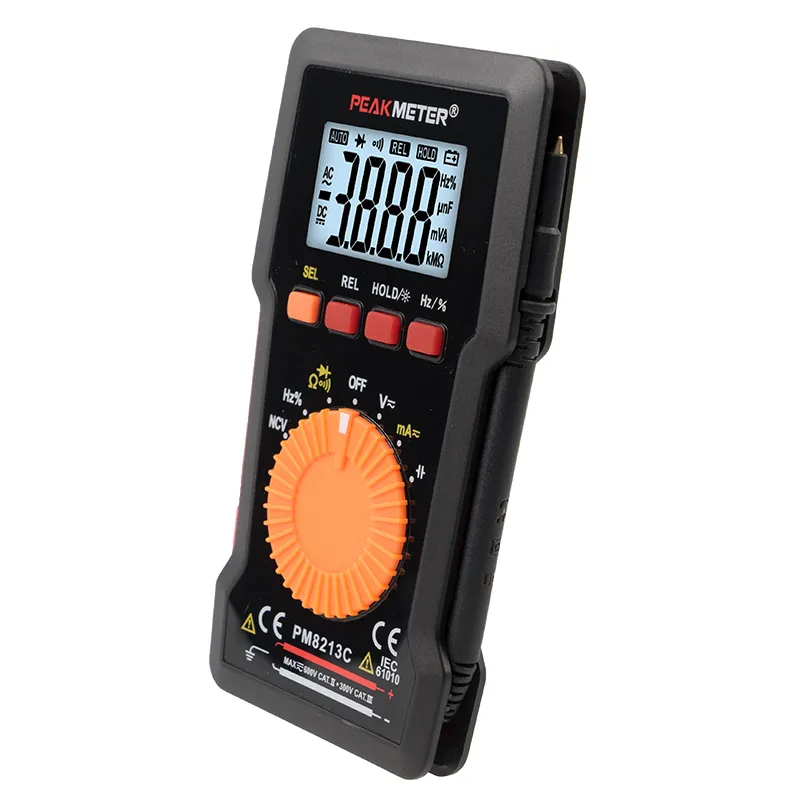

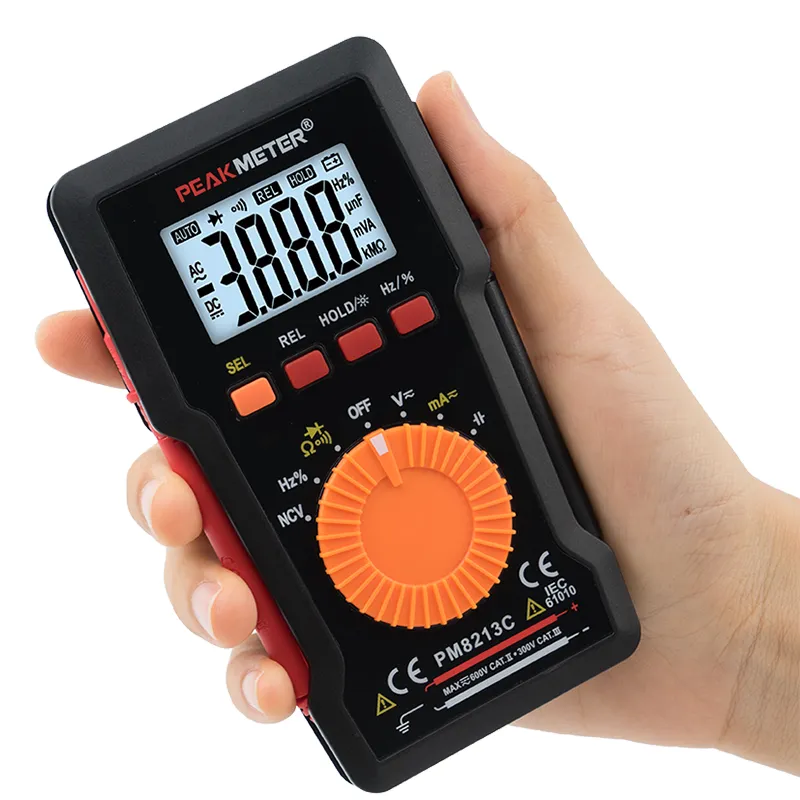

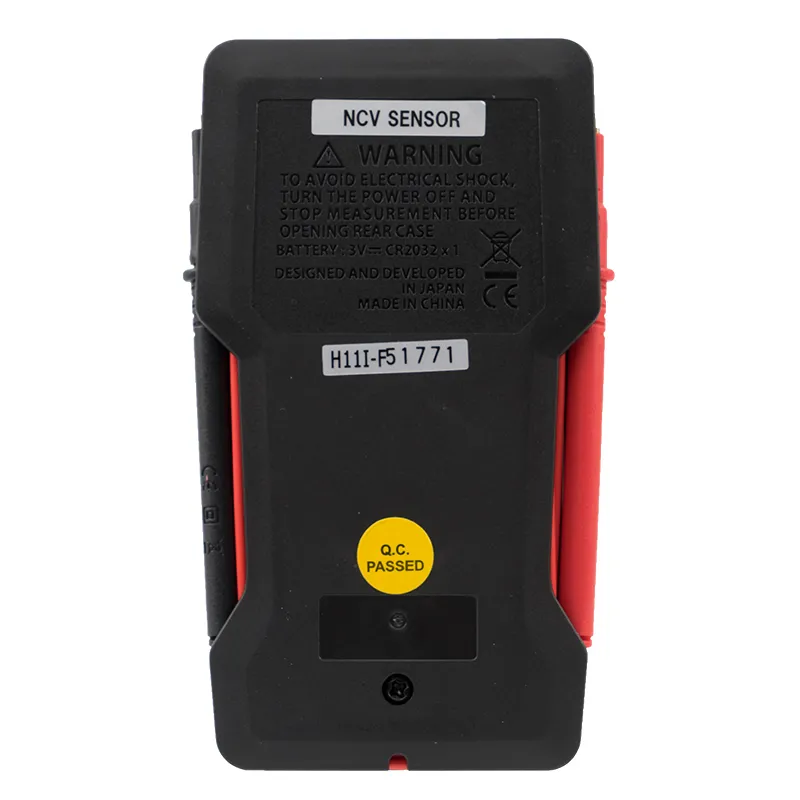

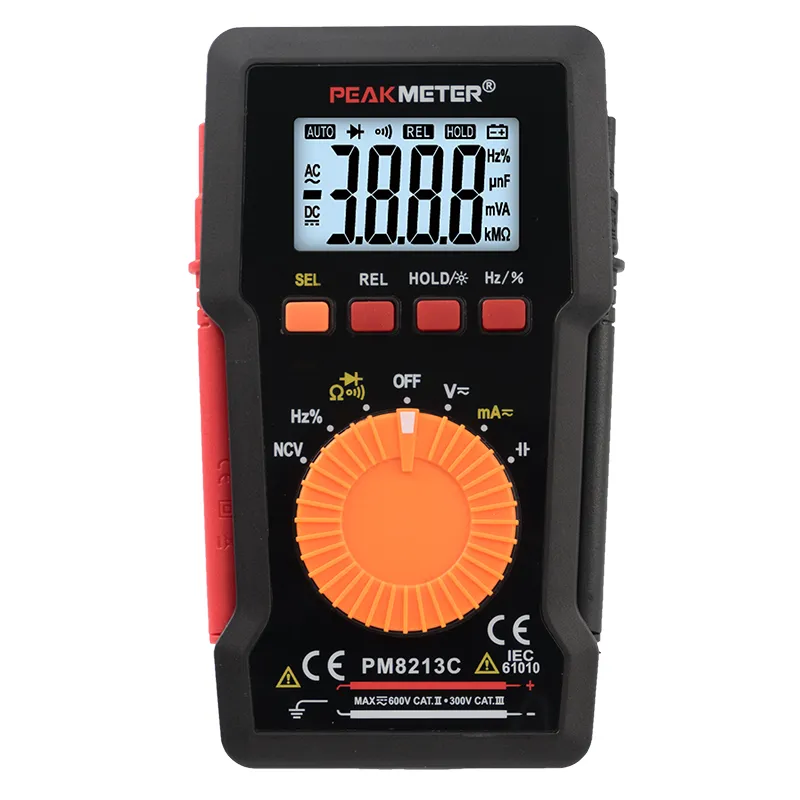

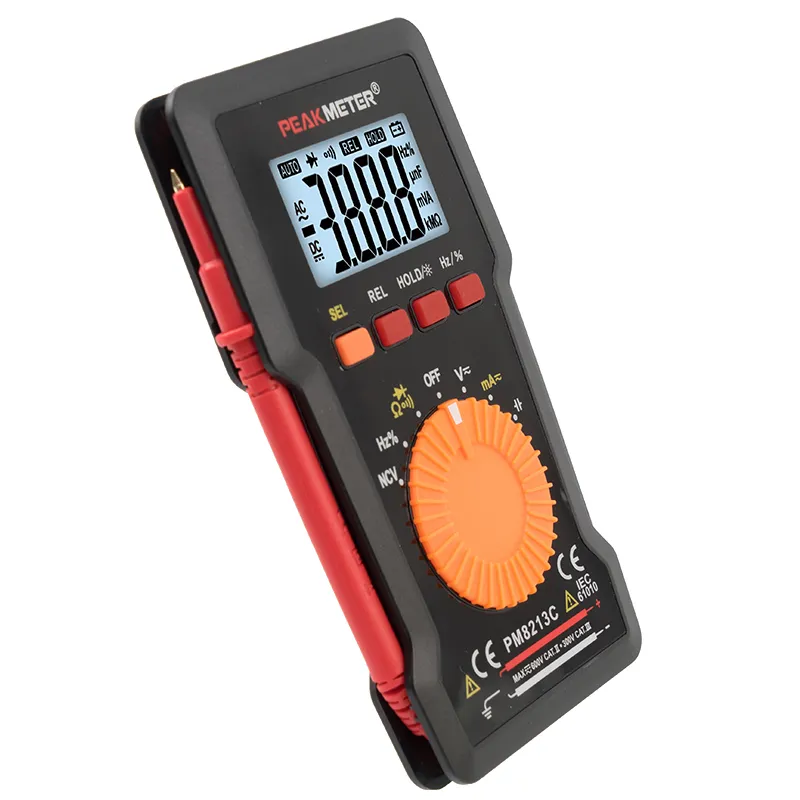

PM8213C is the full-featured flagship mini multimeter of this series, inheriting all testing items of PM8213B and adding practical NCV non-contact AC voltage detection for live wire safety check. Equipped with 4000-count LCD, auto shut-off and overload indication, the slim lightweight body is widely used for on-site wiring safety inspection, small appliance repair and professional portable field maintenance.
Display: 4000 Counts
Frequency: 100kHz
Resistance: 40MΩ
Capacitance: 100μF
Continuity
Diode Test
Under Voltage Indication
Non Contact AC Voltage Test
Automatic Shutdown
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 4V/40V/400V/600V | ±（1.0%+3） |
| AC Voltage | 4V/40V/400V/600V | ±（2.0%+5） |
| DC Current | 40mA/400mA | ±（2.0%+5） |
| AC Current | 40mA/400mA | ±（2.0%+5） |
| Resistance | 400Ω/4kΩ/40kΩ/400kΩ/4MΩ /40MΩ | ±（2.0%+5） |
| Frequency | 10Hz/100Hz/1kHz/10kHz/100kHz | ±（2.0%+5） |
| Capacitance | 50nF/500nF/5uF/50uF/100uF | ±（5.0%+5） |
| Duty ratio | 5.0-95.0% | ±（3.0%+5） |
| FEATURES | ||
| Display | 4000 counts | |
| Frequency | 100kHz | |
| Resistance | 2000kΩ | |
| Capacitance | 100uF | |
| Continuity | √ | |
| Diode Test | √ | |
| Low Battery Indication | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 1×3.0V CR2032 Button Battery | |
| Net weight | Approx.110g(batteries are not included） | |
| Gross weight | 147g | |
| Product Size | 127mm×70mm×12.5mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ300v,CAT.Ⅱ600v | |
| Package（PCS/carton） | 60 pcs | |
| Color Box Size | 152mm×88mm×40mm | |
| Carton Size | 315mm×235mm×313mm | |
| G.W | 9.6kg | |
| 1* 3.0V CR2032 Battery | Users Manual |
