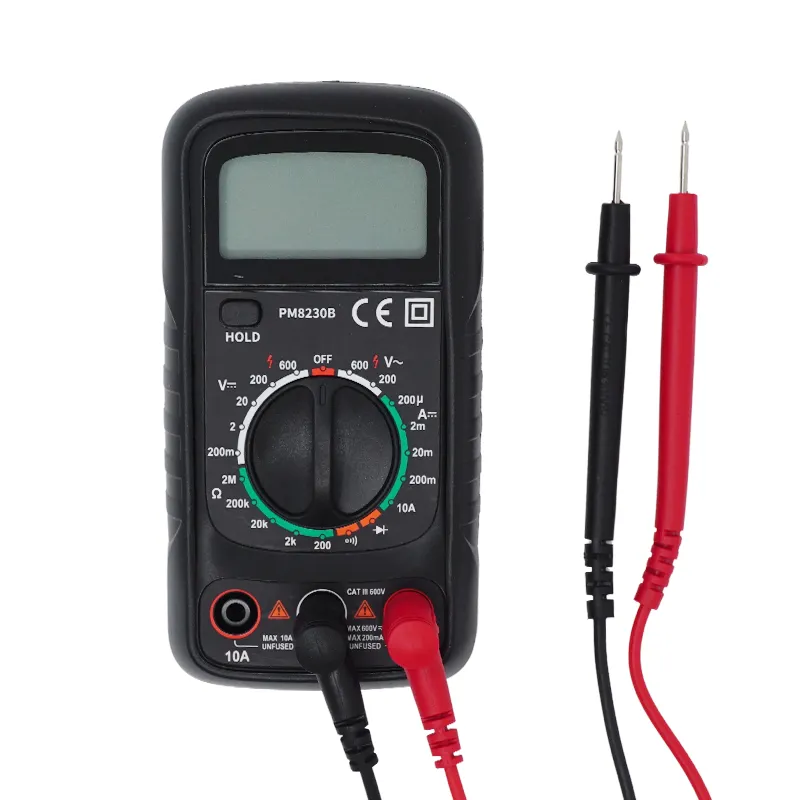

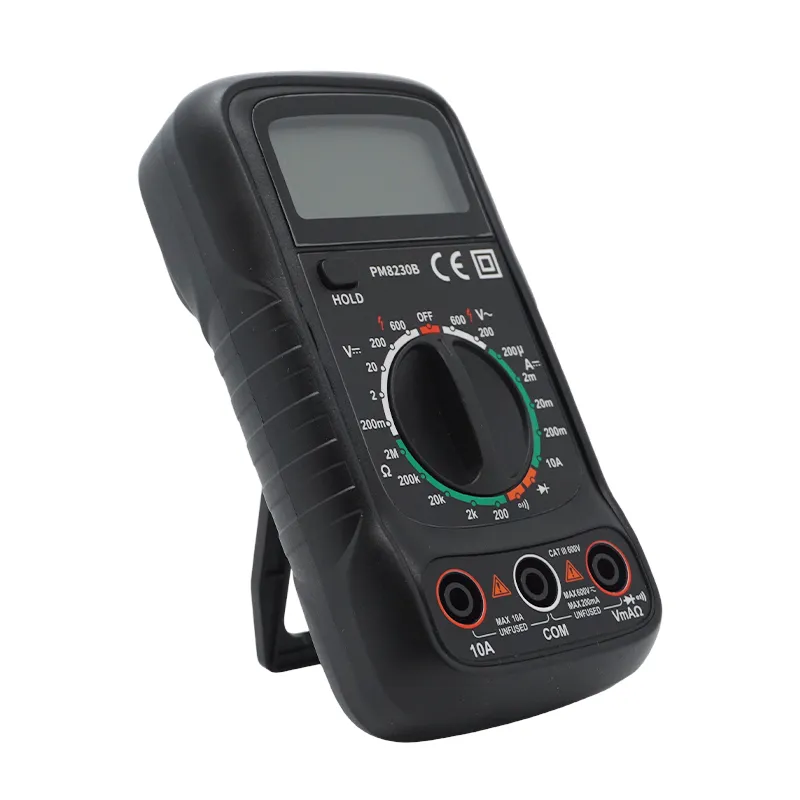

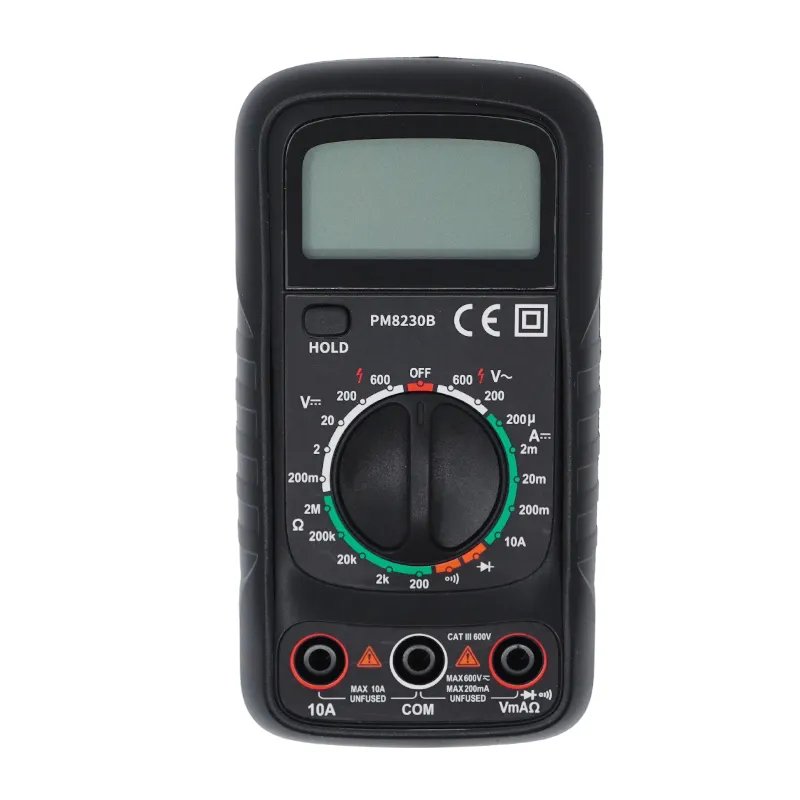

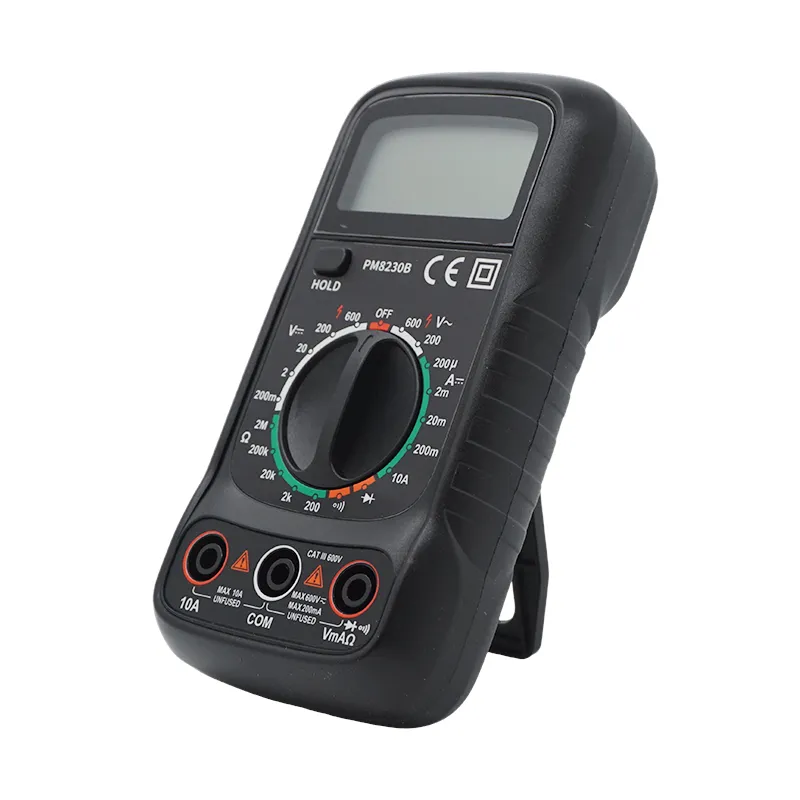

PM8230B is a lightweight 2000-count manual range digital multimeter for entry-level electrical testing. It measures 600V AC/DC voltage, 10A DC current and resistance, equipped with data hold, diode test and continuity buzzer. Ultra-portable 126g body meets CAT II 600V safety standard. Ideal for student lab practice, hobbyist DIY projects and basic household electrical troubleshooting on budget.
Display: 2000 Counts
Manual Range
Diode Test
Continuity Test
Low Battery Indication
Data Hold
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV | ±（1.5%+8) |
| 2V/20V/200V | ±（1.5%+5) | |
| 600V | ± (2.0%+5) | |
| AC Voltage | 200V/600V | ± (2.0%+8) |
| DC Current | 200μA/2mA/20mA/200mA | ± (2.0%+5) |
| 10A | ± (3.0%+10) | |
| 200Ω | ± (1.2%+5) | |
| Resistance | 2kΩ/20kΩ/200kΩ | |
| 2MΩ | ||
| FEATURES | ||
| Display | 2000 Counts | |
| Manual Range | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Backlight | ||
| Fuse | ||
| GENERAL | ||

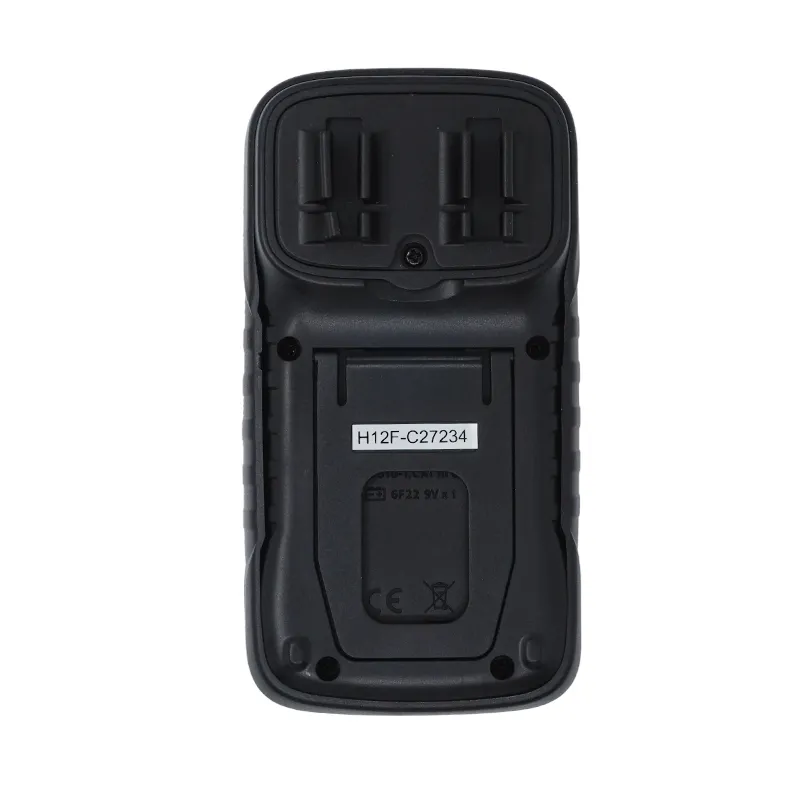

| Power Supply | DC9V 6F22 battery | |
| Weight | Approx. 108g (no leather case and battery included) | |
| Product Size | 129X66X33mm (no leather case included) | |
| Safety Rating | IEC61010-1,IEC 61010-2-032 CAT.Ⅲ600v | |
| Package（PCS/carton） | ||
| Color Box Size | ||
| Carton Size | ||
| G.W | ||
| Test Leads | Users Manual | DC 9V 6F22 Battery |
