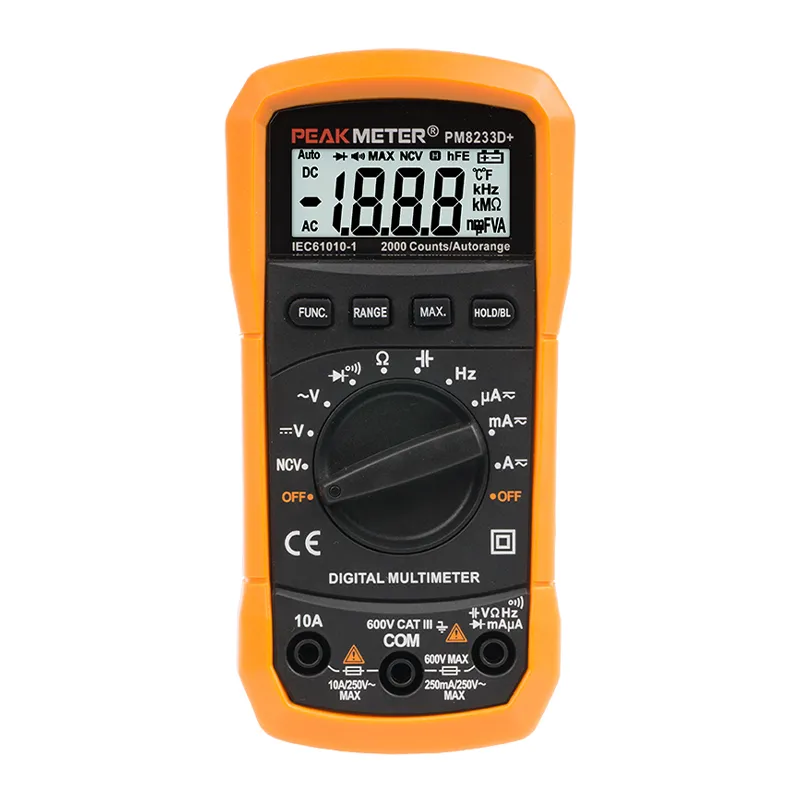

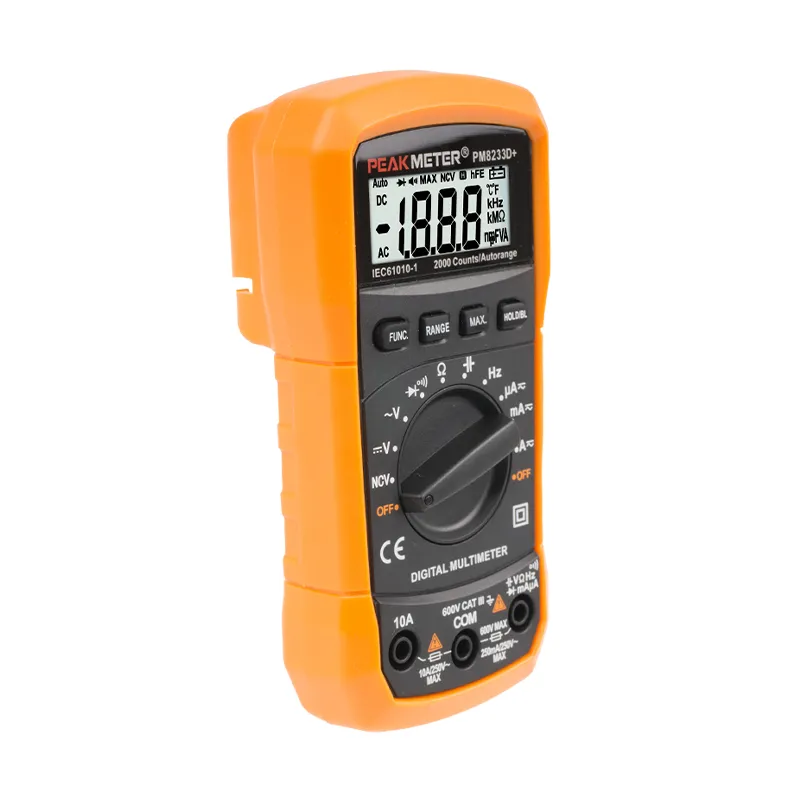

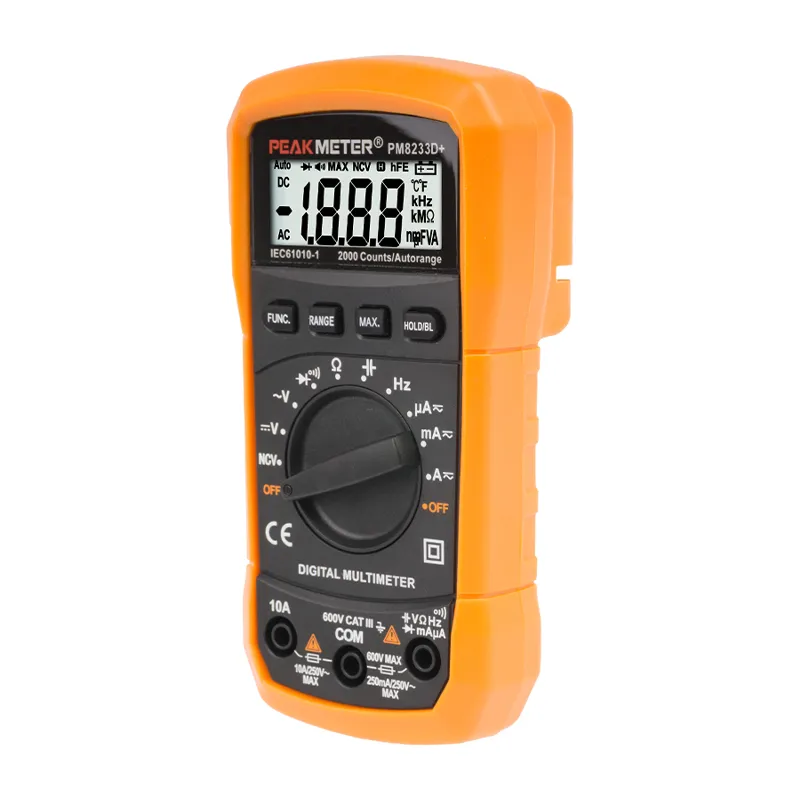

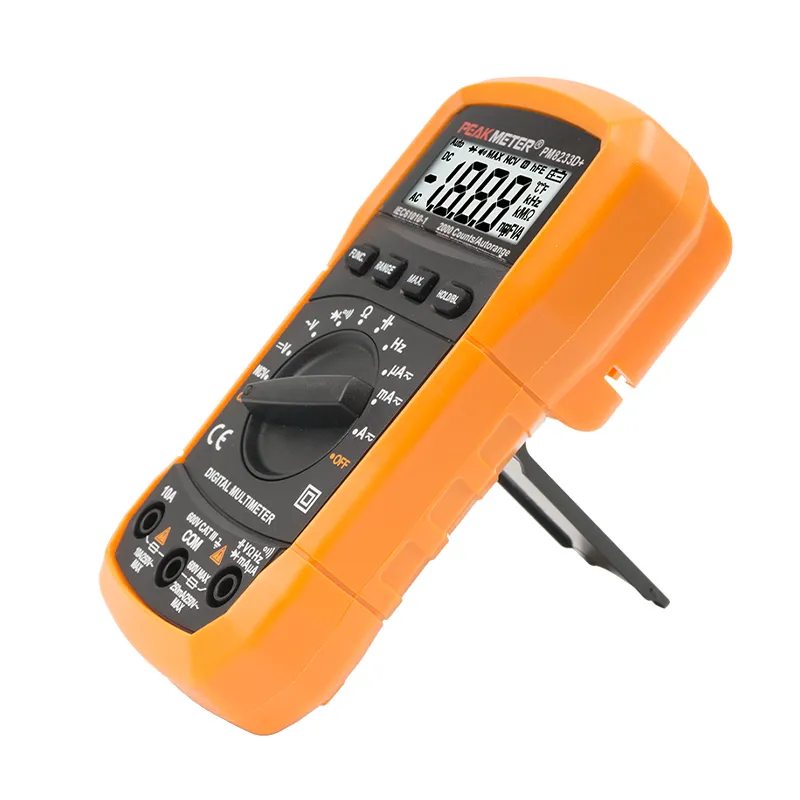

PM8233D+ is a kind of portable three-dimensional board automatic range digital multimeter with high performance and high reliability, which uses 15mm LCD with backlight and can read out the display value clearly in a dark place in time. This meter is compact but feature-rich overall and can measure AC and DC voltage, AC and DC current, resistance, capacitance, frequency and NCV. It has overload protection circuit and data hold function, as well as maximum hold and undervoltage indication functions.
Display: 2000 Counts
Auto And Manual Range
NCV
Data Hold
Black Light
Diode Test
Continuity
Maximum Hold
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 600V | ±（0.8%+2） | |
| AC Voltage | 2V/20V/200V | ±（1.0%+3） |
| 600V | ±（1.2%+3） | |
| DC Current | 200μA/2000μA/20mA/200mA/10A | ±（1.5%+3） |
| AC Current | 200μA/2000μA/20mA/200mA/10A | ±（1.5%+4） |
| Resistance | 200Ω/2kΩ/20kΩ/200kΩ/2MΩ | ±（0.8%+2） |
| 20MΩ | ±（1.0%+2） | |
| capacitance | 20nF/200nF/2μF/20μF/ 200μF/2mF | ±（4.0%+5） |
| Frequency | 20KHz | ±（1.5%+5） |
| FEATURES | ||
| Display | 2000 Counts | |
| Auto range | √ | |
| Manual range | √ | |
| Data Hold | √ | |
| Back Light | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| Maximum Value Hold | √ | |
| NCV | √ | |
| Low Battery Indication | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 1×9V6F22 Battery/2×1.5V AAA Batteries | |
| Net weight | Approx.110g(batteries are not included） | |
| Gross weight | 340g | |
| Product Size | 140mm×67mm×30mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 165mm×110mm×53mm | |
| Carton Size | 560mm×330mm×246mm | |
| G.W | 14.6kg | |
| Test Leads | Users Manual | 1×9V 6F22 Battery |
