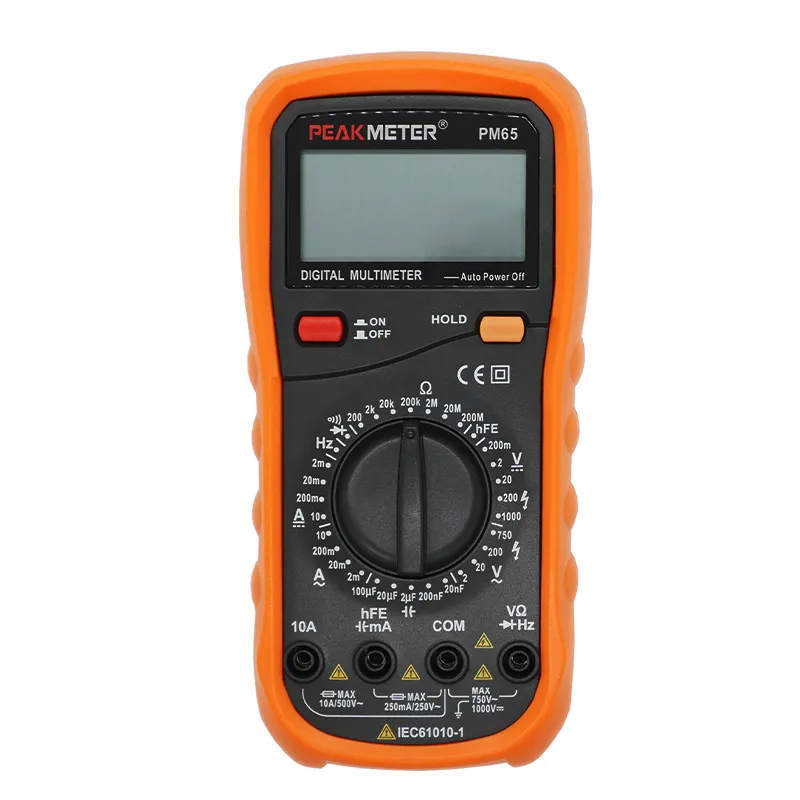

PM65 is the cost-effective basic variant of PM64 digital multimeter, adopting 2000-count display and CAT III 1000V high safety rating. It measures voltage, current, resistance and capacitance, equipped with diode, transistor and continuity tests, plus data hold & auto shut-off. Lightweight and easy to operate, perfect for electronics beginners, school teaching, DIY hobby projects and routine household electrical checks.
Display: 2000 Counts
Data Hold
Auto Power Off
Diode Test
Transistor Test
Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV | ±（0.05%+3） |
| 2V/20V/200V | ±（0.1%+3） | |
| 1000V | ±（0.15%+3） | |
| AC Voltage | 2V | ±（0.5%+10） |
| 20V/200V | ±（0.8%+10） | |
| 750V | ±（1.0%+15） | |
| DC Current | 2mA/20mA | ±（0.5%+5） |
| 200mA | ±（0.8%+5） | |
| 10A | ±（2.0%+10） | |
| AC Current | 2mA/20mA | ±（0.8%+10） |
| 200mA | ±（1.2%+10） | |
| 10A | ±（2.5%+10） | |
| Resistance | 200Ω | ±（0.5%+10） |
| 2kΩ | ±（0.3%+3） | |
| 20kΩ/200kΩ/2MΩ /20MΩ | ±（0.3%+1） | |
| 200MΩ | ±（5.0%+10） | |
| Capacitance | 20nF/200nF/2μF/20μF/200μF | ±（4.0%+20） |
| Frequency | 20KHz | ±（1.5%+5） |
| 特性 | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Diode Test | √ | |
| Transistor Test | √ | |
| Continuity | √ | |
| 基本参数 | ||
| Power Supply | 1×9V6F22 battery | |
| Net weight | Approx.357g(batteries are not included） | |
| Gross weight | 555g | |
| Product Size | 193mm×94mm×50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 30pcs | |
| Color Box Size | 280mm×128mm×59mm | |
| Carton Size | 440mm×310mm×410mm | |
| G.W | 17.7kg | |
| Test Leads | Users Manual | 1×9V 6F22 Battery |
