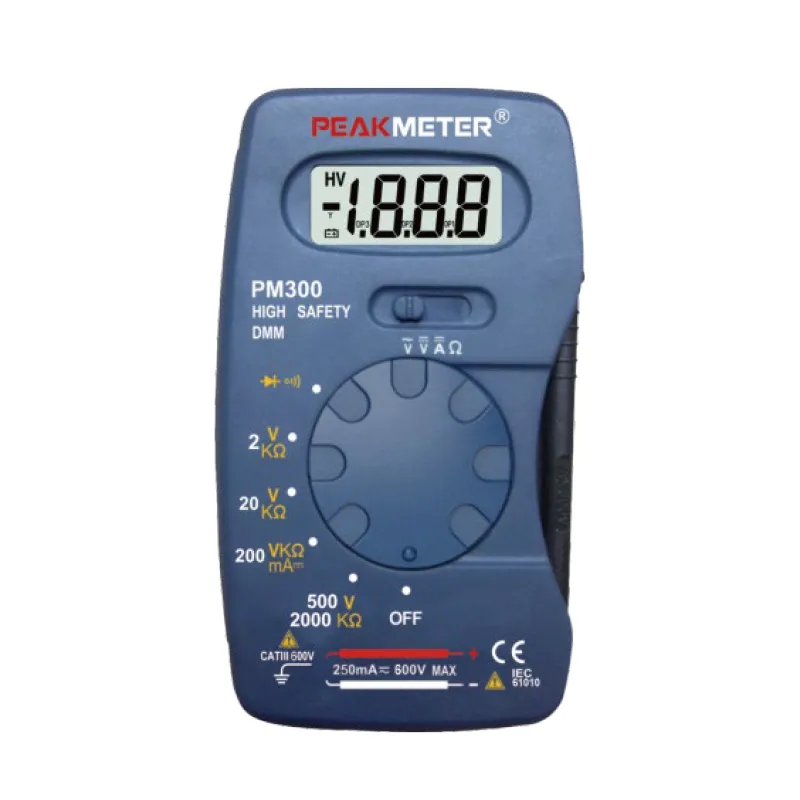

PM300 is an ultra-slim pocket-sized 2000-count digital multimeter with only 18mm thickness. It measures DC/AC voltage up to 600V, DC current and resistance, equipped with diode test and continuity buzzer. Powered by a 12V small battery and CAT III 600V safety certified. Extremely portable for electrician carry-on inspection, student electronic experiments and quick household circuit fault detection.
Display: 2000 Counts
Diode Test
Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 2V | ±（0.5%+1） |
| 20V/200V/500V | ±（0.8%+1） | |
| AC Voltage | 200V/500V | ±（1.2%+10） |
| DC Current | 200mA | ±（2.0%+2） |
| Resistance | 2kΩ/20kΩ/200kΩ/2000kΩ | ±（1.0%+2） |
| FEATURES | ||
| Display | 2000 Counts | |
| Diode Test | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | 1×12VGP-23A battery | |
| Net weight | Approx.104.5g(batteries are not included） | |
| Gross weight | 139g | |
| Product Size | 120mm×70mm×18mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ300v,CAT.Ⅱ600v | |
| Package（PCS/carton） | 90 pcs | |
| Color Box Size | 128mm×80mm×28mm | |
| Carton Size | 445mm×370mm×290mm | |
| G.W | 12.5kg | |
Users Manual | 12V GP23A Battery |
