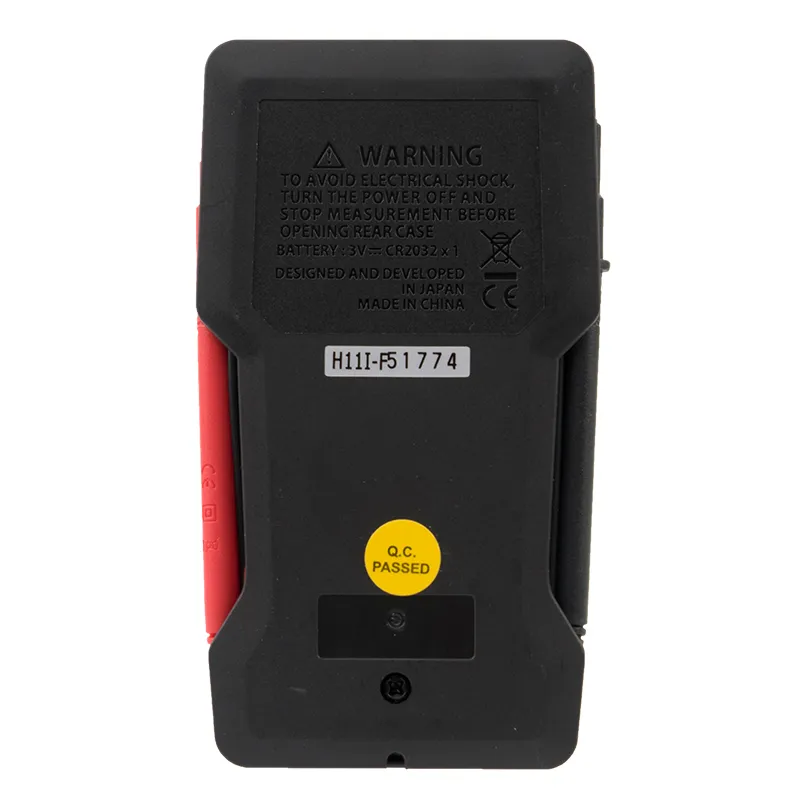

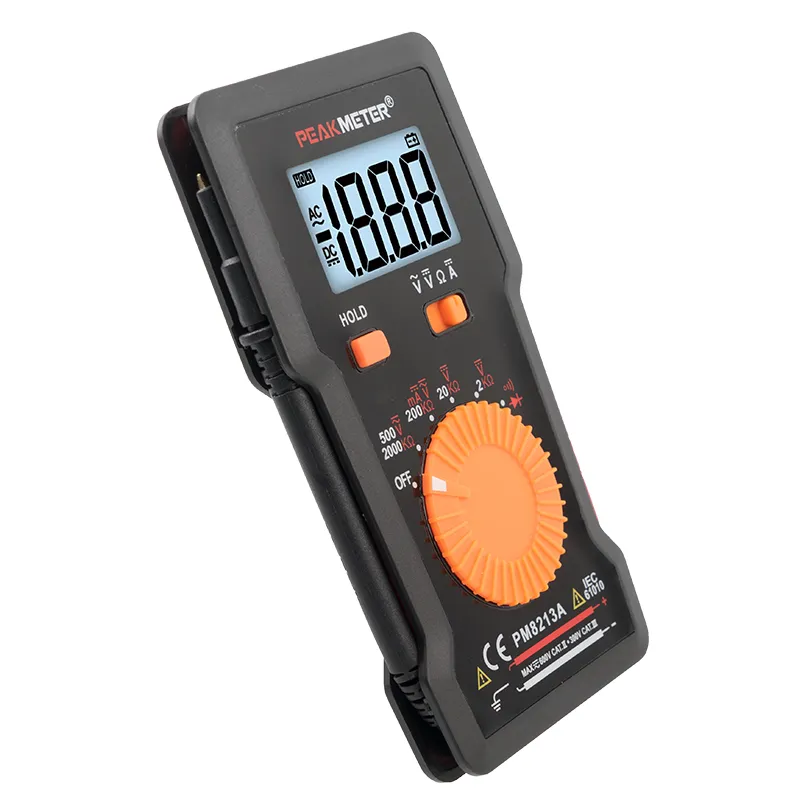

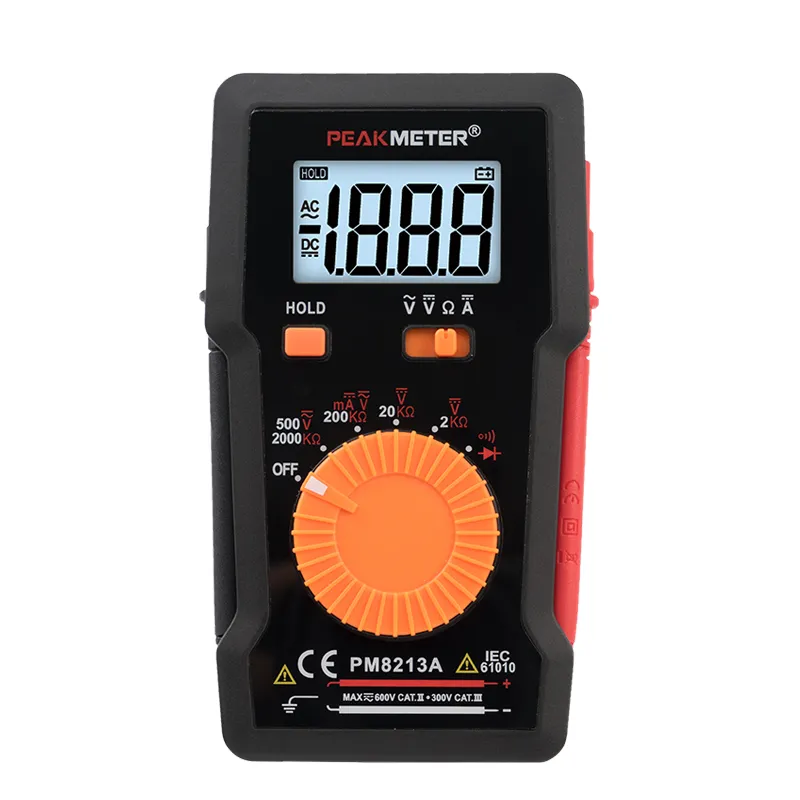

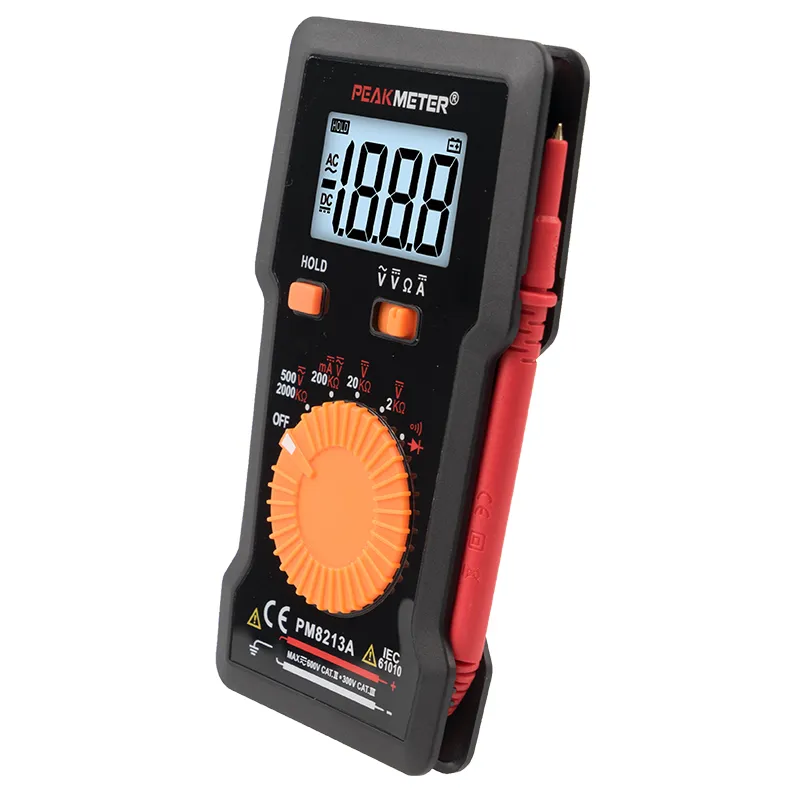

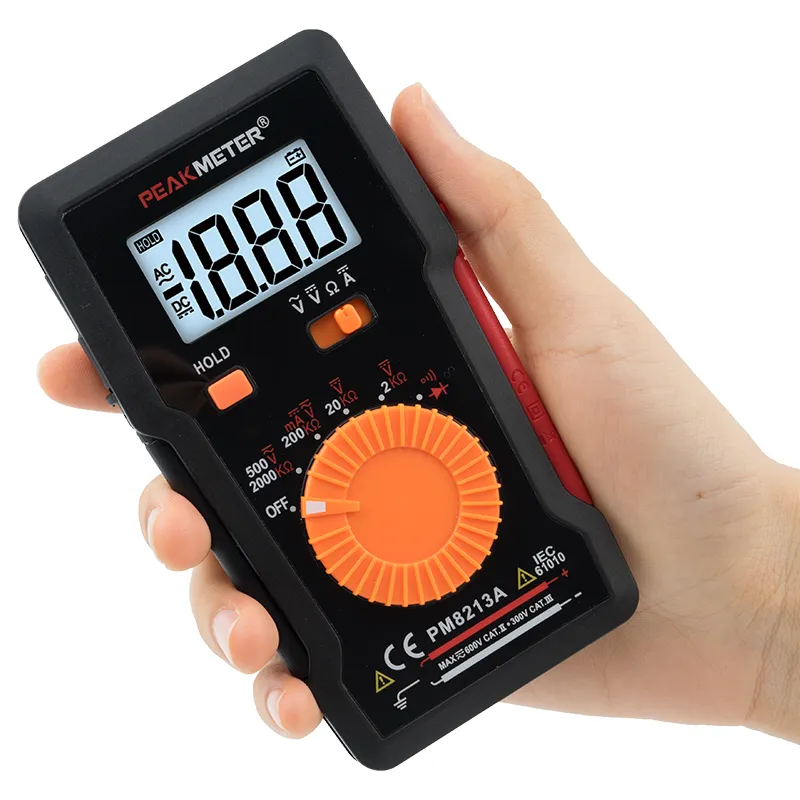

PM8213A is an ultra-thin pocket-sized 2000-count manual range mini multimeter powered by CR2032 battery. It measures AC/DC voltage, DC current and resistance, with diode test, continuity buzzer and auto power-off function. Only 80g lightweight body meets CAT III 600V safety standard. Perfect for electronics beginners, student teaching and simple daily household circuit fault inspection on budget.
Display: 2000 Counts
Resistance: 2000KΩ
Continuity
Diode Test
Under Voltage Indication
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 2V/20V/200V/500V | ±（1.0%+3） |
| AC Voltage | 200V/500V | ±（2.0%+5） |
| DC Current | 200mA | ±（2.0%+5） |
| Resistance | 2kΩ/20kΩ/200kΩ/2000kΩ | ±（2.0%+5） |
| FEATURES | ||
| Display | 2000 Counts | |
| Resistance | 2000 kΩ | |
| Continuity | √ | |
| Diode Test | √ | |
| Low Battery Indication | √ | |
| GENERAL | ||
| Power Supply | 1×3.0V CR2032 Button Battery | |
| Net weight | Approx.86g(batteries are not included） | |
| Gross weight | 130g | |
| Product Size | 127mm×70mm×12.5mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ300v,CAT.Ⅱ600v | |
| Package（PCS/carton） | 60 pcs | |
| Color Box Size | 152mm×88mm×40mm | |
| Carton Size | 315mm×235mm×313mm | |
| G.W | 8.8kg | |
| 1* 3.0V CR2032 Battery | Users Manual |
