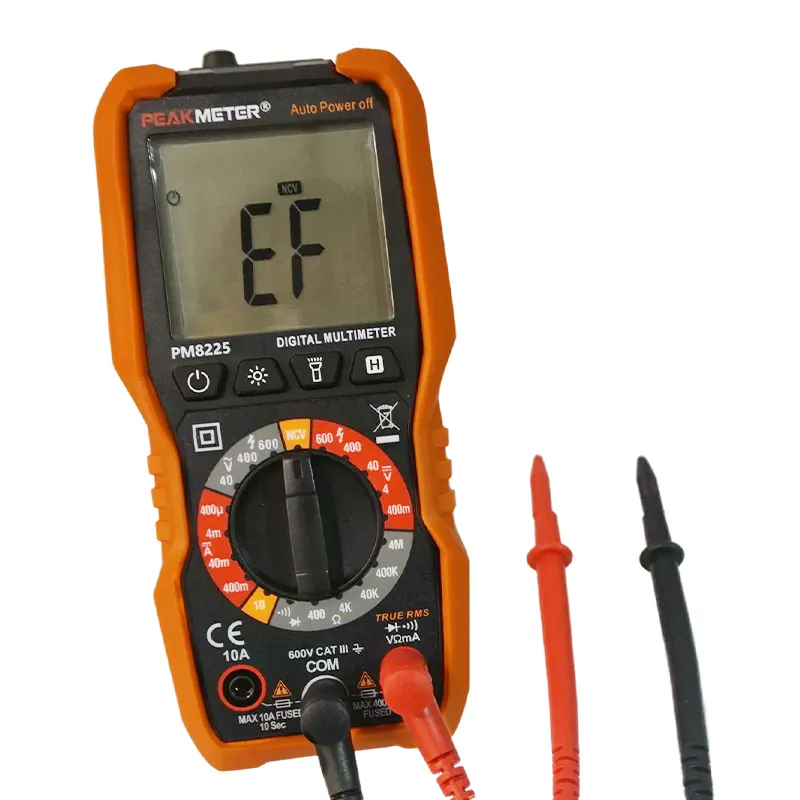

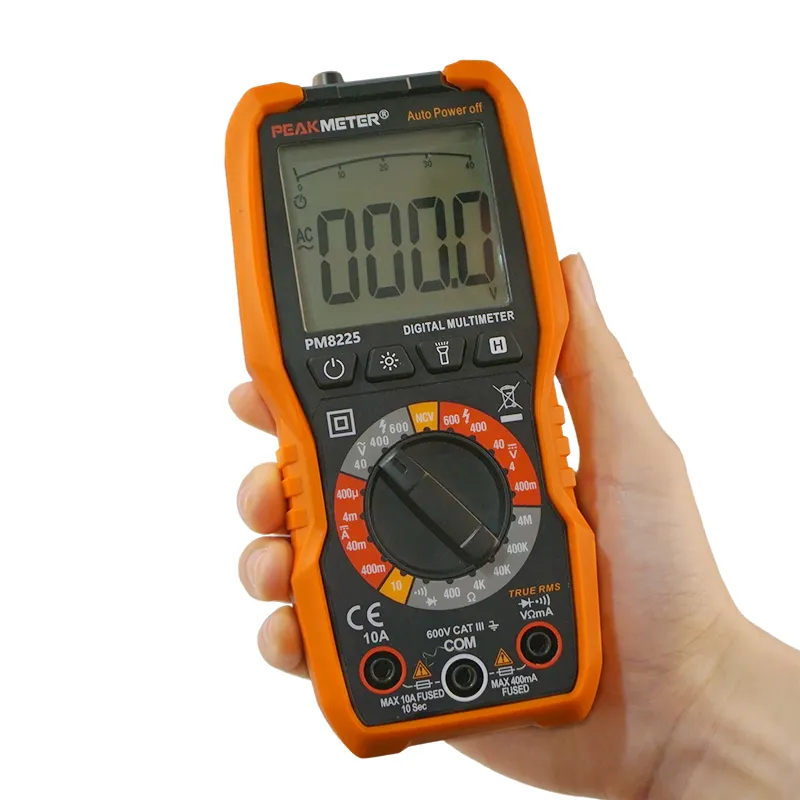

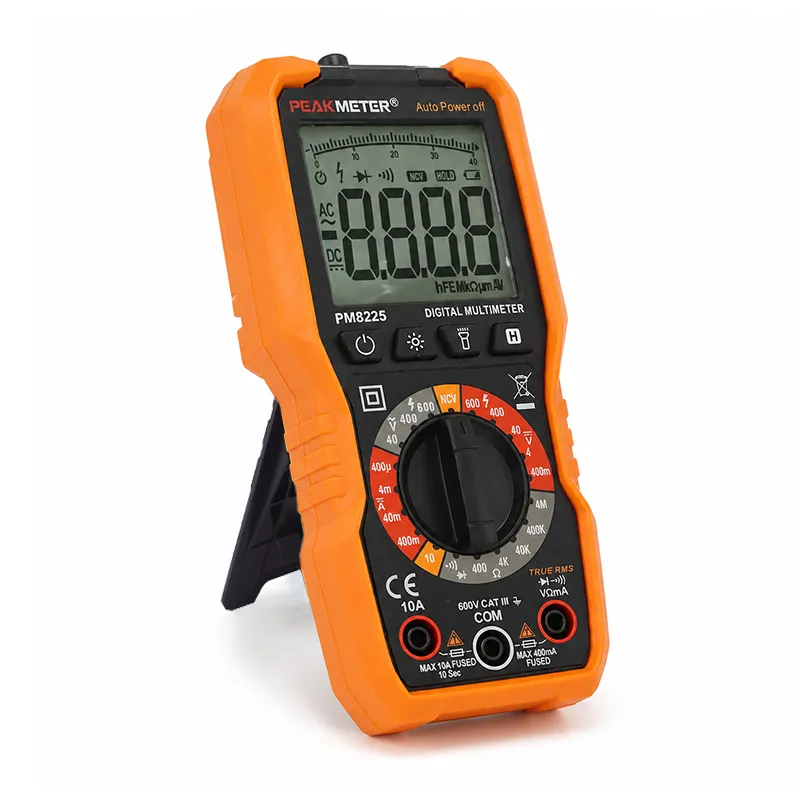

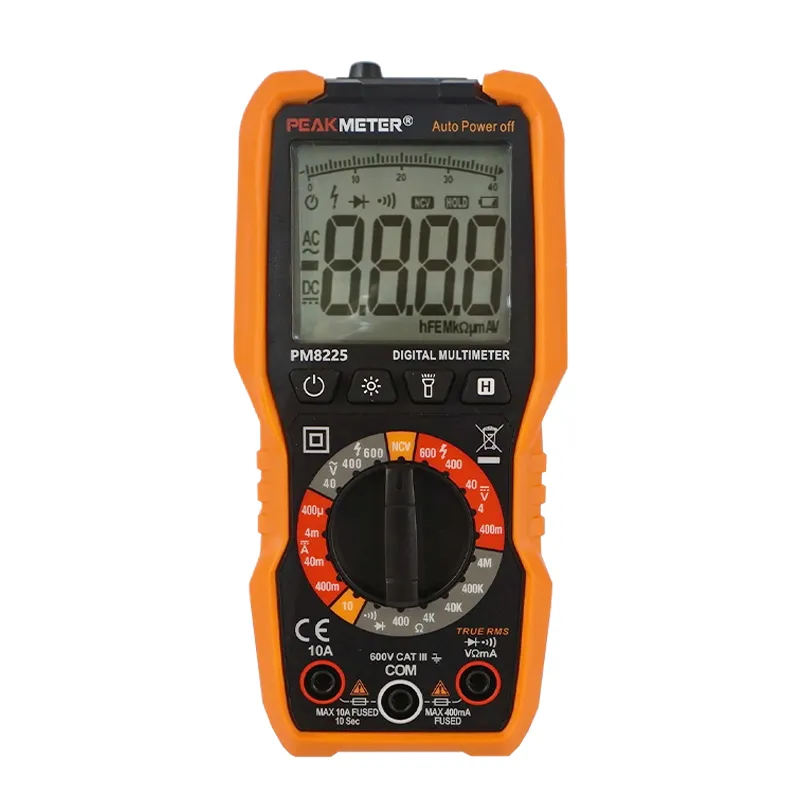

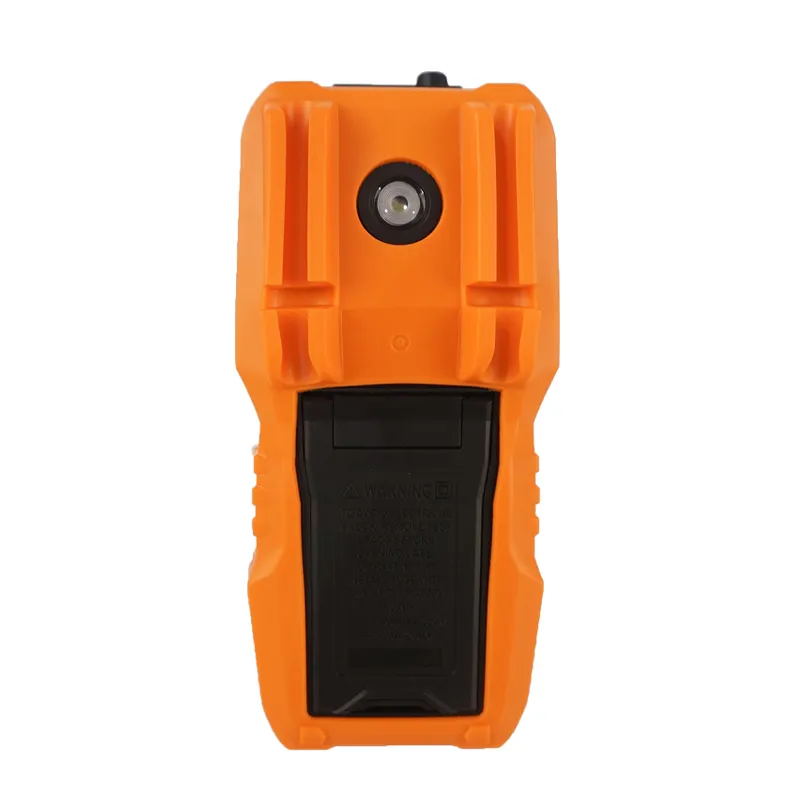

This 4000-count digital multimeter supports auto/manual ranging, measuring up to 600V AC/DC voltage and 10A DC current. It features bar graph display, relative measurement, NCV non-contact voltage test, flashlight and backlight. With CAT III 600V safety certification, compact size and lightweight design, it is an ideal portable tester for daily household and basic electrical maintenance work.
Display: 4000 Counts
Manual Range
Bargraph Display
Data Hold
Diode Test
Continuity
NCV Non-Contact Voltage Detection
Back Light
Flashlight
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 400mV/4V/40V/400V | ±(0.8% +2) |
| 600V | ±(1.0% +2) | |
| DC Current | 400μA/4mA | ±(1.0% +2) |
| 40mA/400mA | ±(1.5% +2) | |
| 10A | ±(3.0% +2) | |
| AC Voltage | 40V/400V/600V | ±(1.2% +10) |
| AC Current | ||
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ | ±(0.8% +3) |
| 4MΩ | ±(1.0% +3) | |
| Capacitance | ||
| Frequency | ||
| FEATURE | ||
| Display | 4000 Counts | |
| Manual Range | √ | |
| Auto Range | ||
| Bargraph Display | √ | |
| Data Hold | √ | |
| Relative Measurement | ||
| MAX/MIN Measurement | ||
| Diode Test | √ | |
| Continuity | √ | |
| NCV | √ | |
| Black Light | √ | |
| Work Light | √ | |
| GENERAL | ||
| Power Supply | 2x1.5V AAA Batteries | |
| Product Size | 166mm X 78mm X 48mm | |
| Net weight | 252.2g (not include batteries） | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600V | |
Test Leads | Users Manual | 2*1.5V AAA batteries |
