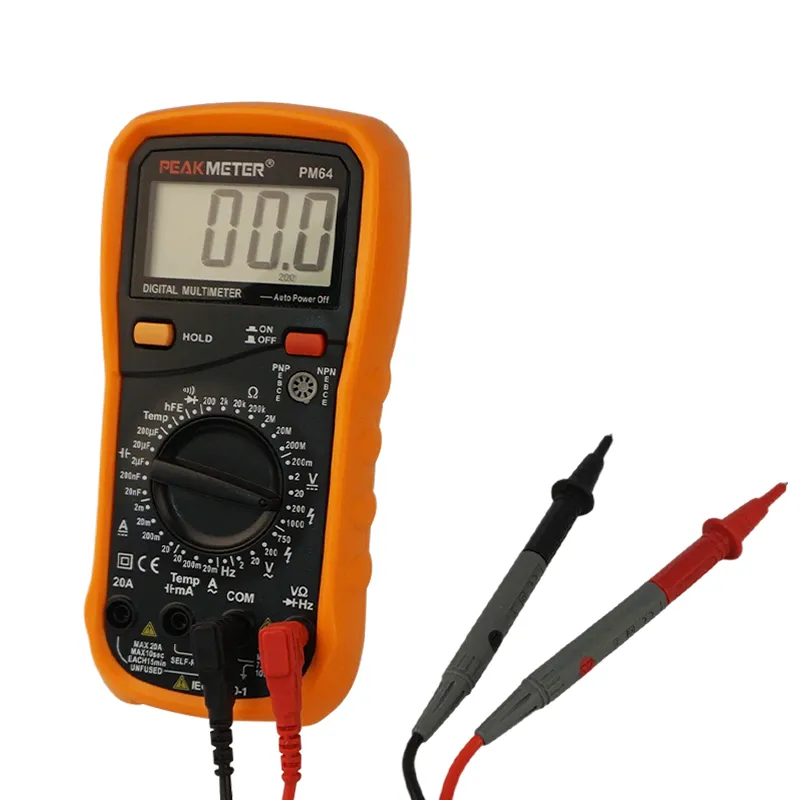

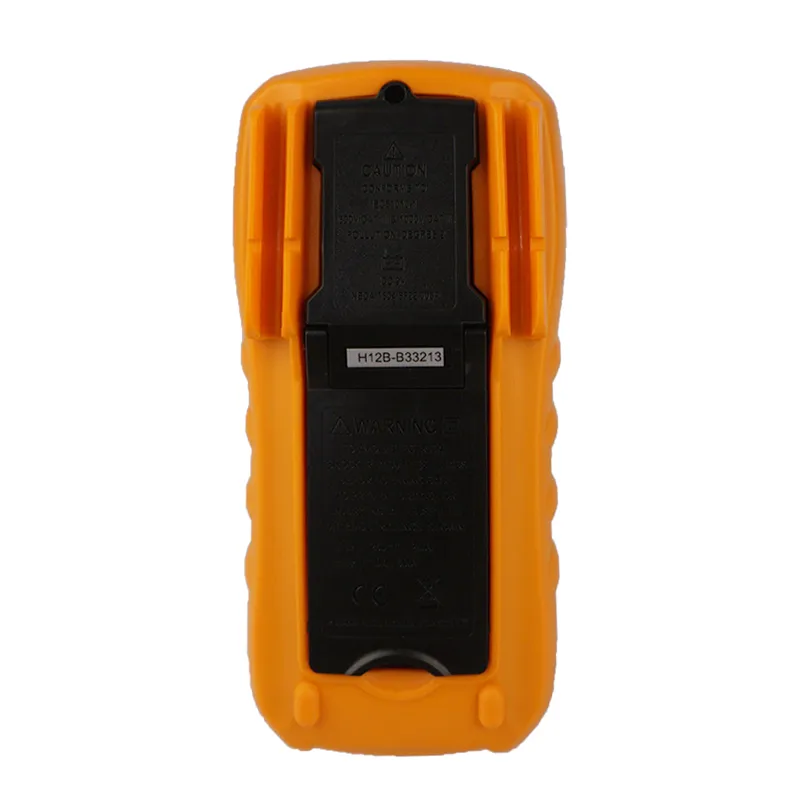

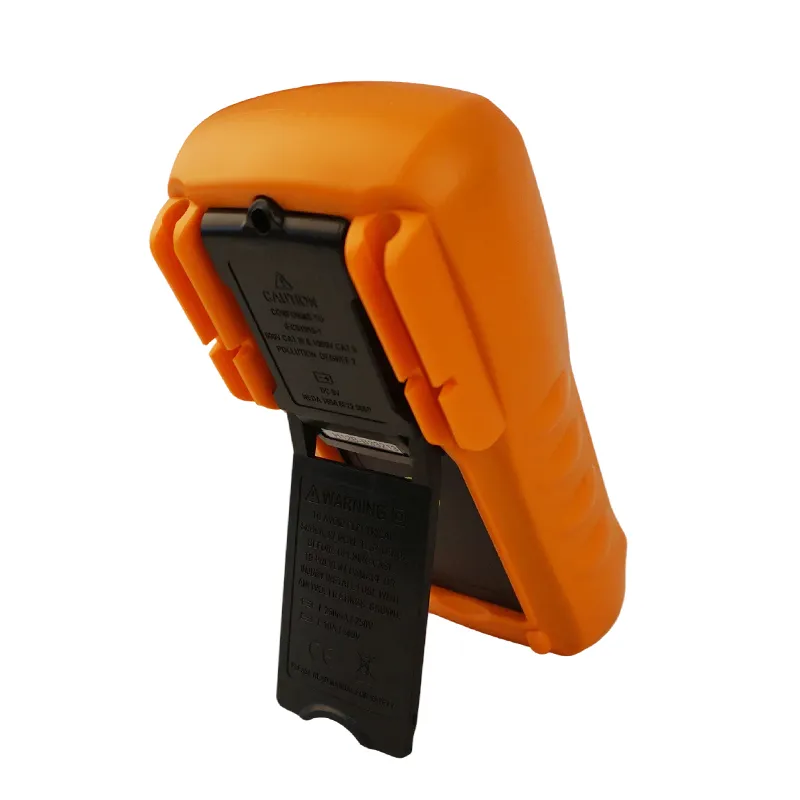

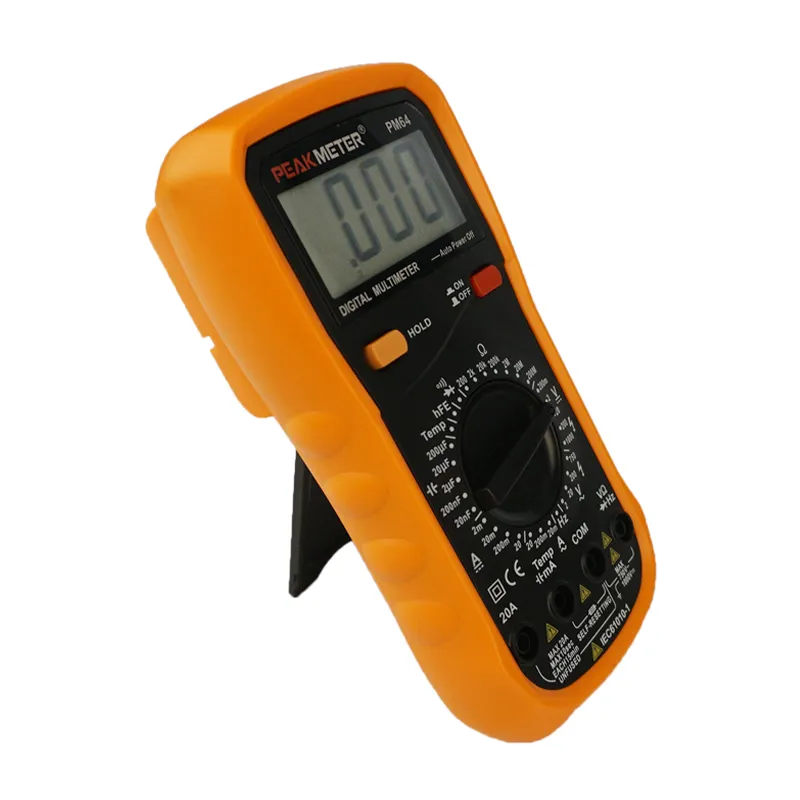

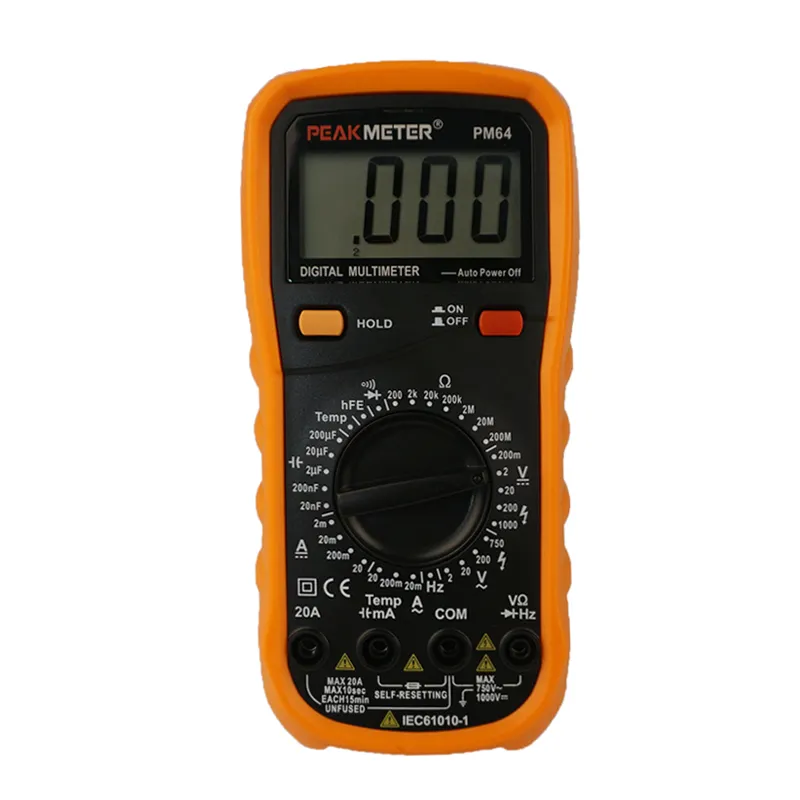

PM64 is a 2000-count auto-ranging digital multimeter with comprehensive measuring functions. It tests up to 1000V DC/750V AC voltage, 10A AC/DC current, capacitance, 20kHz frequency and -20℃~1000℃ temperature. Built with data hold and auto power-off, it complies with CAT III 1000V safety standard. Ideal for electronic lab testing, HVAC maintenance, home appliance repair and professional electrician daily troubleshooting.
Display: 2000 Counts
Data Hold
Auto Power Off
Diode Test
Transistor Test
Continuity Test
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±（0.5%+2） |
| 1000V | ±（0.8%+2） | |
| AC Voltage | 2V/20V/200V | ±（0.8%+3） |
| 750V | ±（1.2%+3） | |
| DC Current | 2mA/20mA | ±（0.8%+1） |
| 200mA | ±（1.5%+1） | |
| 10A | ±（2.0%+5） | |
| AC Current | 20mA | ±（1.0%+5） |
| 200mA | ±（1.8%+5） | |
| 10A | ±（3.0%+7） | |
| Resistance | 200Ω | ±（0.8%+3） |
| 2kΩ/20kΩ/200kΩ/2MΩ | ±（0.8%+2） | |
| 20MΩ | ±（1.0%+2） | |
| 200MΩ | ±（6.0%+10） | |
| Capacitance | 20nF/200nF/2μF | ±（4.0%+3） |
| 200μF | ±（6.0%+10） | |
| Frequency | 20KHz | ±（1.5%+5） |
| Temperature | - 20～0℃ | ±（5.0%+4） |
| 1～400℃ | ±（2.0%+3） | |
| 401～1000℃ | ±（2.0%+5） | |
| FEATURES | ||
| Display | 2000 Counts | |
| Data Hold | √ | |
| Auto Power Off | √ | |
| Diode Test | √ | |
| Transistor Test | √ | |
| Continuity | √ | |
| GENERAL | ||
| Power Supply | 1×9V6F22 battery | |
| Net weight | Approx.380g(included batteries) | |
| Gross weight | 570g | |
| Product Size | 188mm×93mm×50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000v,CAT.Ⅳ600V | |
| Package（PCS/carton） | 30pcs | |
| Color Box Size | 280mm×128mm×59mm | |
| Carton Size | 440mm×310mm×410mm | |
| G.W | 17.1kg | |
| K Type Thermocouple | Test Leads | Users Manual | 1×9V 6F22 Battery |
