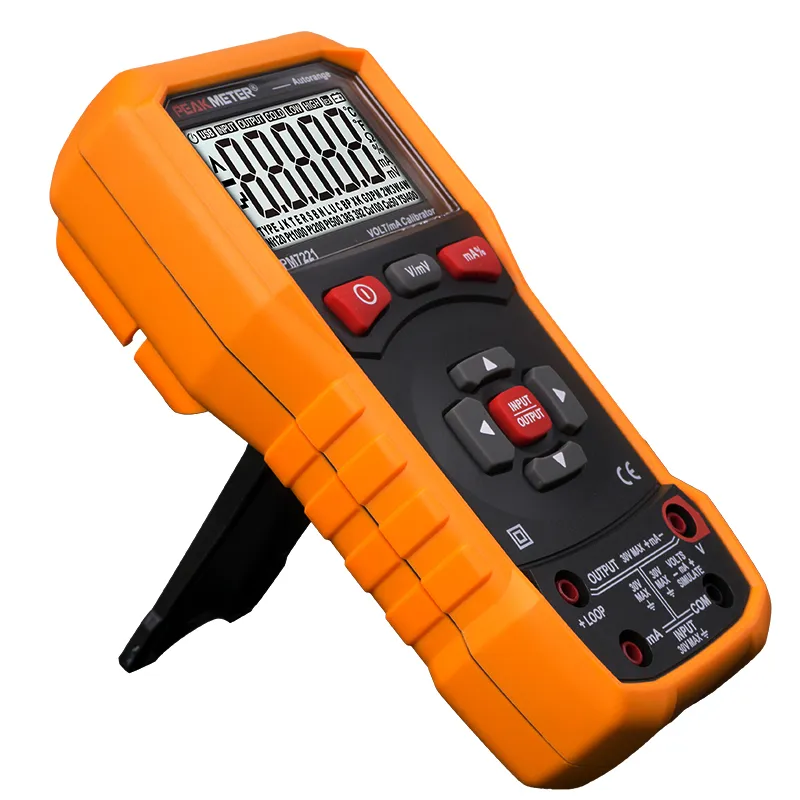

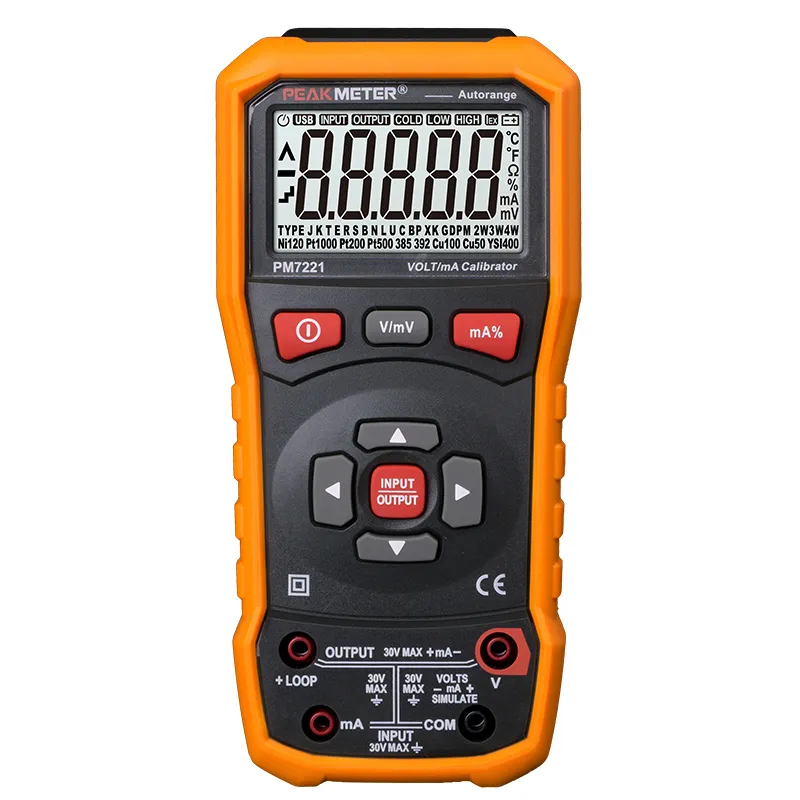

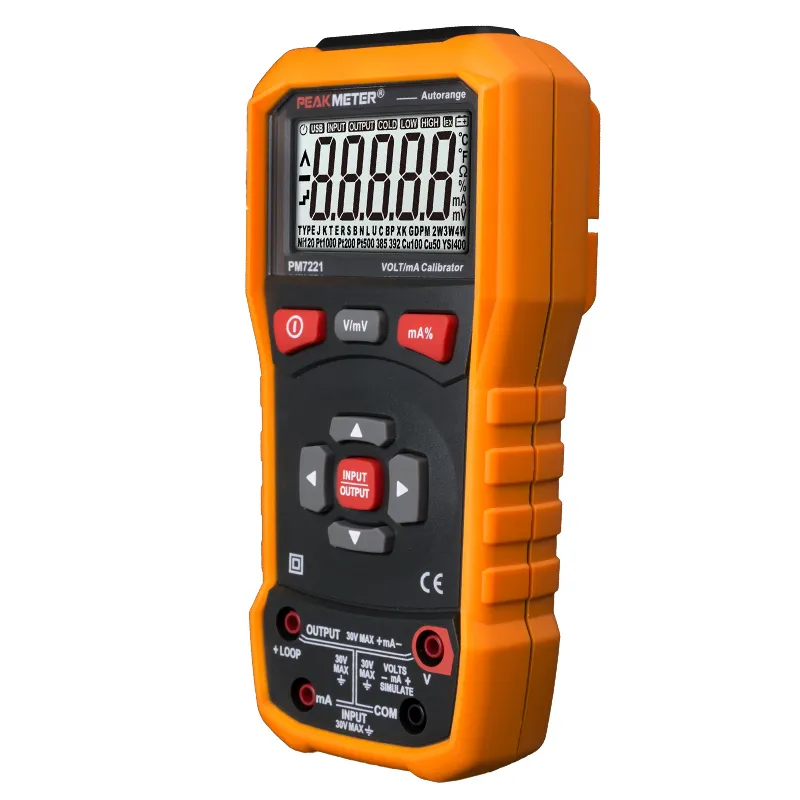

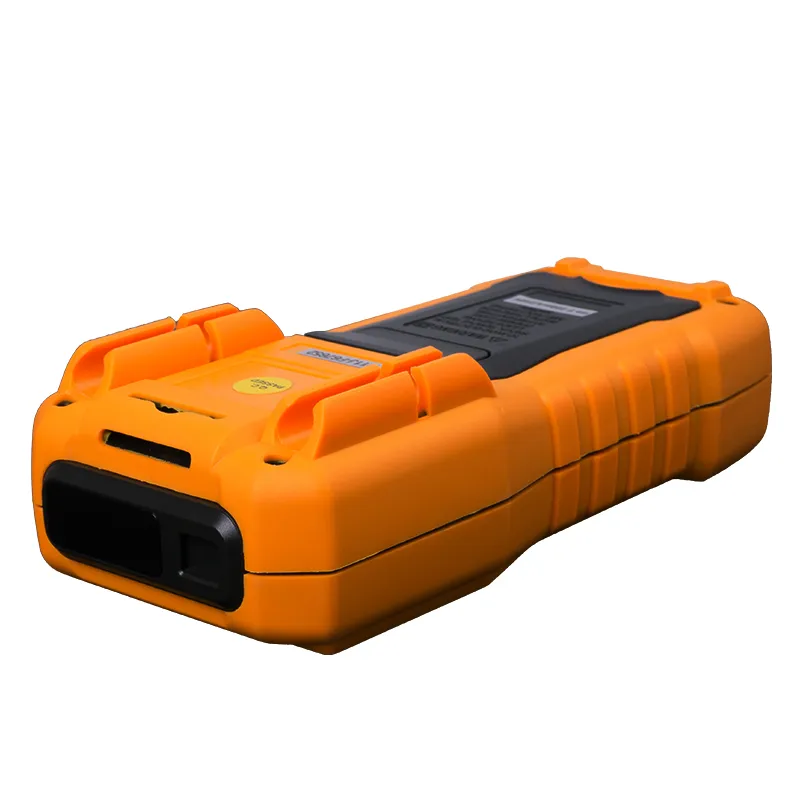

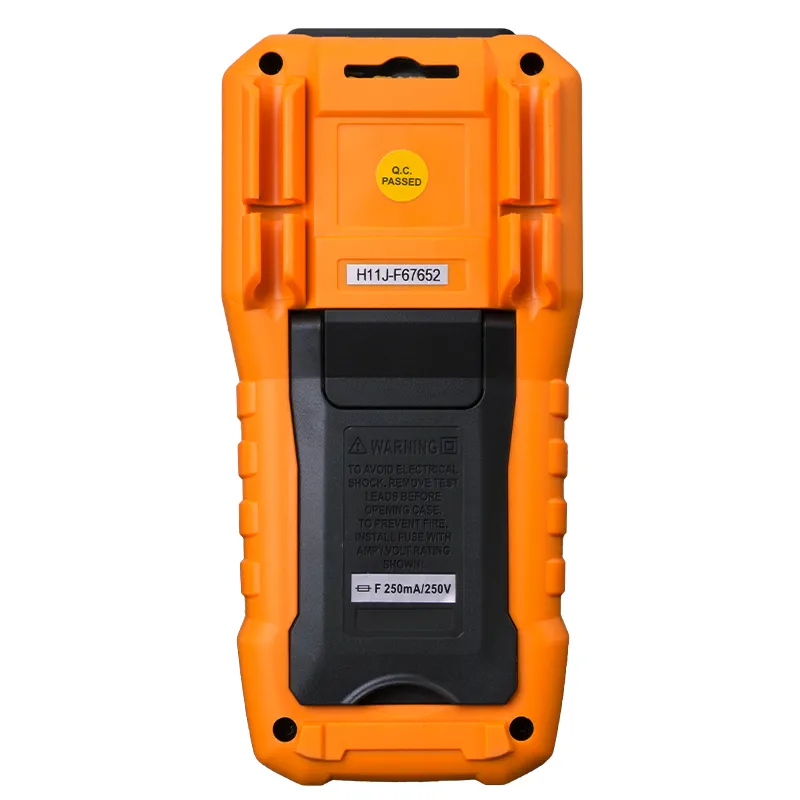

PM7221 is a Volt/mA source and measuring tool used in tests on 0-24 Milliampere current circuit and 10V DC voltage. This calibrator can not be used for measurement and output simultaneously. When the meter is left idle for five minutes, the meter will automatically be shut down to extend the batteries’ service life. It can only be installed and operated by qualified specialists in accordance with the safety precautions and regulations and the required technical specifications. The calibrator can provide current output in accordance with Milliampere value or percentage displayed.
Measure Loop Current (0-24 mA) Signals with Very High Accuracy of 0.015% and 1uA Resolution
Measure Voltage Output Process Signals from PLCs, Transmitters
Source or Simulate 24 mA Loop Current
Source Voltage to 100 mV or 10V
24V Loop Supply with Simultaneous Current Measurement
| MODEL | PM7221 | ||
| SPECIFICATION | RANGE | ACCURACY | RESOLUTION |
| mV Measure(INPUT) | 0~100mV | ±(0.02% +2) | 0.01mV |
| mV Source(OUTPUT) | 0~100mV | ±(0.02% +2) | 0.01mV |
| V Measure(INPUT) | 0-10V | ±(0.02% +2) | 0.001V |
| V Source(OUTPUT) | 0-10V | ±(0.02% +2) | 0.001V |
| mAMeasure (% of span) | 0 to 24 mA(-25% to 125%) | ±(0.015% +4) | 0.001 mA |
| mA Source(% of span) | 0 to 24 mA(-25% to 125%) | ±(0.015% +4) | 0.001 mA |
| Loop Power | 24VDC | ±10.0% | |
| FEATURE | |||
| DisplayMeasure loop current (0-24 mA) signals with very high accuracy of 0.015% and 1uAresolution | |||
| Measure voltage output process signals from PLCs, transmitters | |||
| Source or simulate 24 mAloop current | |||
| Source voltage to 100 mV or 10V | |||
| 24V loop supply with simultaneous current measurement | |||
| GENERAL | |||
| Power Supply | 4 x 1.5V AA Batteries | ||
| Product Size | 194mmx94mmx54mm | ||
| Weight | Approx. 345.5g | ||
| Gross weight | 878.3g | ||
| Safty Rating | EN61010-1,EN61326-1 | ||
| Test Leads | Users Manual | 4x1.5V AAA Batteries |
