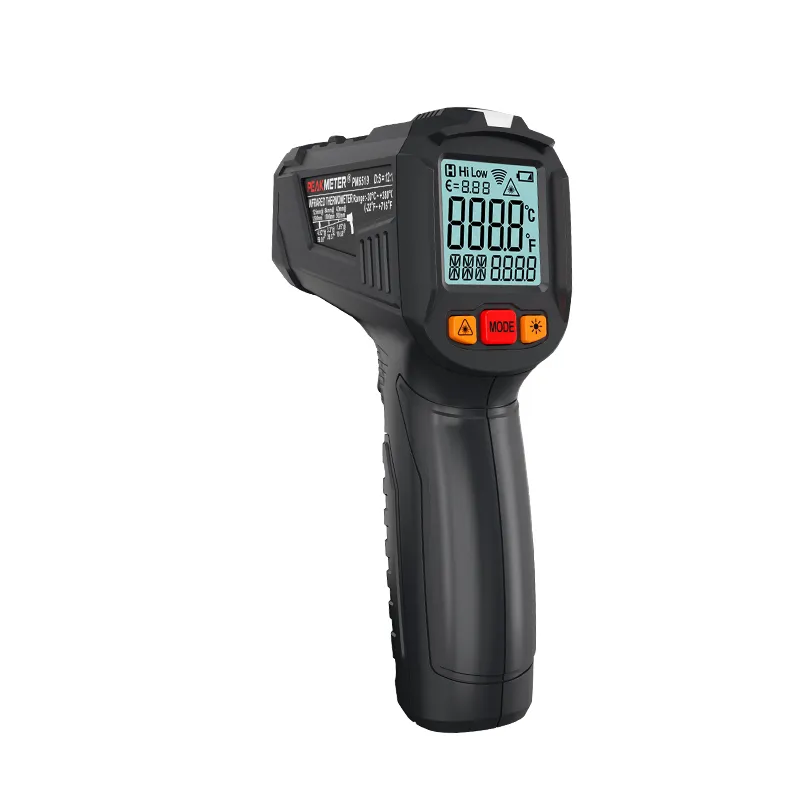

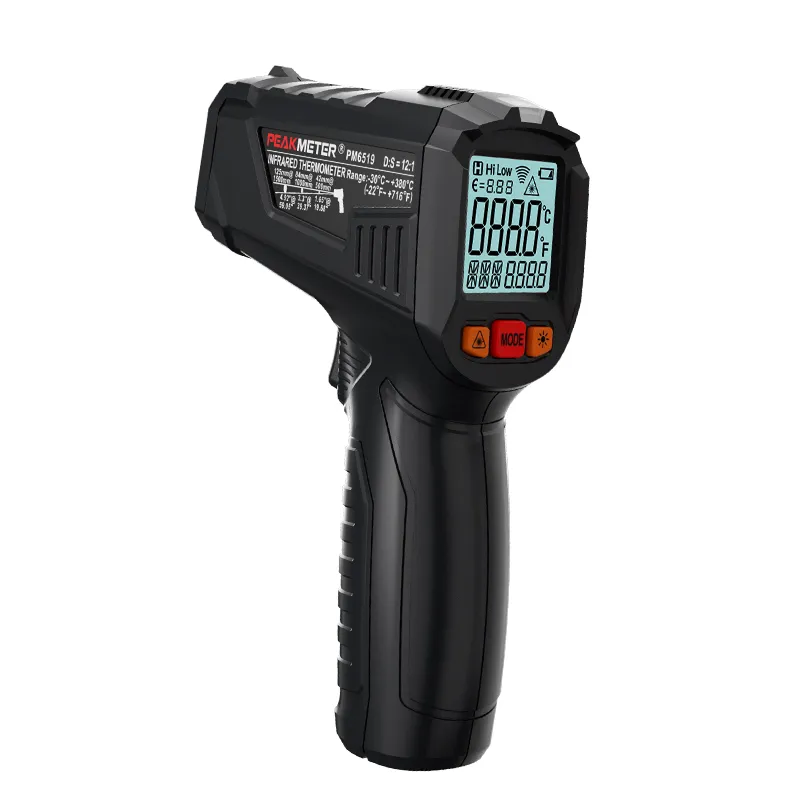

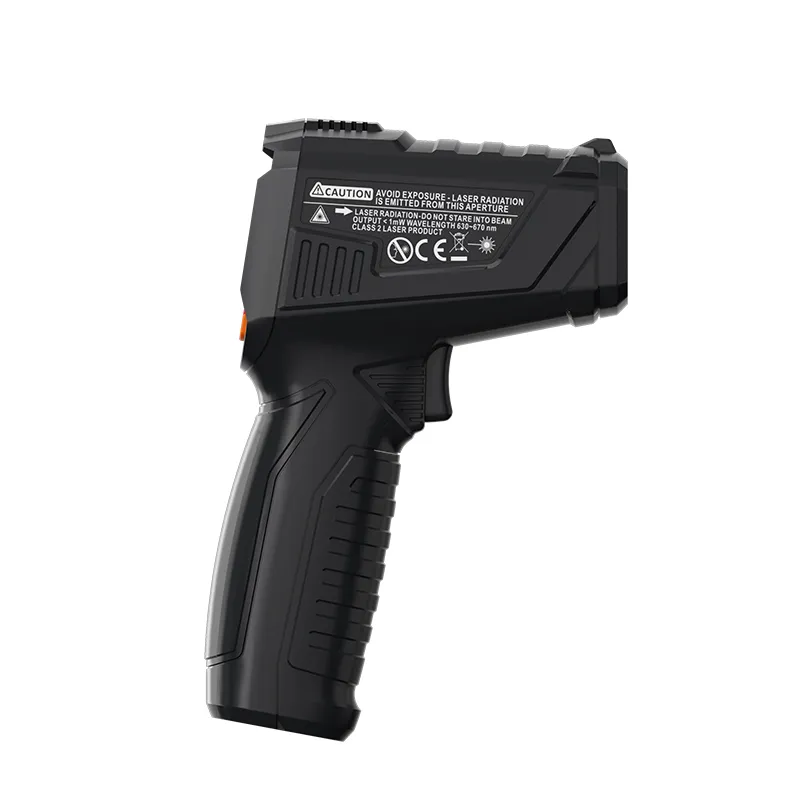

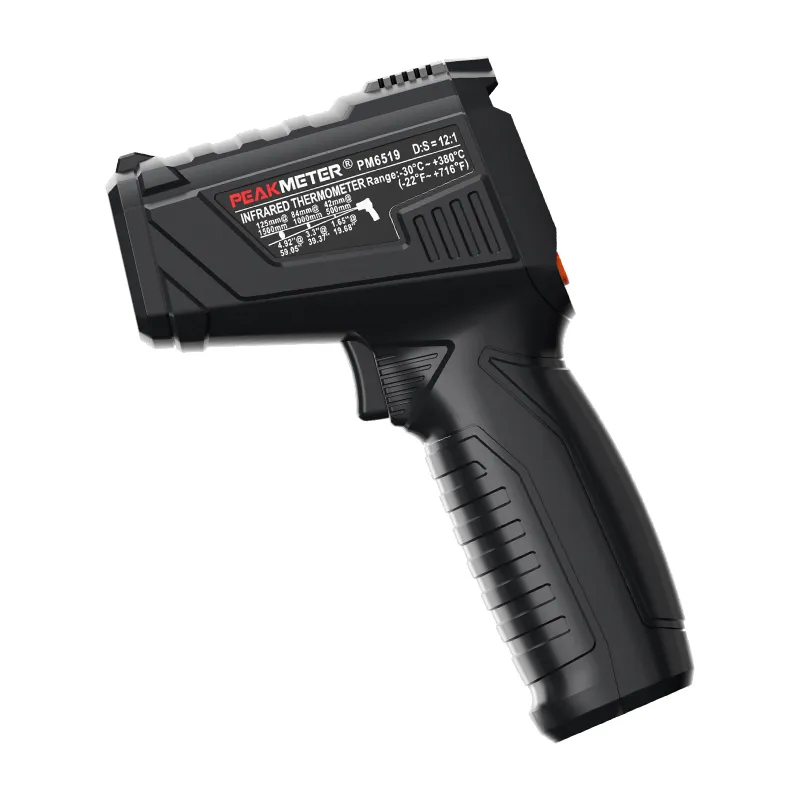

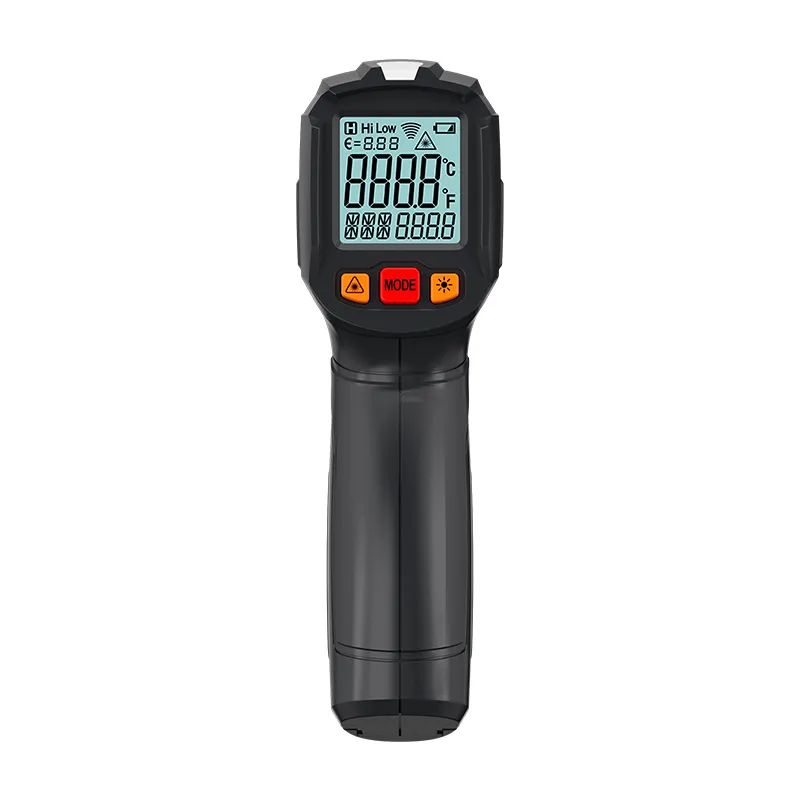

PM6519 is an industrial-grade thermometer, non-contact measurement with high and low temperature alarm, which can measure temperature safely. After setting the alarm upper and lower limit values, if the measured temperature is higher or lower than the limit value in the corresponding functional state, the red alarm light will light up. The display can display the corresponding function, measurement temperature and unit, the backlight function provides the user with a clear reading of the light source in the dark environment.
Color Display
Laser Target Pointer (630nm~670nm)
D:S=12:1
Emissivity: 0.10~1.00
Spectral Response: 8~14um
Temperature
Response Time:＜0.5s
IRT Temperature
Temperature Bridge Alarm (Red/Yellow/Green LED)
HOLD
Back Light
Auto Power Off
Low Battery Indication
MAX
| SPECIFICATION | RANGE | ACCURACY |
| IRT Temperature | -30～0℃ | ±3℃ |
| -22℉～32℉ | ±6℉ | |
| 0～380℃ | ±（1.5%+2℃） | |
| 32℉～716℉ | ±（1.5%+4℉） | |
| FEATURE | ||
| LED Display | √ | |
| Laser Target Pointer（630nm-670nm） | √ | |
| D:S=12:1 | √ | |
| Emissity：0.1～1.00 | √ | |
| Spectral Response：8～14um | √ | |
| Response Time：＜0.5S | √ | |
| Auto Power Off：15S | √ | |
| ℃/℉ | √ | |
| Temperature Bridge Alarm（Red/Yellow/Green LED） | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Max Value | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 1.5V×2AAA Batteries | |
| Product Size | 146mm×90mm×44mm | |
| Net weight | 113g(batteries are not included） | |
| Gross weight | 196g | |
| Safty Rating | EN61326,EN60825 | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 165mm×110mm×53mm | |
| Carton Size | 560mm×350mm×246mm | |
| G.W | 8.8kg | |
| Users Manual | 6F22 9V Battery |
