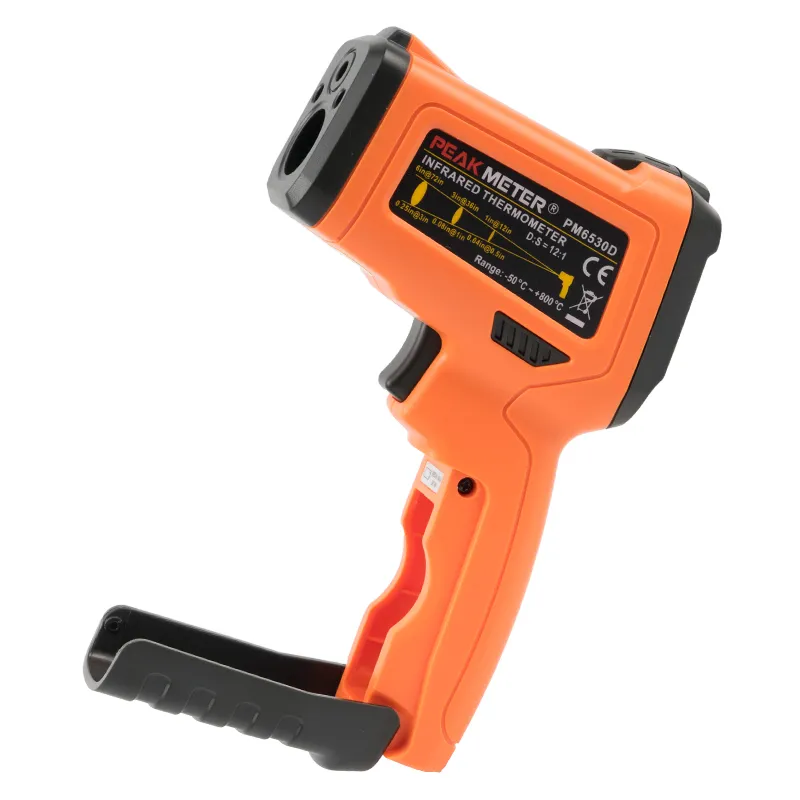

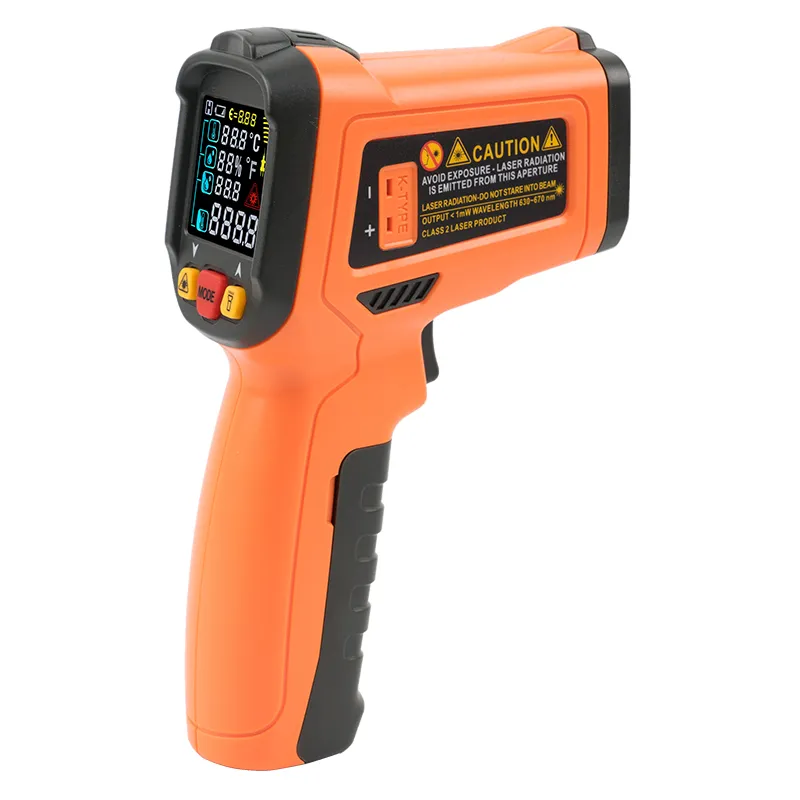

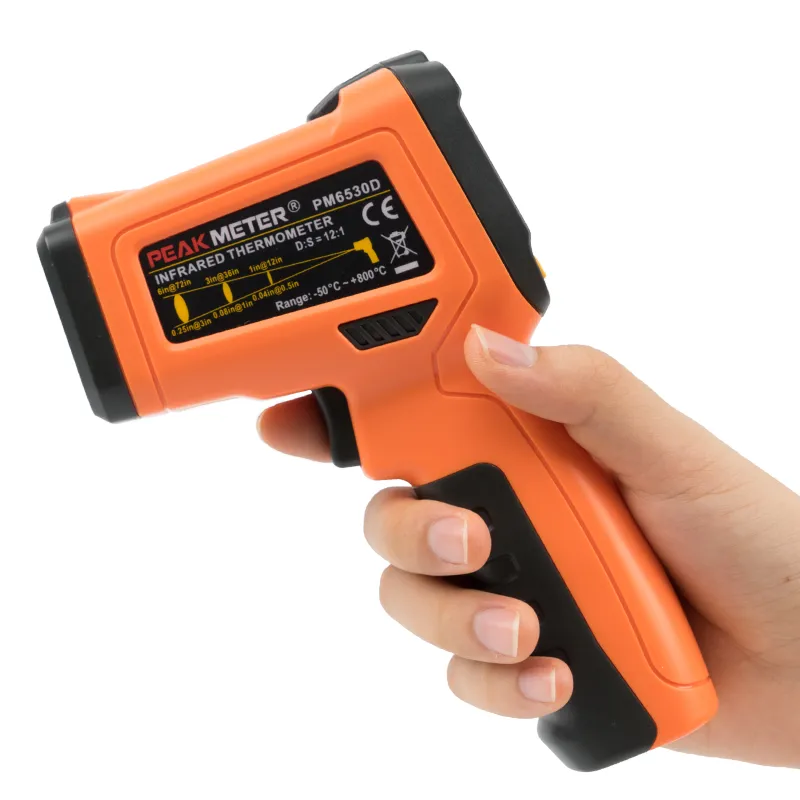

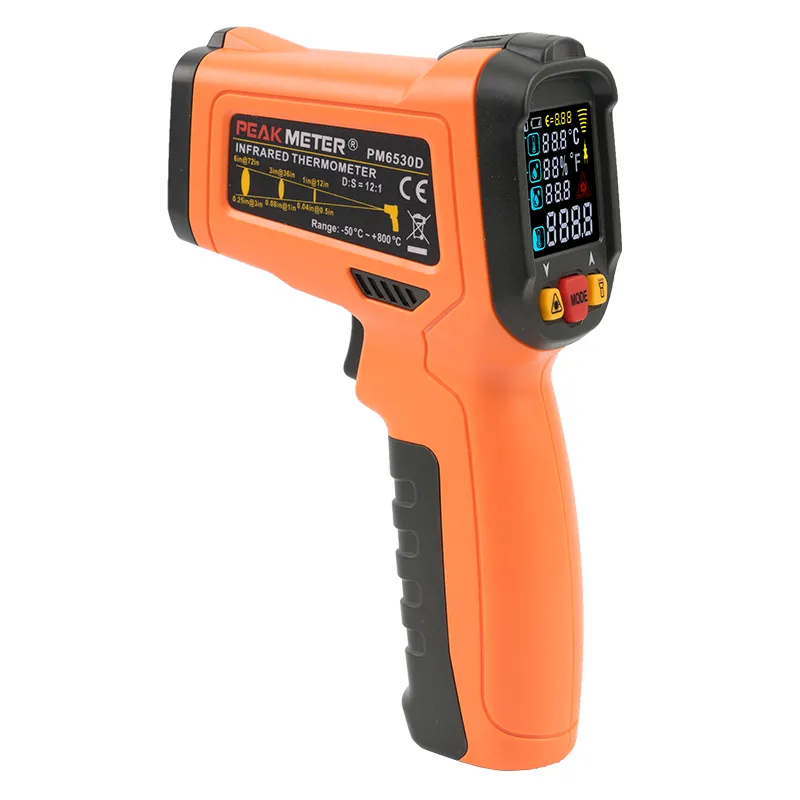

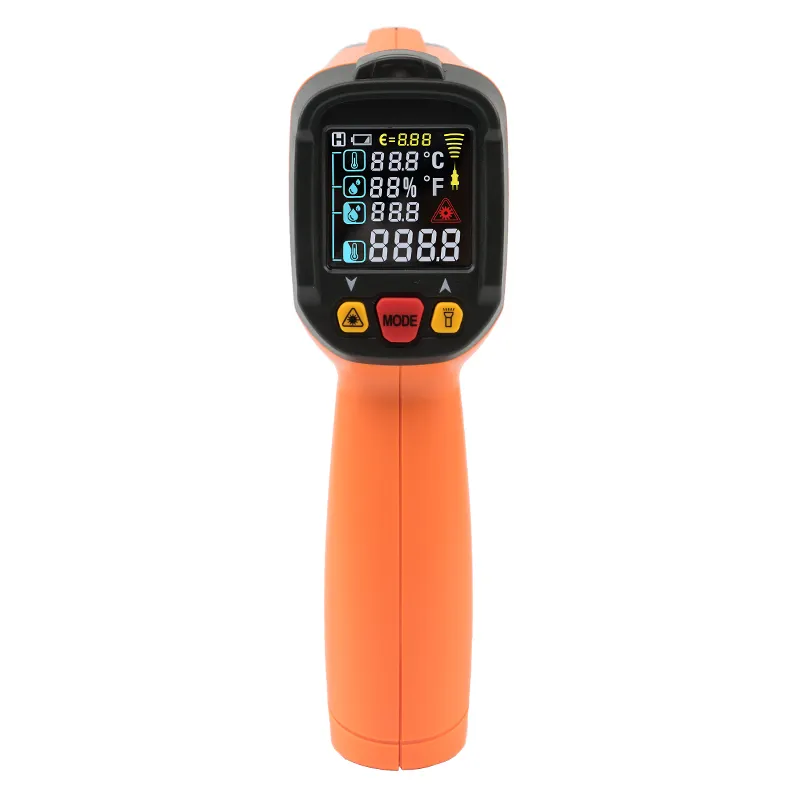

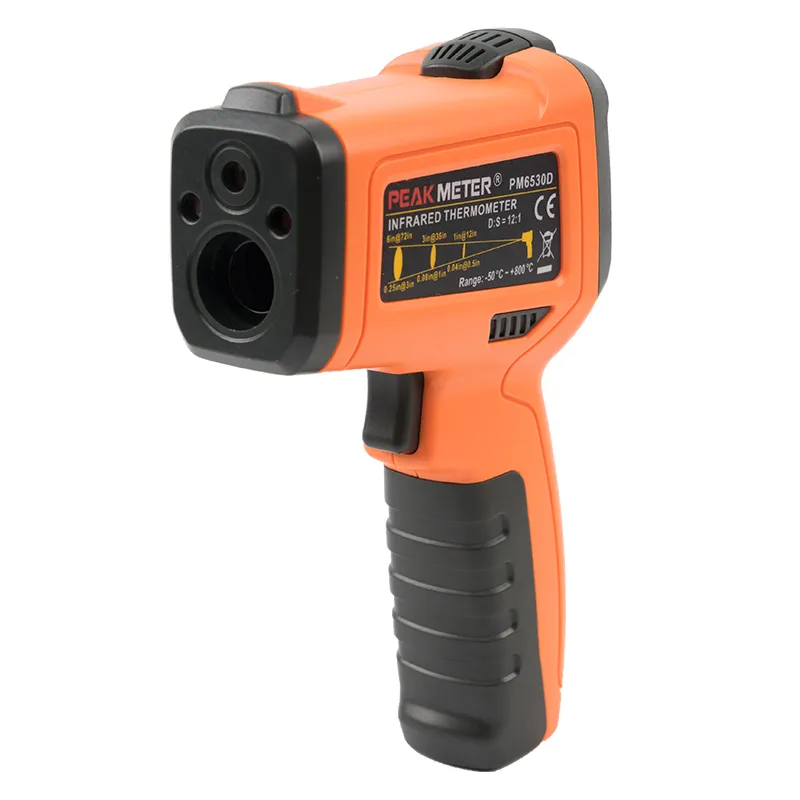

The Digital Non-Contact Infrared Thermometer is a reliable device used to measure the surface temperature of an object safely and quickly. With many other useful functions, this item is more practical than common infrared thermometer. It is compact in size, light in weight and convenient to carry. Handheld infrared thermometer is used for non-contact measurement of object temperature 12 points form a circular measurement zone at the ratio of D:S=12:1, giving the more precise data. The auto power-off can be done after the data showing for 5minutes. PM6350D with UV light can be used to detect the leakage of vehicle air conditioning and other high pressure systems.
Color Display
Laser Target Pointer (630nm~670nm): Circle
D:S=12:1
Emissivity: 0.10~1.00
Spectral Response: 8~14um
Temperature
Response Time:＜0.5s
IRT Temperature: -50°C~800°C,-58°F~1472°F
K-type
Ambient Temperature
Dew Point Temperature
Relativ Humidity
Mold Alarm (Red/Yellow/Green LED)
Temperature Bridge Alarm (Red/Yellow/Green LED)
HOLD
Back Light
Auto Power Off
Low Battery Indication
UV Light
| SPECIFICATION | RANGE | ACCURACY |
| IRT Temperature | -50～0℃ (-58℉～32℉） | ±3℃/6℉ |
| 0～800℃ （32℉～1472℉） | ±（1.5%+2℃/4℉） | |
| K-type | -10℃～537℃ | ±（1.5%+2℃） |
| 14℉～999℉ | ±（1.5%+4℉） | |
| Ambient Temperature | 0～45℃（32～113℉） | ±1.0℃/2.0℉ |
| -10～0℃/45℃～60℃（14～32℉/113～140℉） | ±1.5℃/3.0℉ | |
| Ambient Humidity | ±4.0%RH（20%～80%） | |
| ±5.0%RH(0%～20%,80%～100%) | ||
| Dew point Temperature | -10～50℃ | ±1.5℃ |
| 14～122℉ | ±3.0℉ | |
| FEATURE | ||
| Color Display | √ | |
| Laser Target Pointer（630nm-670nm） | √ | |
| D:S=12:1 | √ | |
| Emissity：0.1～1.00 | √ | |
| Spectral Response：8～14um | √ | |
| Response Time：＜0.5S | √ | |
| Auto Power Off：15S | √ | |
| ℃/℉ | √ | |
| K-type | √ | |
| Ambient Temperature | √ | |
| Dew point Temperature | √ | |
| Relative Temperature | √ | |
| Mold Alarm（Red/Yellow/Green LED） | √ | |
| Temperature Bridge Alarm（Red/Yellow/Green LED） | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Max Value | √ | |
| BackLight | √ | |
| UV Light | √ | |
| GENERAL | ||
| Power Supply | 9V 6F22 Battery | |
| Product Size | 163mm×101mm×48mm | |
| Net weight | 160g(batteries are not included） | |
| Gross weight | 338g | |
| Safty Rating | EN61326,EN60825 | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 187mm×121mm×60mm | |
| Carton Size | 395mm×320mm×385mm | |
| G.W | 11kg | |
| Users Manual | 6F22 9V Battery |
