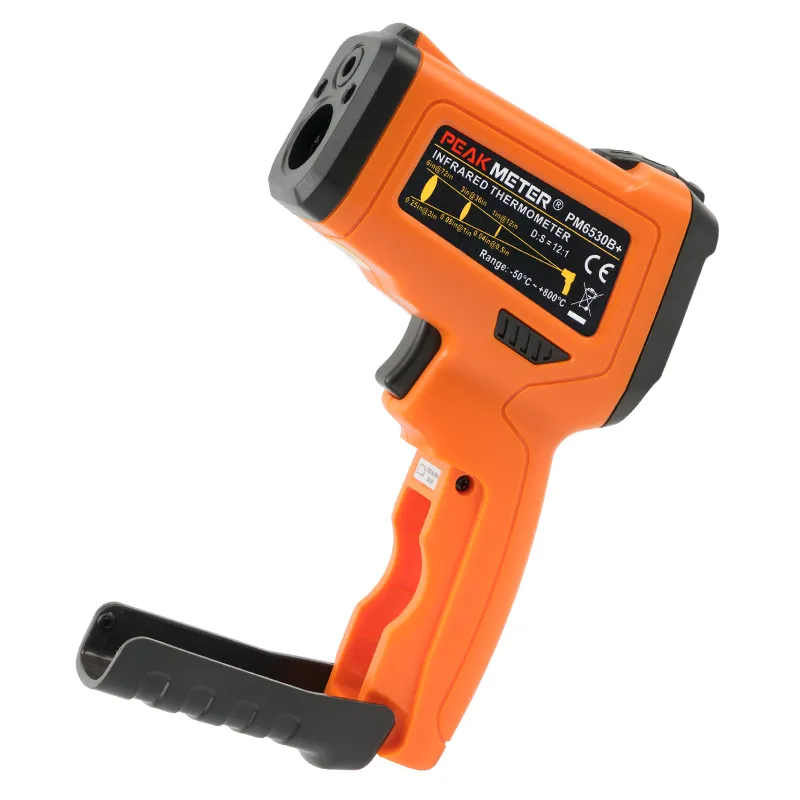

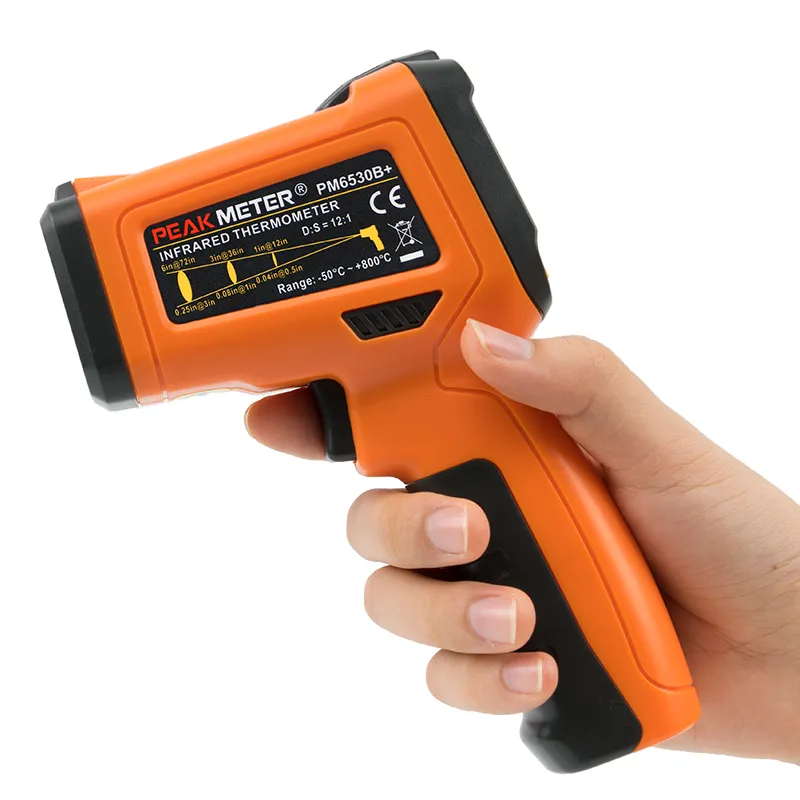

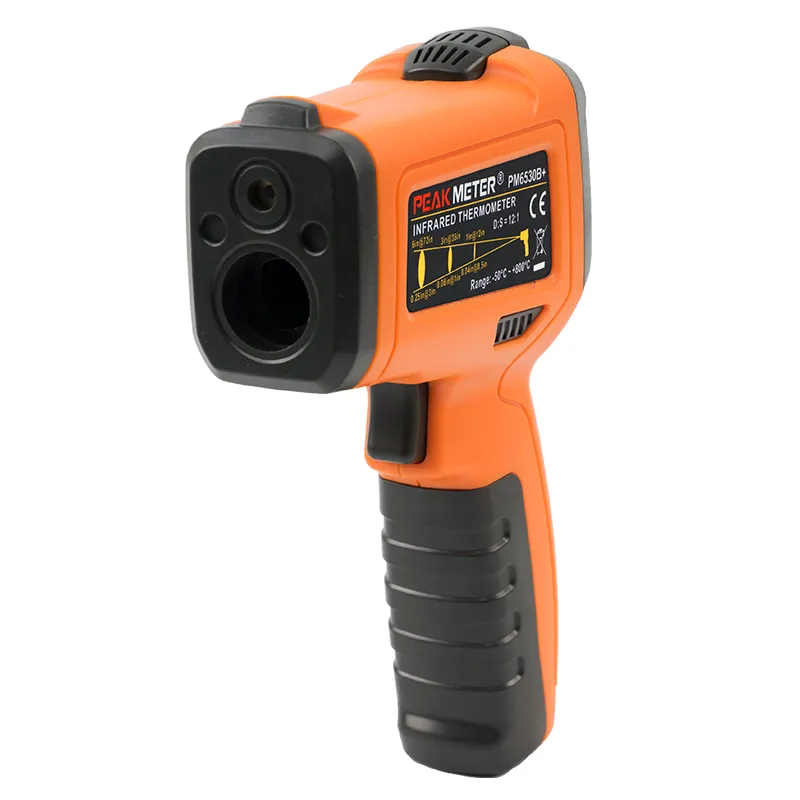

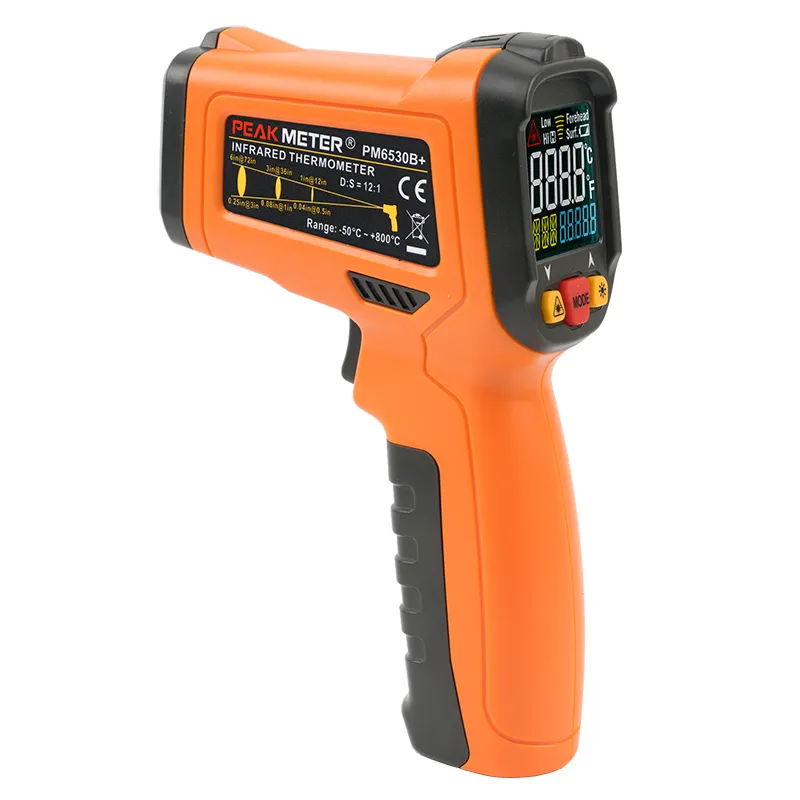

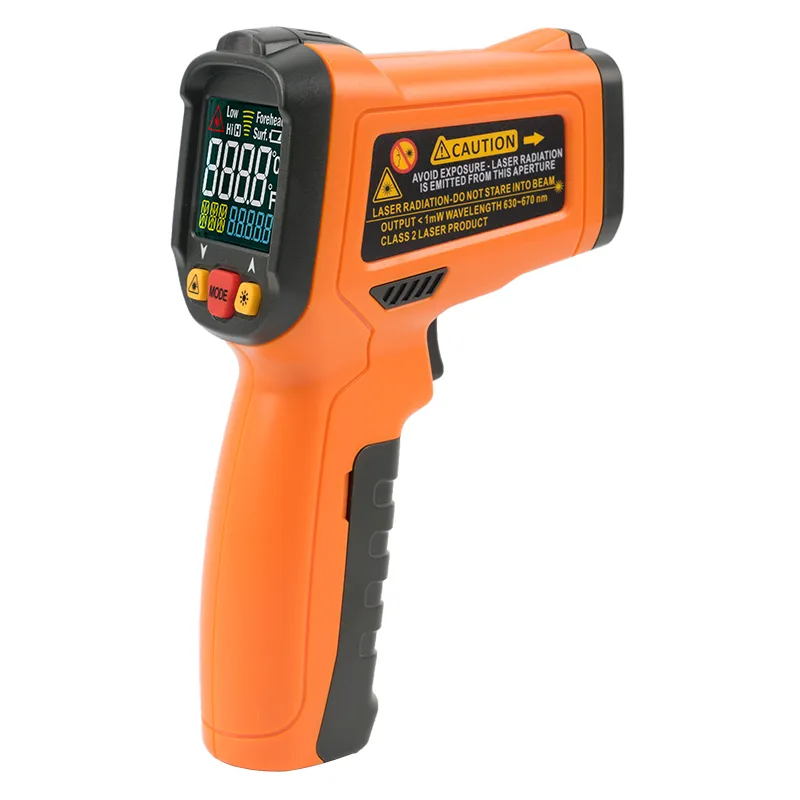

PM6530B+ is colorful display and non-contact infrared thermometer that allows you to measure the temperature of the objects by detecting their infrared energy. Multipurpose for cooking, refrigeration, automotive, air conditioning, HVAC and other households. Besides, it's also used in industrial, outdoor, indoor and other places.
| SPECIFICATION | RANGE | ACCURACY |
| IRT Temperature | -50～800℃ | ±（1.5%+2℃） |
| -58℉～1472℉ | ±（1.5%+4℉） | |
| FEATURE | ||
| Color Display | √ | |
| Laser Target Pointer（630nm-670nm） | √ | |
| D:S=12:1 | √ | |
| Emissity：0.1～1.00 | √ | |
| Spectral Response：8～14um | √ | |
| Response Time：＜0.5S | √ | |
| Auto Power Off：15S | √ | |
| ℃/℉ | √ | |
| Temperature Bridge Alarm（Red/Yellow/Green LED） | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Max Value | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 9V 6F22 Battery | |
| Product Size | 163mm×101mm×48mm | |
| Net weight | 156g(batteries are not included） | |
| Gross weight | 312g | |
| Safty Rating | EN61326,EN60825 | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 187mm×121mm×60mm | |
| Carton Size | 395mm×320mm×385mm | |
| G.W | 10.4kg | |

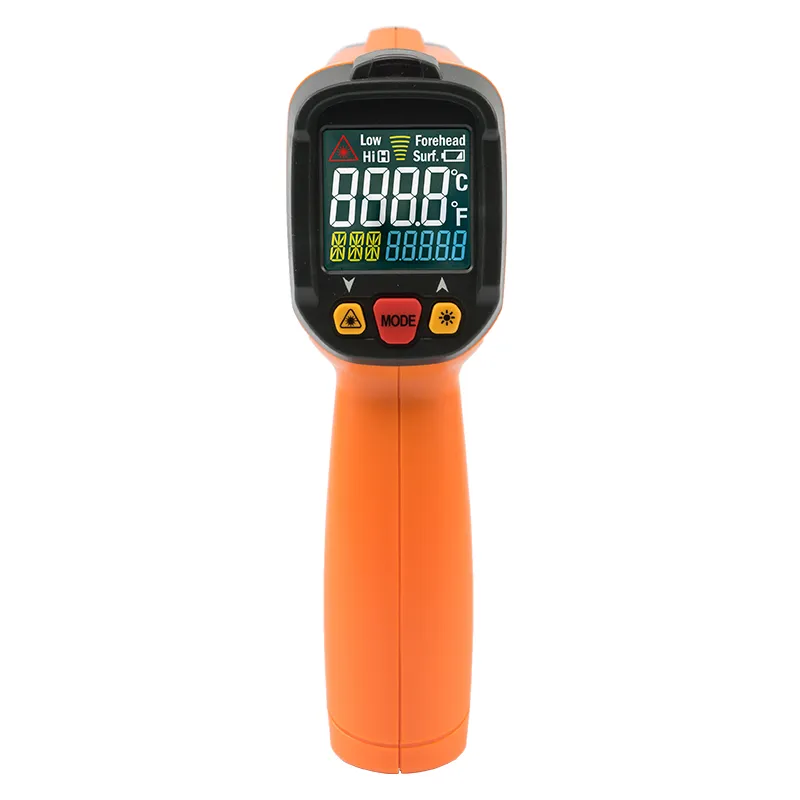

Color Display
Laser Target Pointer (630nm~670nm)
D:S=12:1
Emissivity: 0.10~1.00
Spectral Response: 8~14um
Temperature
Response Time:＜0.5s
IRT Temperature: -50°C~800°C,-58°F~1472°F
Temperature Bridge Alarm (Red/Yellow/Green LED)
HOLD
Back Light
Auto Power Off
Low Battery Indication
MAX
| Users Manual | 6F22 9V Battery |
English
