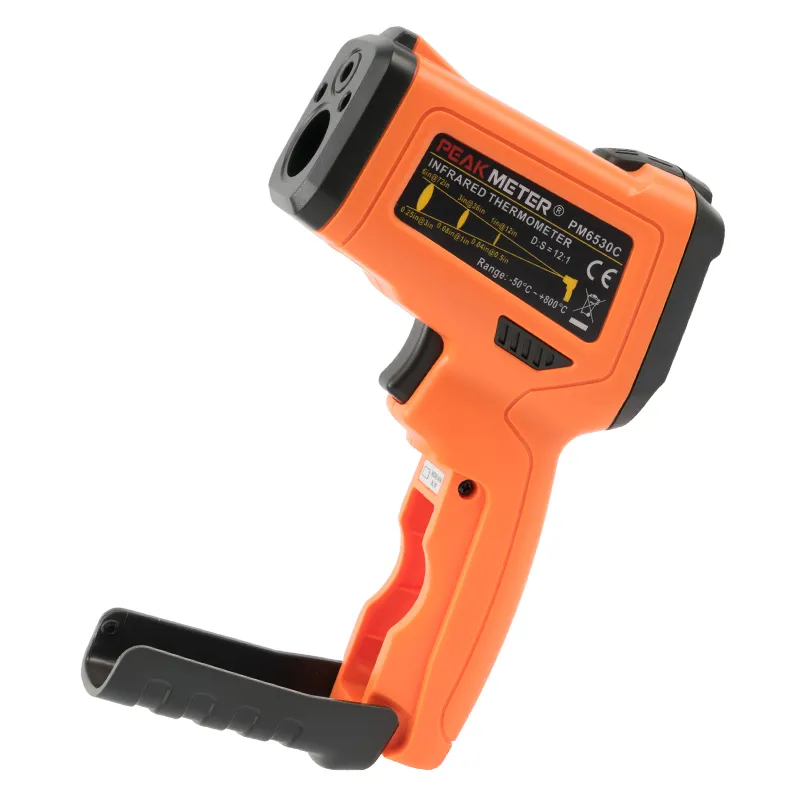

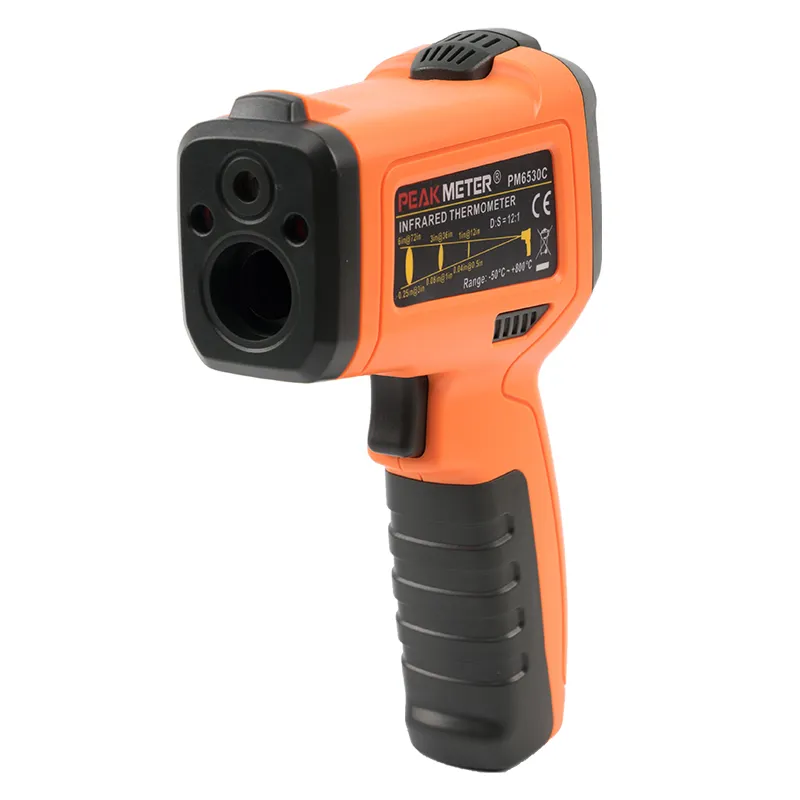

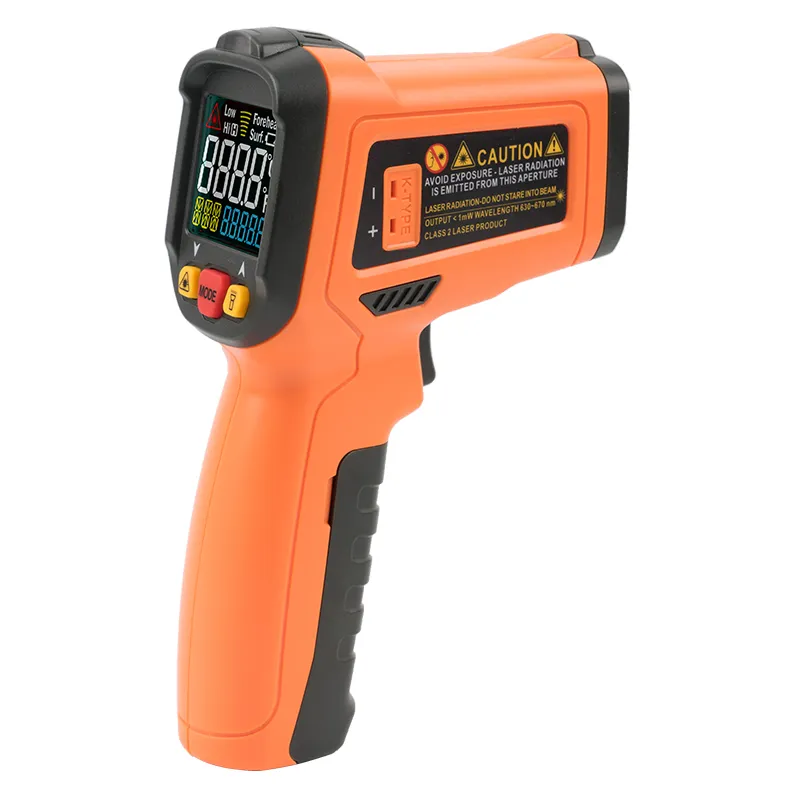

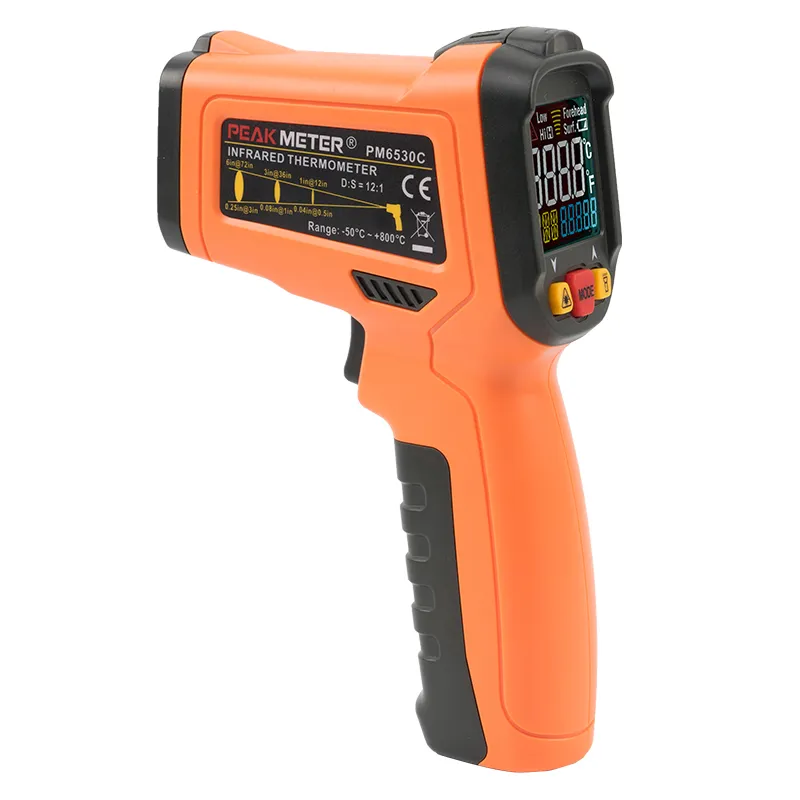

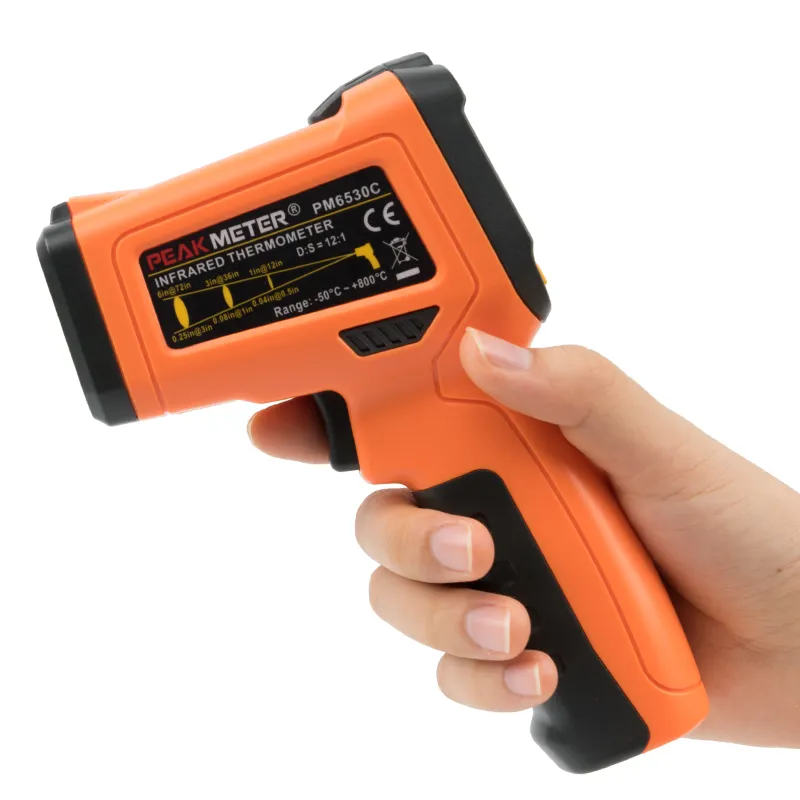

PM6530C is a professional, hand-held meter. The infrared radiation received is a far infrared band (8-14 degrees Celsius), and the distance ratio of infrared objects received by the thermometer is 12:1, which can accurately determine the range of objects. Multipurpose for cooking, refrigeration, automotive, air conditioning, HVAC and other households. Besides, it's also used in industrial, outdoor, indoor and other places. Target the temperature measurement meter at an object and pull the trigger for a period to carry out continuous measurement of temperature. After K type thermocouple probe is inserted into the thermocouple socket of the instrument, the instrument’s functional area will display PRb and secondary panel the temperature value of K thermocouple.

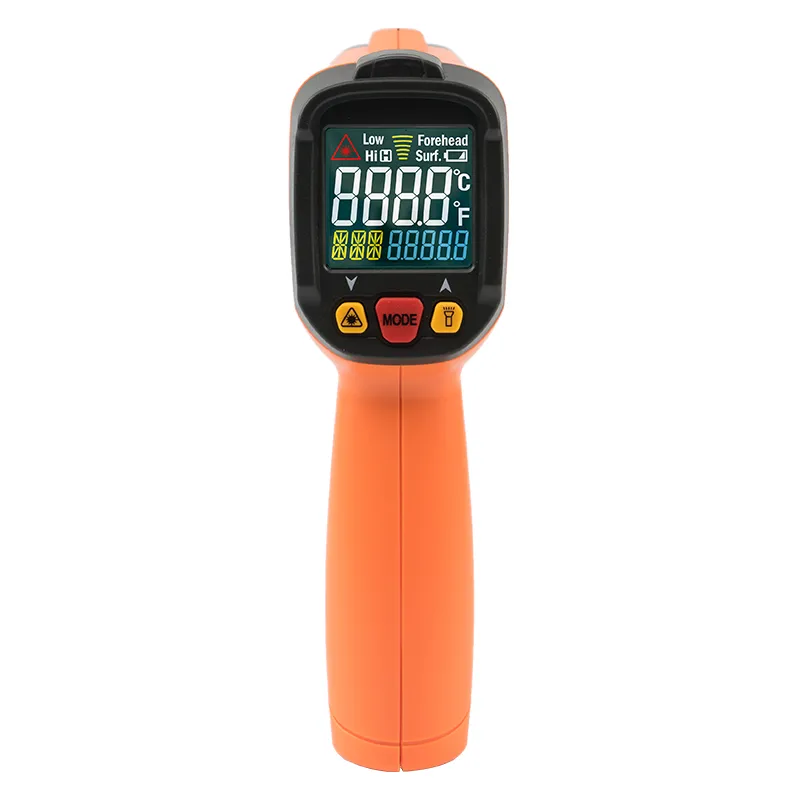

Color Display
Laser Target Pointer (630nm~670nm): Circle
D:S=12:1
Emissivity: 0.10~1.00
Spectral Response: 8~14um
Temperature
Response Time:＜0.5s
IRT Temperature: -50°C~800°C,-58°F~1472°F
K-Type
Temperature Bridge Alarm (Red/Yellow/Green LED)
HOLD
Back Light
Auto Power Off
Low Battery Indication
MAX
UV Light
| SPECIFICATION | RANGE | ACCURACY |
| IRT Temperature | -50～800℃ | ±（1.5%+2℃） |
| -58℉～1472℉ | ±（1.5%+4℉） | |
| K-type | -50～1000℃ | ±（1.5%+2℃） |
| -58℉～1832℉ | ±（1.5%+4℉） | |
| FEATURE | ||
| Color Display | √ | |
| Laser Target Pointer（630nm-670nm） | √ | |
| D:S=12:1 | √ | |
| Emissity：0.1～1.00 | √ | |
| Spectral Response：8～14um | √ | |
| Response Time：＜0.5S | √ | |
| Auto Power Off：15S | √ | |
| ℃/℉ | √ | |
| Temperature Bridge Alarm（Red/Yellow/Green LED） | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Max Value | √ | |
| BackLight | √ | |
| K-type | √ | |
| UV Light（Optional Matching） | √ | |
| GENERAL | ||
| Power Supply | 9V 6F22 Battery | |
| Product Size | 163mm×101mm×48mm | |
| Net weight | 160g(batteries are not included） | |
| Gross weight | 335g | |
| Safty Rating | EN61326,EN60825 | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 190mm×120mm×60mm | |
| Carton Size | 400mm×320mm×380mm | |
| G.W | 11kg | |
| Users Manual | 6F22 9V Battery |
