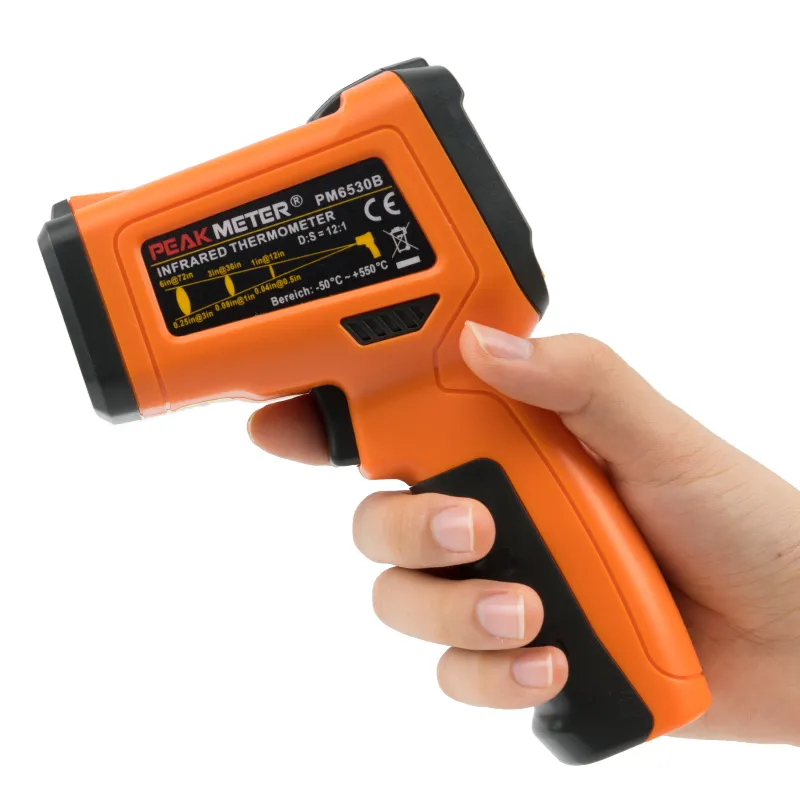

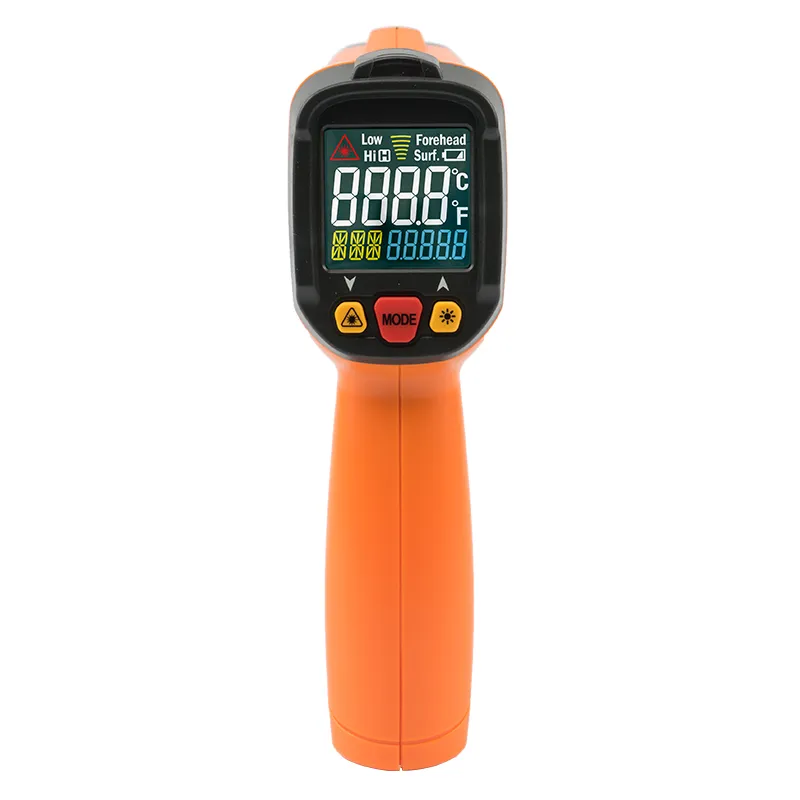

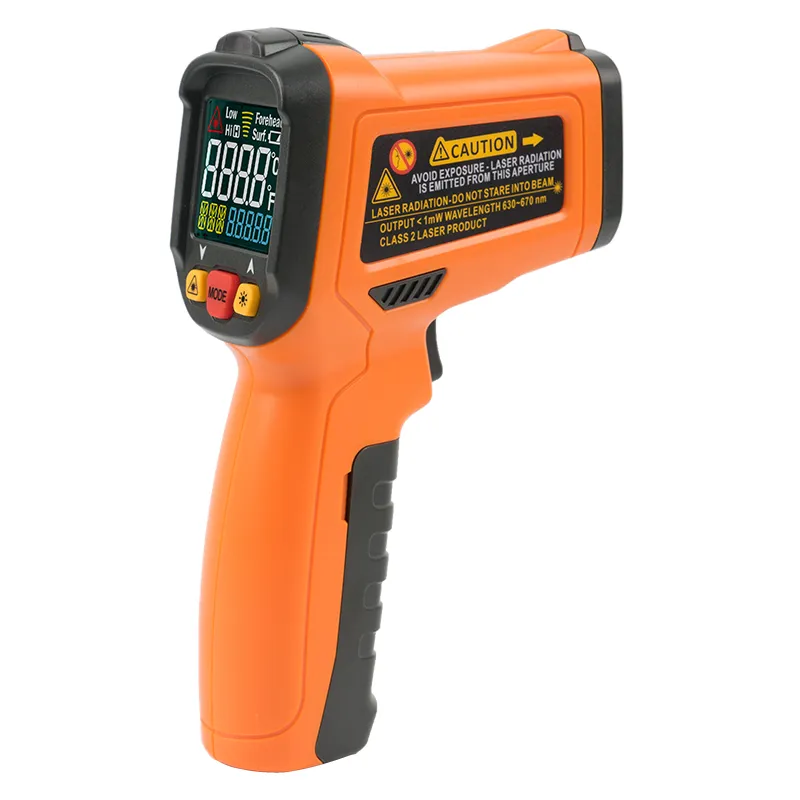

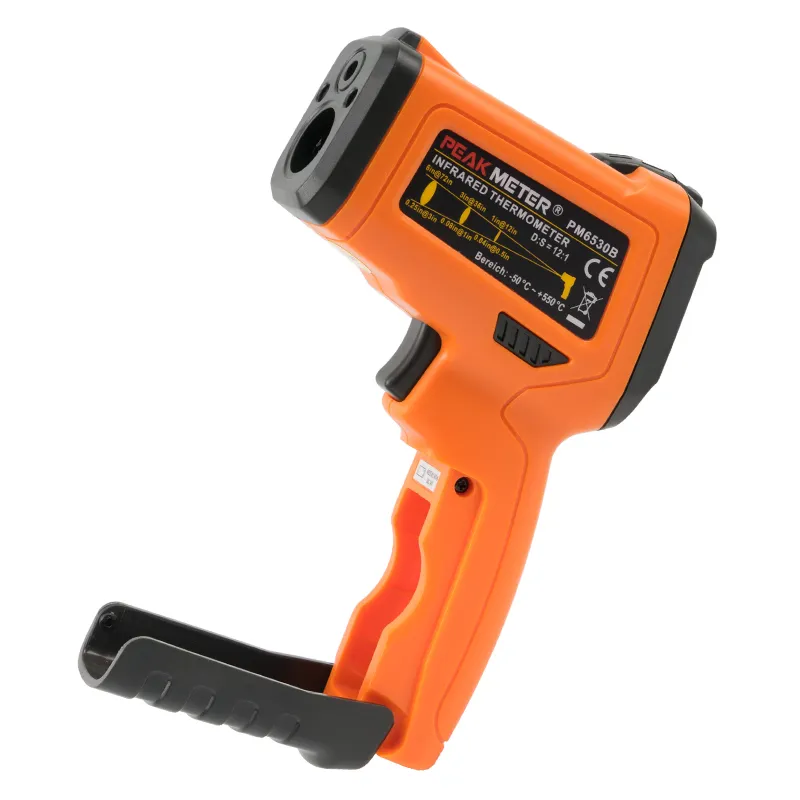

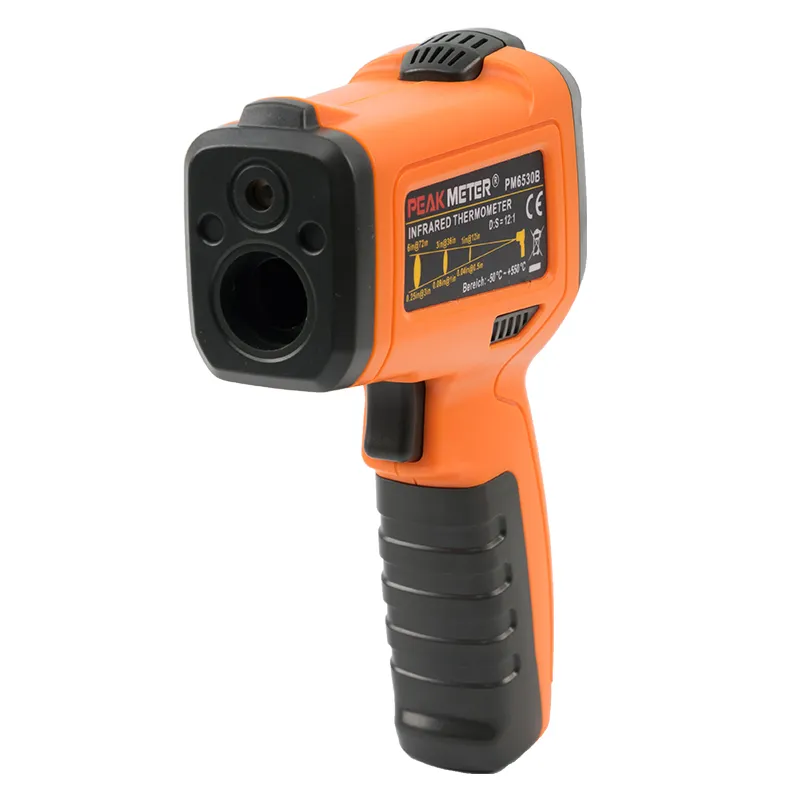

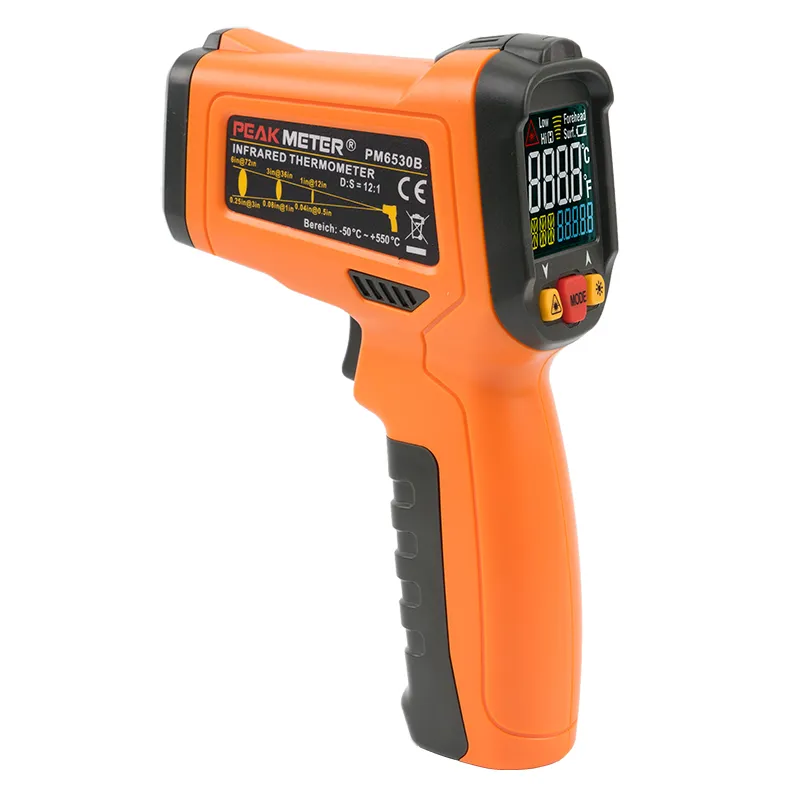

The PM6530B is a reliable device used to measure the surface temperature of an object safely and quickly. With many other useful functions, this item is more practical than common infrared thermometer. It is compact in size, light in weight and convenient to carry. The infrared radiation received is a far infrared band (8-14 degrees Celsius), and the distance ratio of infrared objects received by the thermometer is 12:1. PM6530B can set upper and lower limit alarm: when the measured value is greater than the ambient temperature + HAL value or less than the ambient temperature + LAL value, the red indicator will be on. The instrument strictly complies with the standards:EN61326,EN60825.
Color Display
Laser Target Pointer (630nm~670nm): Circle
D:S=12:1
Emissivity: 0.10~1.00
Spectral Response: 8~14um
Temperature
Response Time:＜0.5s
IRT Temperature: -50°C~550°C,-58°F~1022°F
Temperature Bridge Alarm (Red/Yellow/Green LED)
HOLD
Back Light
Auto Power Off
Low Battery Indication
MAX
| SPECIFICATION | RANGE | ACCURACY |
| IRT Temperature | -50～550℃ | ±（1.5%+2℃） |
| -58℉～1022℉ | ±（1.5%+4℉） | |
| FEATURE | ||
| Color Display | √ | |
| Laser Target Pointer（630nm-670nm） | √ | |
| D:S=12:1 | √ | |
| Emissity：0.1～1.00 | √ | |
| Spectral Response：8～14um | √ | |
| Response Time：＜0.5S | √ | |
| Auto Power Off：15S | √ | |
| ℃/℉ | √ | |
| Temperature Bridge Alarm（Red/Yellow/Green LED） | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Max Value | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 9V 6F22 Battery | |
| Product Size | 163mm×101mm×48mm | |
| Net weight | 161g(batteries are not included） | |
| Gross weight | 323g | |
| Safty Rating | EN61326,EN60825 | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 190mm×120mm×60mm | |
| Carton Size | 400mm×320mm×380mm | |
| G.W | 10.7kg | |
| Users Manual | 6F22 9V Battery |
