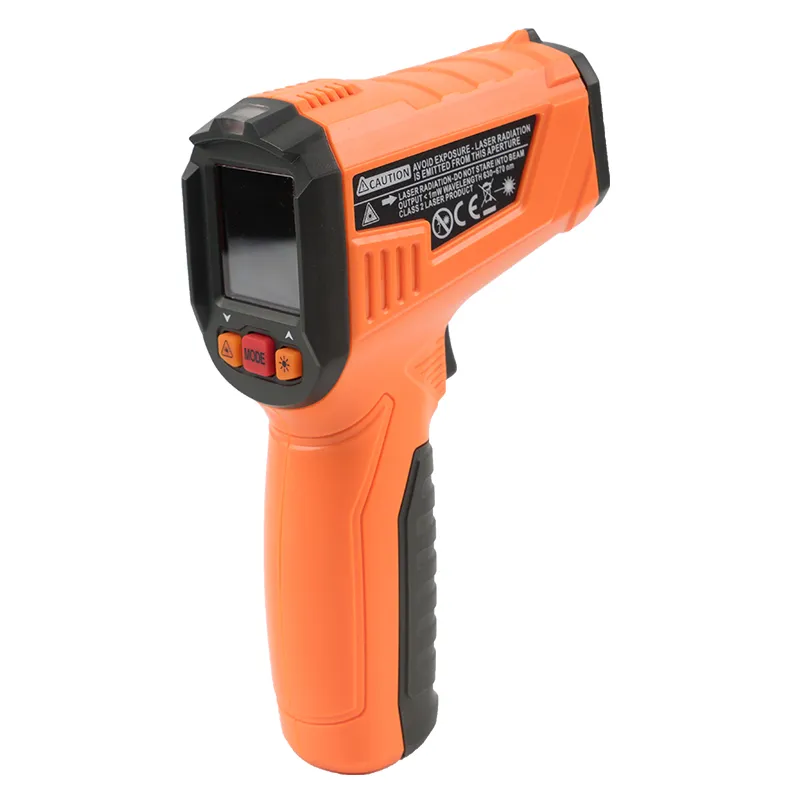

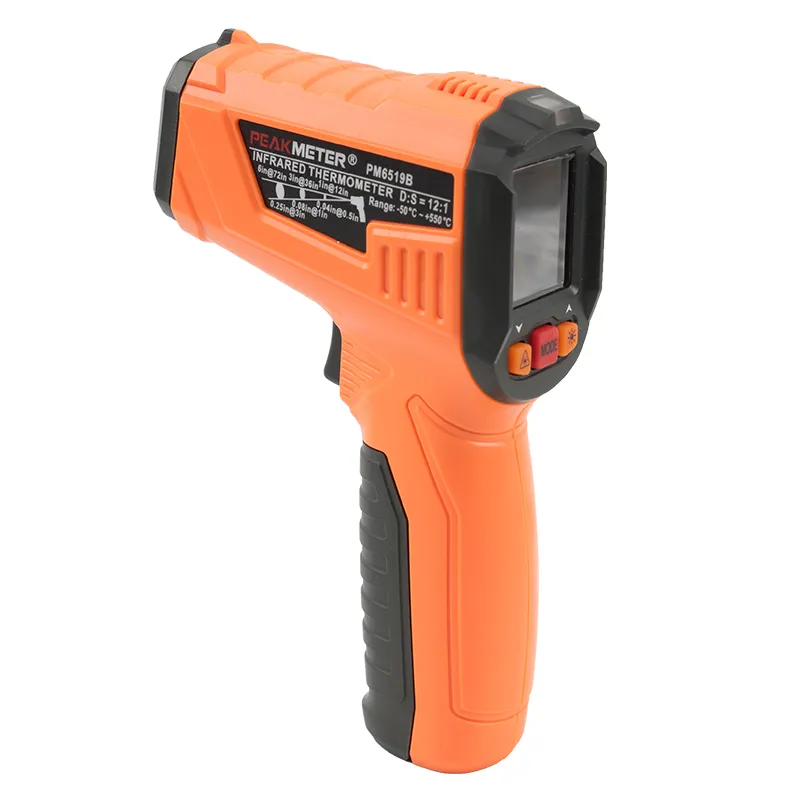

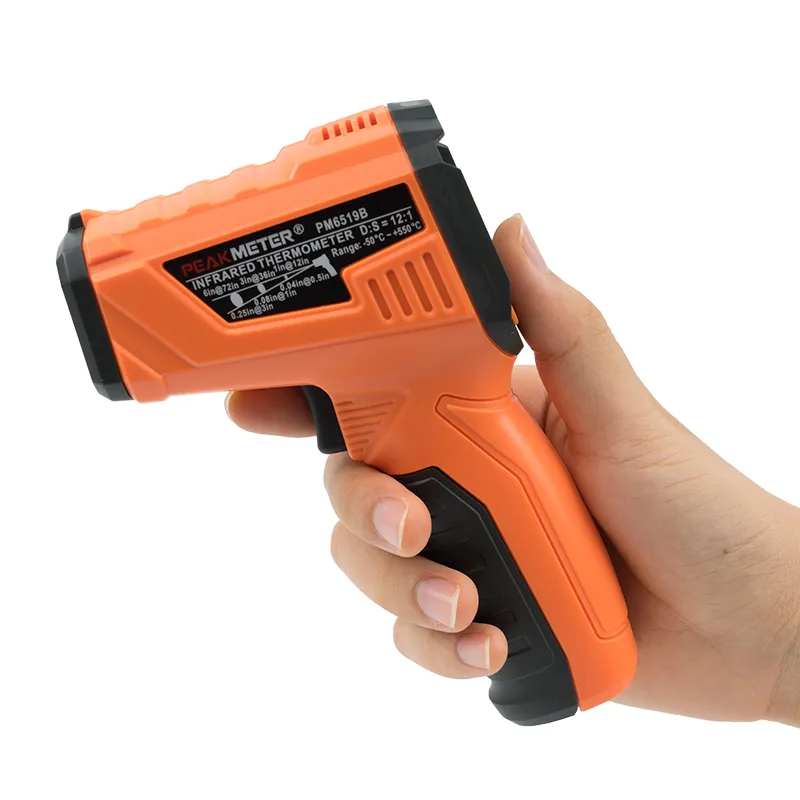

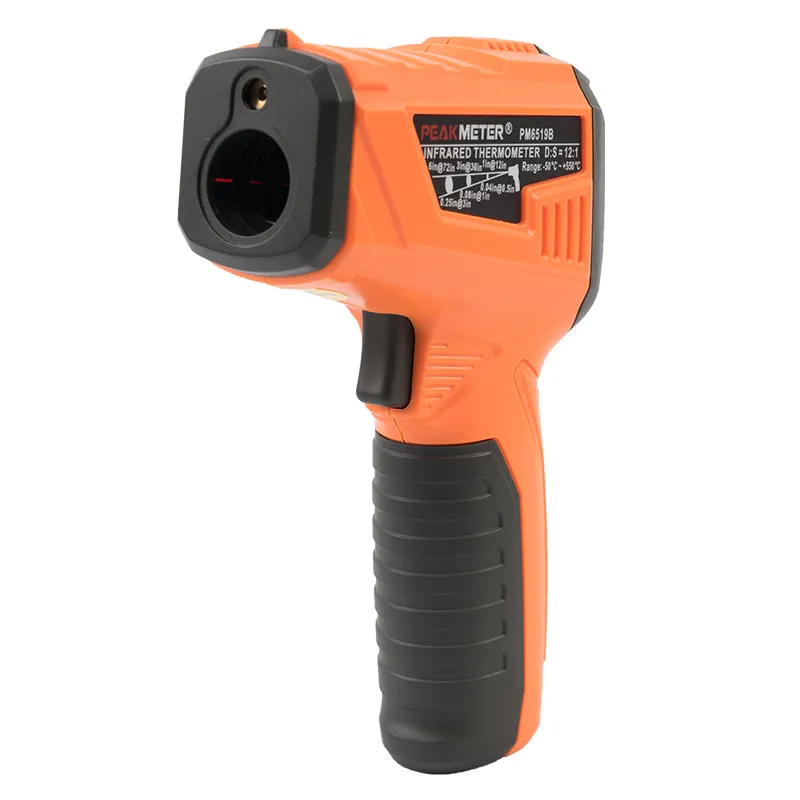

PM6519B is a portable infrared thermometer which can measure the surface temperature of an object by receiving infrared radiation from its surface. This product is a professional, hand-held meter for non-contact Infrared temperature measurement that is simple to use, highly accurate, and with a wide temperature range. The infrared radiation received is a far infrared band (8-14 degrees Celsius), and the distance ratio of infrared objects received by the thermometer is 12:1, which can accurately determine the range of objects. It can adjust the emission rate of the body to the radiation rate of the body, determine the radiation rate coefficient of the material, and adjust the radiation rate coefficient range from 0.1 to 1.0.

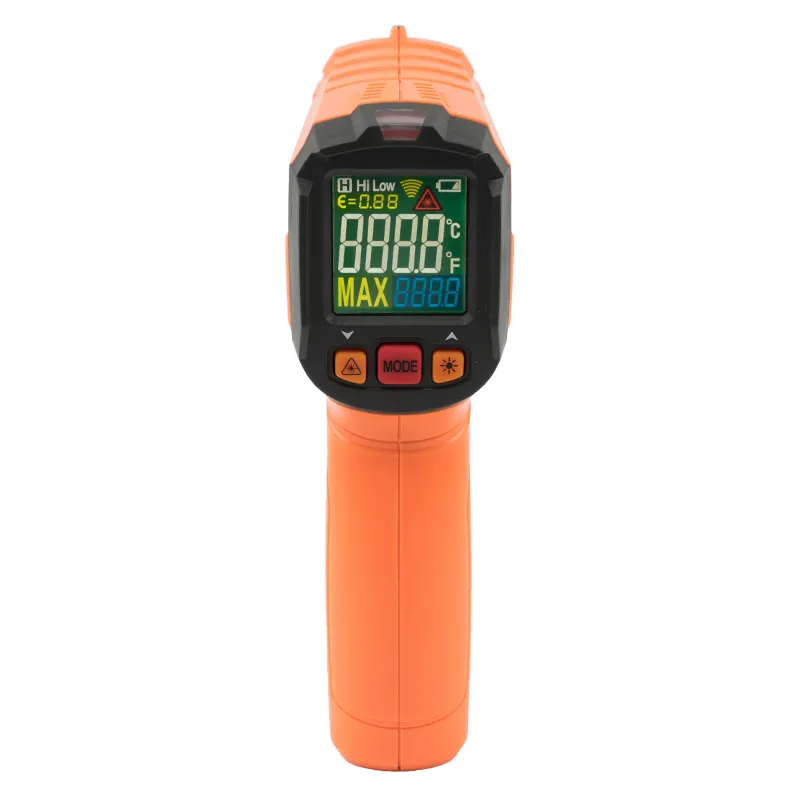

Color Display
Laser Target Pointer (630nm~670nm)
D:S=12:1
Emissivity: 0.10~1.00
Spectral Response: 8~14um
Temperature
Response Time:＜0.5s
IRT Temperature
Temperature Bridge Alarm (Red/Yellow/Green LED)
HOLD
Back Light
Auto Power Off
Low Battery Indication
MAX
| SPECIFICATION | RANGE | ACCURACY |
| IRT Temperature | -50～0℃（ -58℉～32℉） | ±3℃/6℉ |
| 0～550℃（32℉～1022℉ ） | ±（1.5%+2℃/4℉） | |
| FEATURE | ||
| Color Display | √ | |
| Laser Target Pointer（630nm-670nm） | √ | |
| D:S=12:1 | √ | |
| Emissity：0.1～1.00 | √ | |
| Spectral Response：8～14um | √ | |
| Response Time：＜0.5S | √ | |
| Auto Power Off：15S | √ | |
| ℃/℉ | √ | |
| Temperature Bridge Alarm（Red/Yellow/Green LED） | √ | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| Max Value | √ | |
| BackLight | √ | |
| GENERAL | ||

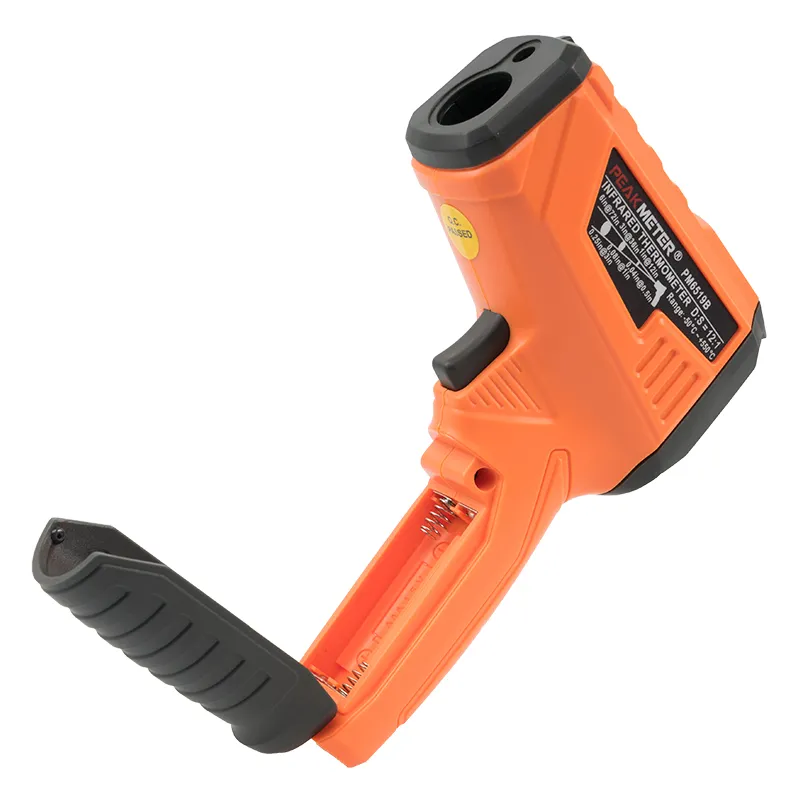

| Power Supply | 1.5V×2AAA Batteries | |
| Product Size | 146mm×90mm×44mm | |
| Net weight | 113g(batteries are not included） | |
| Gross weight | 196g | |
| Safty Rating | EN61326,EN60825 | |
| Package（PCS/carton） | 40 pcs | |
| Color Box Size | 165mm×110mm×53mm | |
| Carton Size | 560mm×350mm×246mm | |
| G.W | 8.8kg | |
| Users Manual | 6F22 9V Battery |
