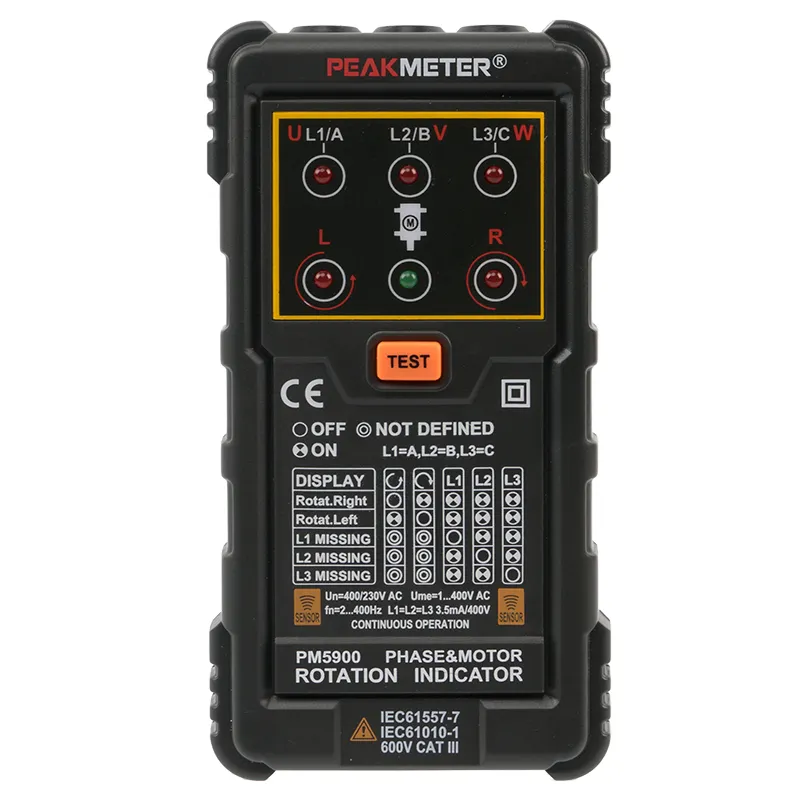

PM5900 is used to test magnetic field direction of three-phase system, phase rotation, motor rotation direction. Without a need to link testing line, the motor rotation direction can be decided by placing this indicator above the motor and aligning it with motor drive shaft. It is durable, reliable and light-weight handled device, which is necessary tool for those who often install, repair or maintain three-phase system or motor.
Consumption: Max 20 mA
Operating Voltage: 120V~400V AC
Frequency Range: 2 to 400 Hz
Safety Standard/ Rating: CE,CAT. III 600V, RoHS
| SPECIFICATION | |||
| Current Consumption | ≤20mA | ||
| Operating Voltage | 120V～400V AC | ||
| Frequency Range | 2Hz～400Hz | ||
| GENERAL | |||

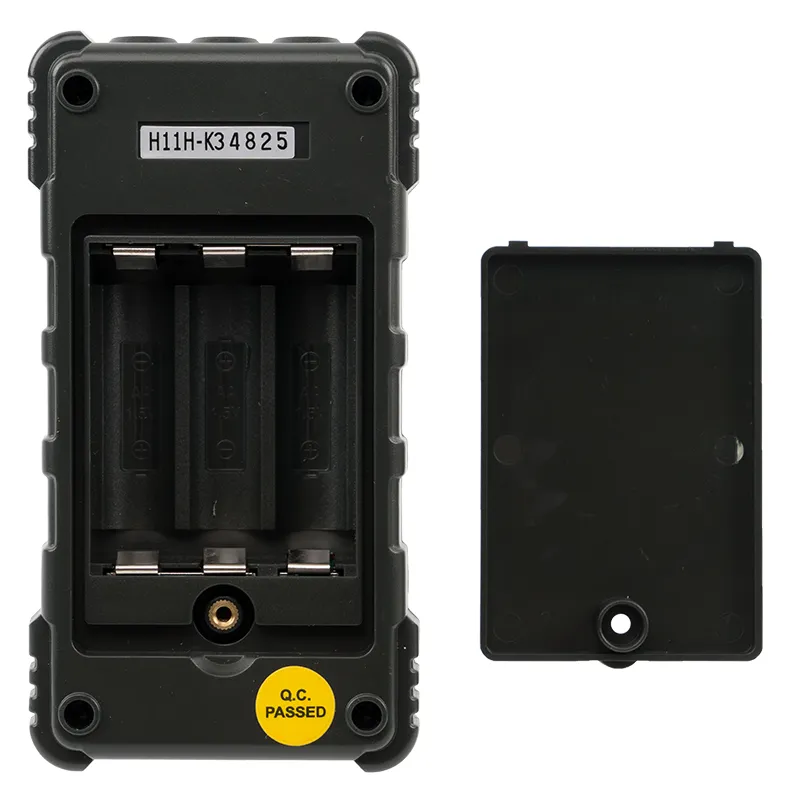

| Power Supply | 3x1.5V AA Batteries | ||
| Net weight | 90g(not include batteries) | ||
| Gross weight | 455g | ||
| Product Size | 125mmx66mmx30mm | ||
| Safety Rating | CE CAT.Ⅲ600V RoHS | ||
| Package（PCS/carton） | 40PCS | ||
| Color Box Size | 235mm×140mm×50mm | ||
| Carton Size | 530mm×495mm×300mm | ||
| G.W | 19.5kg | ||

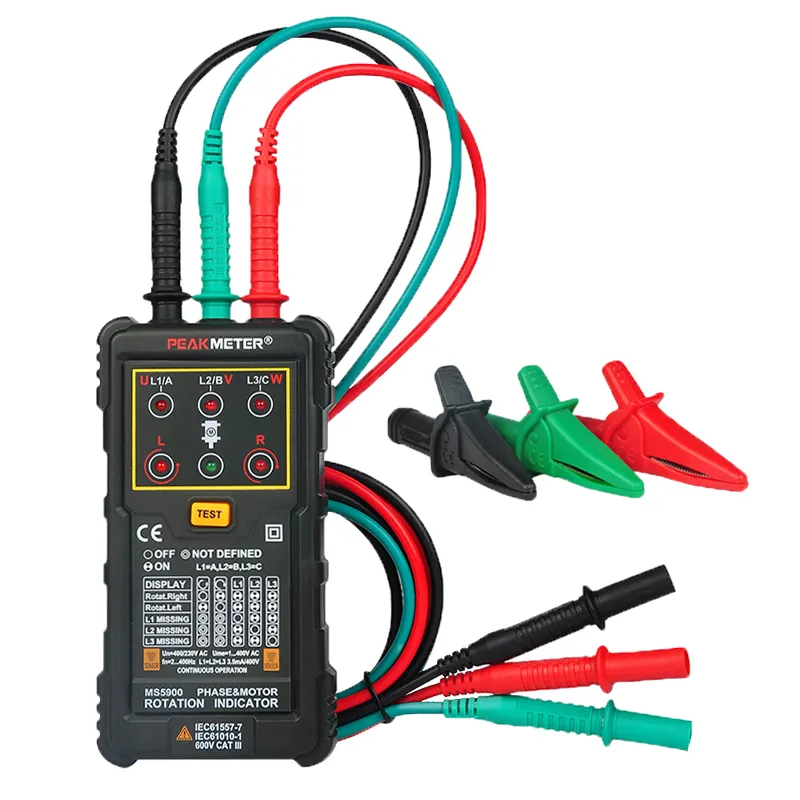

| Test Leads | 3xAlligator clip | Users Manual | 3x1.5V Batteries |
