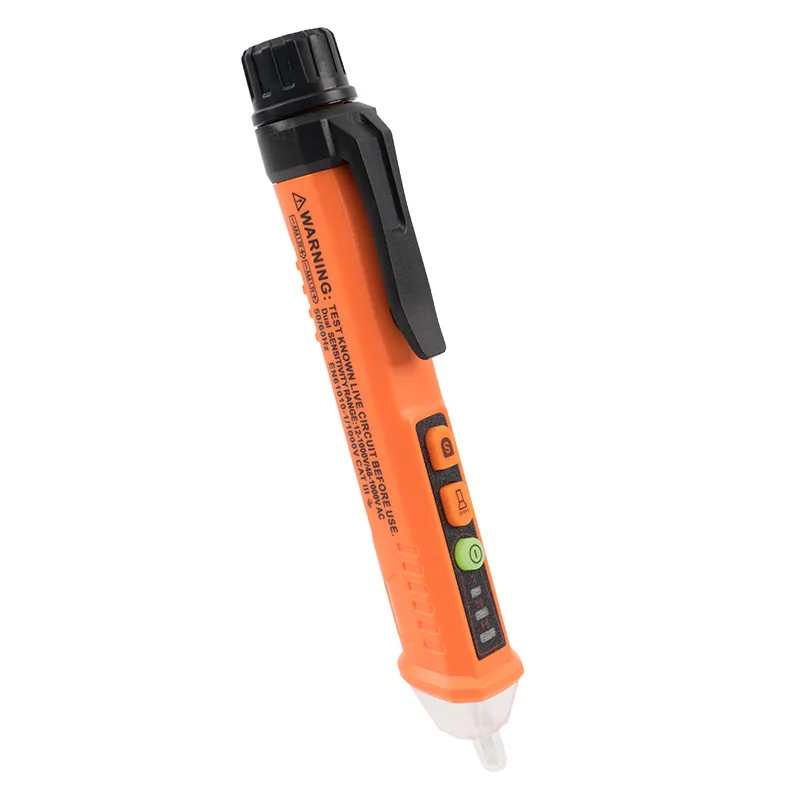

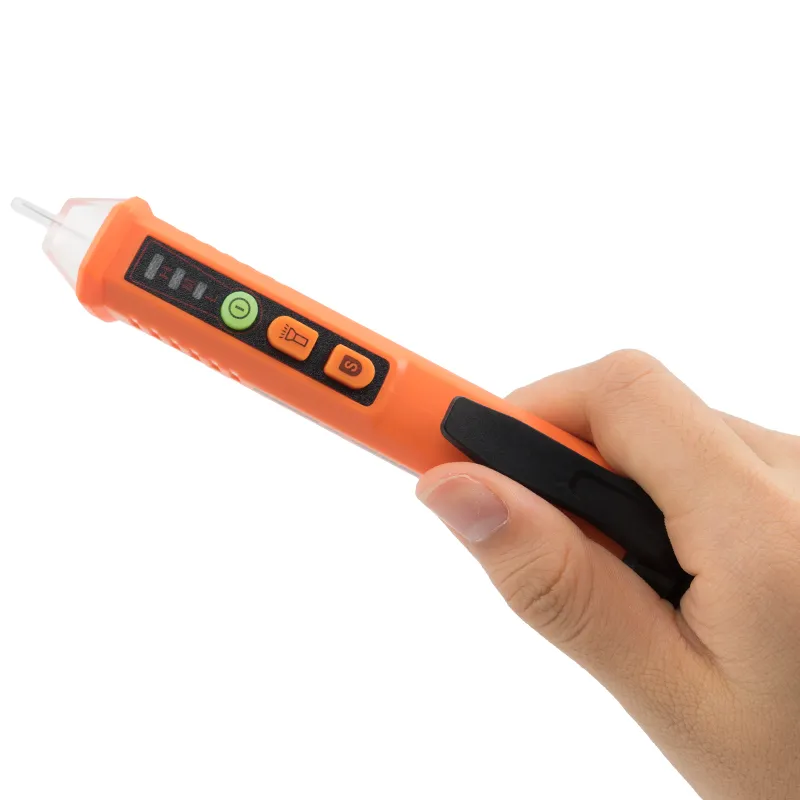

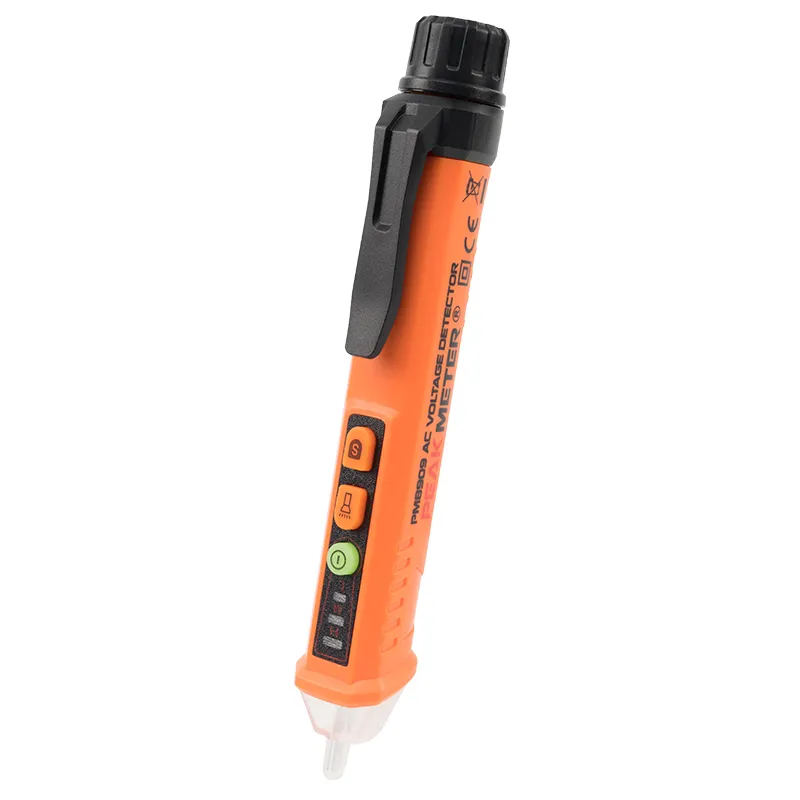

The AC Voltage Detector is a versatile and essential Hand Held Security Detector designed for accurately detecting AC voltage presence in various electrical systems. This device is equipped with a prolate probe shape, allowing for precise and easy maneuvering in tight spaces and around obstacles. With its Sound And Light Alarmed alarm mode, this AC Voltage Detector provides both audible and visual alerts when AC voltage is detected, ensuring the user is promptly informed of potential electrical hazards. The alarm system is highly effective in noisy environments or in situations where visual confirmation is crucial.
AC Voltage: Approximately 12-1000V/48-1000V
Frequency: 50-60Hz
Torch: White LED Illumination Lamp
Auto Power Off
Low Battery Indication
Alarm Mode: Sound and Light
Zero/live Wire Judgment: According to the signal strength, strong signal is live wire
NCV Intensity: Selecting 3 Types of Sensitivity Automatically (Low, Mid, High)
NCV Intensity Indication Mode: The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low, moderate or high sensitivity
Operating Temperature: 0~40℃
Storage Temperature: -10~50℃
Altitude: ＜2000m
| SPECIFICATION | ||
| AC voltage detection range | About12～1000V/48-1000V | |
| Frenquency | 50Hz/60Hz | |
| Alarm Mode | Sound and Light | |
| Flash Light | White LED Liiumination Lamp | |
| Auto Power Off | ||
| Probe Shape | Prolate | |
| Low-Battery Indication | ||
| Zero/Live Wire Judgment | Accoding to the signal strenth,strong signal is live wire | |
| NCV Sensitive | Selecting 3 types of sensitivity automatically(low,mid ,high) | |
| NCV Sensitive Indication | The instrument uses the alarm sound of different frequency and LED lamp of different color to indicate low ,moderate or high sensitivity | |
| Service Temperature | 0~40℃ | |
| Storage Temperature | -10~50℃ | |
| Altitude | ＜2000m | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA batteries | |
| Net weight | Approx.45g(batteries are not included） | |
| Gross weight | 61g | |
| Product Size | 156mm×20mm×20mm | |
| Safety Rating | EN61010-1,EN61557-3,EN61326-1 CAT.III 1000V/CAT.IV 600V | |
| Package（PCS/carton） | 120 pcs | |
| Color Box Size | Outer battery：163mm×37mm×28mm Internal battery：163mm×32mm×28mm | |
| Carton Size | Outer battery ：393mm×345mm×210mm Internal battery：393mm×320mm×210mm | |
| G.W | 8.5kg | |
| Users Manual | 2*1.5V AAA batteries |
