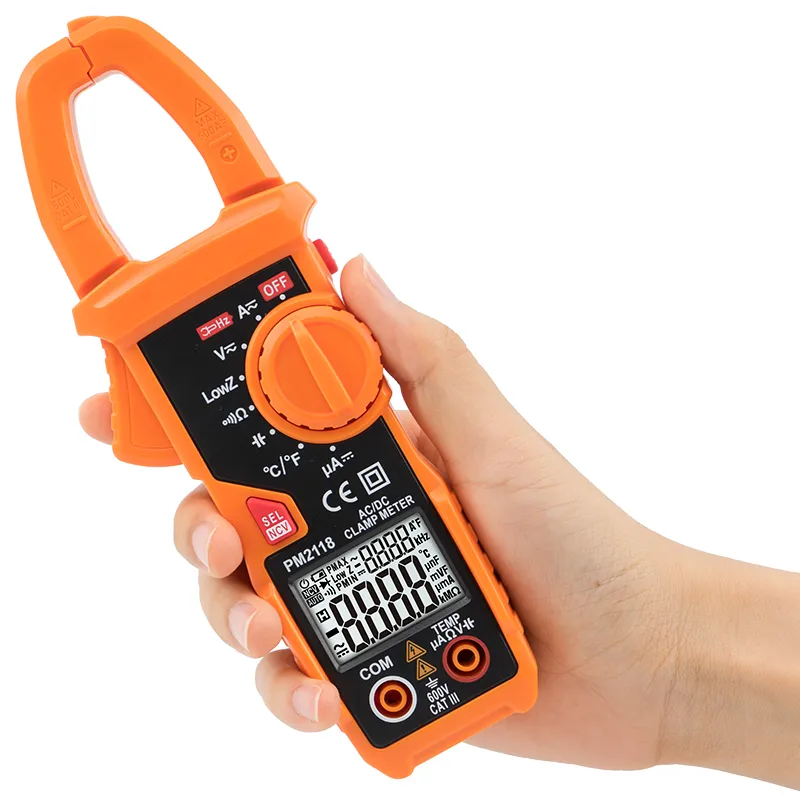

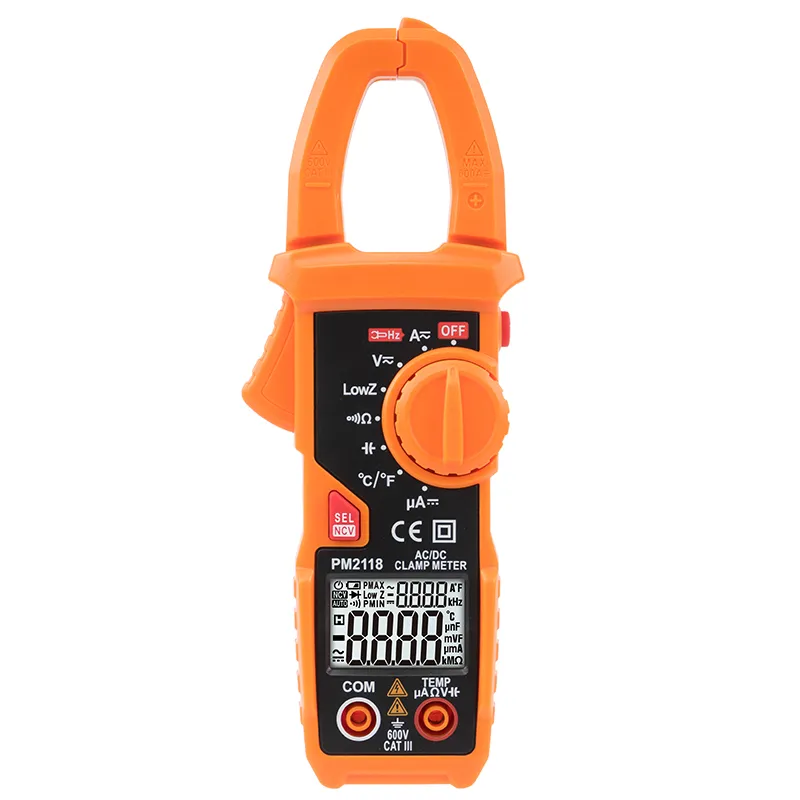

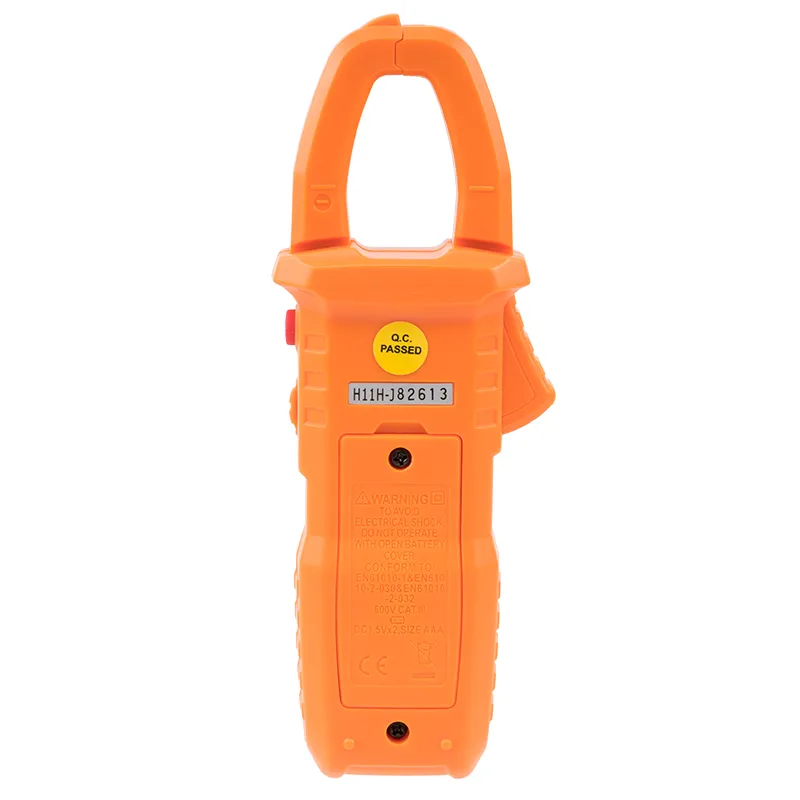

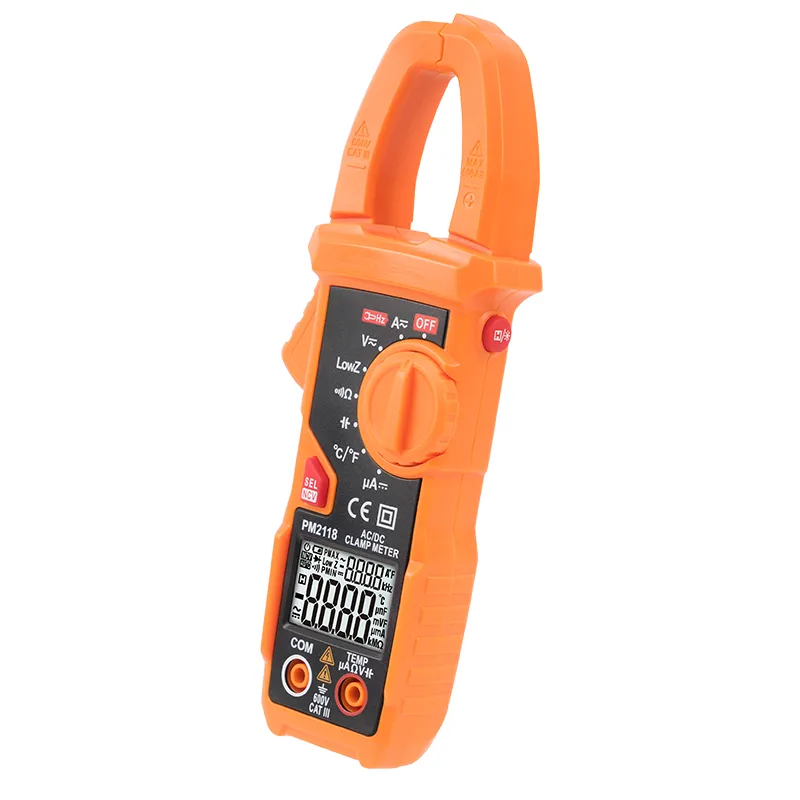

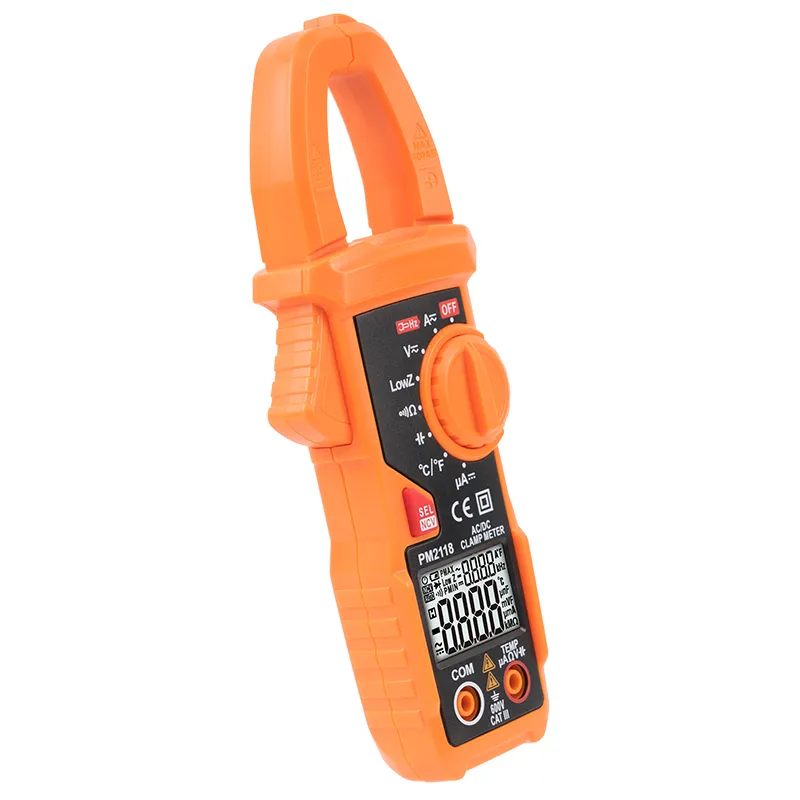

As a patented professional‑grade auto‑ranging clamp multimeter, the PEAKMETER PM2118 supports both alternating‑current and direct‑current amperage measurement. Built to tackle complex‑condition electrical maintenance, it suits field electrician servicing, industrial‑equipment troubleshooting, HVAC repair, automobile circuit inspection and residential wiring checks. Comprehensive measuring modes, anti‑interference technology and rigorous safety‑standard compliance make it your dependable multi‑functional testing instrument.
Display: 6000 Counts
RANGE: Auto
Continuity
Resistance: 6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
DC: 200uA
Frequency (Clamp): 1kHz
Frequency (Voltage): 1kHz
Temperature
LPF (1kHz -3dB)
LoWZ
Capacitance: 600uF/6000uF
Data Hold
Back Light
NCV
Low Battery Indication
Auto Power Off
Dual Display
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V | ±（0.5%+5） |
| AC Voltage | 6V/60V/600V | ±（0.8%+5） |
| DC Current | 60A/600A | ±（3.0%+10） |
| AC Current((40-65Hz) ) | 60A/400A | ±（2.5%+8） |
| 400A～600A | ±（3.0%+10） | |
| Resistance | 6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±（0.8%+3） |
| Frequency | 40Hz～1000Hz | ±（1.0%+5） |
| Capacitance | 600uF/6000uF | ±（4.0%+3） |
| ℃/℉ | -20～1000℃/ -4～1832℉ | ±（1.0%+2） |
| DCuA | 200μA | ±（0.8%+3） |
| FEATURE | ||
| Display | 6000 Counts | |
| Auto range | √ | |
| Continuity | √＜50Ω | |
| V/Ω/A Auto Scan | ||
| Frequency(Clamp) | 1KHz | |
| Frequency(Voltage)1KHz | 1KHz | |
| Temperature | √ | |
| LPF（1KHz-3dB) | √ | |
| LowZ | √ | |
| Capacitance | √ | |
| BackLight | √ | |
| NCV | √ | |
| Low Battery Indication | √ | |
| Auto Power off | √ | |
| Dual Display（ACV+ Freq，ACA+ Freq ） | √ | |
| GENERAL | ||

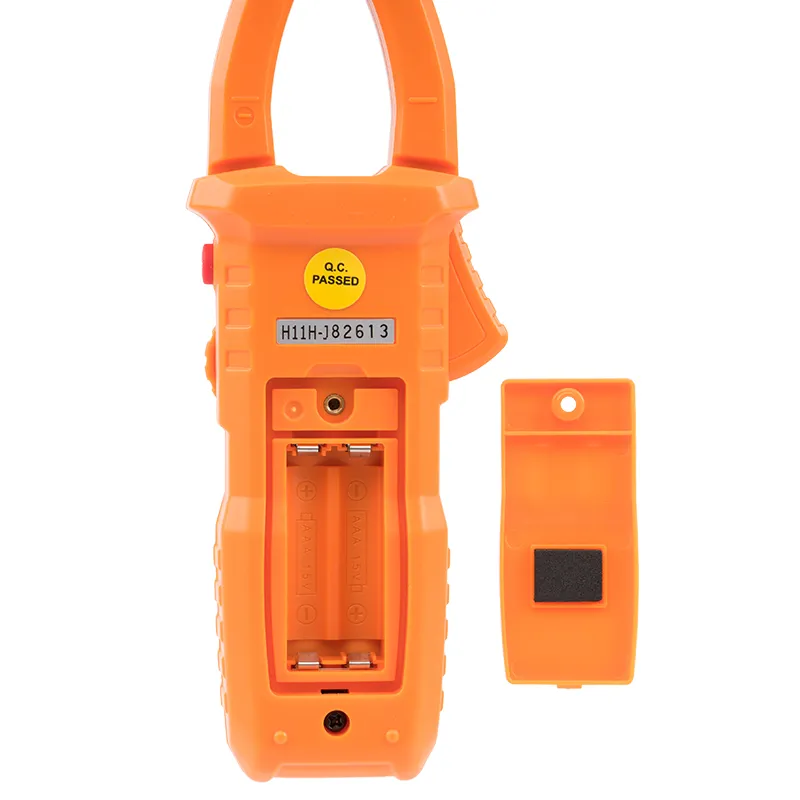

| Power Supply | 2×1.5V AAA Batteries | |
| Product Size | 189mm×64mm×32mm | |

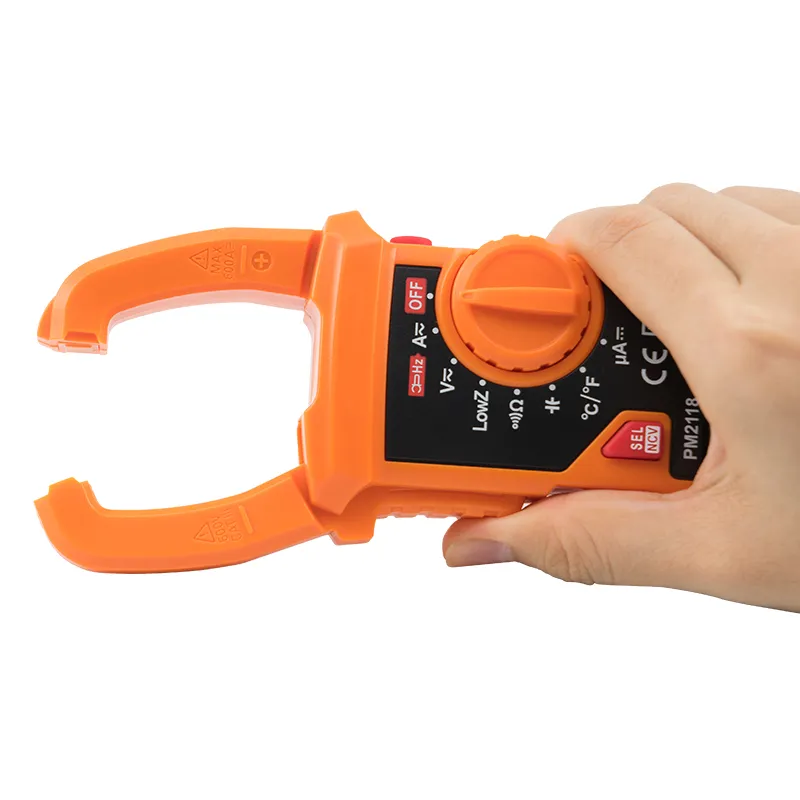

| Jaw Size | φ24mm | |
| Net weight | 180g(batteries are not included） | |
| Gross weight | 396g | |
| Safty Rating | N61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 30pcs | |
| Color Box Size | 202mm×113mm×45mm | |
| Carton Size | 425mm×250mm×360mm | |
| G.W | 12.9kg | |
| K Type Thermocouple | Test Leads | Users Manual | 2*1.5V AAA Batteries |
