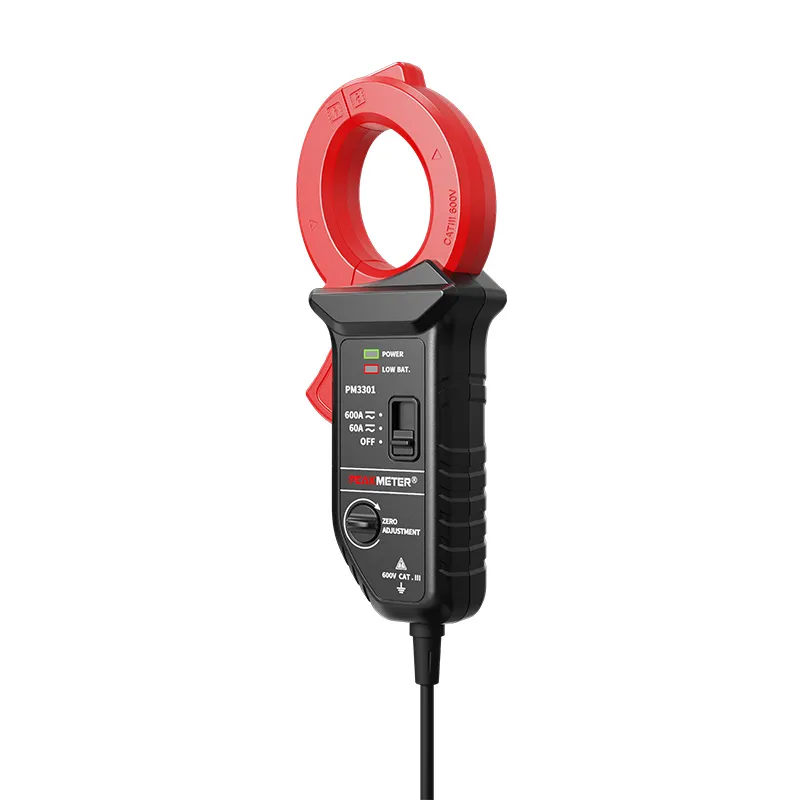

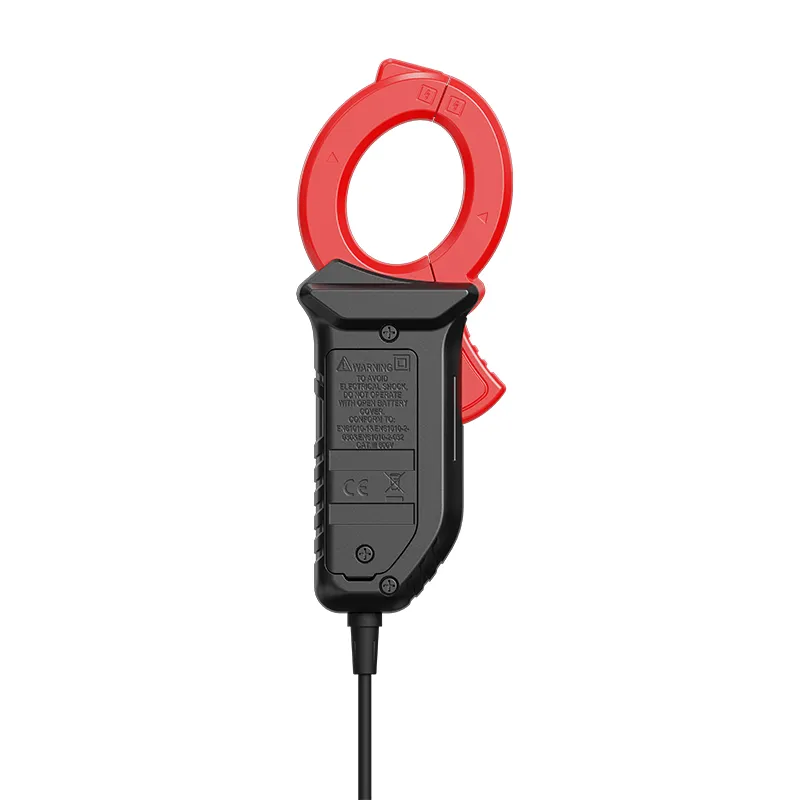

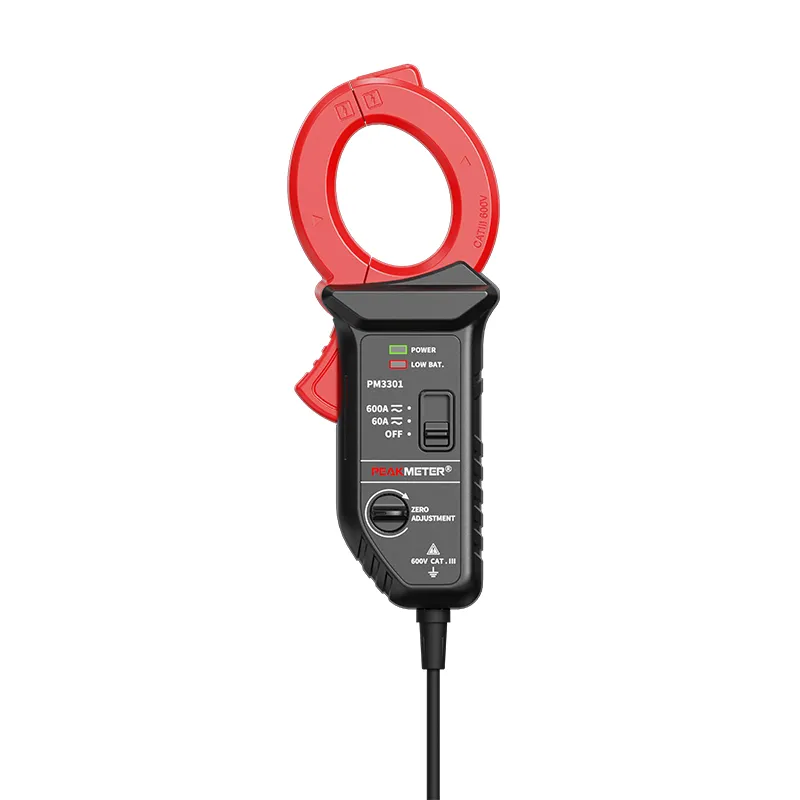

As the new‑generation dual‑purpose AC/DC clamp‑on current sensor, the PEAKMETER PM3301 adopts non‑contact induction design. It outputs millivolt‑type analog signal and can pair perfectly with multimeters, data loggers, oscilloscopes and other test‑and‑measurement equipment. Built‑in DC zero‑adjustment knob solves DC‑offset interference, well‑suited for new‑energy equipment inspection, motor‑current testing, low‑voltage circuit debugging and on‑site industrial current‑signal acquisition.
Work Indicator Light
Low Battery Indication
Testline: About One Meter (After Stretching)
Zero Adjustment of DC Current
| SPECIFICATION | ||
| DC Current | 60A (Signal output ratio10mV:1A) | ±（2.0%+5）(After zeroing) |
| 600A (Signal output ratio1mV:1A) | ||
| AC Current 45Hz-1000Hz | 60A (Signal output ratio10mV:1A) | ±（2.0%+5） |
| 600A (Signal output ratio1mV:1A) | ||
| FEATURE | ||
| Work indicator light | About one meter (after stretching) | |
| Test line | About one meter (after stretching) | |
| Test line | About one meter (after stretching) | |
| GENERAL | ||
| Weight | Approx 180.5g | |
| Product Size | 168mmx65mmx33mm | |
| Maximum opening of clamp head | 35mm | |
| Safty Rating | IEC61010-1,IEC 61010-2-032CAT III 600V | |
| Package（PCS/carton） | ||
| Color Box Size | ||
| Carton Size | ||
| N.W | ||
| G.W | ||
