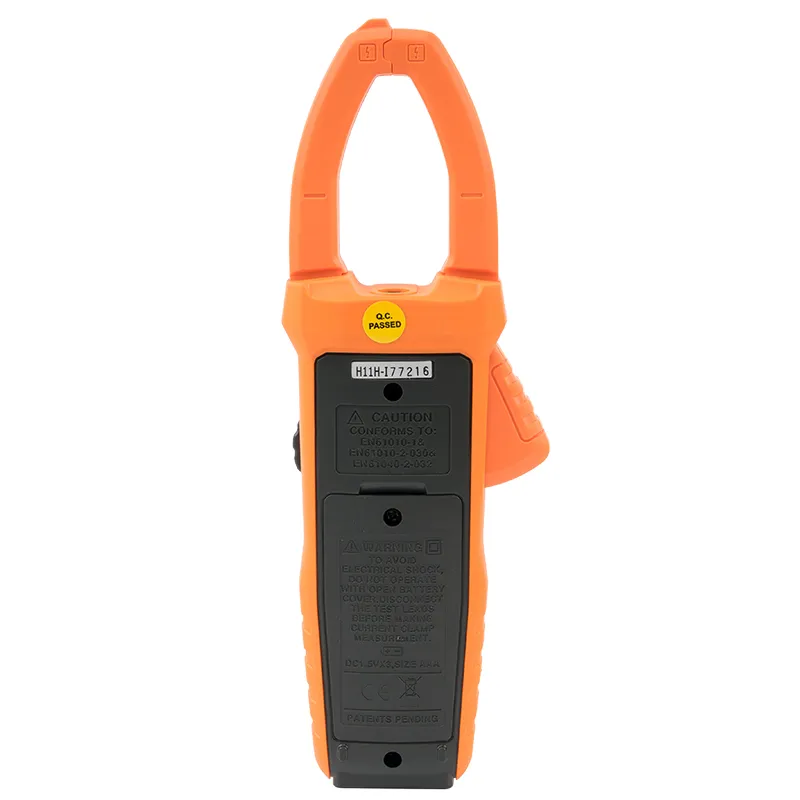

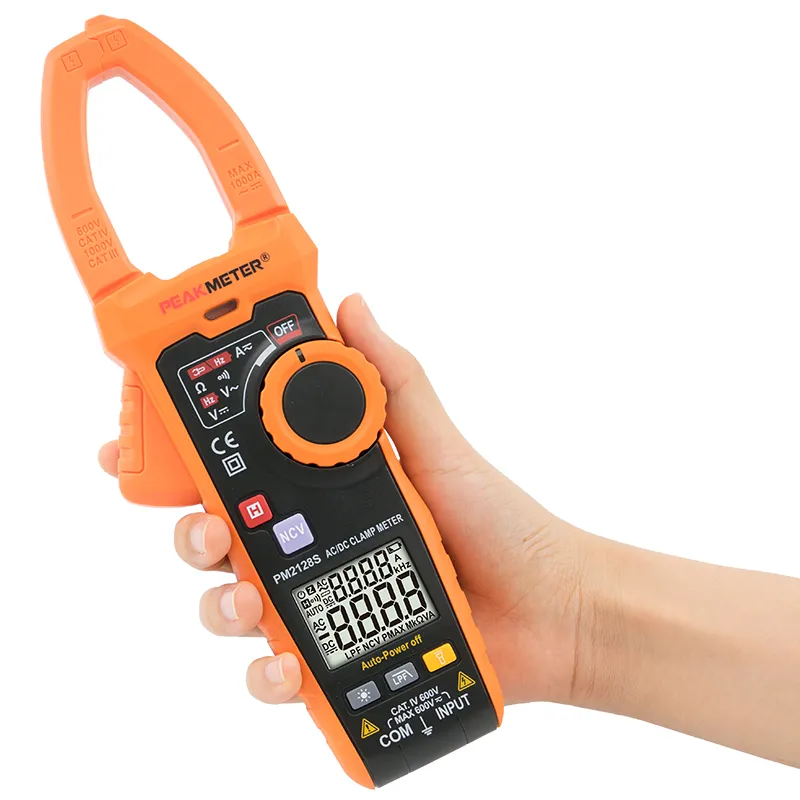

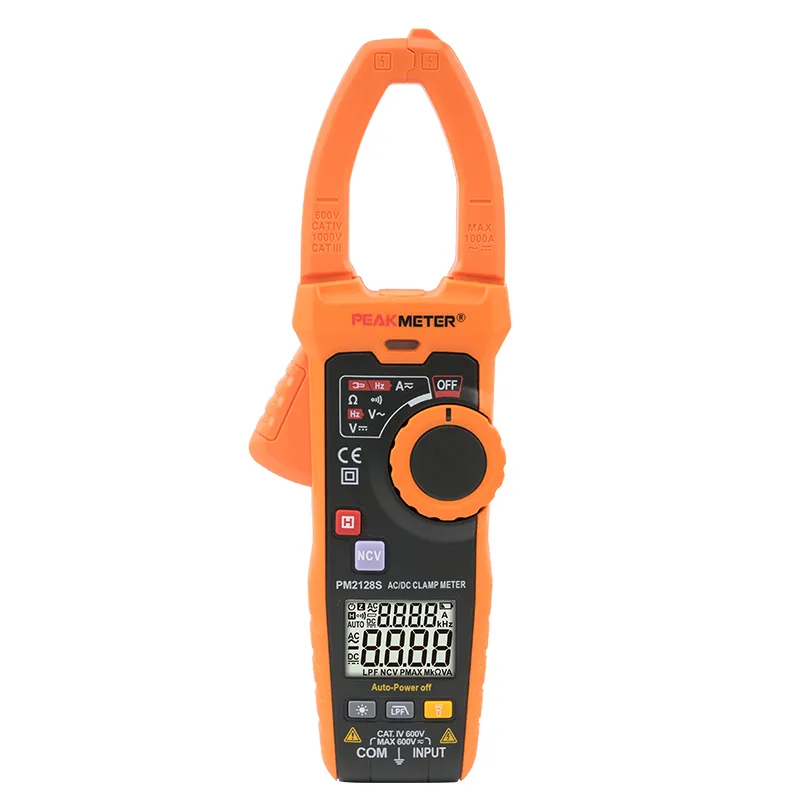

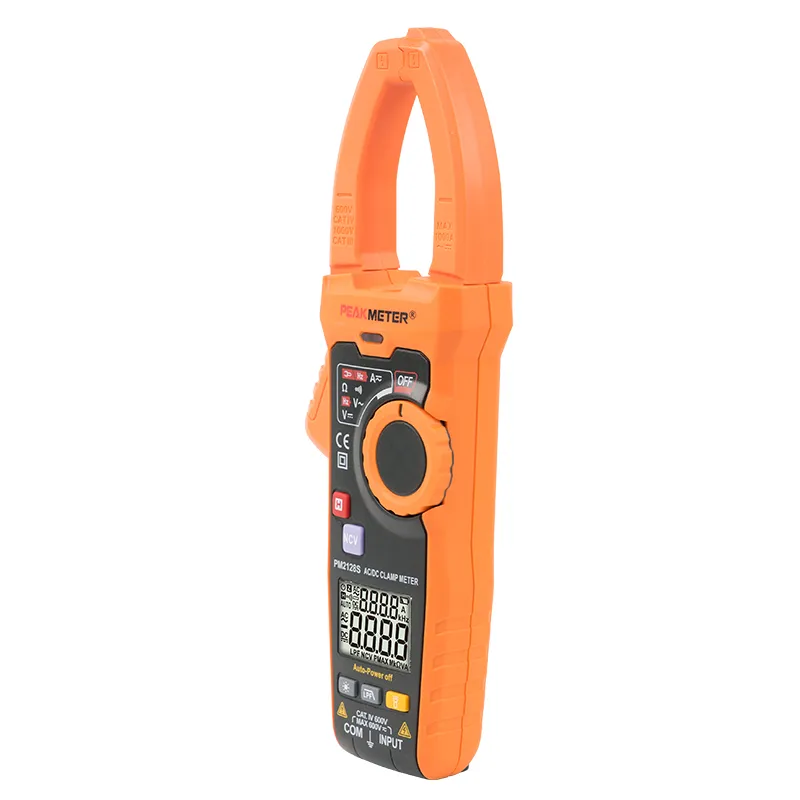

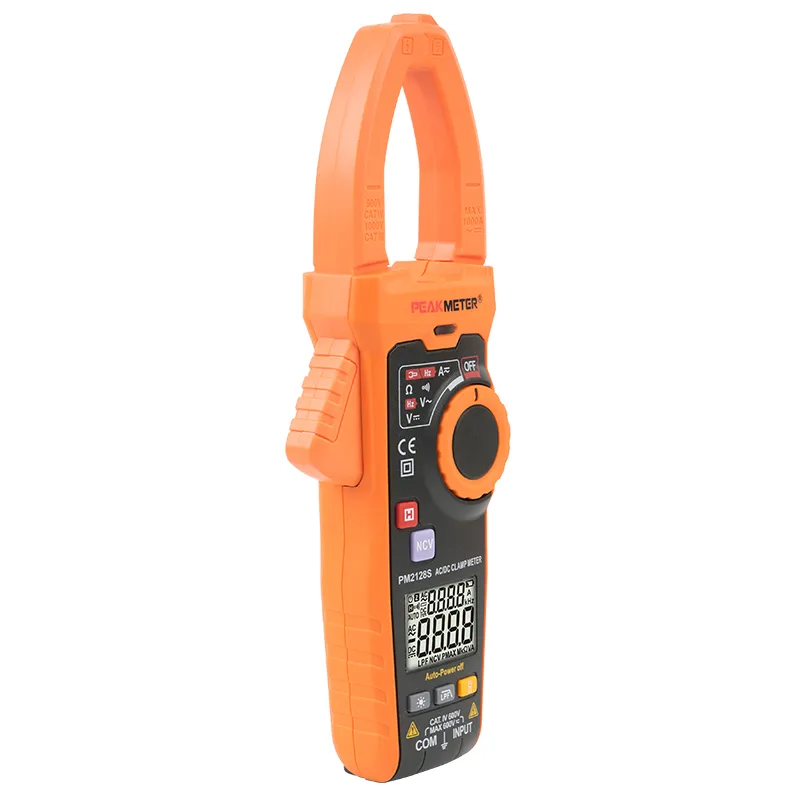

PM2128S is a smart AC digital clamp meter, it selects measurement function and range automatically, also has overload protection throughout the range. This meter can be used to measure AC & DC voltage, AC & DC current, resistance, frequency, etc. The instrument has functions of continuity test, V/Ω/A/Cap auto scan, data hold, back light, NCV, auto power off, dual display, etc. Instrument complies with safety requirements on electronic measuring instrument of IEC-61010-1, IEC-61010-2-030, level Ⅱ pollution, and over-voltage standard is CAT Ⅳ 600V.
Display: 6000 Counts
Continuity
Resistance: 6kΩ/60kΩ/600kΩ/6MΩ/10MΩ
V/Ω/A/Cap Auto Scan
Frequency (Clamp): 1kHz
Frequency (Voltage): 1kHz
Data Hold
Back Light
NCV
Low Battery Indication
Auto Power Off
Dual Display
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V | ±（0.5%+3） |
| AC Voltage | 6V/60V/600V | ±（0.8%+5） |
| AC Current | 60A/600A/1000A | ±（2.5%+8） |
| DC Current | 60A/600A/1000A | ±（3.0%+10） |
| Resistance | 6KΩ/60KΩ/600KΩ/6MΩ/10MΩ | ±（0.8%+3） |
| Capacitance | ||
| Frequency | 40Hz～1000Hz | ±（1.0%+5） |
| ℃/℉ | ||
| LowZ | ||
| DCμA | ||
| FEATURE | ||
| Display | 6000 Counts | |
| Analogue Bar Graph | ||
| Auto and Manual Range | √ | |
| True RMS | ||
| Data Hold | √ | |
| BackLight | √ | |
| Relative Measurement | √ | |
| Continuity | √＜50Ω | |
| VFD | ||
| DCμA | ||
| NCV | √ | |
| GENERAL | ||

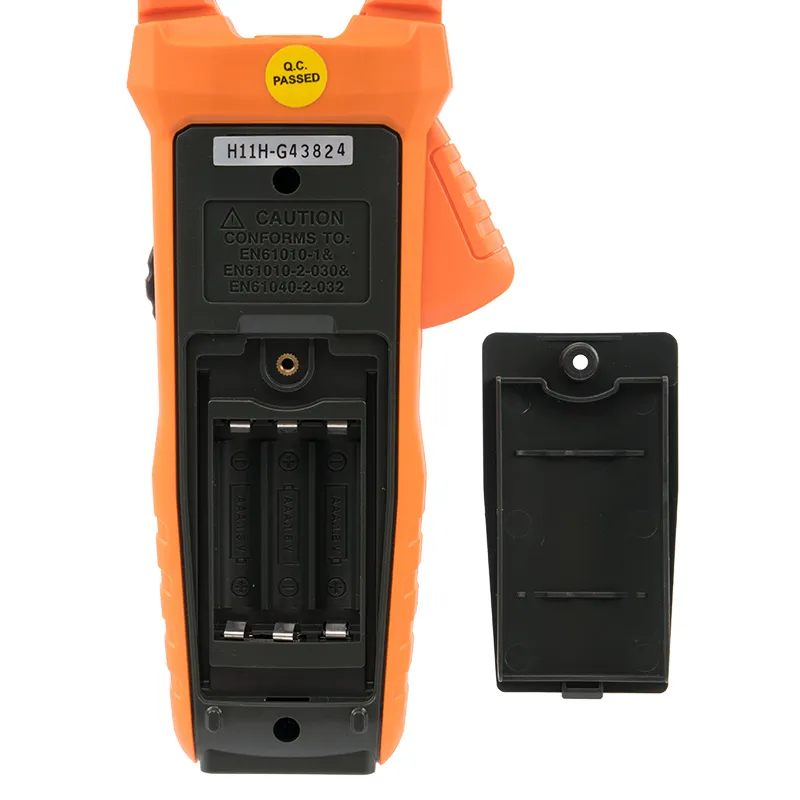

| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 247mm×85mm×40mm | |

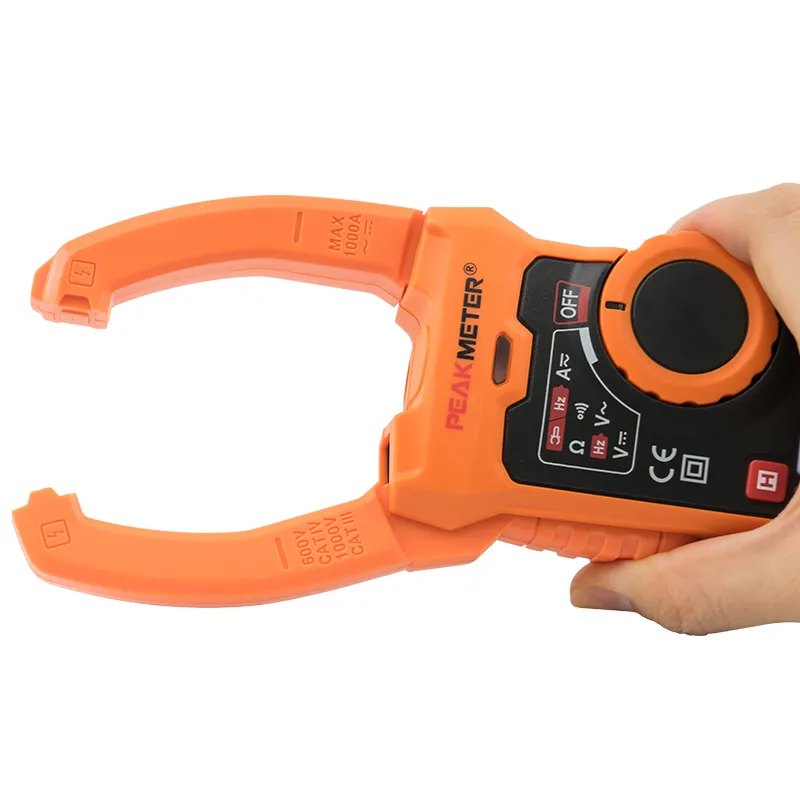

| Jaw Size | φ35mm | |
| Net weight | 312g(batteries are not included） | |
| Gross weight | 586g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅳ600v | |
| Package（PCS/carton） | 20 pcs | |
| Color Box Size | 270mm×126mm×56mm | |
| Carton Size | 590mm×280mm×280mm | |
| G.W | 12.7kg | |
| Test Leads | Users Manual | 3*1.5V AAA batteries |
