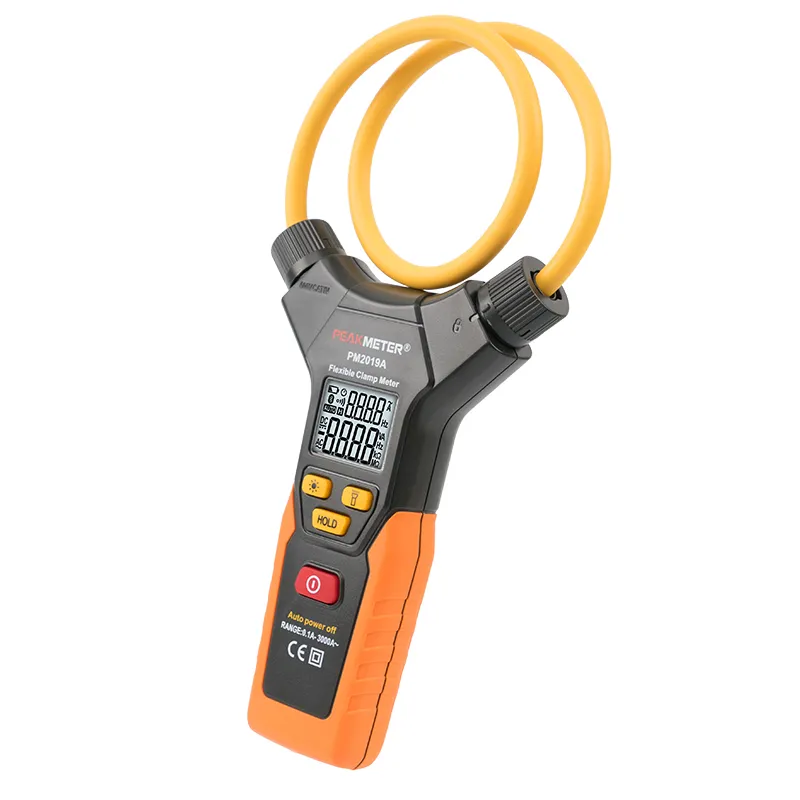

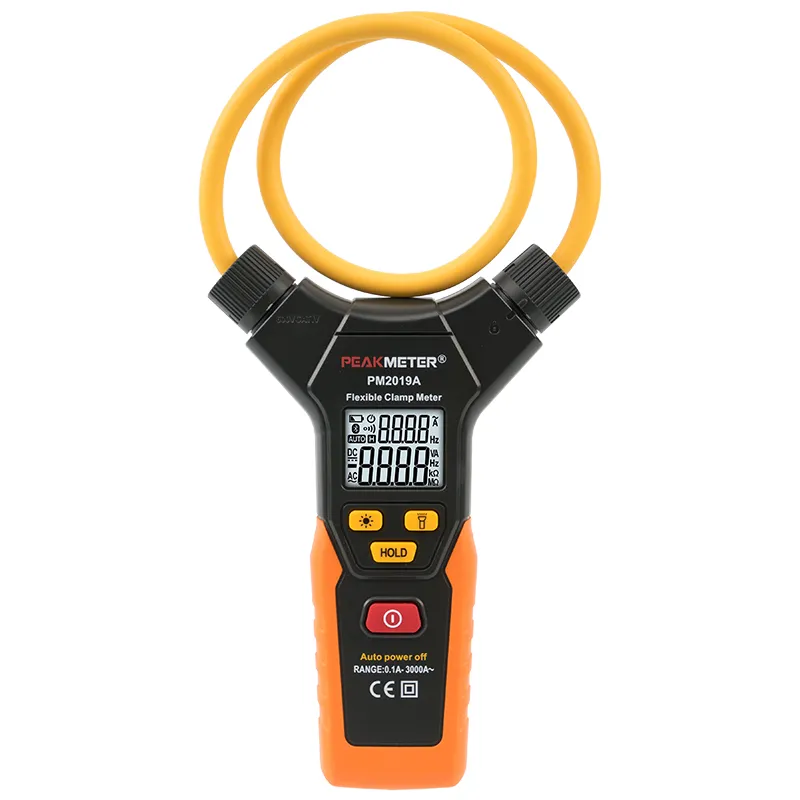

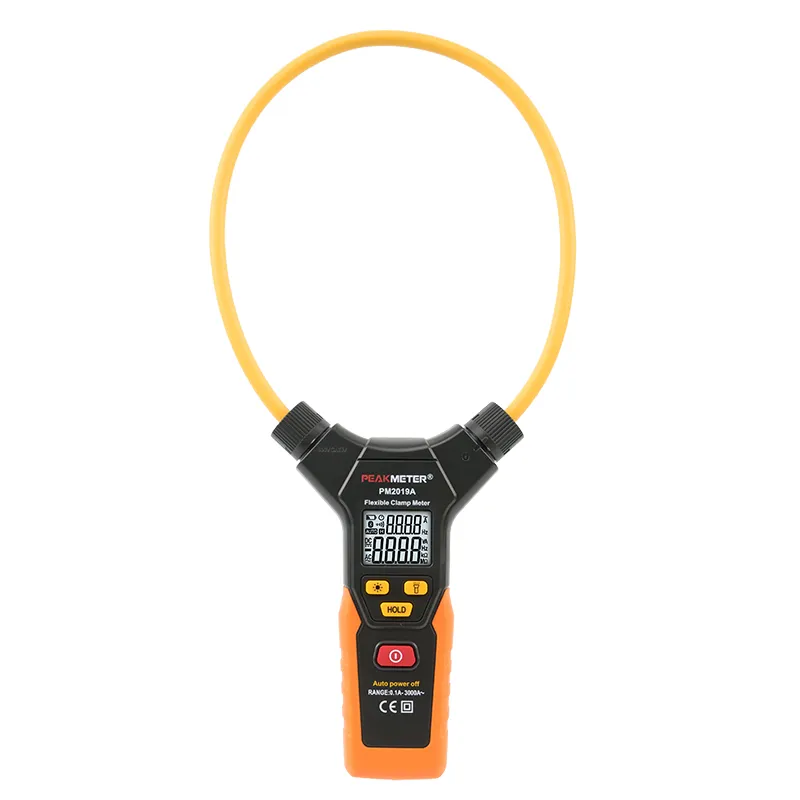

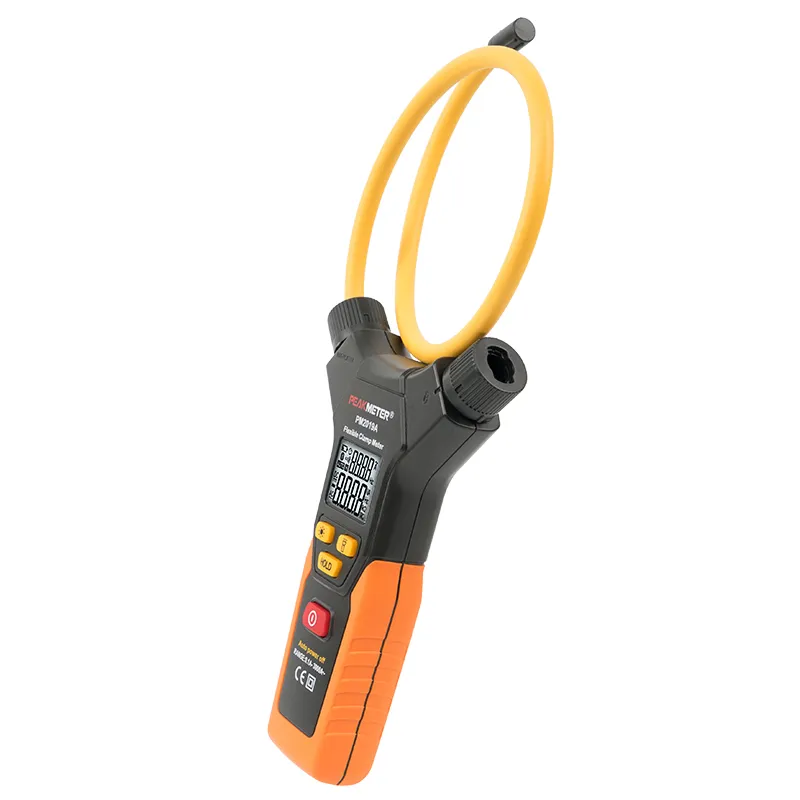

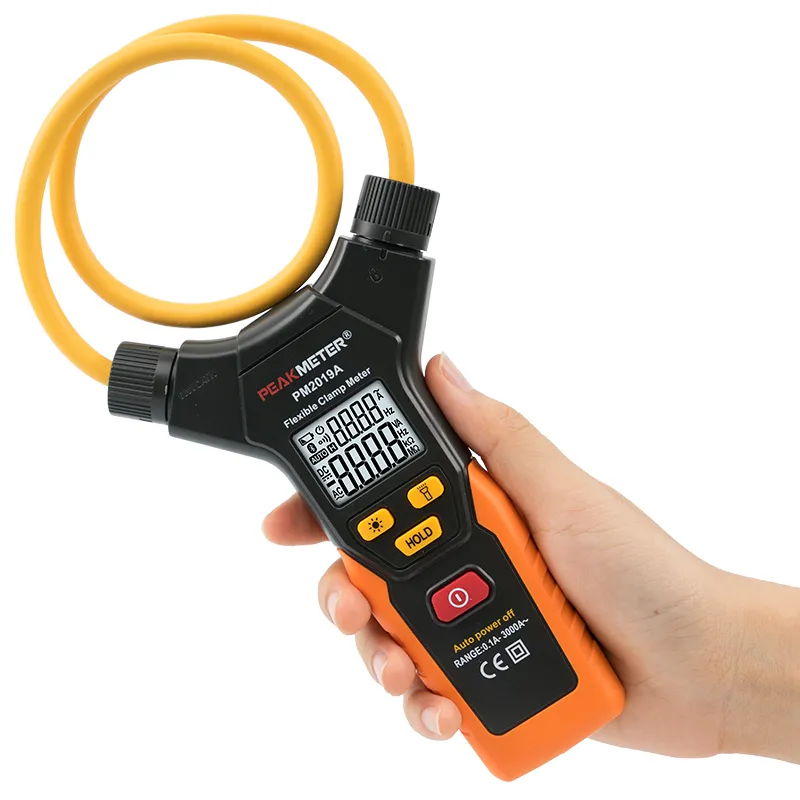

PM2019A is a smart digital flexible current meter. It can be used for measuring alternating current. This AC Digital Flexible Clamp Meter is an innovative, with Max current 3000A which is breaking through the traditional clamp Meter. It is a revolutionary product of measurement tools, which is an unique type prior to the world's major instrument manufacturers. While measuring Current , it also able to display simultaneously current frequency All above functions can be completed whenever the product has been boot up . no need any gear conversion, never have to worry it will be burned by mistaken operation.
Display: 6000 Counts
Data Hold
Work Light
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| AC Current(40～65Hz) | 60A/600A | ±（1.5%+5）（＜10A：±（2.0%+10）） |
| 3000A | ±（2.0%+5） | |
| AC Current(65～200Hz) | 60A/600A | ±（2.5%+5） |
| 3000A | ±（3.0%+5） | |
| AC Current(200～1000Hz) | 60A/600A/3000A | ±（3.0%+5）＞1000A No verification |
| Frequency | 40Hz～1000Hz | ± （0.5%+2） |
| FEATURE | ||
| Display | 6000 Counts | |
| Data Hold | √ | |
| BackLight | √ | |
| Work Light | √ | |
| GENERAL | ||

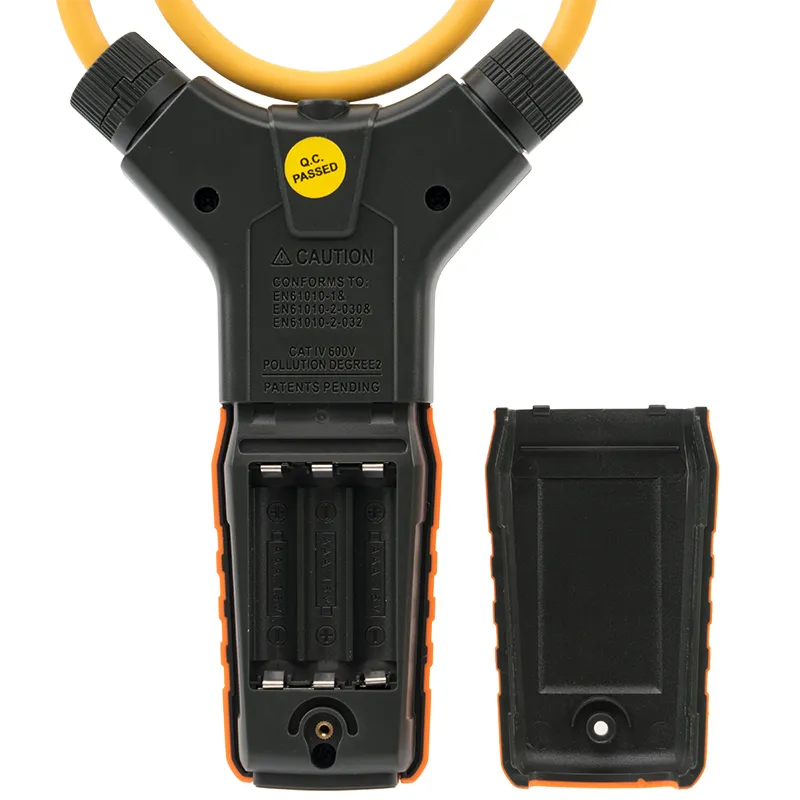

| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 324mm×178mm×30mm | |
| Jaw Size | φ150mm | |
| Net weight | 174g(batteries are not included） | |
| Gross weight | 363g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅳ600v | |
| Package（PCS/carton） | 20 pcs | |
| Color Box Size | 235mm×140mm×50mm | |
| Carton Size | 495mm×270mm×30mm | |
| G.W | 8.3kg | |
| 3*1.5V AAA Batteries | Users Manual |
