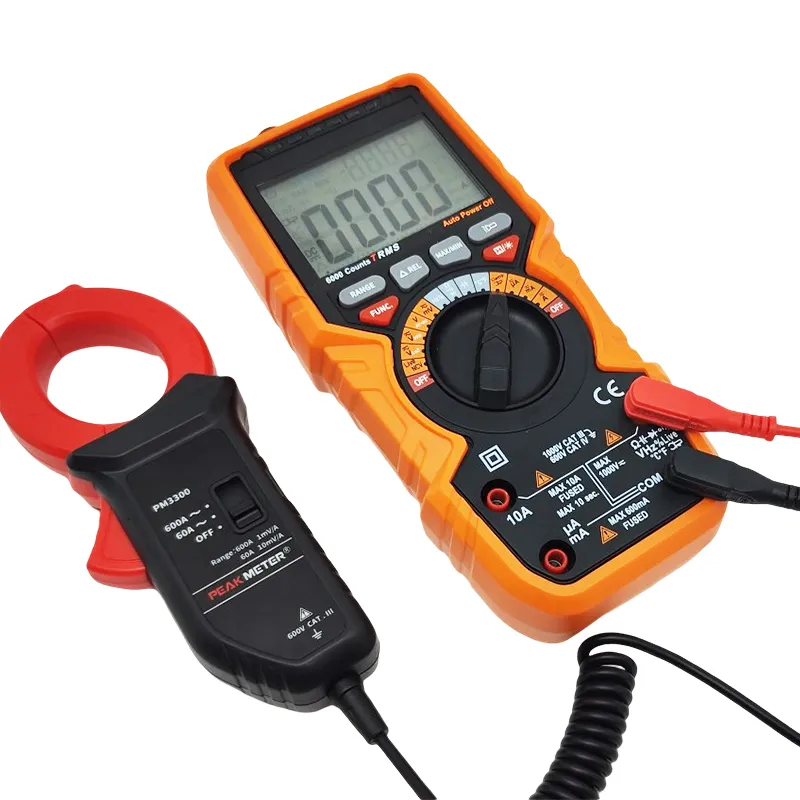

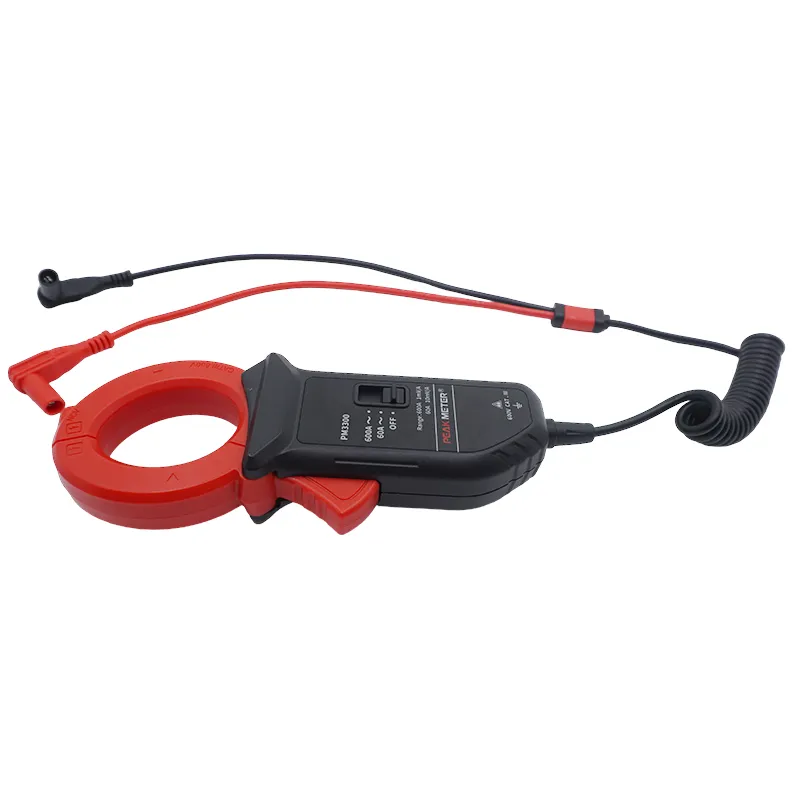

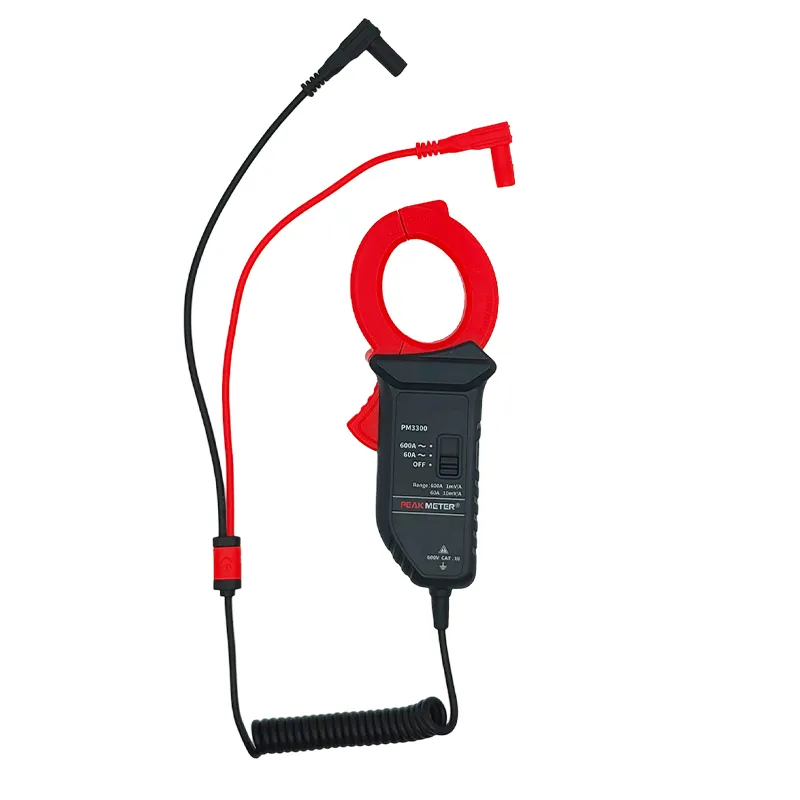

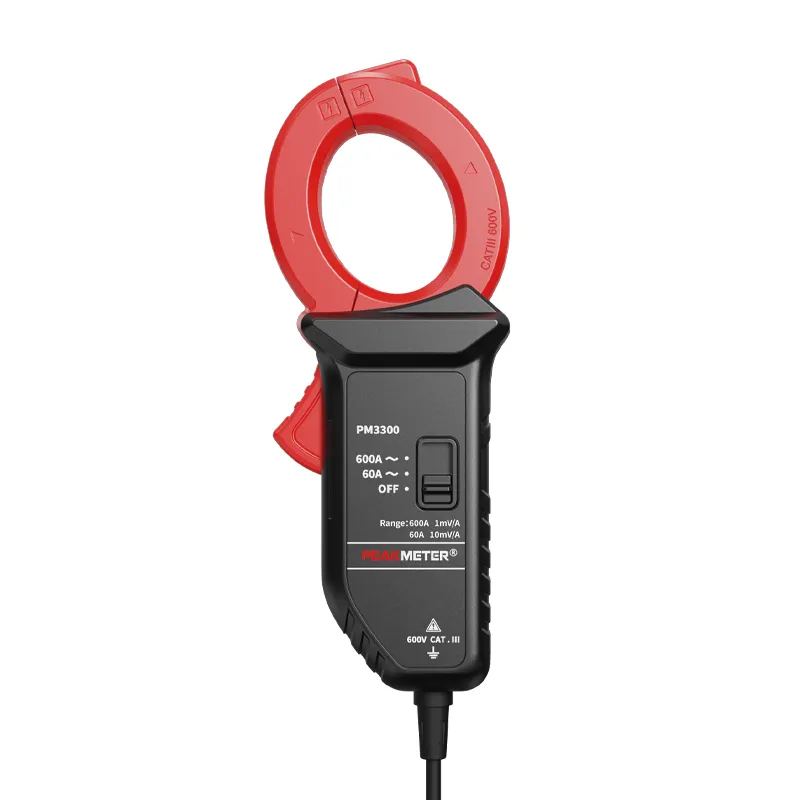

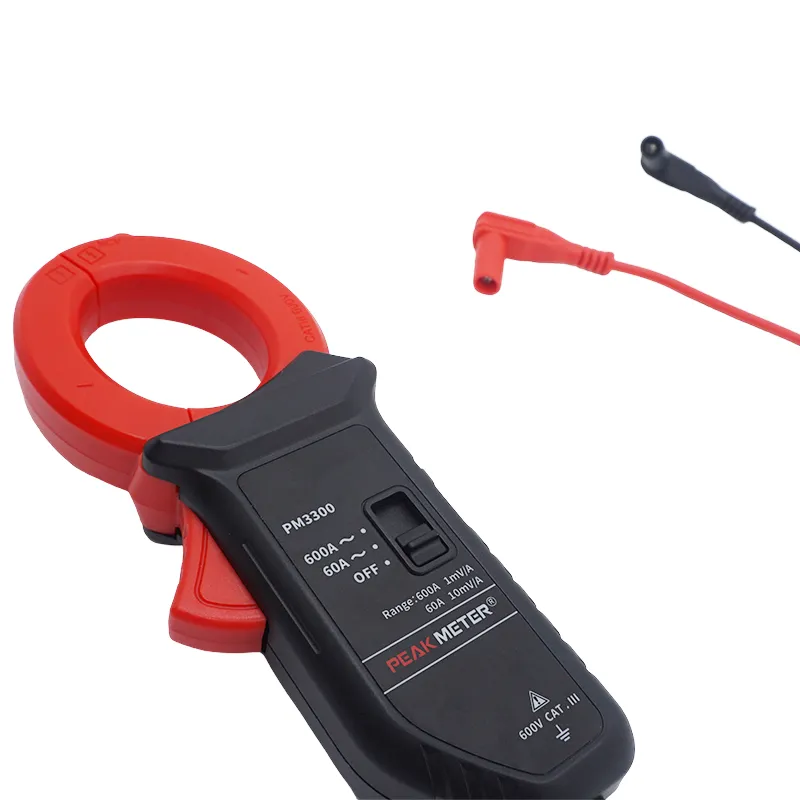

This PEAKMETER alternating‑current clamp‑on sensor is an external current‑signal converter, designed to cooperate with multimeters, data loggers and testing equipment for non‑contact AC‑current sampling. With dual‑range output configuration and wide frequency bandwidth, it fits power‑consumption monitoring, equipment‑load testing, electrical‑engineering debugging and industrial‑site current acquisition.
Test line: About One Meter (After Stretching)
| SPECIFICATION | ||
| AC Current 45Hz-1000Hz | 60A (Signal output ratio10mV:1A) | ±（2.5%+5） |
| 600A (Signal output ratio1mV:1A) | ||
| FEATURE | ||
| Test line | About one meter (after stretching) | |
| GENERAL | ||
| Weight | Approx 179g | |
| Product Size | 168mmx65mmx33mm | |
| Maximum opening of clamp head | 35mm | |
| Safty Rating | IEC61010-1,IEC 61010-2-032CAT III 600V | |
| Users Manual |
English
