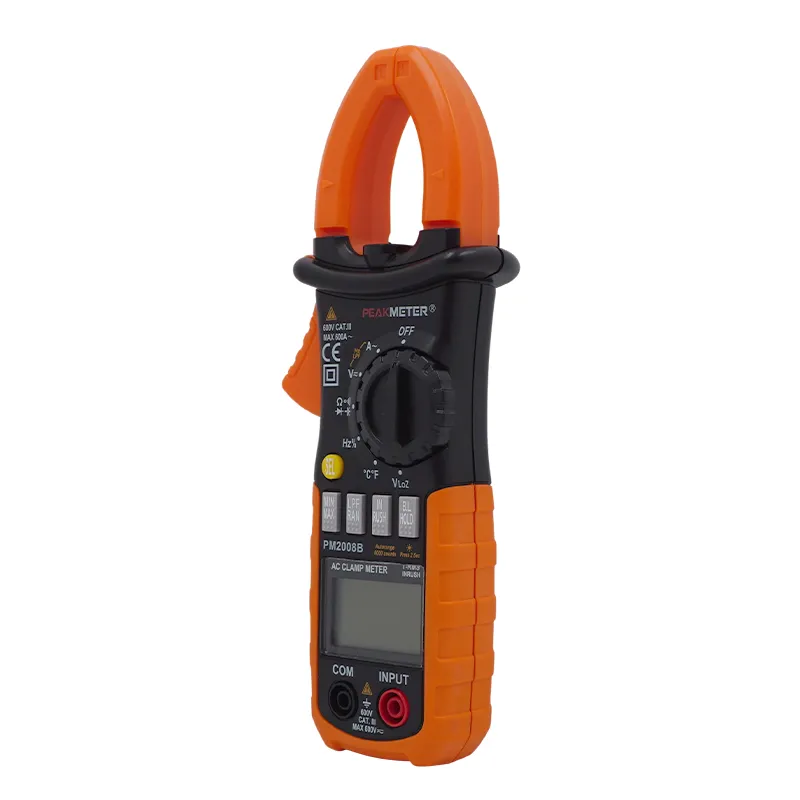

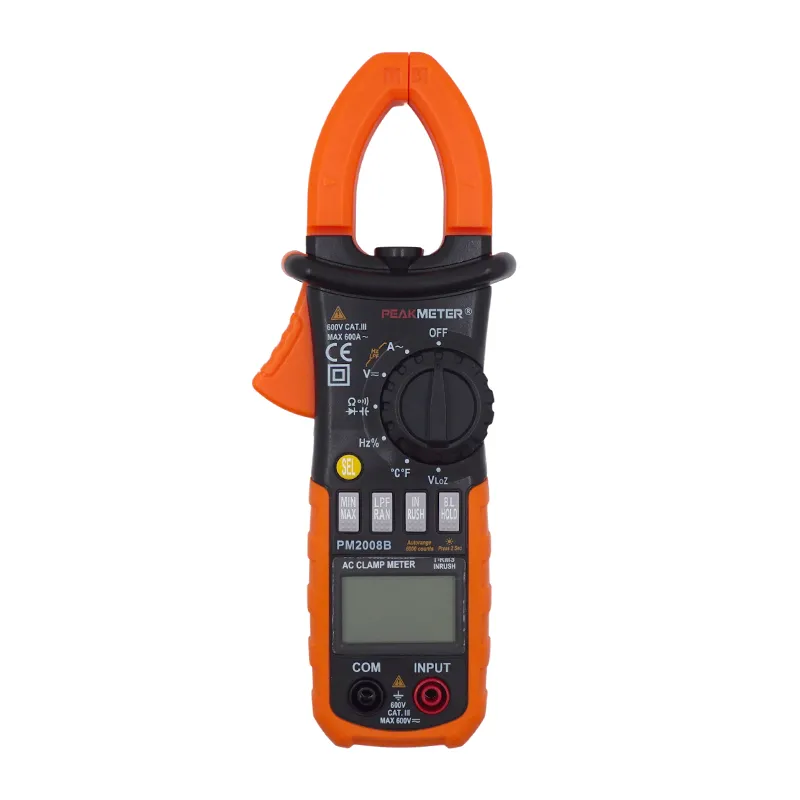

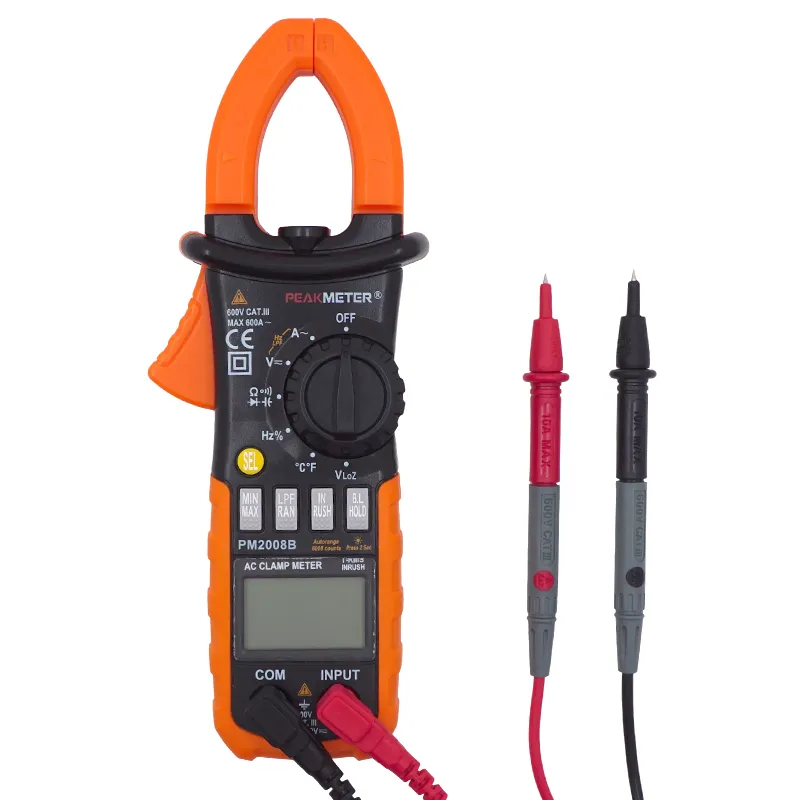

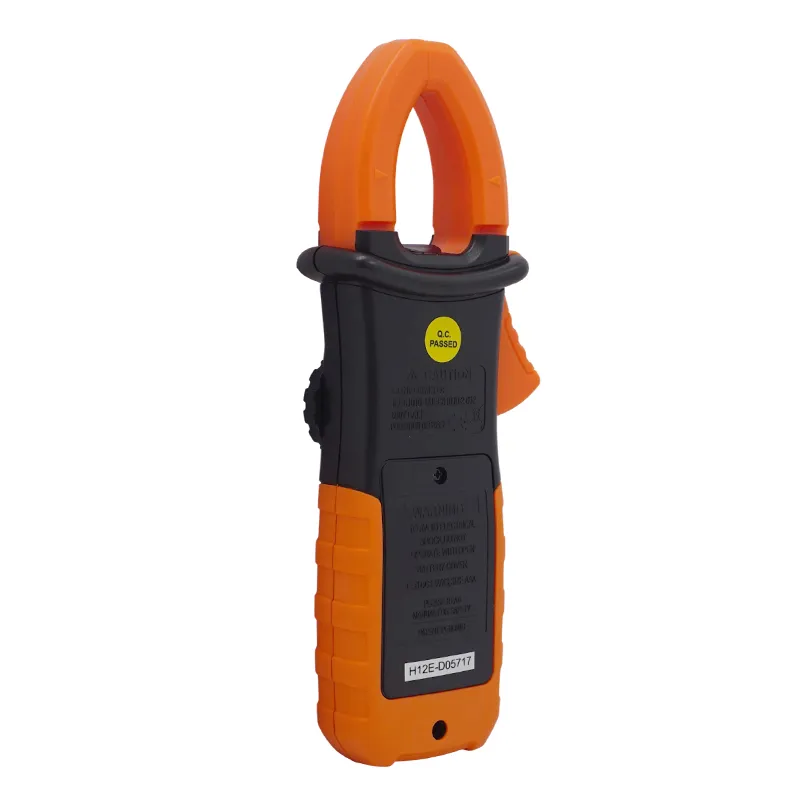

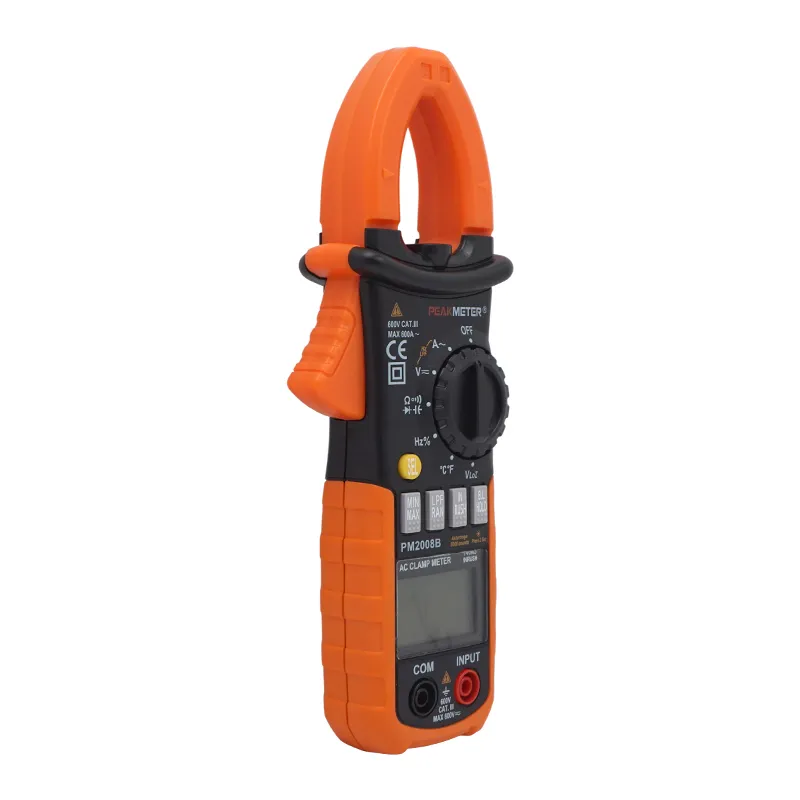

The PEAKMETER PM2008B professional‑grade digital clamp‑on meter is a versatile upgraded‑model electrical measuring instrument. Equipped with a high‑definition 6000‑count screen and comprehensive testing functions, it adapts to residential wiring maintenance, industrial‑site circuit troubleshooting, motor startup‑current inspection, HVAC equipment repair and complex‑signal measurement tasks for electricians and maintenance technicians.
Display: 6000 Counts
Auto And Manual Range
Data Hold
Work Light
Diode Test
Max
Continuity
Back Light
MAX/MIN
Temperature
Inrush Current
LPF
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 400mV/4V/40V/400V | ±（0.8%+2） |
| 600V | ±（1.0%+2） | |
| AC Voltage | 400mV/4V/40V/400V | ±（1.0%+10） |
| 600V | ±（1.2%+10） | |
| AC Current | 4A | ±（3.0%+15） |
| 40A | ±（3.0%+15） | |
| 400A | ±（2.5%+10） | |
| 600A | ±（3.0%+5） | |
| Resistance | 400Ω/4KΩ/40KΩ/400KΩ/4MΩ | ±（1.2%+2） |
| 40MΩ | ±（2.0%+5） | |
| Capacitance | ＜10nF | ±[（5.0%-50）+10] |
| 50nF | ±（3.0%+10） | |
| 500nF/5uF/50uF/100uF | ±（4.0%+5） | |
| Frequency | 50Hz/500Hz/5KHz/50KHz/100KHz | ±（1.0%+3） |
| Duty | 0.1-99.9% | ±3.0% |
| Temperature | -20～400℃ | ±（2.0%+2） |
| -401～1000℉ | ±2.0% | |
| FEATURE | ||
| Display | 2000 Counts | |
| Auto And Manual Range | √ | |
| Data Hold | √ | |
| Work Light | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 208mm×78mm×35mm | |
| Jaw Size | φ26mm | |
| Net weight | 340g(included batteries) | |
| Gross weight | 493g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 230mm×110mm×56mm | |
| Carton Size | 480mm×300mm×350mm | |
| G.W | 15.8kg | |
| Test Leads | Users Manual | 3*1.5V AAA batteries |
