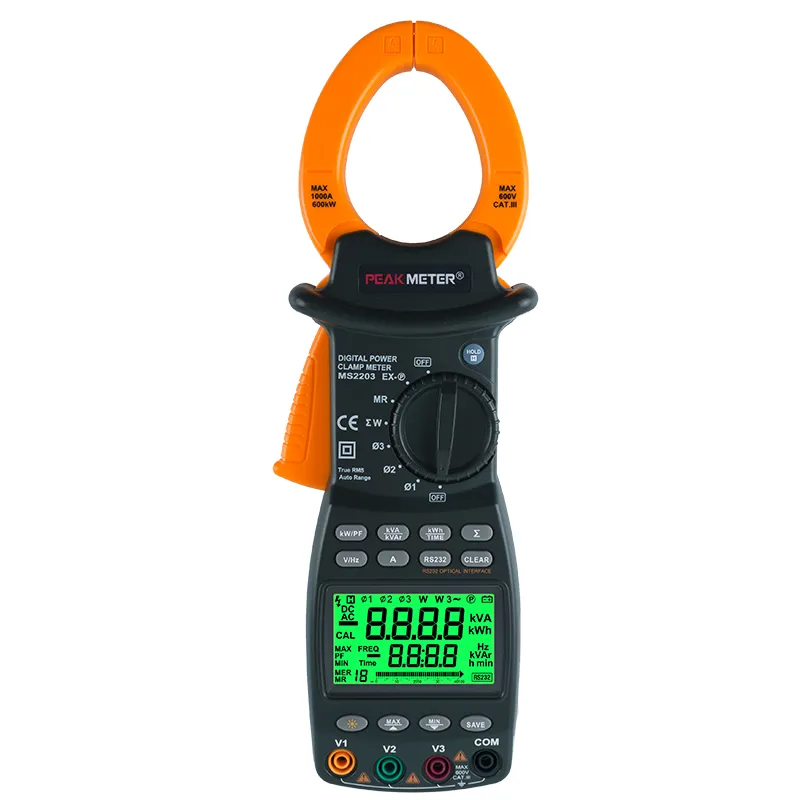

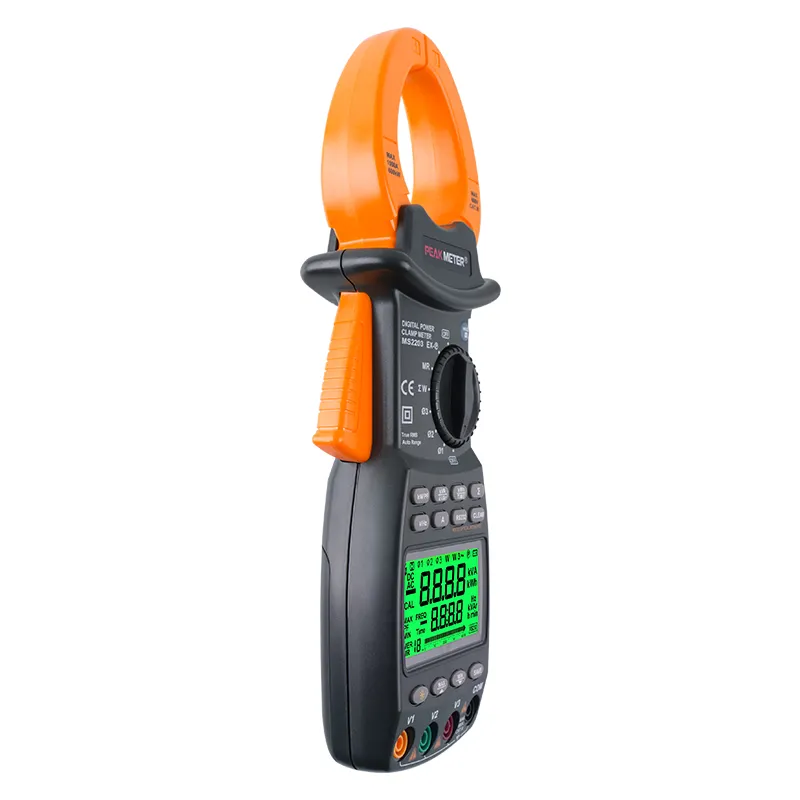

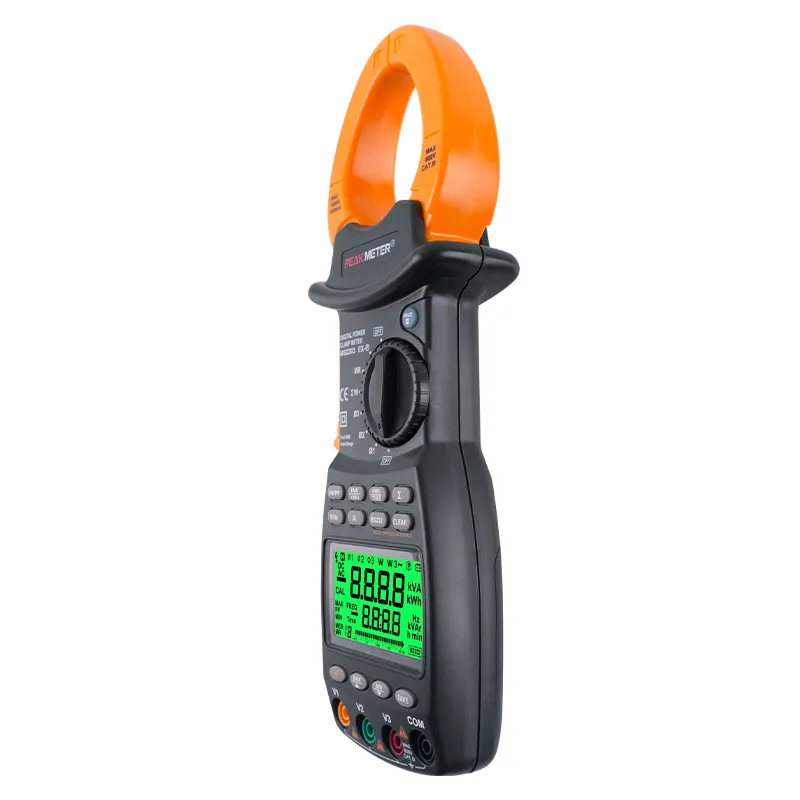

Three-phase digital power clamp meter is a handheld aptitude meter with power measurement. Low-consumption high-speed single-chip microprocessor is employed and sophisticated algorithm is applied, as a result, result can be obtained rapidly and precisely, and up to 20 harmonies and distortion value thereof can be measured.
Display: 9999 Counts
Auto Ranging
NCV
Maximun
Data Hold
Back Light
Jaw Opening
Low Battery Indication
RS232 Interface
TRUE RMS: True Root Mean Square Measurement
Data Loggingand Recall: 28 Groups
| SPECIFICATION | RANGE | ACCURACY | RESOLUTION |
| AC Voltage | 100V～600V | ±(1.2%+5) | 0.1V |
| AC Current | 40A～1000A | ±(2.0%+5) | 0.1A |
| Active Power | 4kW ～600kW | ± (3.0%+5) | 0.01kW |
| Apparent Power | 4kVA～600kVA | ± (3.0%+5) | 0.1kVA～600kVA |
| Reactive Power | 4kVAr～600kVAr | ±(4.0%+5) | 0.1kVAr |
| Power Factor | 0.3～1 | ±(0.02%+2) | 0.001 |
| Active Energy | 1～9999kWh | ±(3%+2) | 0.001kWh |
| Frequency | 20Hz～1kHz | ±0.5% | 0.1Hz |
| FEATURES | |||
| Display | 9999counts | ||
| Auto Range | √ | ||
| MAX/MIN Measurement | √ | ||
| Data Hold | √ | ||
| BackLight | √ | ||
| RS232Interface | √ | ||
| Low Voltage Indication | √ | ||
| True RMS | √ | ||
| Data Logging And Recall | 28groups | ||
| GENERAL | |||

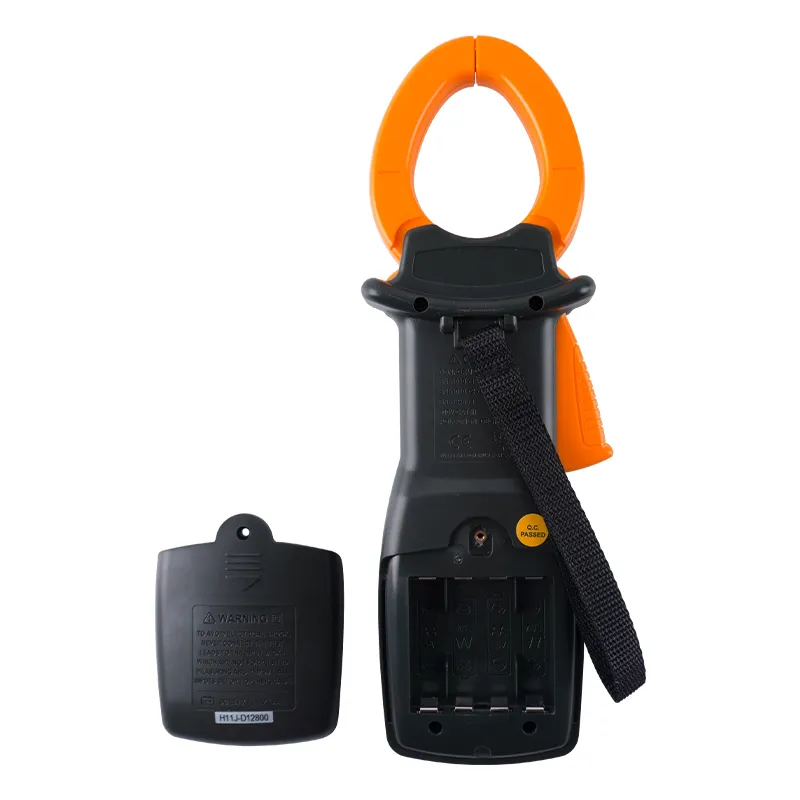

| Power Supply | 4x1.5V AA Batteries | ||
| Net weight | 500g(include batteries) | ||
| Gross weight | 1576g | ||
| Product Size | 300mm×103mm×51mm | ||

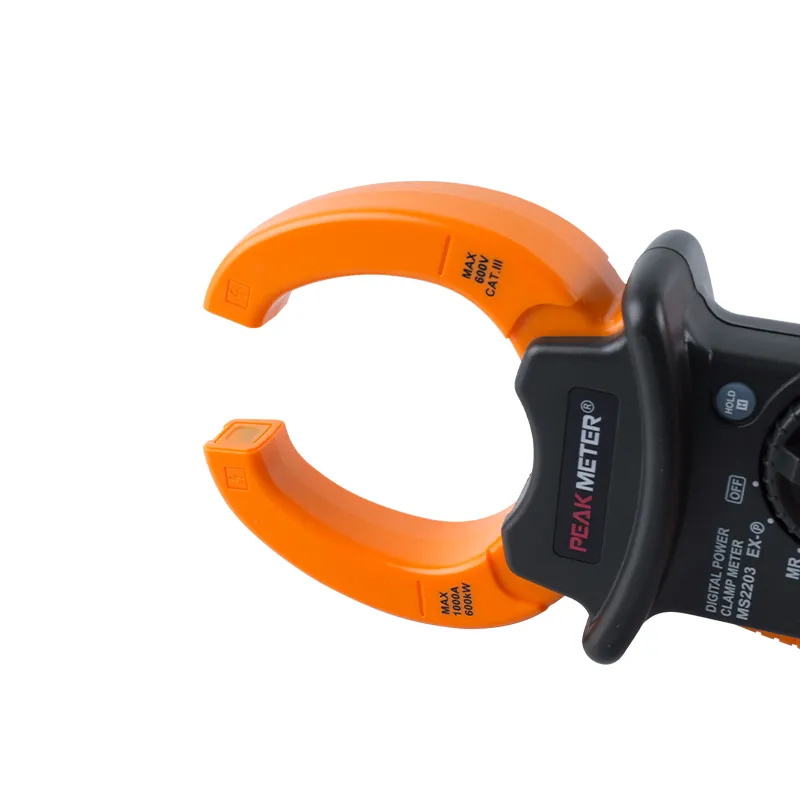

| Jaw Size | φ50mm | ||
| Safety Rating | EN61010-1,EN61010-2-032,EN61326,CATⅢ.600V | ||
| Package（PCS/carton） | 10PCS | ||
| Color Box Size | 325mm×220mm×65mm | ||
| Carton Size | 460mm×340mm×350mm | ||
| G.W | 16.8kg | ||
| Test Leads | Users Manual | 4*1.5V AA batteries |
