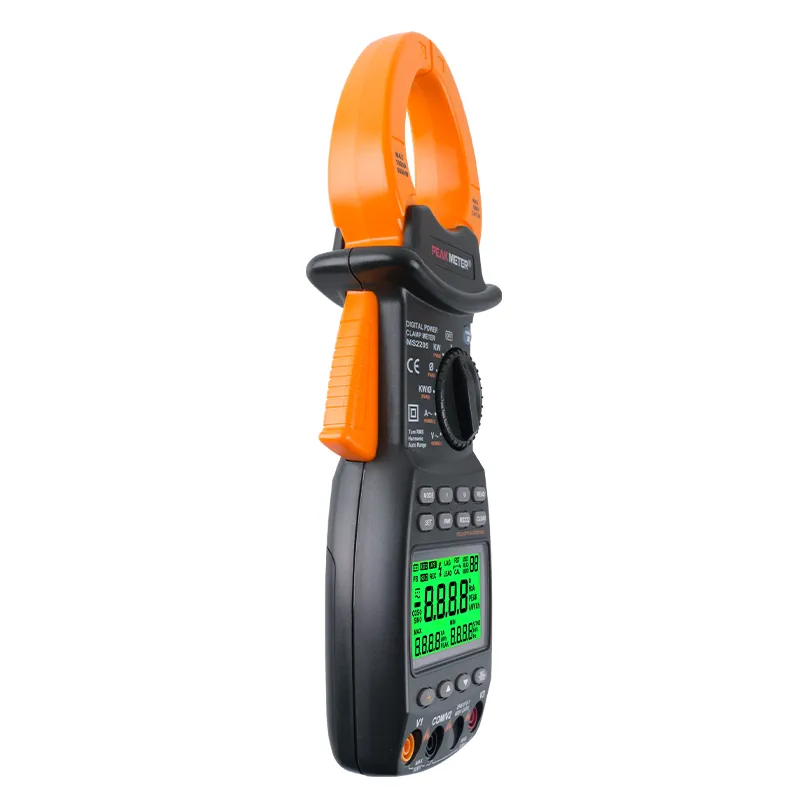

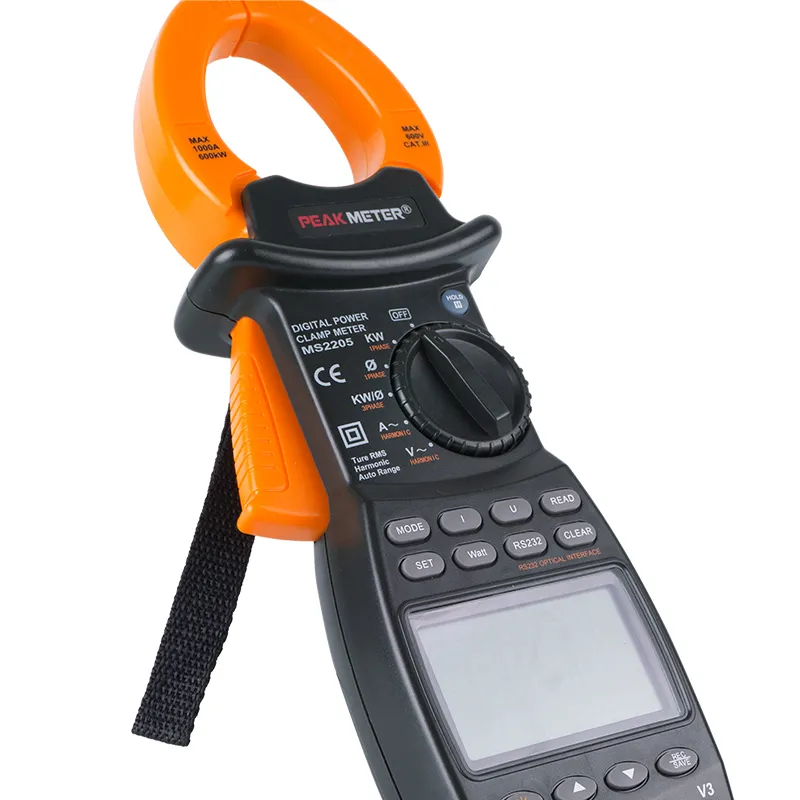

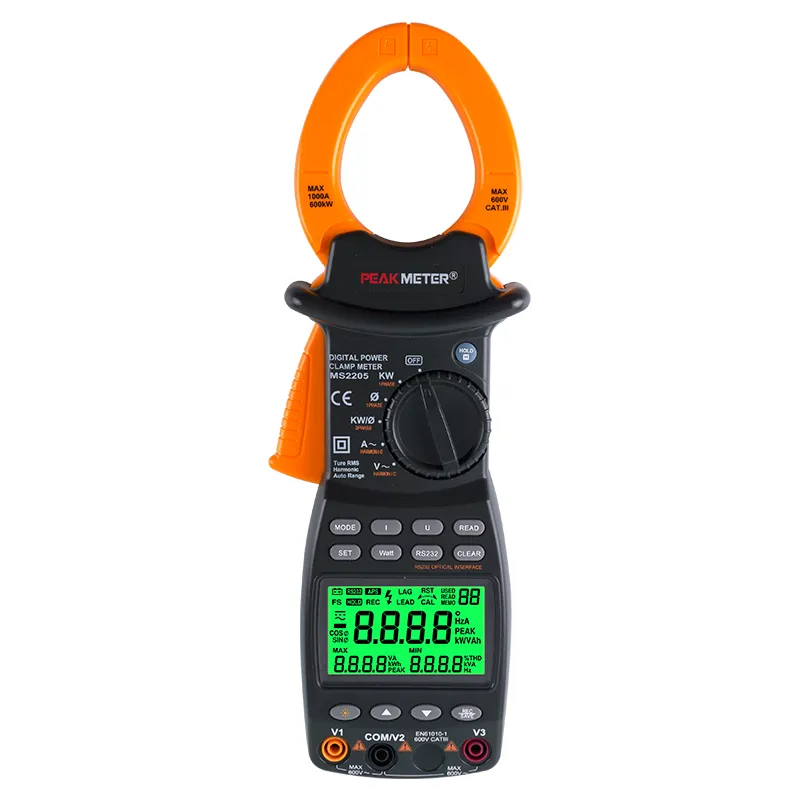

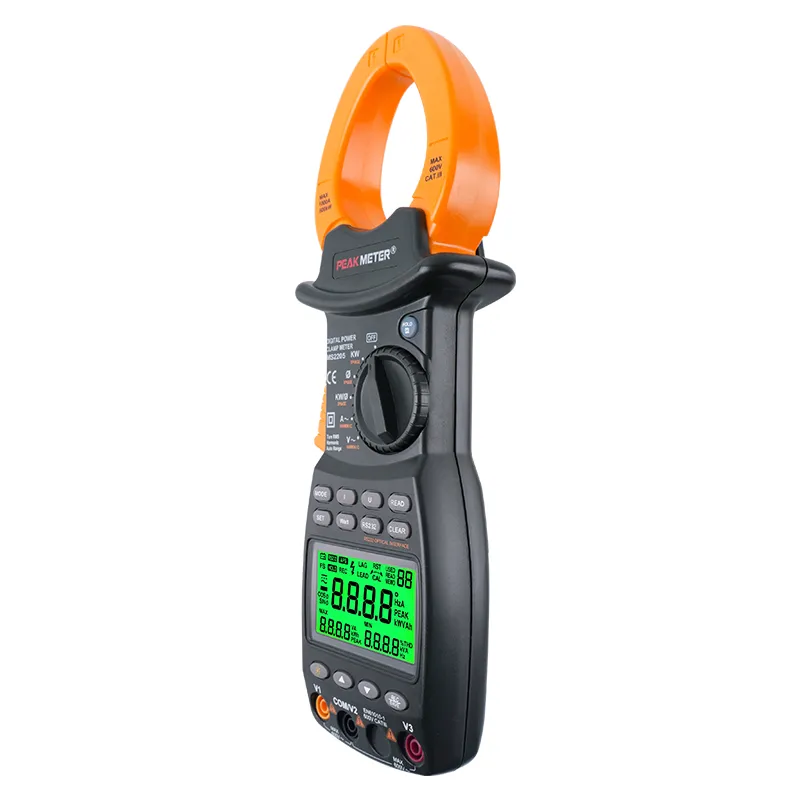

MS2205 is a hand-held intelligent harmonic power tester, with both functions of digital current testing and power testing. The tester is comprised of three channels including voltage, current, and power as well as a micro single chip system, and it is equipped with a powerful software for measurement and data processing functions; it can measure, calculate, and display voltage, current, active power, power factor, apparent power, passive power, frequency, harmonic parameters, with stable performance and operation convenience. The meter is especially suitable for the measurement and examination of on-site power equipment and power-supplying circuits; with hand-held clamp structure, small volume, and light weight, it can be easily carried by the user, which makes it easy and fast for doing measurement. For measurement of singe-phase/three-phase power. The meter is your ideal choice.
Display: 6000 Counts
Auto Power Off
Auto Ranging
Data Hold
Display Back Light
Jaw Opening
Data Logging And Recal: 100 Groups
Low Battery indication
True RMS: True Root Mean Square Measurement
RS232 Interface
| SPECIFICATION | RANGE | ACCURACY | RESOLUTION |
| AC Voltage | 80～600V | ±(1.0%+5) | 0.1V |
| AC Current | 20～1000A | ±(2.0%+5) | 0.1A |
| Single-phase Active Power | 30kW ～600kW | ±(3.0%+5) | 0.01kW |
| Three-phase Active Power | 3kW ～600kW | ±(3.0%+5) | 0.1kVA～600kVA |
| Reactive Power | 3kVAr～600kVAr | ±(3.0%+5) | 0.1kVAr |
| Power Factor | 0.3～1( Capacitive) | ±(0.02%+2) | 0.001 |
| 0.3～1( Inductive) | ±(0.02%+2) | 0.001 | |
| Active Energy | 1～9999kWh | ±(3%+2) | 0.001kWh |
| Frequency | 30Hz～1kHz | ±0.5% | 0.1Hz |
| Harmonic test 45HZ～65HZ (fundamentai frequency) | Harmonic NO.1 | ±(3.0%+10) | |
| Harmonic NO.2-6 | ±(3.5%+10) | ||
| Harmonic NO.7-8 | ±(4.5%+10) | ||
| Harmonic NO.9-10 | ±(5.0%+10) | ||
| Harmonic NO.11-15 | ±(7%+10) | ||
| Harmonic NO.16-20 | ±(10%+10) | ||
| FEATURES | |||
| Display | 6000 counts | ||
| Auto Power off | √ | ||
| Auto Range | √ | ||
| Data Hold | √ | ||
| BackLight | √ | ||
| RS232Interface | √ | ||
| Low Voltage Indication | √ | ||
| True RMS | √ | ||
| Data Logging And Recall | 100groups | ||
| GENERAL | |||

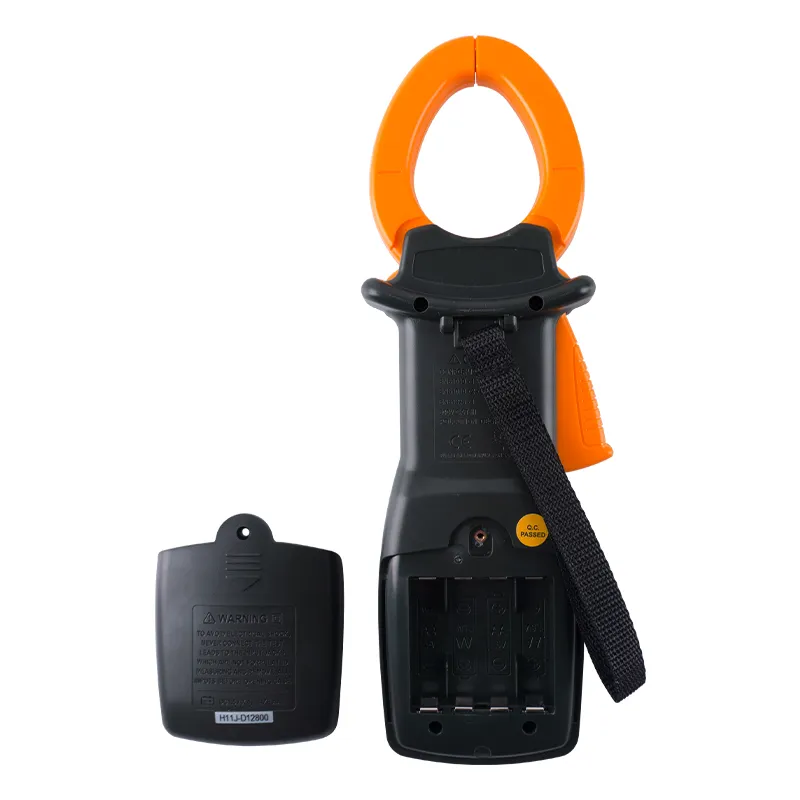

| Power Supply | 4x1.5V AA Batteries | ||
| Net weight | 500g(include batteries) | ||
| Gross weight | 1478g | ||
| Product Size | 300mm×103mm×51mm | ||
| Jaw Size | φ50mm | ||
| Safety Rating | EN61010-1,EN61010-2-032,EN61326,CATⅢ.600V | ||
| Package（PCS/carton） | 10PCS | ||
| Color Box Size | 325mm×220mm×65mm | ||
| Carton Size | 460mm×340mm×35mm | ||
| G.W | 15.7kg | ||
| Test Leads | Users Manual | 4*1.5V AA batteries |
