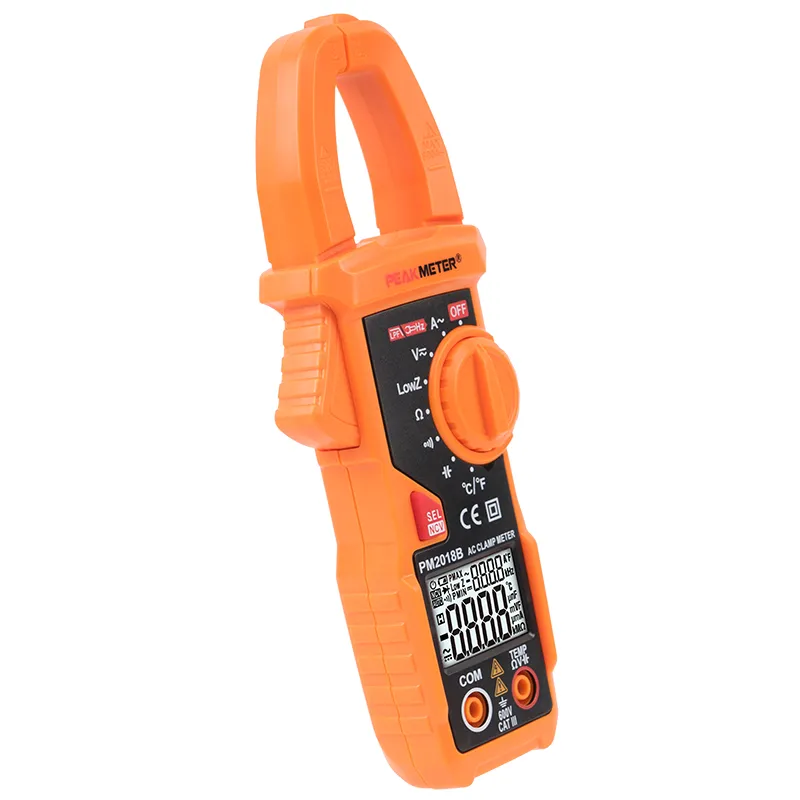

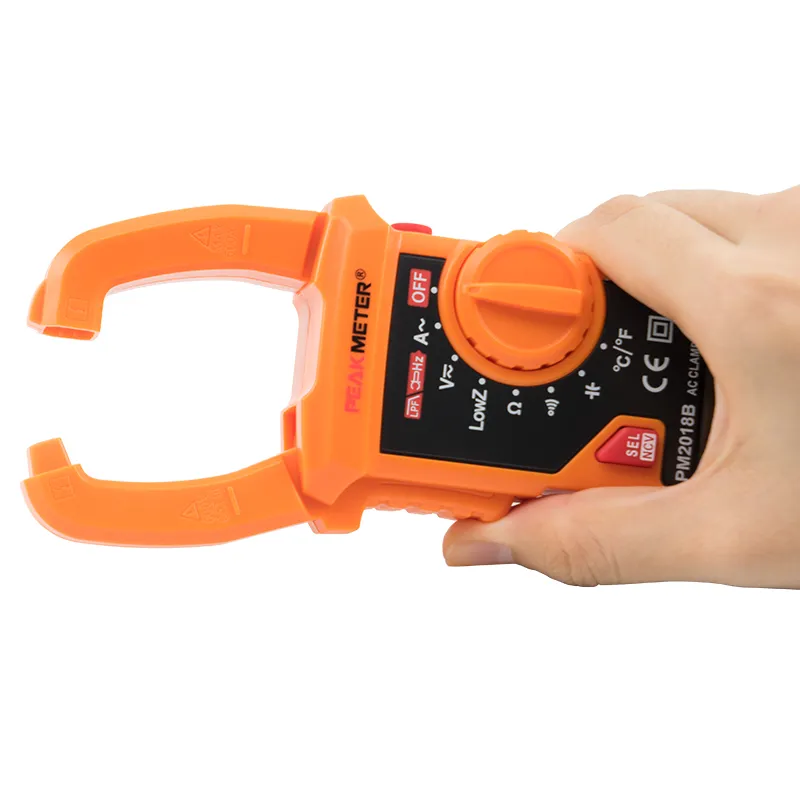

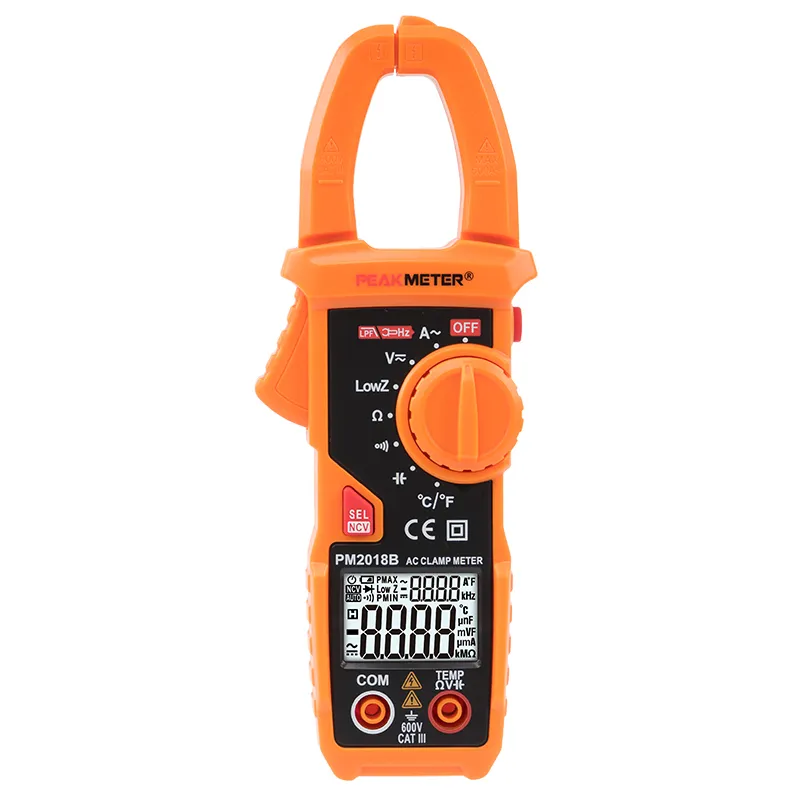

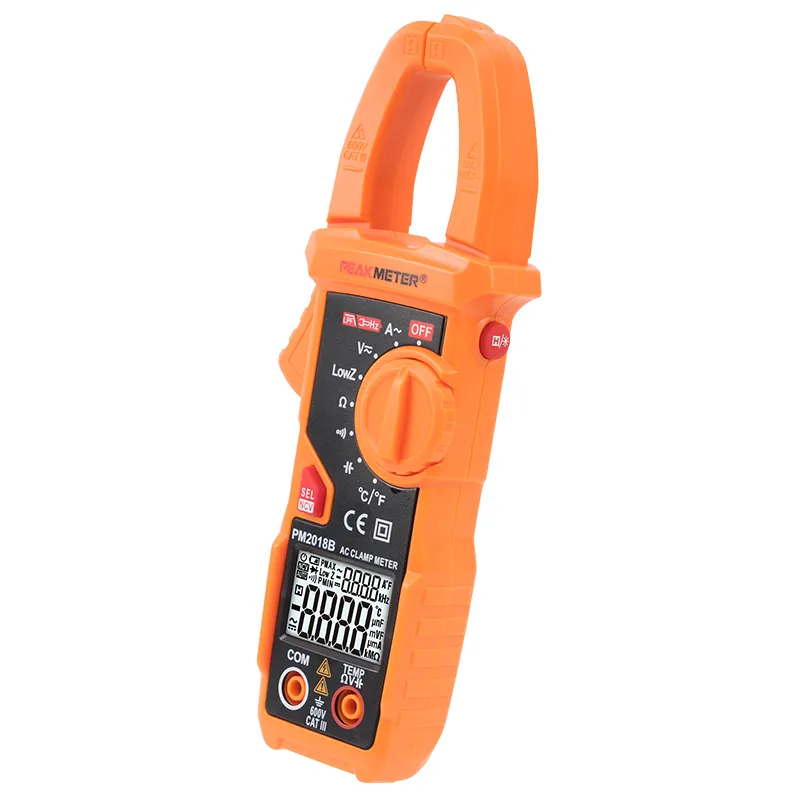

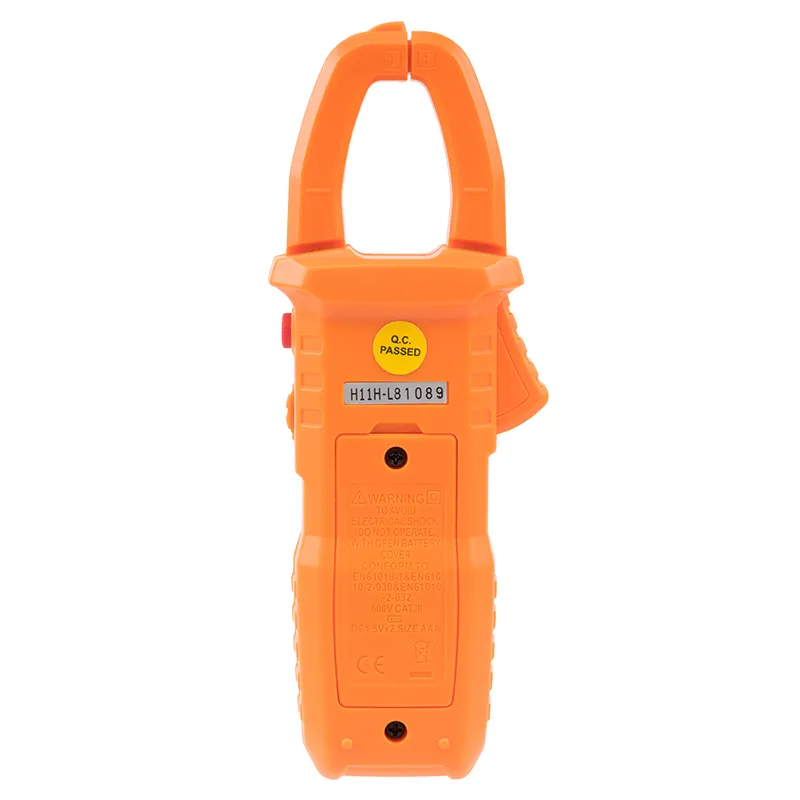

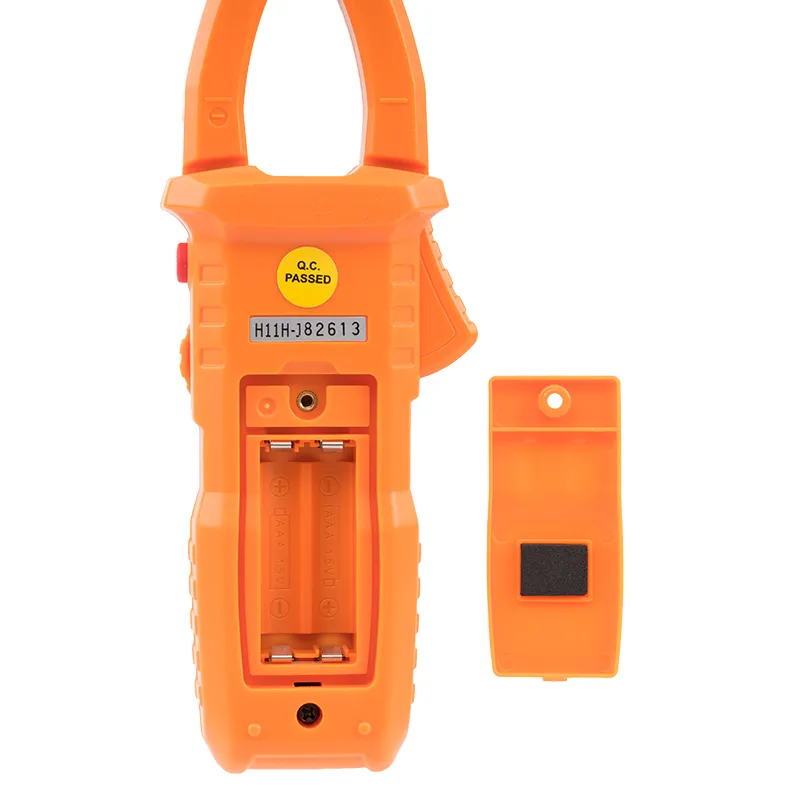

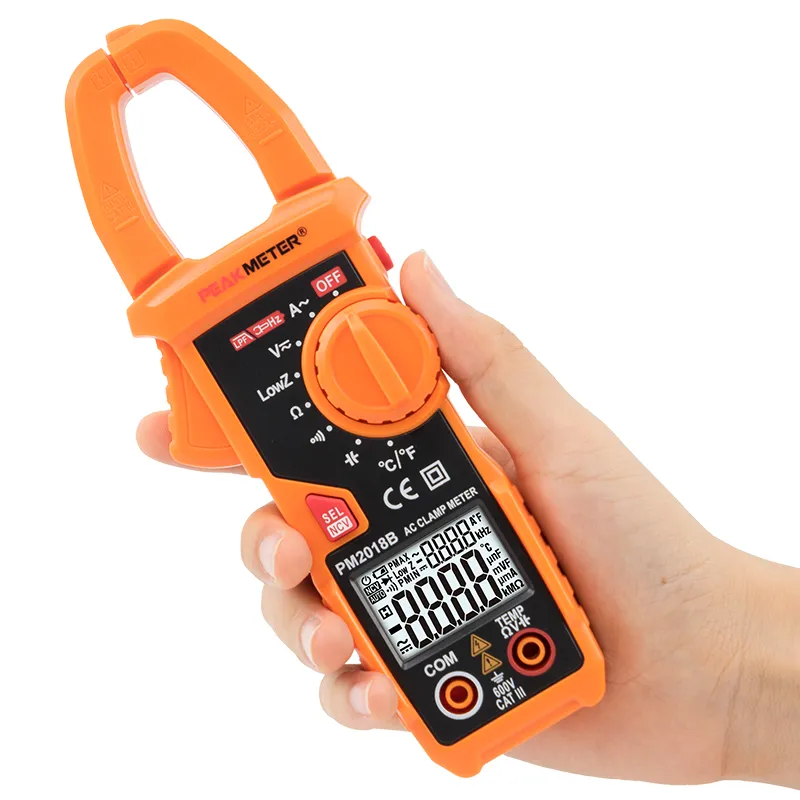

The upgraded patented PEAKMETER PM2018B auto‑range digital clamp‑on meter is a high‑performance multi‑function electrical tester. Designed for professional electrician maintenance, industrial circuit inspection, HVAC troubleshooting and household wiring diagnosis, this handheld ammeter integrates abundant testing modes, anti‑interference functions and premium‑grade safety certification to satisfy complicated on‑site measurement requirements.
Display: 6000 Counts
RANGE: Auto
Continuity: <50.00Ω
Resistance: 6kΩ/60kΩ/600kΩ/6MΩ/60MΩ
LPF(1kHz -3dB)
Frequency(Clamp): 1kHz
Frequency(Voltage): 1kHz
LoWZ
Temperature
Capacitance: 600uF/6000uF
Data Hold
Back Light
NCV
Low Battery Indication
Auto Power Off
Dual Display
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V | ±（0.5%+3） |
| AC Voltage | 6V/60V/600V | ±（0.8%+5） |
| AC Current | 6A/60A/400A | ±（2.5%+8） |
| 400A～600A | ±（3.0%+10） | |
| Resistance | 6KΩ/60KΩ/600KΩ/6MΩ/60MΩ | ±（0.8%+3） |
| Frequency | 40Hz～1000Hz | ±（1.0%+5） |
| Capacitance | 600uF/6000uF | ±（4.0%+3） |
| LowZ | 1.0～600V | ±（0.8%+3） |
| ℃/℉ | - 20～1000℃（-4～1832℉ ） | ±（1.0%+2） |
| FEATURE | ||
| Display | 6000 Counts | |
| Auto range | √ | |
| Continuity | √＜50Ω | |
| Frequency(Clamp) | √ | |
| Frequency(Voltage) | √ | |
| LPF（1KHz-3dB) | √ | |
| Low Volts | √ | |
| Data Hold | √ | |
| BackLight | √ | |
| Low Battery Indication | √ | |
| Auto Power off | √ | |
| NCV | √ | |
| Dual Display（ACV+ Freq，ACA+ Freq ） | √ | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA Batteries | |
| Product Size | 189mm×64mm×34mm | |
| Jaw Size | φ24mm | |
| Net weight | 187g(batteries are not included） | |
| Gross weight | 380g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 202mm×113mm×45mm | |
| Carton Size | 425mm×250mm×360mm | |
| G.W | 12.4kg | |
| K Type Thermocouple | Test Leads | Users Manual | 2*1.5V AAA Batteries |
