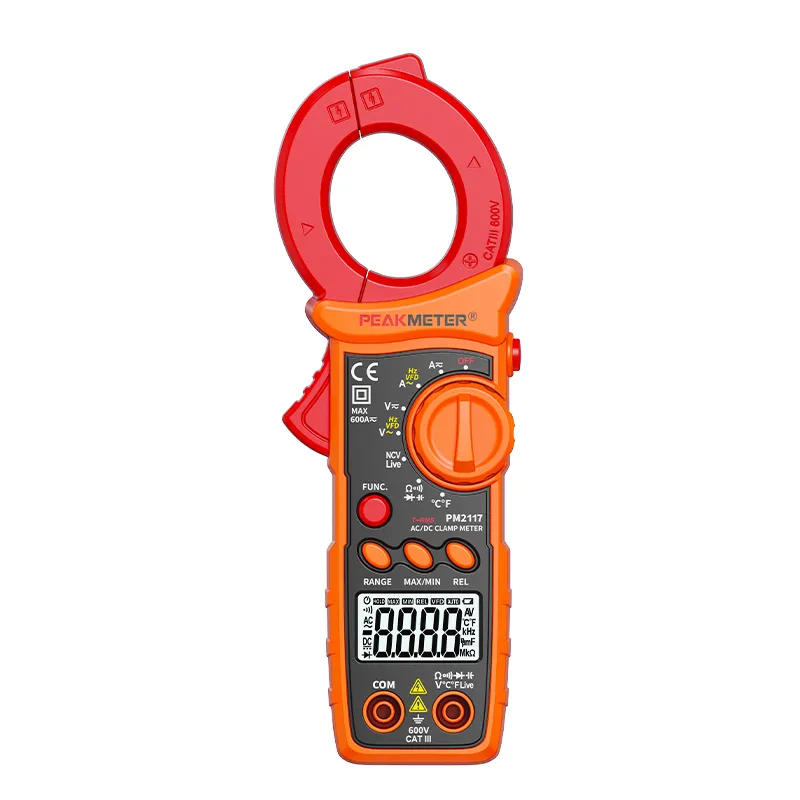

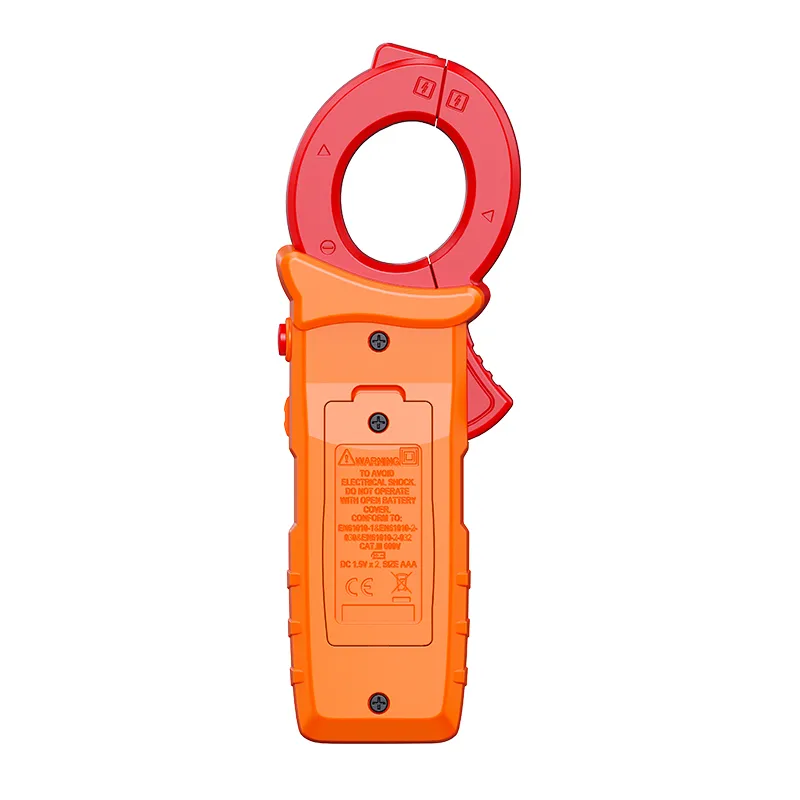

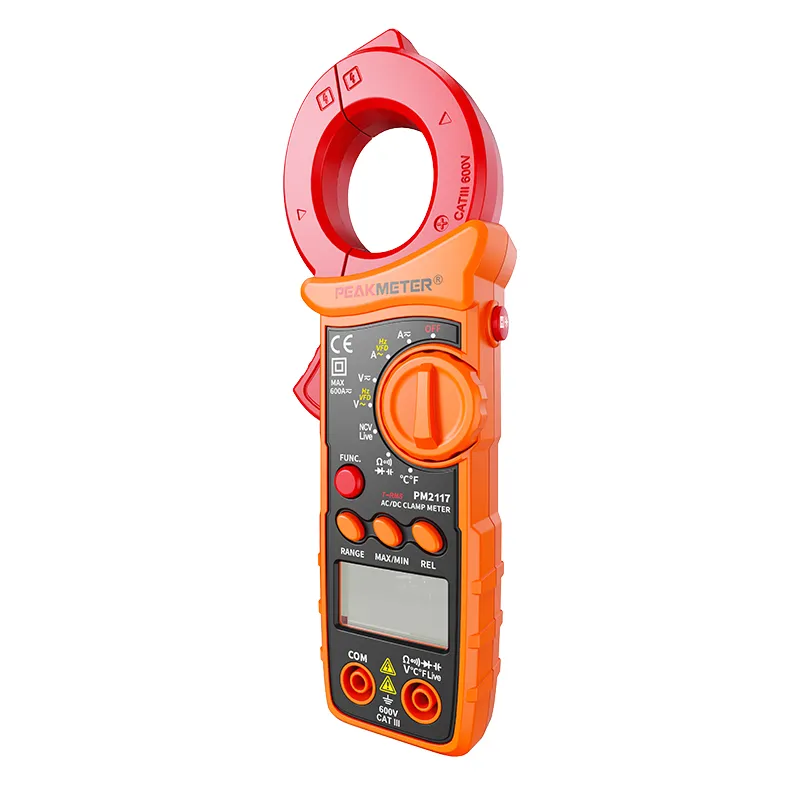

This PEAKMETER digital AC‑DC clamp‑on multimeter is an all‑in‑one professional electrical tester engineered for electrician maintenance, household wiring inspection, industrial‑site troubleshooting and DIY electrical jobs. Built‑in comprehensive measuring modes, handy practical functions and strict‑grade electrical safety certification make it your dependable handheld testing tool for daily‑on‑site work.
Display: 6000 counts
NCV
LIVE
MAX/MIN
Relative Measurement
Auto Range/Manual Range
Data Hold
Back Light
VFD
Auto Power Off: About 15 minutes
| SPECIFICATION | RANGE | ACCURACY |
| AC Current | 60A/600A | ±（2.5%+5） |
| DC Current | 60A/600A | ±（2.5%+5） |
| DC Voltage | 6V/60V/600V | ±（0.5%+3） |
| AC Voltage | 6V/60V/600V | ±（0.8%+5） |
| Frequency (By ACV) | 9.999Hz/99.99Hz/999.9Hz/9.999kHz/99.99kHz/999.9kHz | ±（1.0%+5） |
| Frequency (By ACA) | 9.999Hz/99.99Hz/999.9Hz | ±（1.0%+5） |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（1.0%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF | ± (4.0%+3) |
| 60mF | ± (5.0%+5) | |
| K-type Thermocouple Temperature | -20℃～1000℃（-4℉～1832℉） | ±（2.0%+2）(℃/℉) |
| FEATURES | ||
| Display | 6000 Counts | |
| NCV | √ | |
| LIVE | √ | |
| MAX/MIN | √ | |
| Relative Measurement | √ | |
| Auto Range/ Manual Range | √ | |
| Data Hold | √ | |
| Backlight | √ | |
| VFD | √ | |
| Auto Power off | About 15 minutes | |
| GENERAL | ||
| Power Supply | 2x1.5V AAA batteries | |
| Weight | 213g(no battery) | |
| Product Size | 195X66x33mm | |
| Safety Rating | IEC61010-1,IEC 61010-2-032,CAT IIl 600V | |
| K Type Thermocouple | Test Leads | Users Manual | 2*1.5V AAA batteries |
