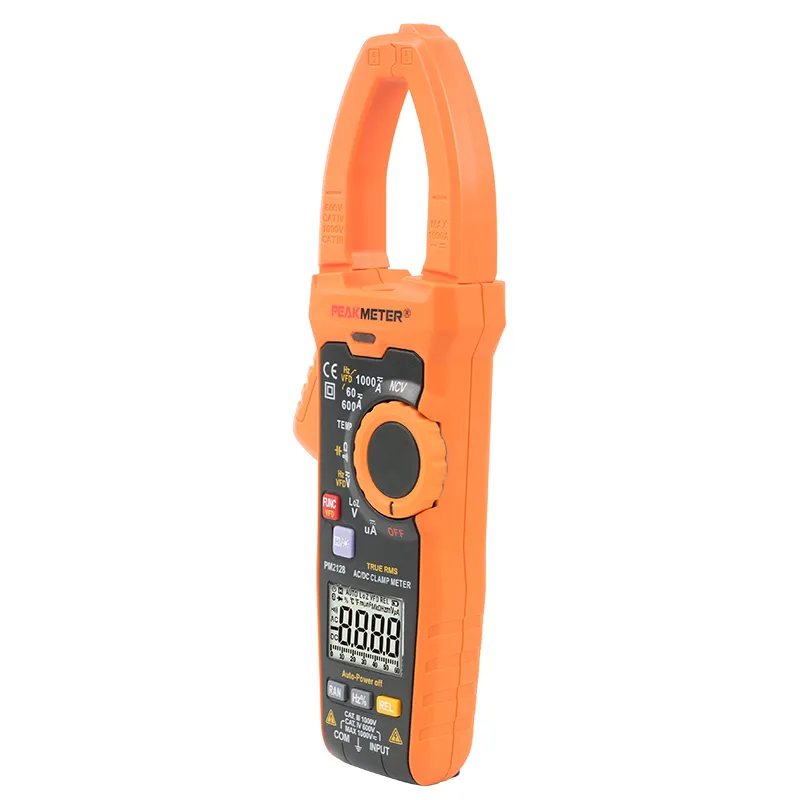

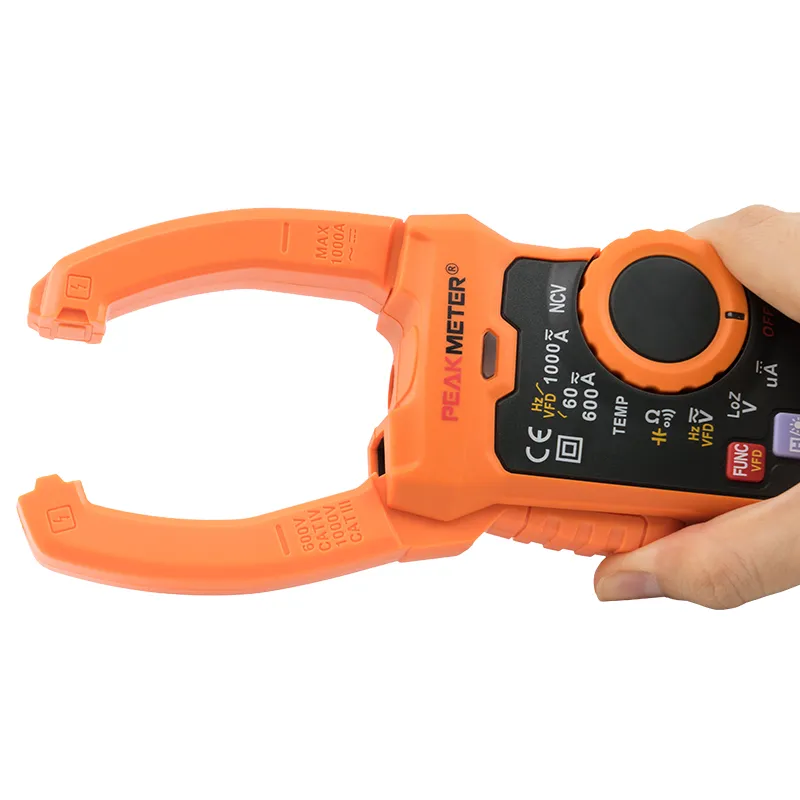

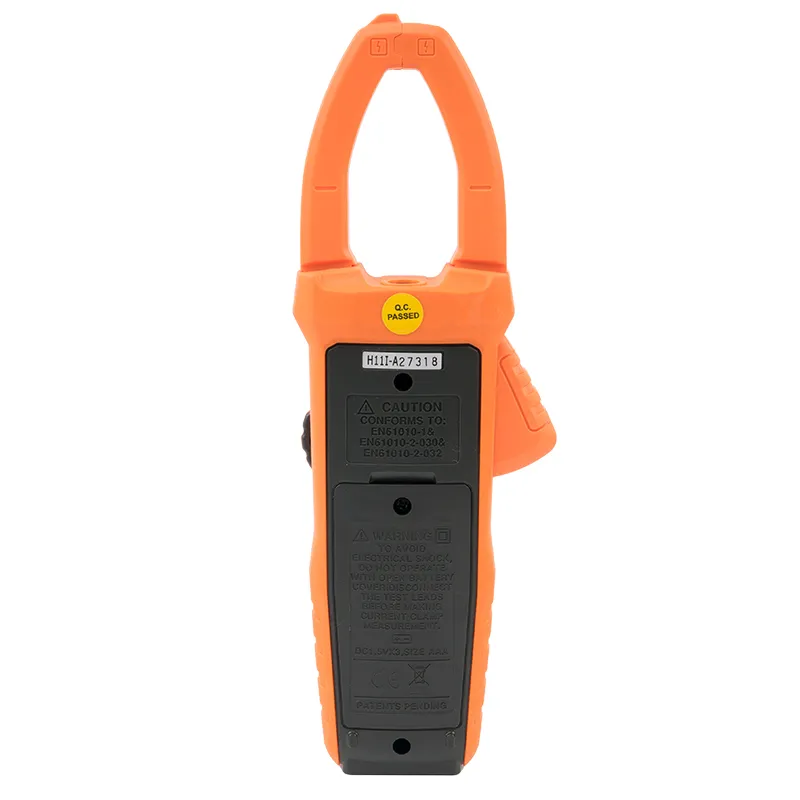

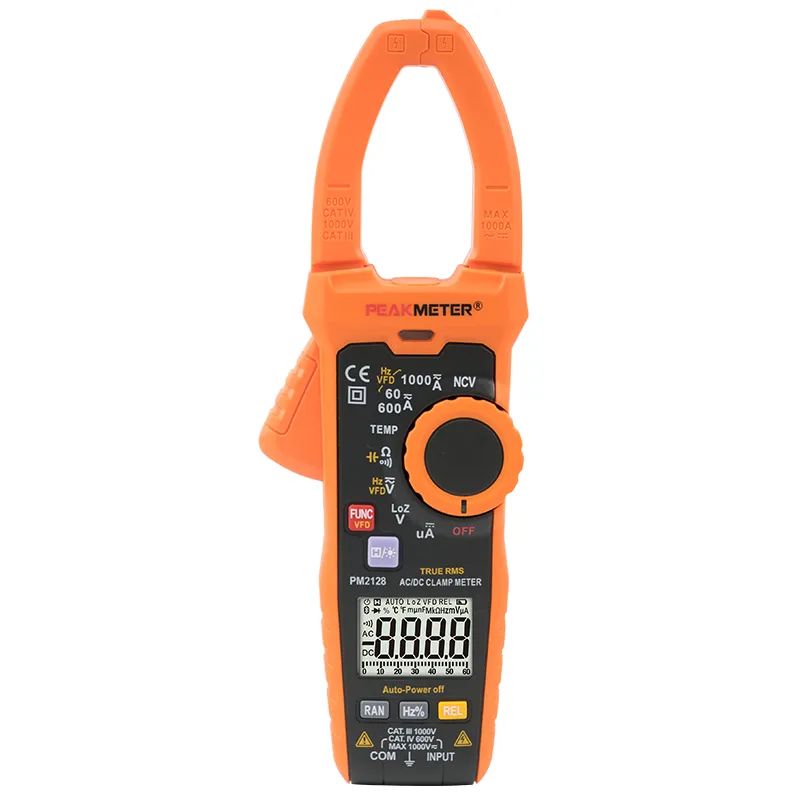

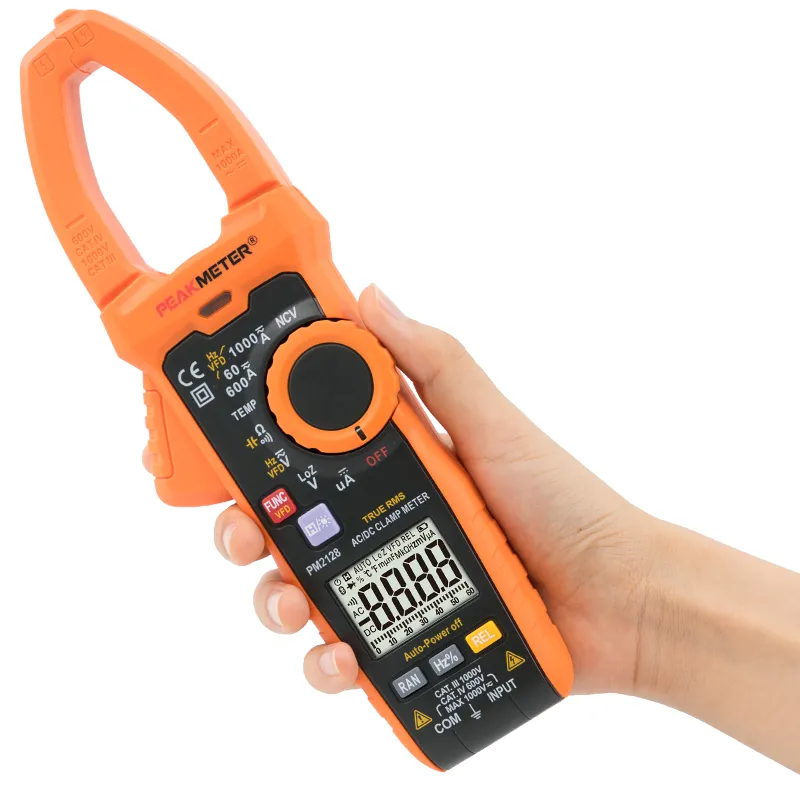

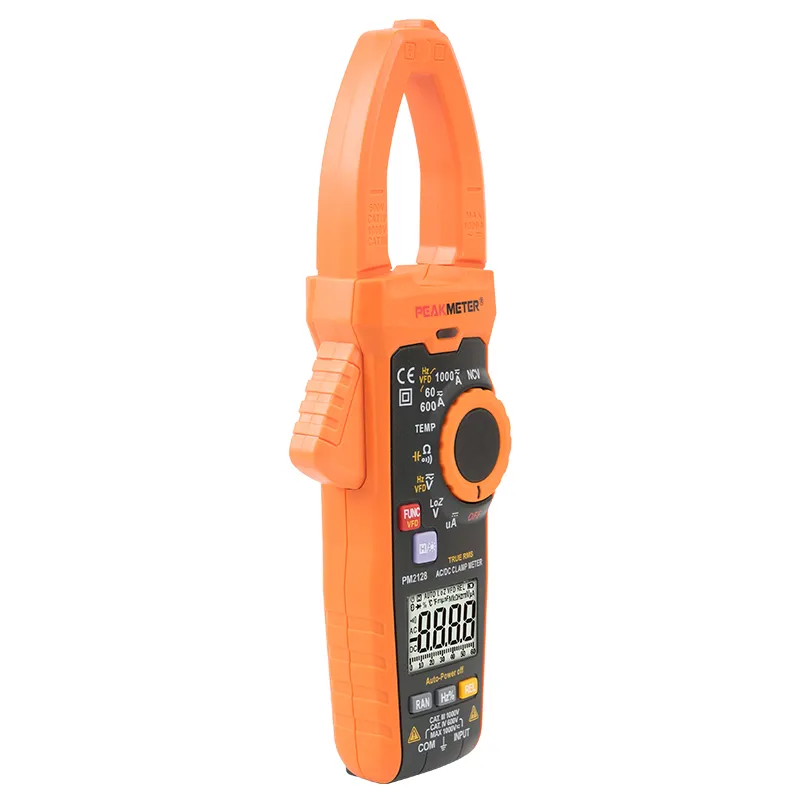

PM2128 AC/DC Digital Clamp Meter Frequency Resistance VFD Voltage Continuity Multimeter

PM2128 clamp multimeter has frequency converter VFD, which enables the instrument to measure frequency conversion voltage or current in the occasion of high frequency interference signal. This meter has a large HD backlit screen, 6000 counts and TRMS. It has the functions of measuring AC and DC voltage, 1000A AC and DC current, resistance, capacitance, temperature, low impedance voltage and NCV. AC & DC Voltage and Current-Can measure 1000V AC & DC Voltage, 1000A AC & DC Current. The combination of digital and analog bars, 6000 counts high-definition LCD display, backlight function adds brightness to the display, and the reading is clearer.

Contact Us
Features
Specification
Documents
Accessories & Options

Features of PM2128 AC/DC Digital Clamp Meter

  • Display: 6000 Counts

  • Analogue Bar Graph

  • Auto And Manual Range

  • True RMS

  • Data Hold

  • Worklight

  • Relative Measurement

  • Continuity

  • Back Light

  • VFD


Specification of PM2128 AC/DC Digital Clamp Meter


SPECIFICATIONRANGEACCURACY
DC Voltage6V/60V/600V/1000V±(0.5%+5)
AC Voltage6V/60V/600V±(0.8%+5)
1000V±(1.0%+5)
AC Current60A/600A/1000A±(2.5%+8)
DC Current60A/600A/1000A±(3.0%+10)
Resistance600Ω/6KΩ/60KΩ/600KΩ/6MΩ±(0.8%+3)
60MΩ±(1.2%+30)
Capacitance60nF/600nF/6uF/60uF/600uF/6mF/60mF±(4.0%+3)
Frequency100Hz/1000Hz/10KHz±(1.0%+5)
℃/℉-20~1000℃ (-4~1832℉)±(2.0%+2)
LowZDCV1000V±(1.0%+10)
ACV1000V±(2.0%+20)
DCμA200μA±(0.8%+3)
FEATURE

Display6000 Counts
Analogue Bar Graph
Auto and Manual Range
True RMS
Data Hold
BackLight
Relative Measurement
Continuity√<30Ω
VFD
DCμA
NCV
GENERAL

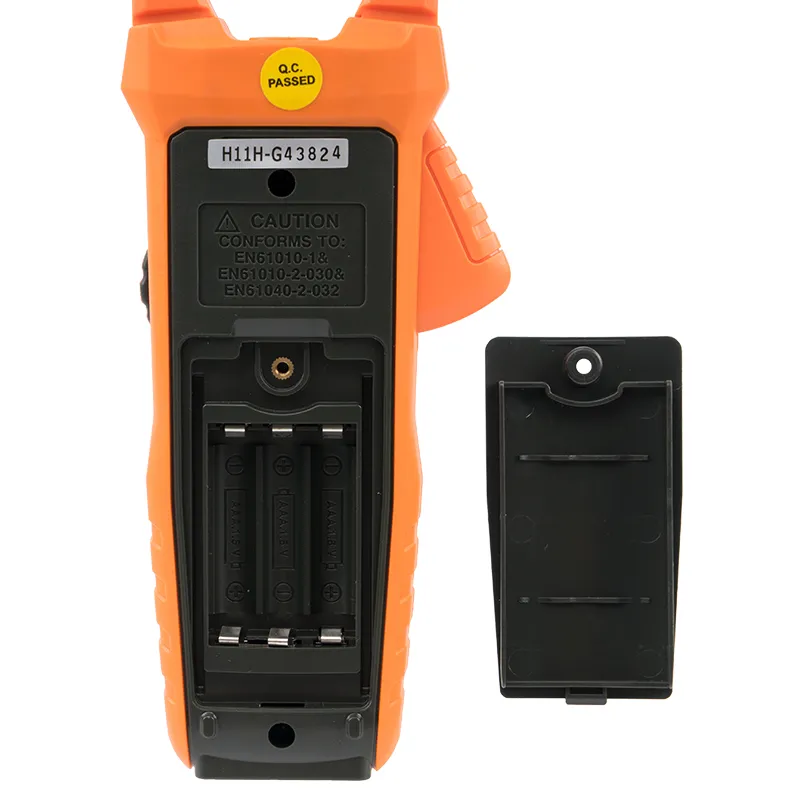

Power Supply3×1.5V AAA Batteries
Product Size247mm×85mm×40mm
Jaw Sizeφ35mm
Net weight310g(batteries are not included)
Gross weight595g
Safty RatingEN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000v,CAT.Ⅳ600v
Package(PCS/carton)20 pcs
Color Box  Size270mm×126mm×56mm
Carton  Size590mm×280mm×280mm
G.W12.9kg


Documents

Accessories & Options of PM2128 AC/DC Digital Clamp Meter


K Type ThermocoupleTest LeadsUsers Manual3*1.5V AAA Batteries
