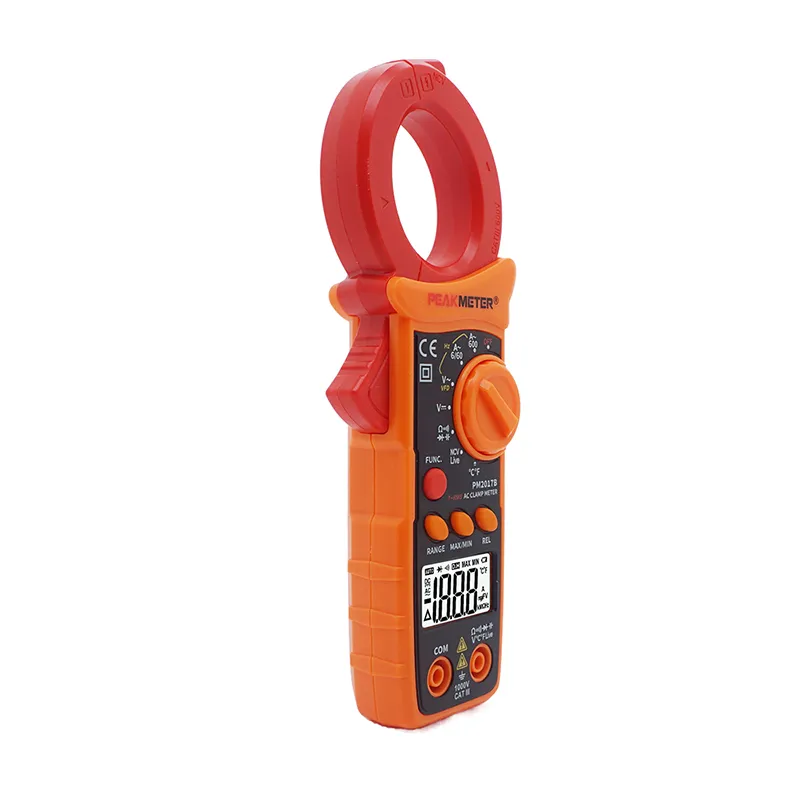

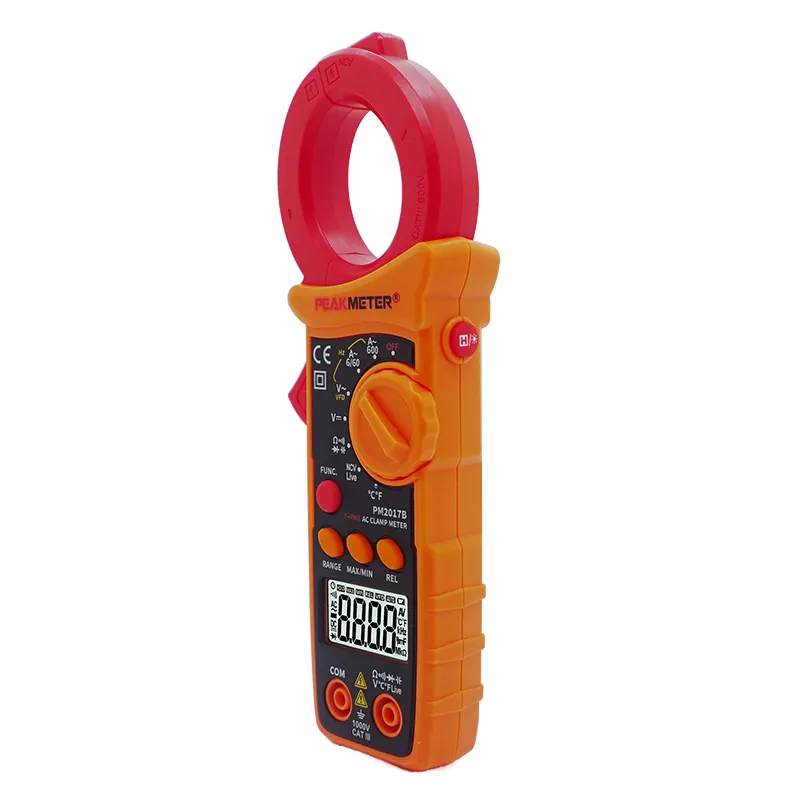

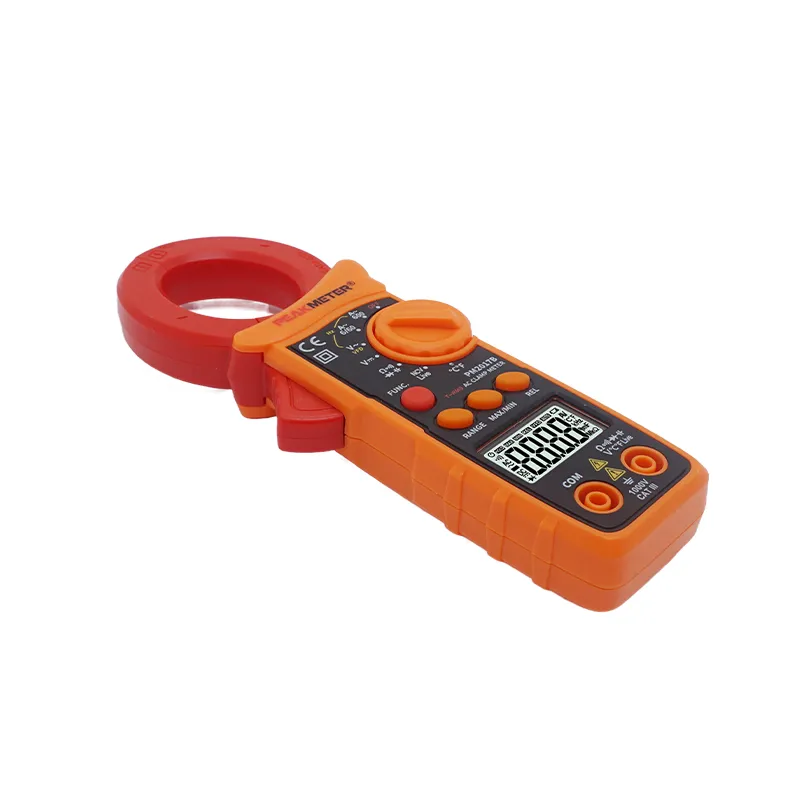

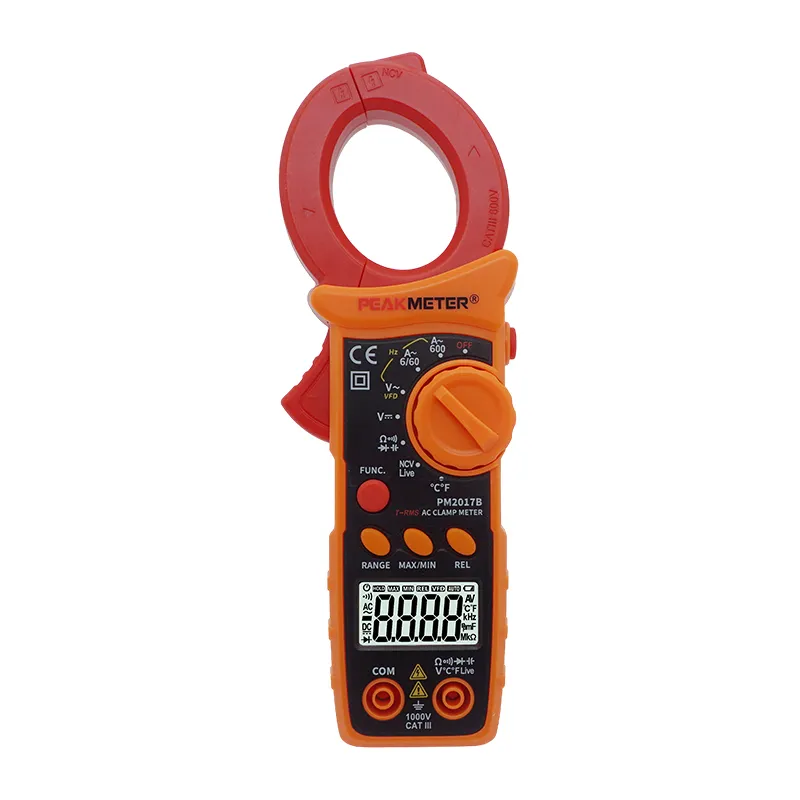

The PM2017B digital AC clamp meter is a stable, safe and reliable instrument. The circuit of the whole machine is based on integrated circuits, equipped with full-range over-current protection circuit, novel appearance, can be used for AC current, AC and DC voltage, temperature, frequency, resistance, capacitance, diode and circuit breakage measurement and non-contact voltage and fire line detection, it is a superior performance electrical instrument.
Display: 6000 Counts
Back Light
Relative Measurement
Manual/Automatic Range
Maximum/Minimum Measurement
Diode Test
Continuity
Single Probe Live Wire Detection
NCV
Auto Power Off: About 15 minutes
Low Battery Indication
Data Hold
VFD
True RMS
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V | ±（0.5%+3） |
| 1000V | ±（0.8%+3） | |
| AC Voltage | 6V/60V/600V | ±（0.8%+5） |
| 1000V | ±（1.0%+5） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（1.0%+3） |
| 60MΩ | ±（1.2%+30） | |
| AC Current | 6A | ±（2.5%+8） |
| 60A/600A | ±（2.5%+5） | |
| Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF | ± (4.0%+3) |
| 60mF | ± (5.0%+5) | |
| Frequency | 10HZ/100HZ/1KHZ/10kHZ/100kHZ/1MHz/10MHz | ±（1.0%+5） |
| K-type Thermocouple Temperature | -20℃～1000℃（-4℉～1832℉） | ±（2.0%+2）(℃/℉) |
| FEATURES | ||
| Display | 6000 Counts | |
| Backlight | √ | |
| Relative Measurement | √ | |
| Manual/Automatic Range | √ | |
| Max/Min Measurement | √ | |
| Diode Test | √ | |
| Continuity | √ | |
| Single probe live wire detection | √ | |
| NCV | √ | |
| Auto Power off | About 15 minutes | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| VFD | √ | |
| True RMS | √ | |
| GENERAL | ||
| Power Supply | 2x1.5V AAA batteries | |
| Weight | Approx.189g(batteries are not included） | |
| Product Size | 195X66x33mm | |
| Maximum opening of clamp head | 35mm | |
| Safety Rating | IEC61010-1,IEC 61010-2-032 Shell CAT III 1000V Clamp shell CAT Ⅳ600V | |
| Test Leads | Users Manual | 2*1.5V AAA batteries |
