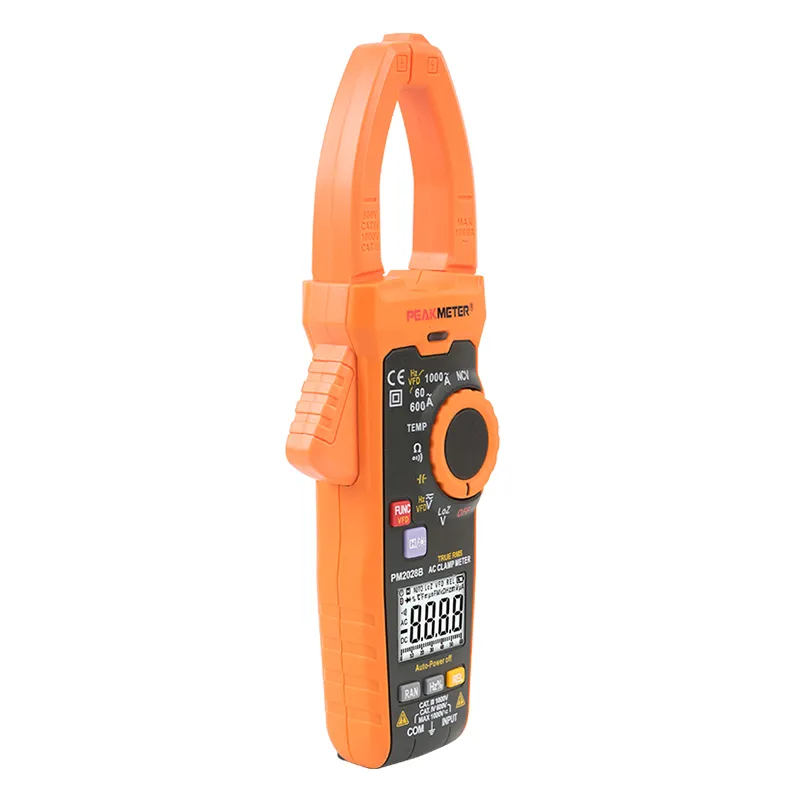

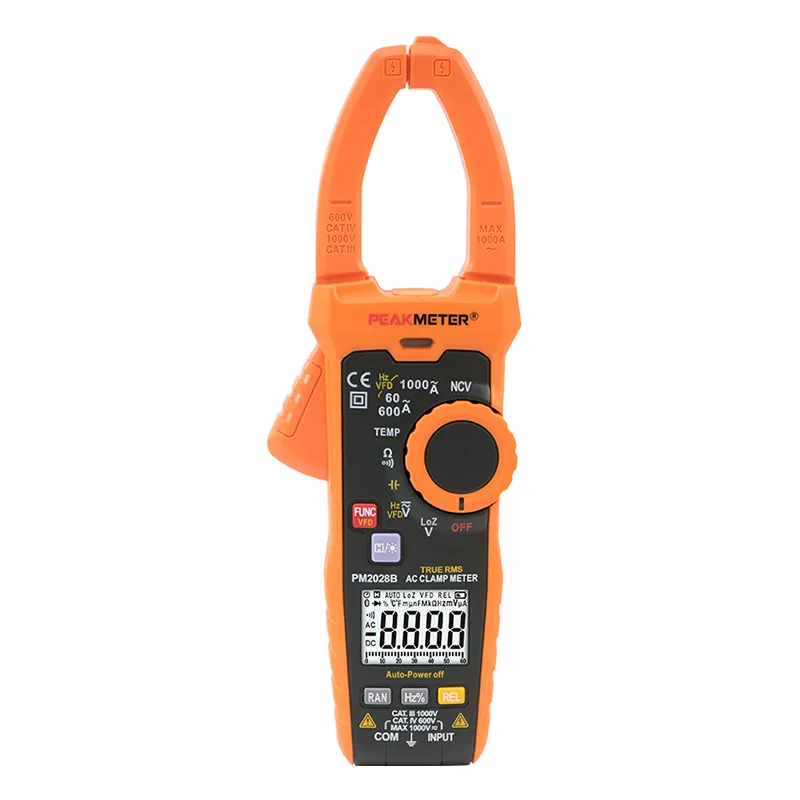

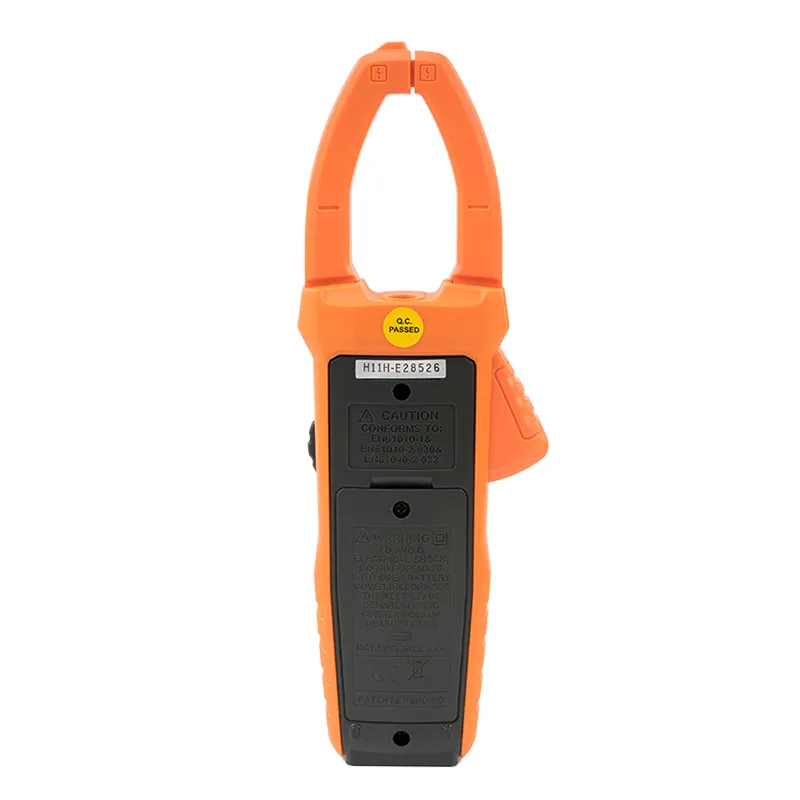

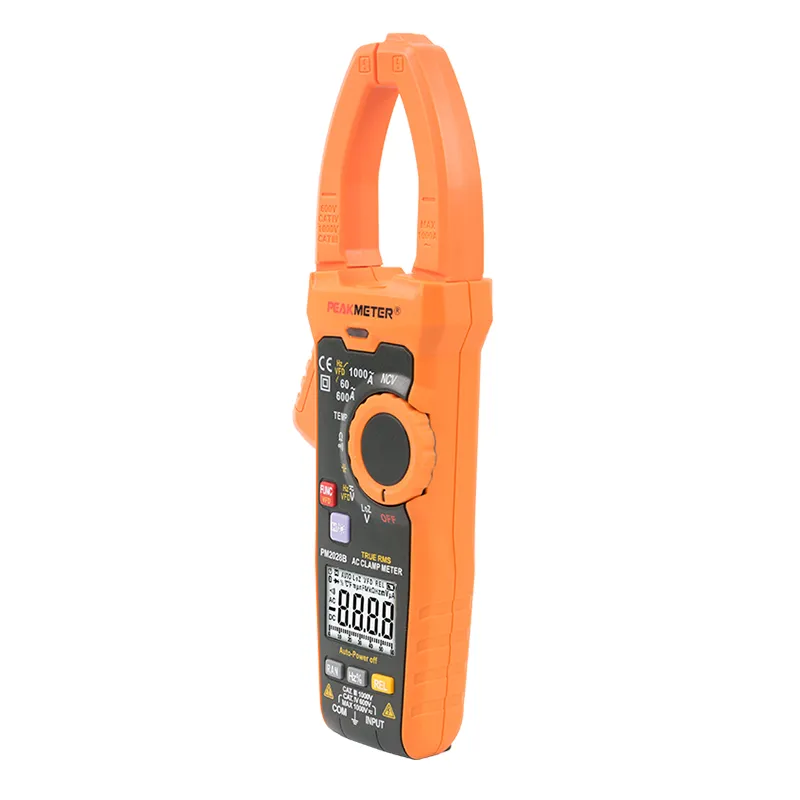

PM2028B is an auto and manual range True RMS digital multimeter. This meter has analogue bar graph and digital display. It can be used to measure AC&DC voltage, AC current, resistance, frequency, capacitance, temperature, etc. It also has functions of data hold, backlight, NCV, VFD, etc. Instrument complies with safety requirements on electronic measuring instrument of EN-61010-1, EN-61010-2-030, level Ⅱ pollution. If there is no operation within about 15 minutes after start, instrument will enter standby state, and shut down to save energy.
Display: 6000 Counts
Analogue Bar Graph
Auto And Manual Range
True RMS
Data Hold
Worklight
Non-Contact Voltage Detector (NCV)
Relative Measurement
Continuity
Back Light
VFD
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V/1000V | ±（1.0%+3） |
| AC Voltage | 6V/60V/600V/1000V | ±（1.2%+3） |
| AC Current | 60A/600A/1000A | ±（3.0%+5） |
| Resistance | 600Ω/6KΩ/60KΩ/600KΩ/6MΩ | ±（1.0%+3） |
| 60MΩ | ±（1.2%+30） | |
| Frequency | 100Hz/1000Hz/10KHz | ±（1.0%+5） |
| Duty | 10%～99% | ±（3.0%+2） |
| Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±（4.0%+3） |
| ℃/℉ | -20～1000℃(-4～1832℉) | ±（2.0%+2） |
| LowZ | DCV1000V | ±（1.0%+10） |
| ACV1000V | ±（2.0%+20） | |
| FEATURE | ||
| Display | 6000 Counts | |
| Analogue Bar Graph | √ | |
| Auto and Manual Range | √ | |
| True RMS | √ | |
| Data Hold | √ | |
| WorkLight | √ | |
| NCV | √ | |
| Relative Measurement | √ | |
| Continuity | √ | |
| BackLight | √ | |
| VFD | √ | |
| Auto Power off | ||
| LPF | ||
| Dual Display | ||
| V/Ω/A/Cap Auto Scan | ||
| GENERAL | ||
| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 247mm×84mm×40mm | |

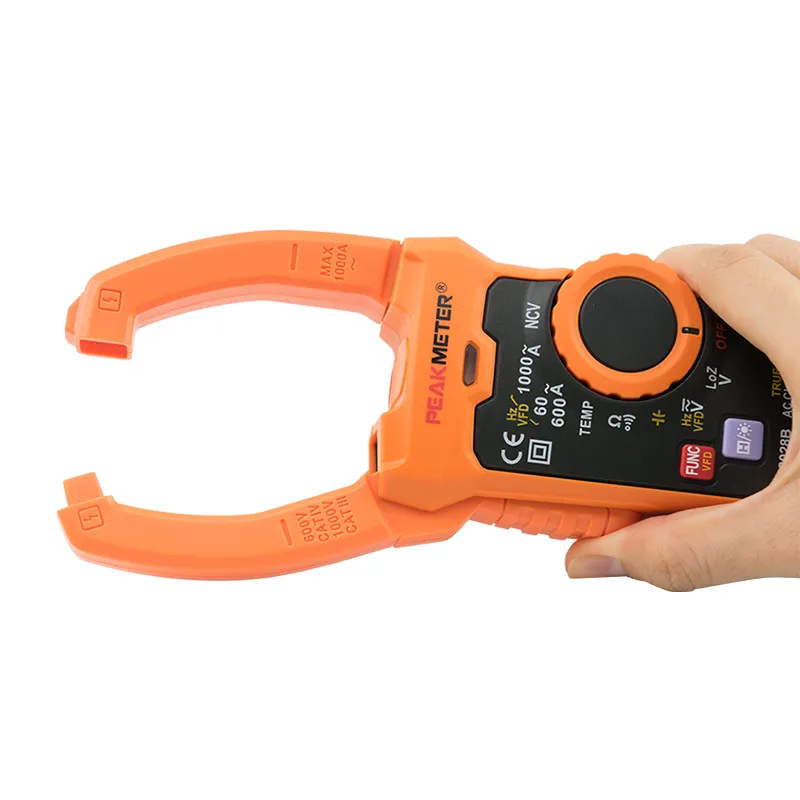

| Jaw Size | φ35mm | |
| Net weight | 314g(batteries are not included） | |
| Gross weight | 612g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000v,CAT.Ⅲ600v | |
| Package（PCS/carton） | 20 pcs | |
| Color Box Size | 270mm×126mm×56mm | |
| Carton Size | 590mm×280mm×280mm | |
| G.W | 13.2kg | |
| Test Leads | Users Manual | 3*1.5V AAA batteries |
