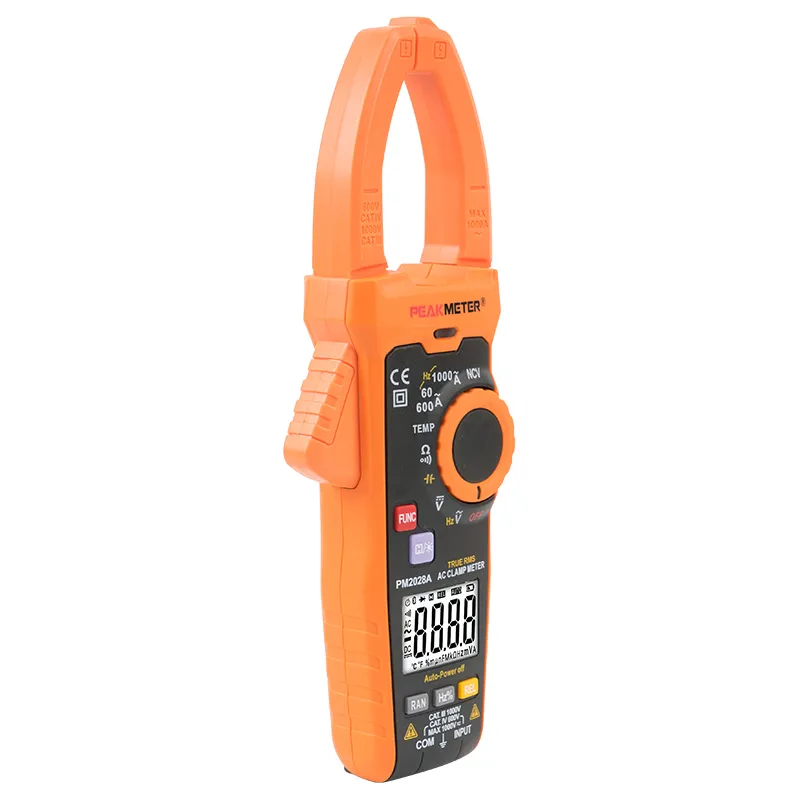

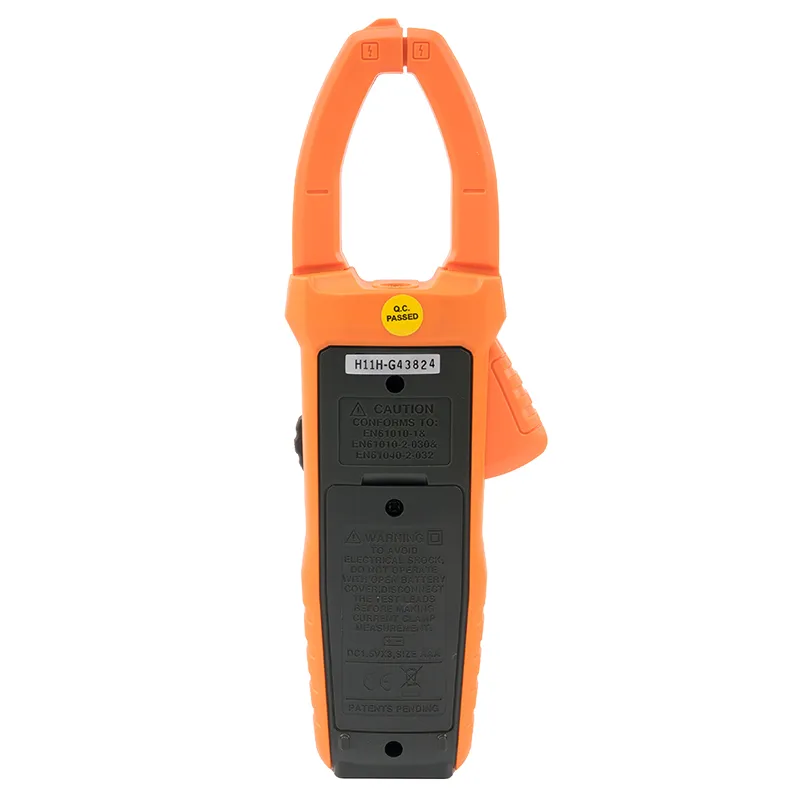

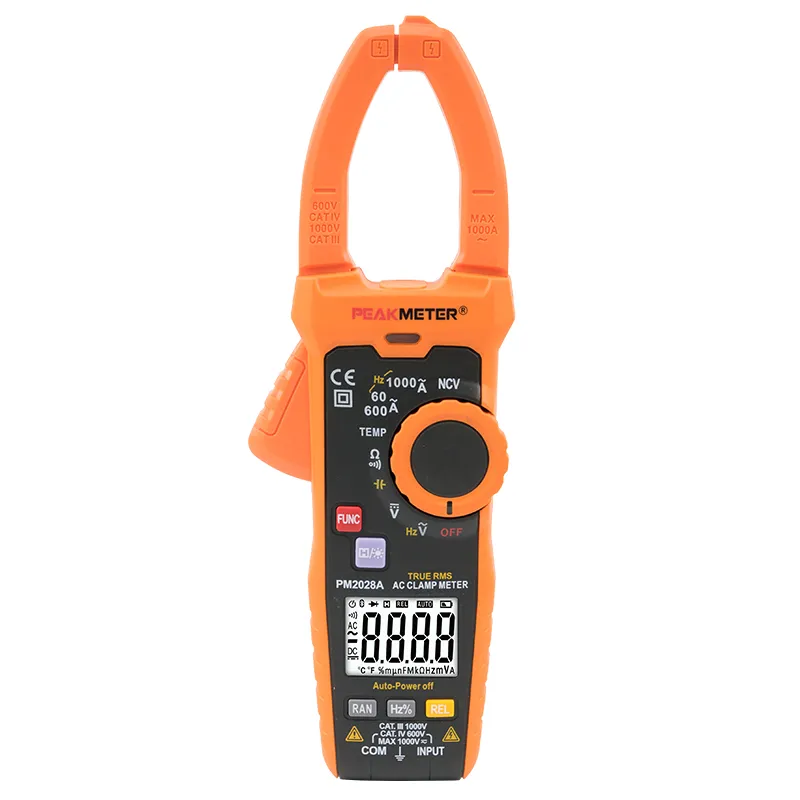

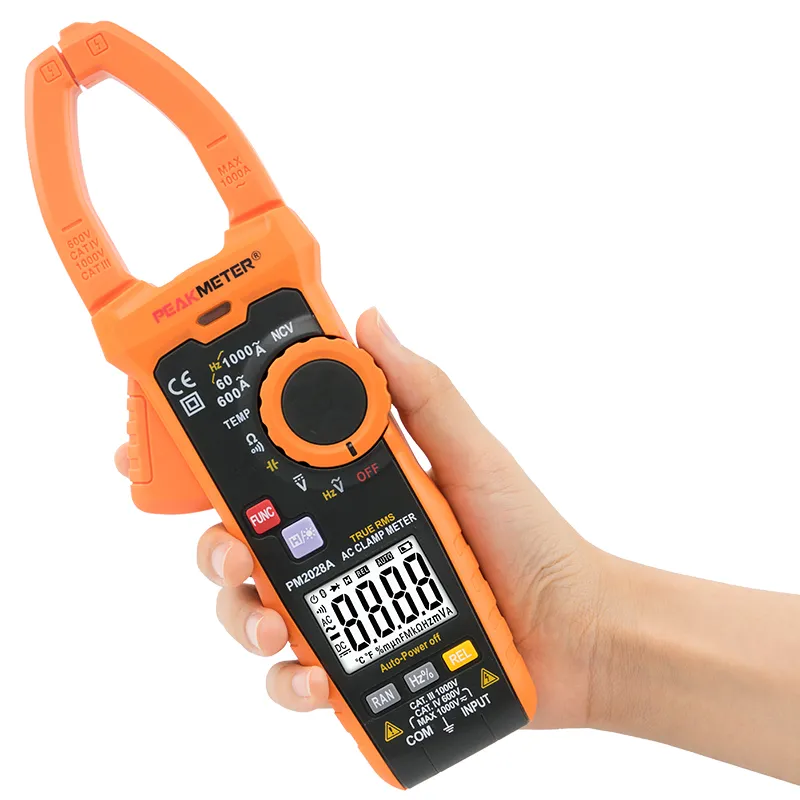

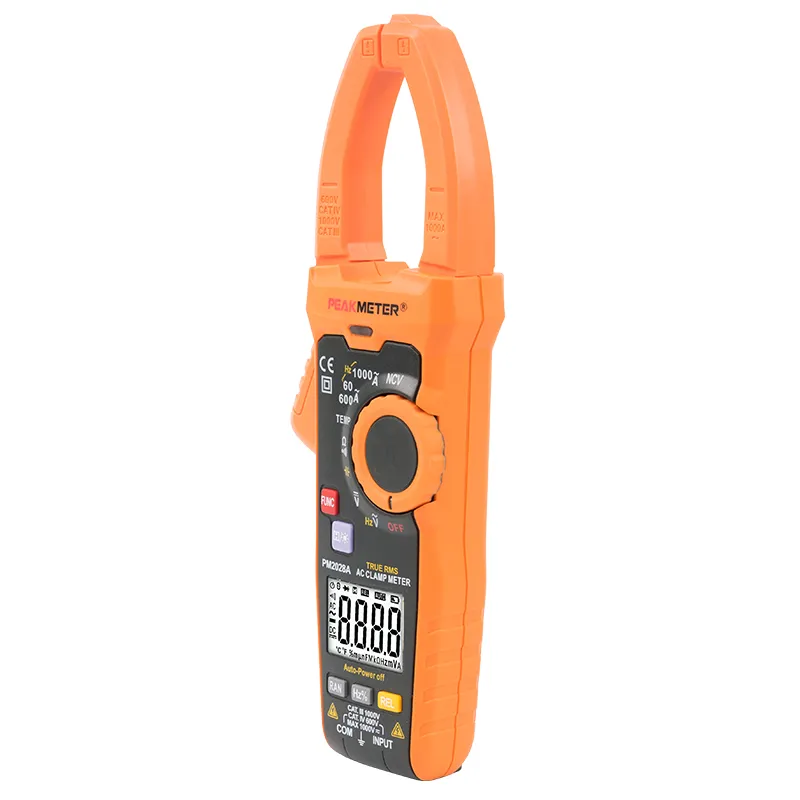

PM2028A is a large range of 6000 counts clamp meter which can measure 1000A AC Current, It meets CE standard and has double insulation protection. It can measure Current, Voltage and Frequency by switching the key, room Temperature can be measured and object temperature can be measured through K-Type Thermocouple. The relative measurement key is very convenient for daily data comparison measurement as well.
Display: 6000 Counts
Auto And Manual Range
True RMS
Data Hold
Worklight
Non-Contact Voltage Detector (NCV)
Relative Measurement
Continuity
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 6V/60V/600V/1000V | ±（1.0%+3） |
| AC Voltage | 6V/60V/600V/1000V | ±（1.2%+3） |
| AC Current | 60A/600A/1000A | ±（3.0%+5） |
| Resistance | 6KΩ/60KΩ/600KΩ/6MΩ | ±（1.0%+3） |
| 60MΩ | ±（1.2%+30） | |
| Frequency | 100Hz/1000Hz/10KHz | ±（1.0%+5） |
| Duty | 10%～99% | ±（3.0%+2） |
| Capacitance | 60nF/600nF/6uF/60uF/600uF/6mF/60mF | ±（4.0%+3） |
| ℃/℉ | -20～1000℃(-4～1832℉) | ±（2.0%+2） |
| LowZ | ||
| FEATURE | ||
| Display | 6000 Counts | |
| Analogue Bar Graph | ||
| Auto and Manual Range | √ | |
| True RMS | √ | |
| Data Hold | √ | |
| WorkLight | √ | |
| NCV | √ | |
| Relative Measurement | √ | |
| Continuity | √ | |
| BackLight | √ | |
| VFD | ||
| Auto Power off | ||
| LPF | ||
| Dual Display | ||
| V/Ω/A/Cap Auto Scan | ||
| GENERAL | ||

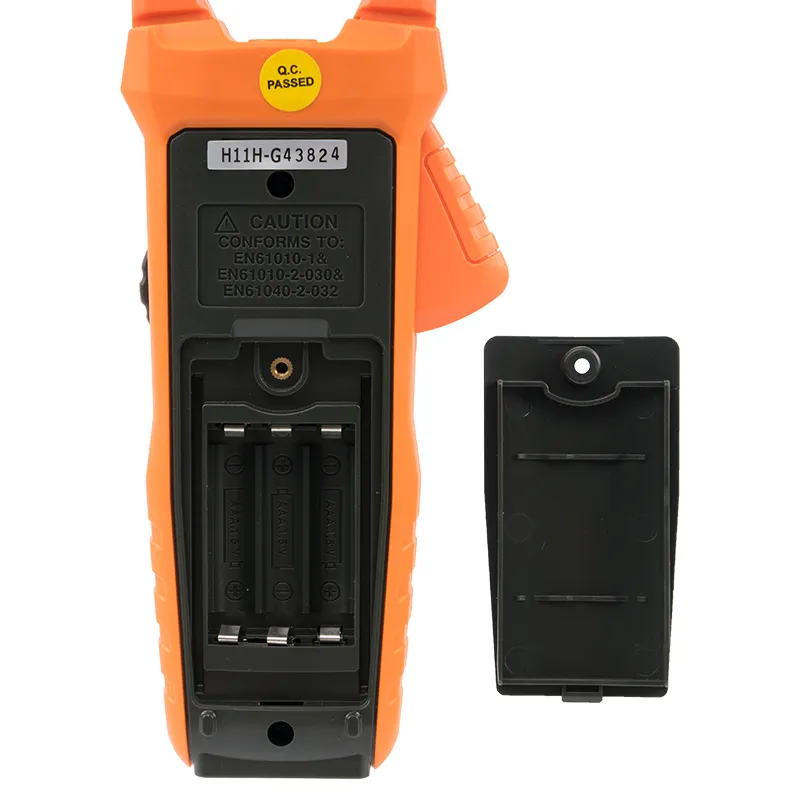

| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 247mm×84mm×40mm | |

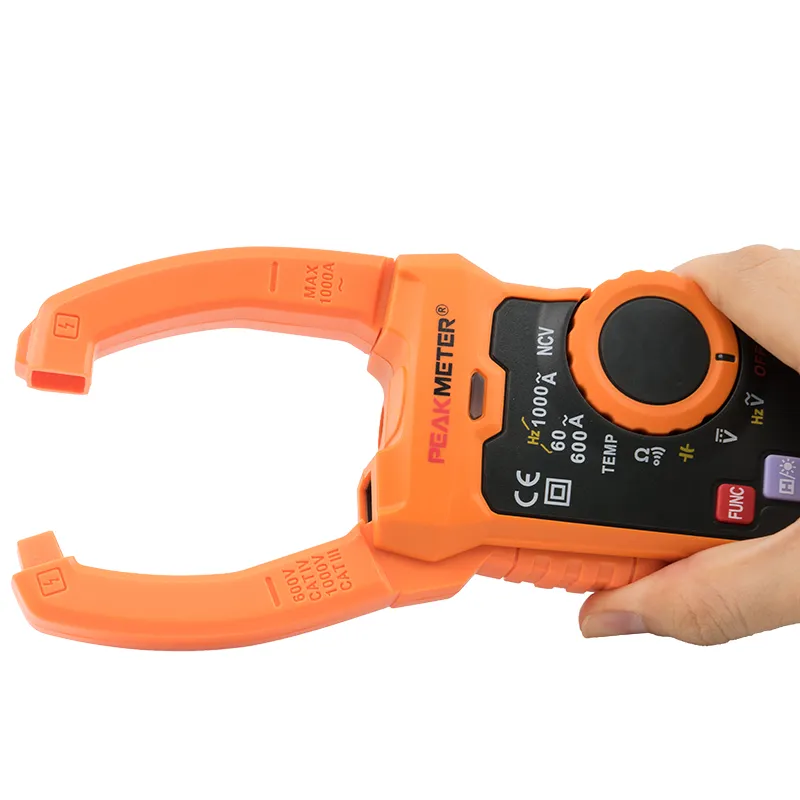

| Jaw Size | φ35mm | |
| Net weight | 310g(batteries are not included） | |
| Gross weight | 610g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000v,CAT.Ⅳ600v | |
| Package（PCS/carton） | 20 pcs | |
| Color Box Size | 270mm×126mm×56mm | |
| Carton Size | 590mm×280mm×280mm | |
| G.W | 13.2kg | |
| Test Leads | Users Manual | 3*1.5V AAA Batteries |
