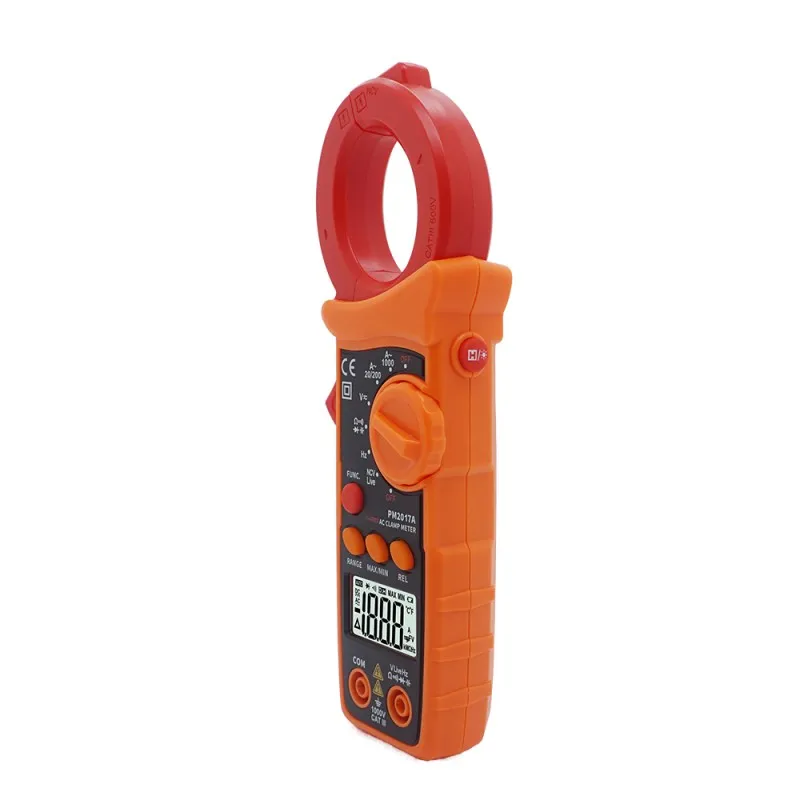

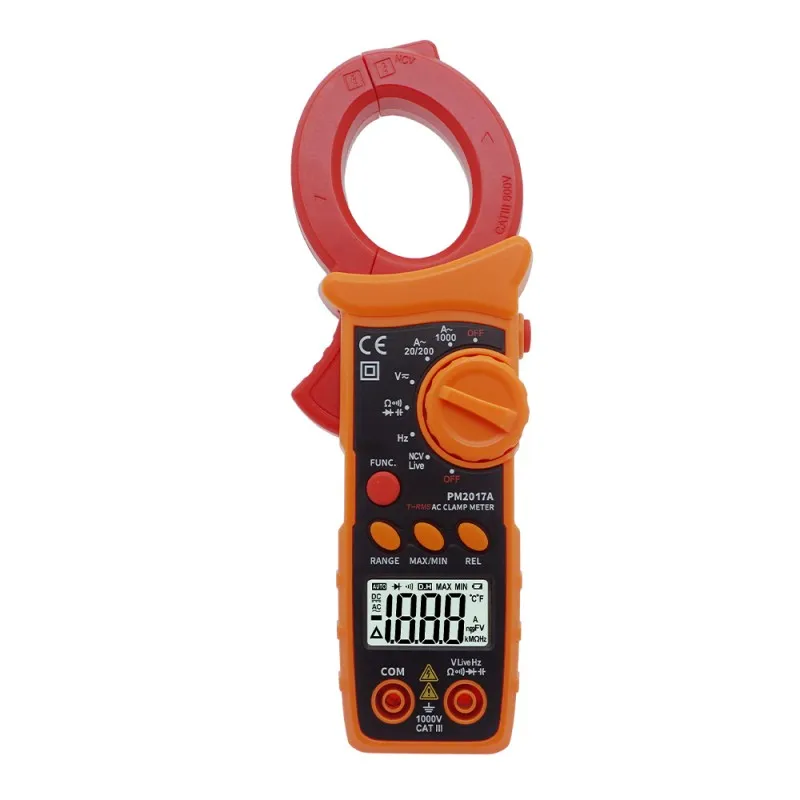

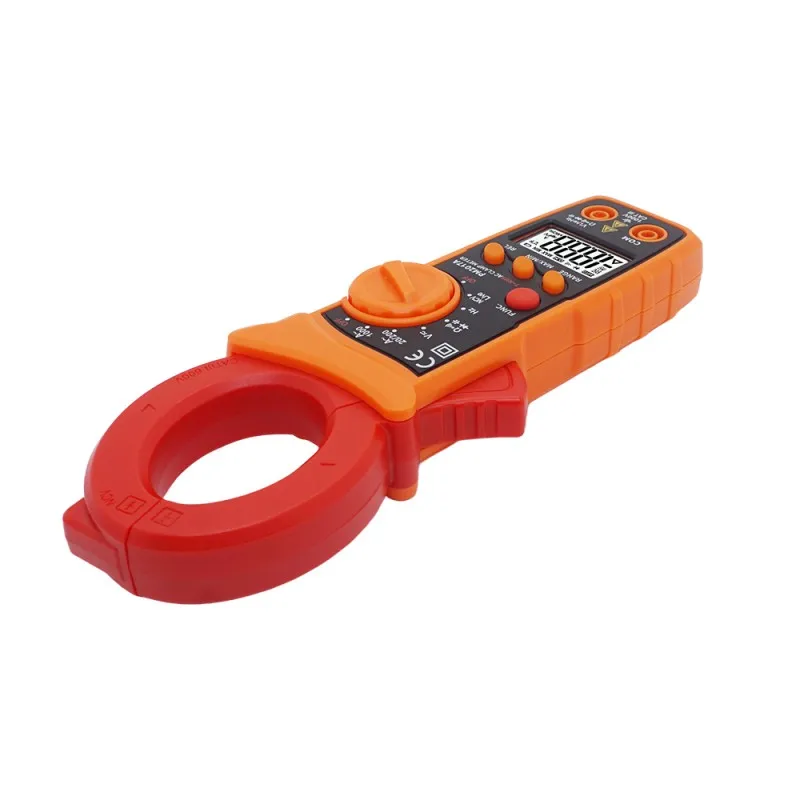

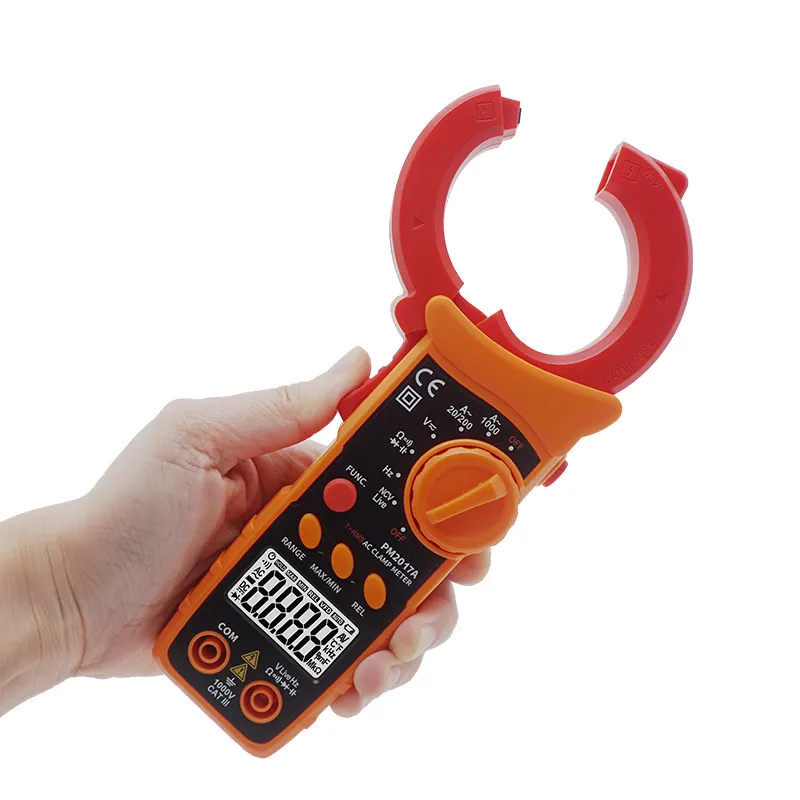

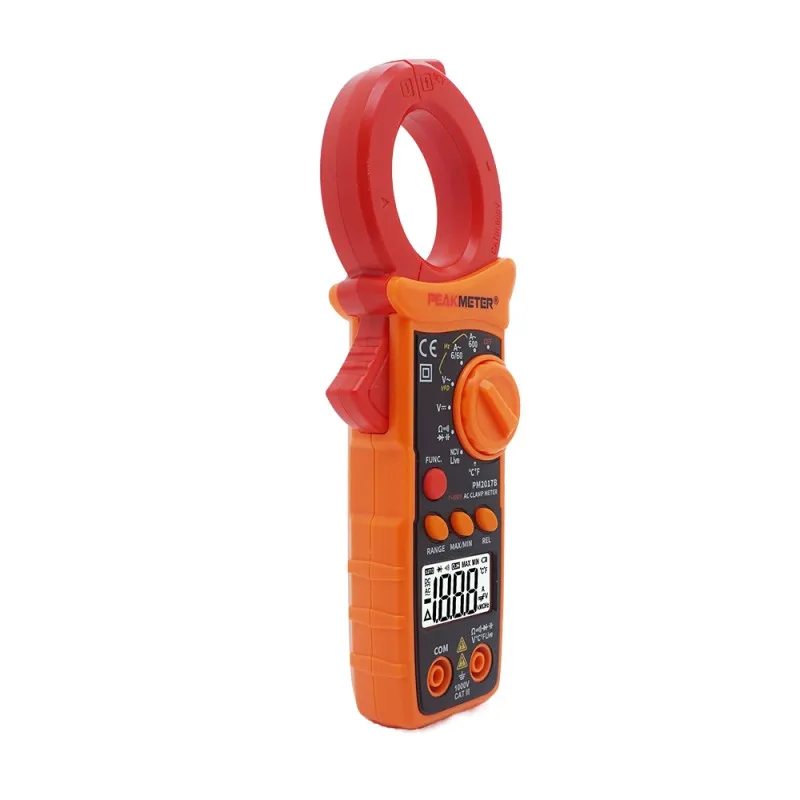

The PM2017A digital AC clamp meter is a stable, safe and reliable instrument. The circuit of the whole machine is based on integrated circuits, equipped with full-range over-current protection circuit, novel appearance, can be used for AC current, AC and DC voltage, temperature, frequency, resistance, capacitance, diode and circuit breakage measurement and non-contact voltage and fire line detection, it is a superior performance electrical instrument.
Display: 2000 Counts
Back Light
Relative Measurement
Manual/Automatic Range
Maximum/Minimum Measurement
Diode Test
Continuity
Single Probe Live Wire Detection
NCV
Auto Power Off: About 15 Minutes
Low Battery Indication
Data Hold
True RMS
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 2V/20V | ± (0.8%+2) |
| 200V/1000V | ± (1.0%+2) | |
| AC Voltage | 2V/20V | ±（1.0%+5） |
| 200V/1000V | ±（1.2%+5） | |
| Resistance | 200Ω /2kΩ /20kΩ /200kΩ /2MΩ | ± (1.0%+3) |
| 20MΩ | ±（1.2%+10） | |
| AC Current | 20A/200A | ±（2.5%+5） |
| 1000A | ±（2.5%+8） | |
| Capacitance | 2nF/20nF/200nF/2uF/20uF/200uF/2mF | ±（4.0%+5） |
| Frequency | 2Hz/20Hz/200Hz/2kHz/20kHz | ±（1.5%+5） |
| FEATURES | ||
| Display | 2000 counts | |
| BackLight | √ | |
| Relative measurement | √ | |
| Manual /Automatic Range | √ | |
| Maximum/minimum measurement | √ | |
| Diode test | √ | |
| Continuity | √ | |
| Single probe live wire detection | √ | |
| NCV | √ | |
| Auto Power off | About 15 minutes | |
| Low Battery Indication | √ | |
| Data Hold | √ | |
| True RMS | √ | |
| GENERAL | ||
| Power Supply | 2×1.5V AAA Batteries | |
| Weight | Approx. 188g (not include batteries) | |
| Product Size | 195x66x33mm | |
| Jaw Size | 35mm | |
| Safety Rating | IEC61010-1,IEC 61010-2-032 Shell CAT Ill 1000V Clamp shell CAT Ill 600V | |
| Package（PCS/carton） | ||
| Color Box Size | ||
| Carton Size | ||
| G.W | ||
| Test Leads | Users Manual | 2*1.5V AAA batteries |
