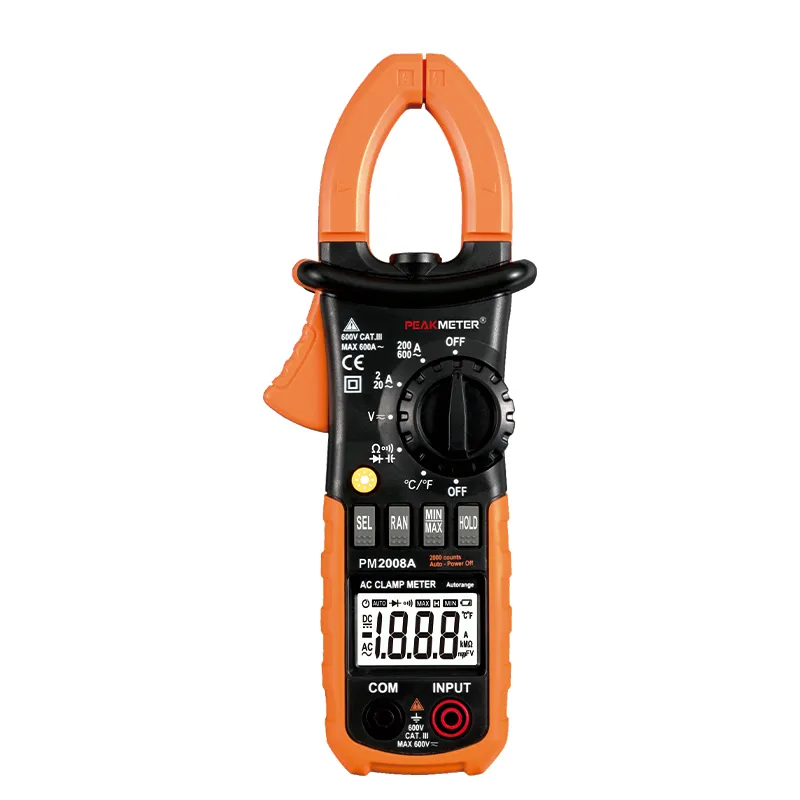

This meter is portable professional measuring instrument with LCD and back light easily reading. The single-hand-operation design for the range switch makes measurement simple and easy. Overload protection and low battery indication are provided. The circuit design takes LSI double integral A/D converter as its core under the protection of an overload protection circuit,making it a superior and handy instrument. It can be used to measure DC and AC voltge,DC current,resistance,diodes, and in-circuit continuity test. Specially, it has a Max value hold function, auto/manaul ranging select function and working backlight which is easy to use. It has a Max value hold function, auto/manaul ranging select function and working backlight which is easy to use.
Display: 2000 Counts
Auto And Manual Range
Data Hold
Work Light
Diode Test
Max
Continuity
Back Light
MAX/MIN
Temperature
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 200mV/2V/20V/200V | ±(0.8%+2) |
| 600V | ±(1.0%+2) | |
| AC Voltage | 2V/20V/200V | ±(1.0%+5) |
| 600V | ±(1.2%+5) | |
| AC Current | 2A/20A | ±(3.0%+15) |
| 200A/600A | ±(3.0%+10) | |
| Resistance | 200Ω/2KΩ/20KΩ/200KΩ/2MΩ | ±(1.2%+2) |
| 20MΩ | ±(2.0%+5) | |
| FEATURE | ||
| Display | 2000 Counts | |
| Auto And Manual Range | √ | |
| Data Hold | √ | |
| Work Light | √ | |
| Diode Test | √ | |
| MAx Value | √ | |
| Continuity | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 3×1.5V AAA Batteries | |
| Product Size | 208mm×78mm×35mm | |
| Jaw Size | φ26mm | |
| Net weight | 340g(included batteries) | |
| Gross weight | 455g | |
| Safty Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ600v | |
| Package(PCS/carton) | 30 pcs | |
| Color Box Size | 230mm×110mm×56mm | |
| Carton Size | 480mm×300mm×350mm | |
| G.W | 14.7kg | |
| Test Leads | Users Manual | 3*1.5V AAA batteries |
