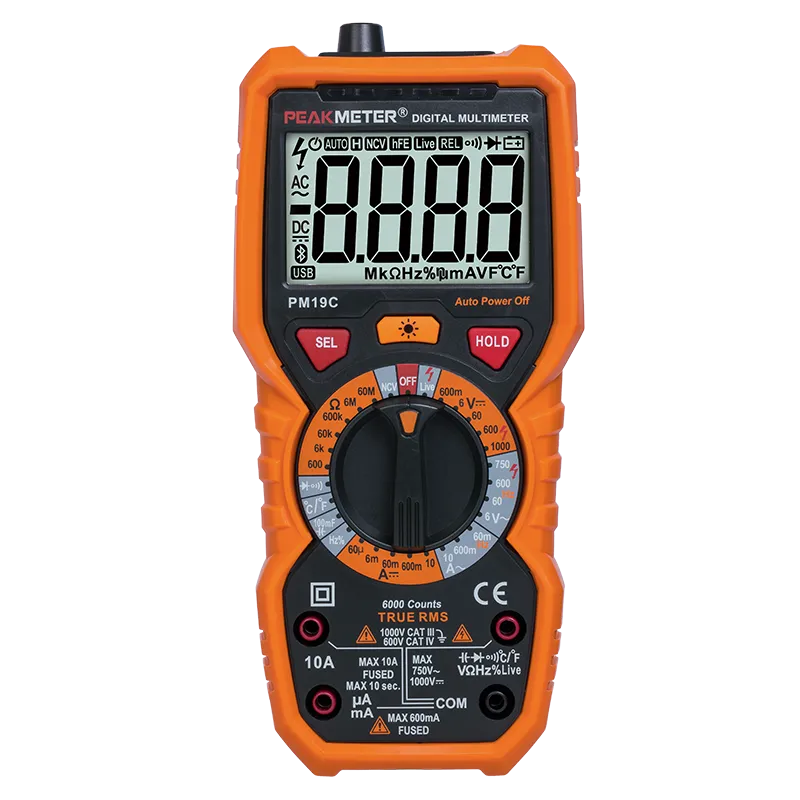

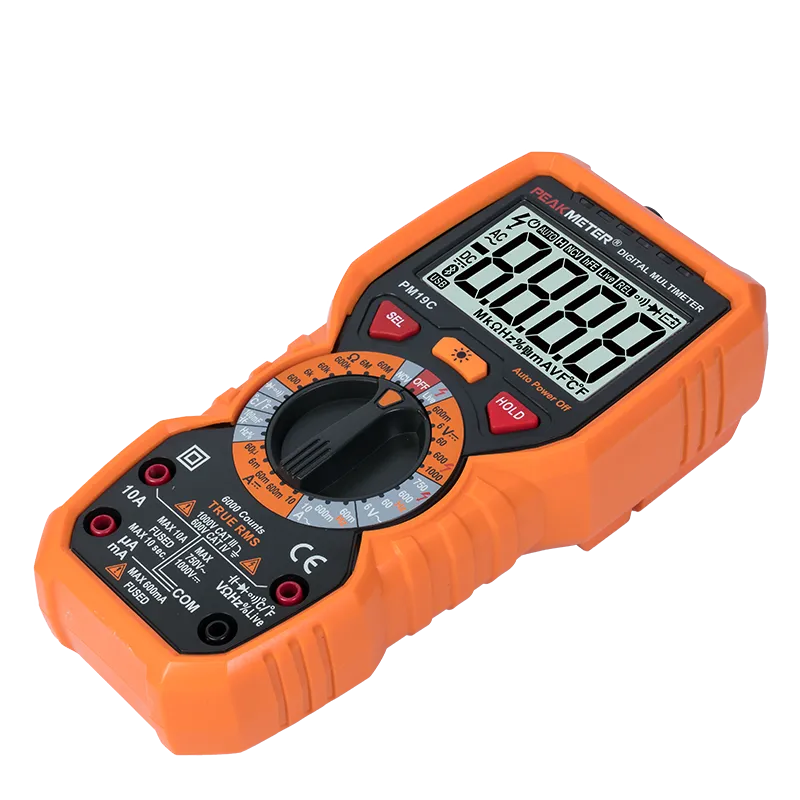

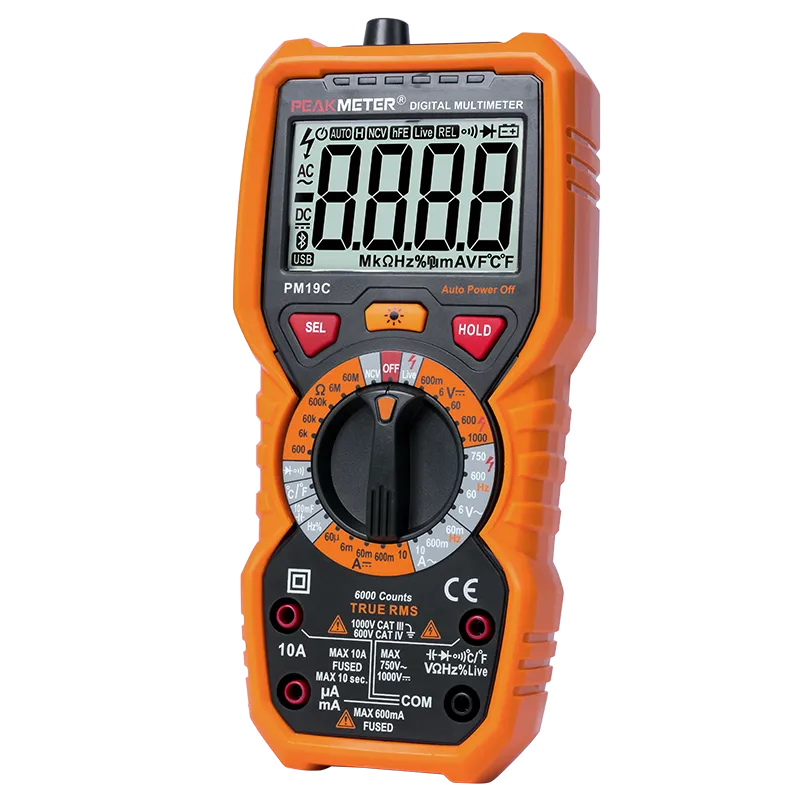

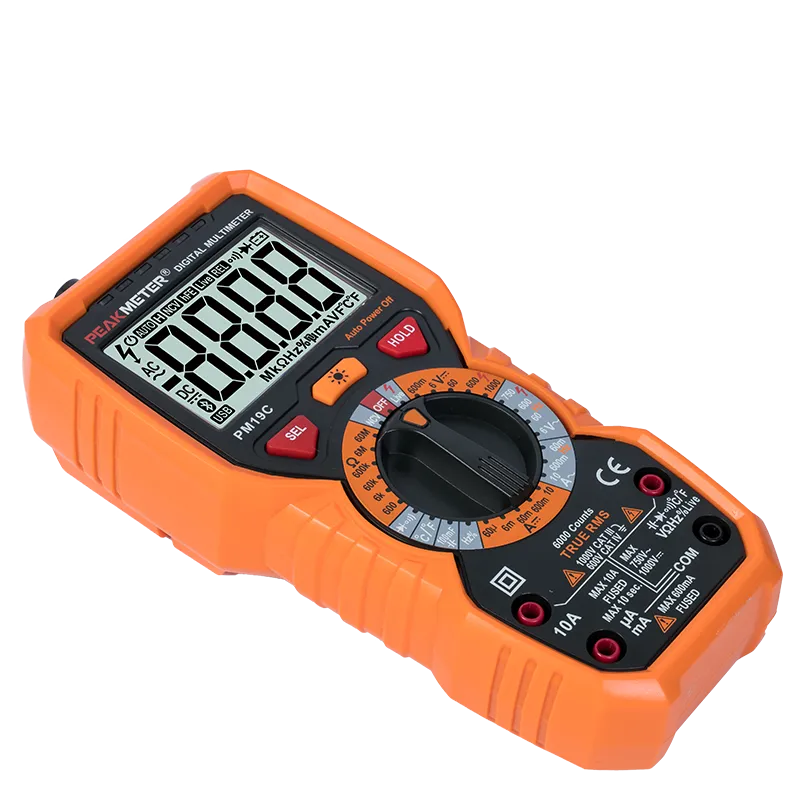

This digital multi-meter is designed and manufactured in compliance with IEC-61010 safety requirements on electronic measuring instruments and hand-held digital multi-meters. It is compliant with IEC-61010 requirements pertaining to 600V CAT IV, 1000V CAT III and requirements on pollution degree 2. In the hold mode, the reading can be maintained on the display unit. Changing the measurement function position or pressing the key hold again to exit the hold mode.The meter is equipped with the function of backlight and lighting so that the operator can access measurement result even if he is in dark place.
Display: 6000 Counts
ACV/ACA TRMS
ACV (Bandwidth): 1kHz
Temperature
Frequency:10MHz
Duty: 5%~99%
Resistance: 60MΩ
Capacitance: 100mF
Continulty
Diode Test
HFE
Live Line Test (High, MediumAnd Low) Sound And LED Alarm
Work Light
Low Battery Indication
NCV (High, Medium And Low) Sound And LED Alarm
Auto Power Off
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 600mV/6V/60V/600V/1000V | ±（0.5%+3） |
| AC Voltage | 6V/60V | ±（0.8%+3） |
| 600V/750V | ±（1%+10） | |
| DC Current | 60μA/60mA/600mA | ±（0.8%+3） |
| 10A | ±（1.2%+3） | |
| AC Current | 60mA/600mA | ±（1.0%+3） |
| 10A | ±（1.5%+3） | |
| Resistance | 600Ω /6kΩ /60k/600kΩ /6MΩ | ±（0.8%+3） |
| 60MΩ | ±（1.2%+30） | |
| Capacitance | 6nF | ±（4.0%+30） |
| 60nF/600nF/6μF/60μF/ 600μF/6mF/ | ±（4.0%+3） | |
| 100mF | ±（5.0%+3） | |
| Frequency | 9.999HZ/99.99HZ/999.9HZ/9.999KHZ/99.99KHZ/999.9KHZ/9.999MHZ | ±（1.0%+3） |
| Duty | 5%～95% | ±（2.0%+3） |
| Temperature | -20℃～1000℃/-4℉～1832℉ | ±（1.0%+3） |
| FEATURES | ||
| Display | 6000Counts | |
| ACV/ACA TRMS | √ | |
| ACV(bandwidth) | 1KHZ | |
| Temperature | √ | |
| Frequency | 10MHZ | |
| Duty | 5%～95% | |
| Resistance | 60MΩ | |
| Capacitance | 100mF | |
| Continuity（Sound and LED ALarm） | √ | |
| Diode Test | √ | |
| hFE | √ | |
| Live Line Test： | (high,mediumand low)Sound And LED Alarm | |
| Work Light | √ | |
| Low Battery Indication | √ | |
| NCV | √ | |
| Auto Power Off | √ | |
| GENERAL | ||
| Power Supply | 4x1.5V AA batteries | |
| Net weight | Approx.380g(included batteries) | |
| Gross weight | 532g | |
| Product Size | 190mmx89mmx50mm | |
| Safety Rating | EN61010-1,EN61010-2-033,EN61326,CAT.Ⅲ1000V/CAT.Ⅳ600V | |
| Package（PCS/carton） | 30 pcs | |
| Color Box Size | 208mmx128mmx59mm | |
| Carton Size | 440mmx310mmx410mm | |
| G.W | 17kg | |
K Type Thermocouple | Test Leads | Users Manual | 4*1.5V AAA batteries |
