PM118A 6000 Counts High Precision Digital Multimeter
PM118A 6000 Counts High Precision Digital Multimeter

PM118A 6000 Counts High Precision Digital Multimeter MAX And MIN Measurement NCV Function

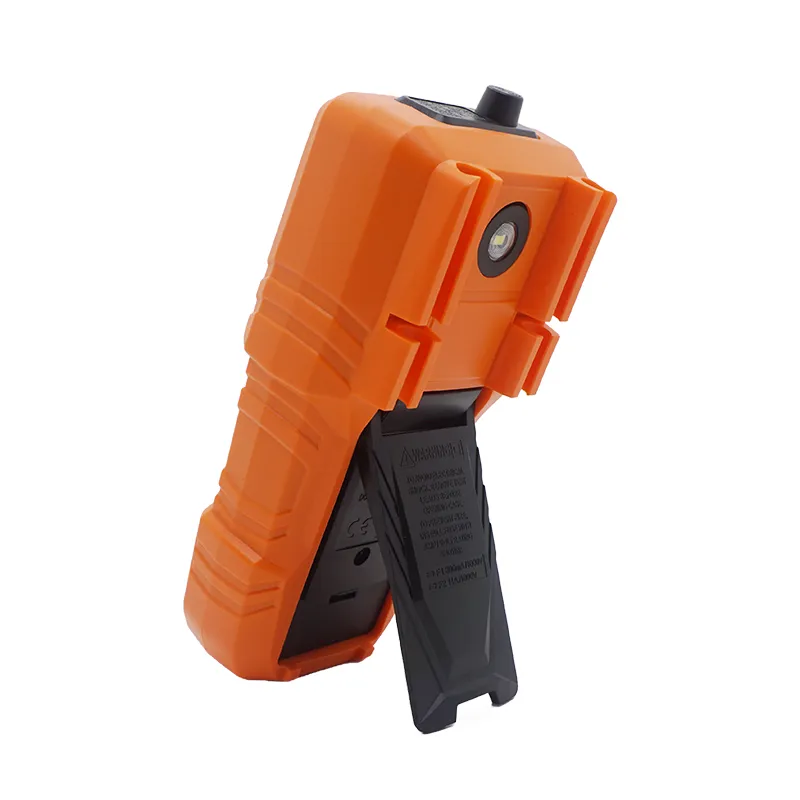

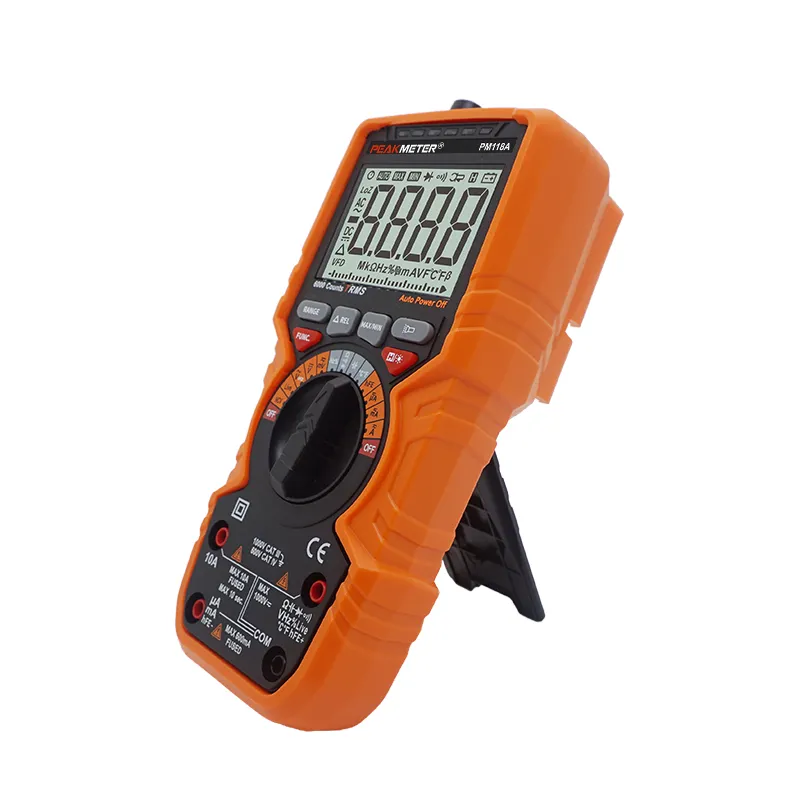

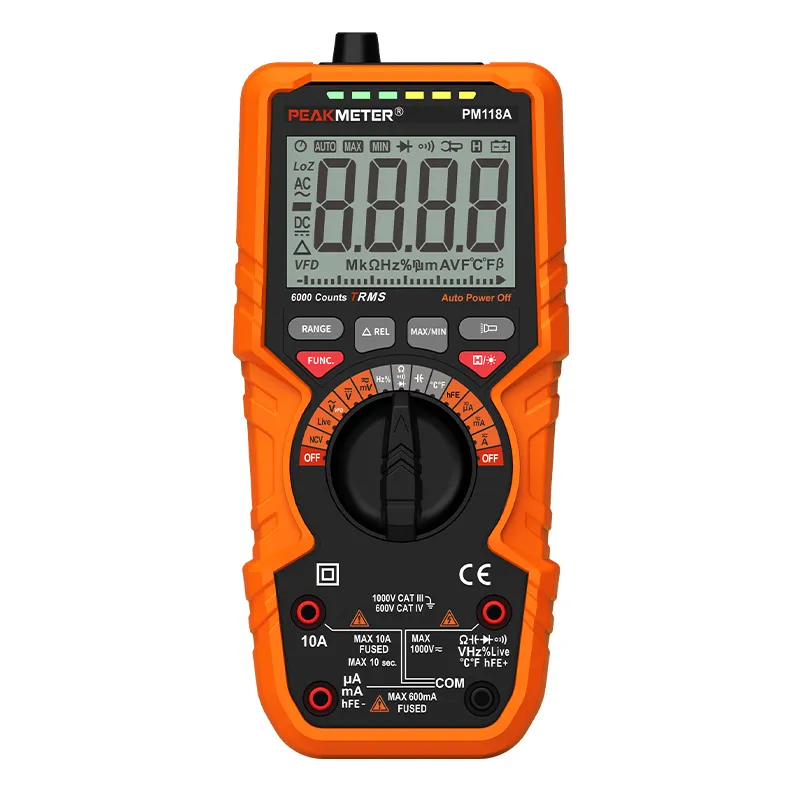

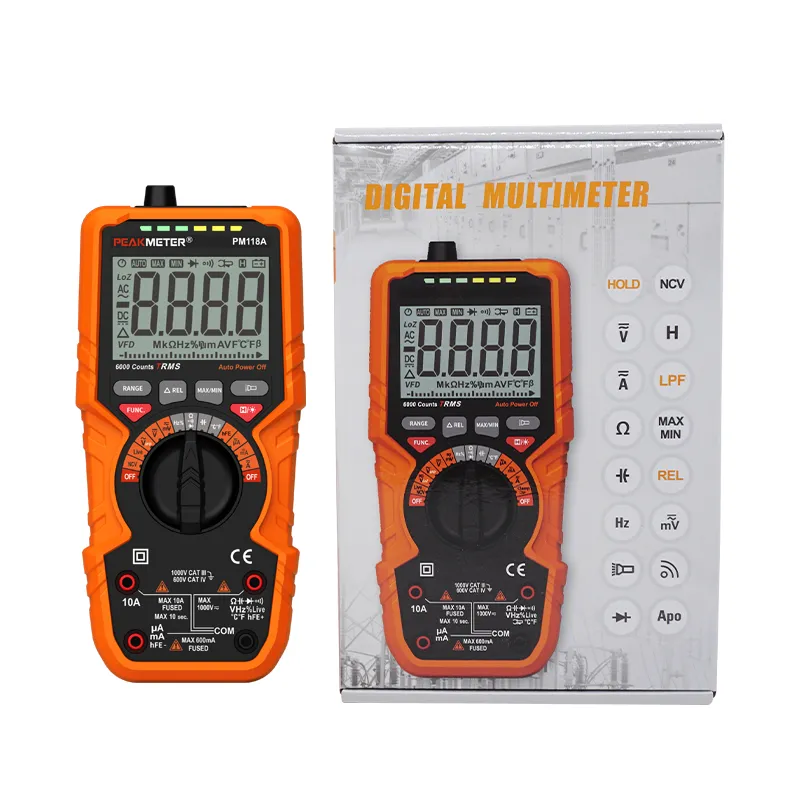

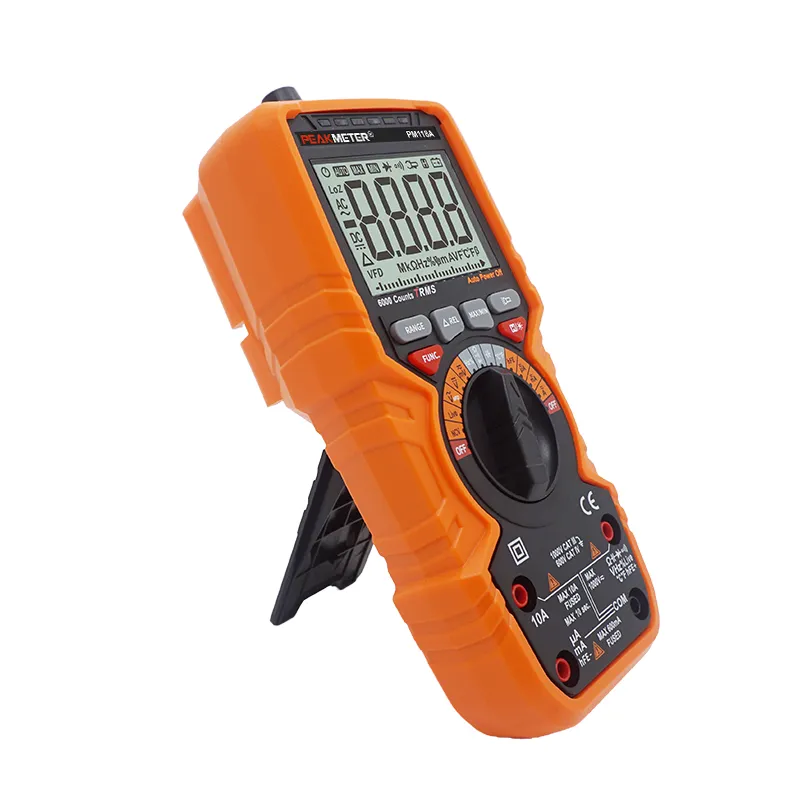

This meter is a hand-held digital multi-meter with the function of displaying True RMS. It is a large-screen LCD unit with backlight and illumination light functions so that the user can easily recognize reading. It is equipped with the function of overload protection and the indicator of battery under voltage. The meter can measure ambient temperature and measure temperature with a thermocouple. Integrated protective case to prevent damage to the body when the meter falls accidentally; Convenient Probe slot allows the probe to be carried with the instrument when not in use, making it difficult to lose. The instrument has abundant usage functions, with simple keys and dials to make the functions clearly displayed in front of the user.

Contact Us
Features
Specification
Documents
Accessories & Options

Features of PM118A 6000 Counts High Precision Digital Multimeter

  • Auto and Manual Range

  • Relative Value Measure

  • Max/Min Value Measurement

  • Data Hold

  • Back Light

  • Work Light

  • Auto Power Off

  • NCV and Live Wire Detection

  • VFD Measurement

  • AC/DC Voltage

  • AC/DC Current, Resistance, Frequency, Duty Cycle, Diode, Capacitance Measurement


Specification of PM118A 6000 Counts High Precision Digital Multimeter


SPECIFICATIONRANGEACCURACY
DC Voltage600mV/6V/60V/600V/1000V±(0.5%+3)
AC Voltage600mV/6V/60V/600V±(0.8%+5)
1000V±(1%+5)
Resistance600Ω /6kΩ /60k/600kΩ /6MΩ±(0.8%+3)
60MΩ±(1.2%+30)
DC Current600μA/6mA/60mA/600mA±(0.8%+3)
10A±(1.2%+3)
AC Current600μA/6mA/60mA/600mA±(1.0%+3)
10A±(1.5%+3)
Frequency10HZ/100HZ/1KHZ/10kHZ/100kHZ/1MHz/10MHz±(0.5%+5)
Duty Cycle1%~99%±(3.0%+2)
K-typeThermocouple Temperature-40℃~1000℃(-40℉~1832℉)±(1.0%+2)(℃/℉)
FEATURES
Auto Range/Manual Range
Backlight
Relative
Flashlight
Max/Min
Triode
Diode
Continuity
NCV
Live Line Test
VFD Measurement
Auto And Manual Range
Data Hold
GENERAL
Power Supply3x1.5V AAA batteries
Net weightApprox.380g(included batteries)
Product Size194mmx90mmx56mm
Security LevelEN61010-1,CAT.Ⅲ1000V/CAT.Ⅳ600V


PM118A User Manual English

Accessories & Options of PM118A 6000 Counts High Precision Digital Multimeter


K Type Thermocouple

Test LeadsUsers Manual3*1.5V AAA batteries
