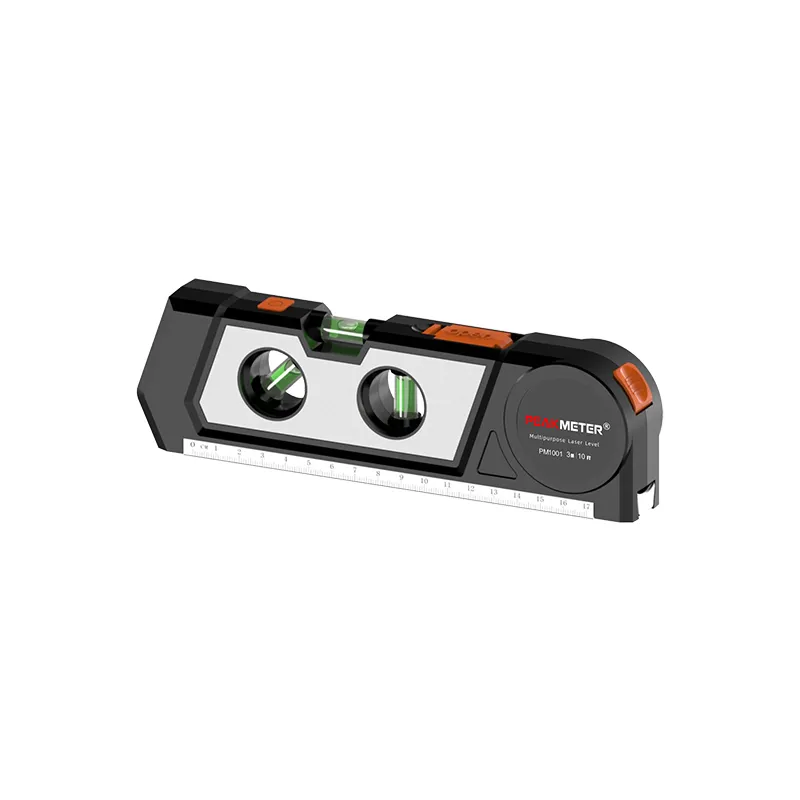

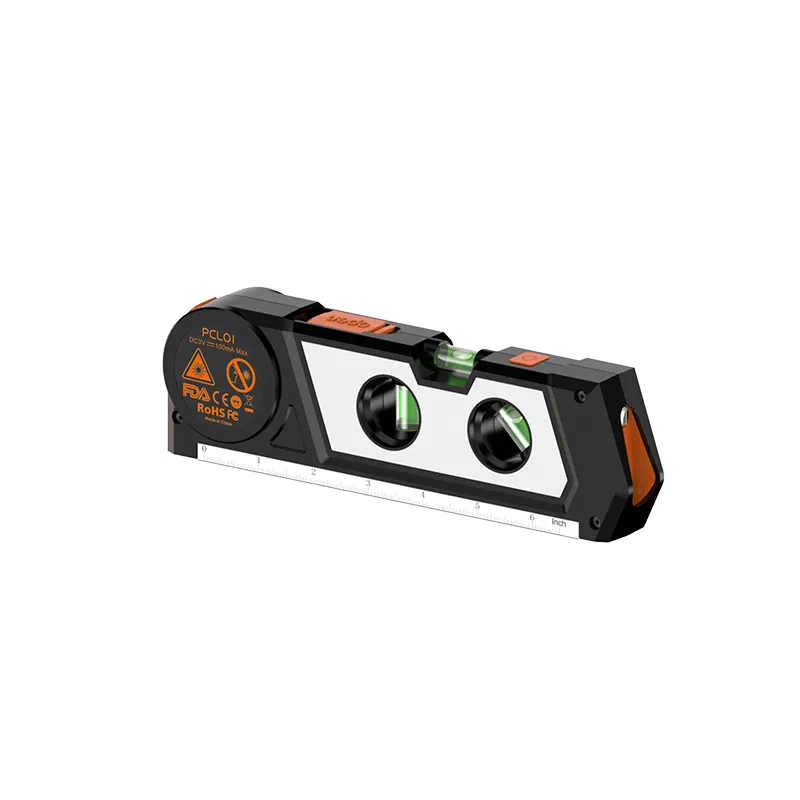

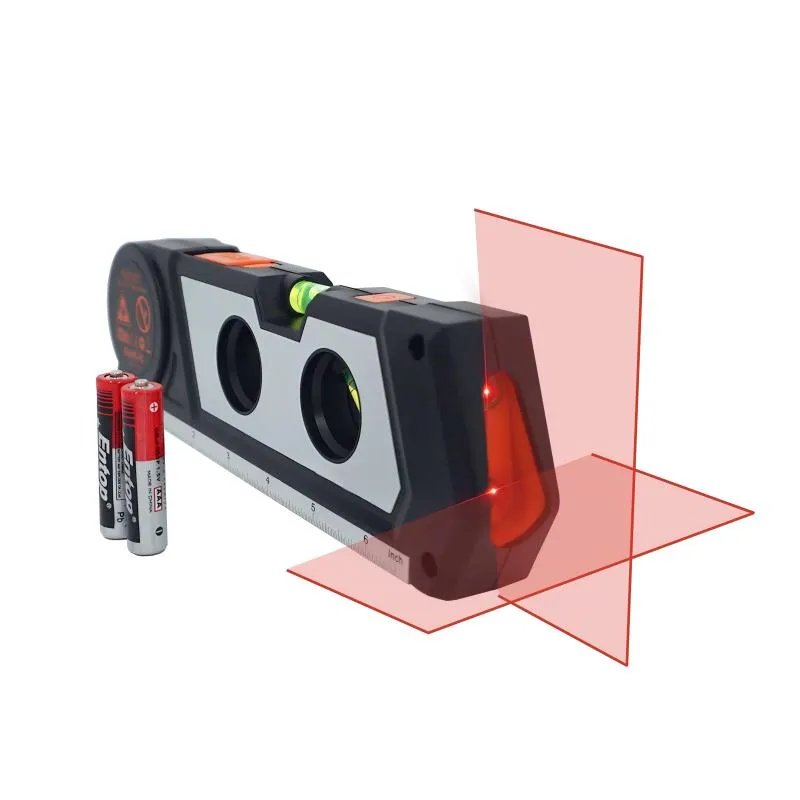

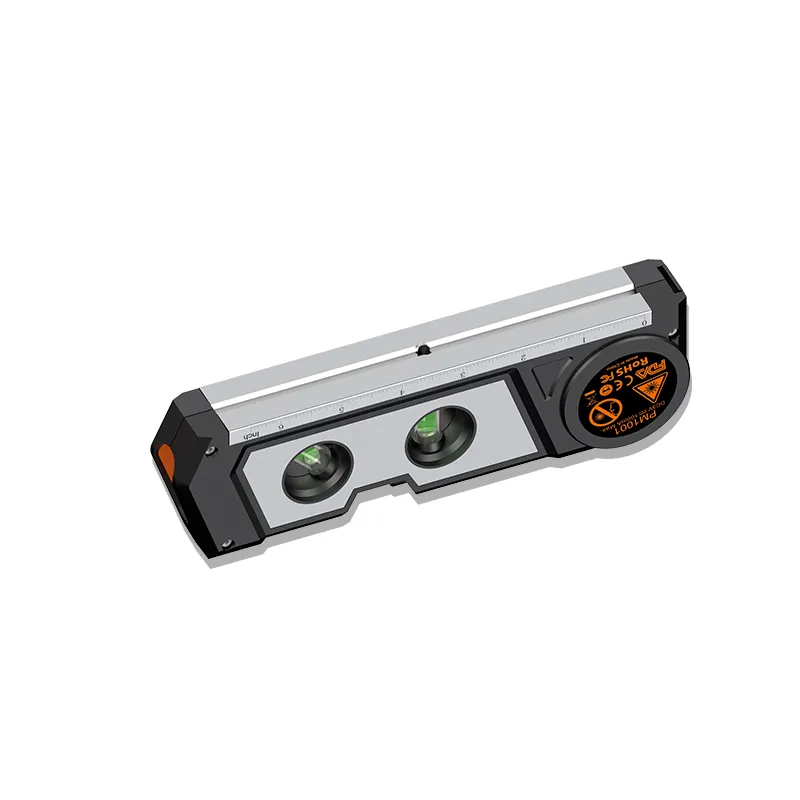

PM1001 is a 4-in-1 laser level with the functions of ruler, tape measure, level and laser. The combination of a 3-meter tape measure and a fine ruler meets the meticulous needs of measuring different distances. Horizontal bubbles with three different angles (0°, 45°, 90°) and dual lasers can help users make more accurate judgments. The instrument is used in a wide range, such as: home installation, decoration, bridge construction, etc.
Wave Length: 650nm
Laser Grade: Class II
Bubble Angle: 0°, 45°, 90°
Working Temperature: -10°C~+45°C
Storage Temperature: -20°C~+55°C
Laser Length: ≥1.8m (3m from Projection)
Laser Width: ≥2.0m (3m from Projection)
Tape Length: ≥3m/10FT
Operating Hours: ≥4H
Power Supply: 2x1.5V AAA Battery
Safety Standard/Rating: CE/FDA Laser Head/FCC
| FEATURE | |
| Laser wavelength | 650nm |
| Laser class | CLASSII（IEC /EN60825-1:2014） |
| Laser line length | ≥6FT/1.8m(10FT/3m from the projection plane ) |
| Laser line widths | ≤2mm(10FT/3m from the projection plane ) |
| Linear accuracy | ≤3.5mm |
| Bubble angle | 0°、45°、90° |
| Length of tape measur | 10FT/3m |
| Working time | -10℃～45℃ |
| Storage temperature | -20℃～+55℃ |
| GENERAL | |
| Power Supply | 2x1.5V AAA Batteries |
| Tree Feet Bracket | 1/4in |
| Product Size | 248mmx85mmx125mm |
| Net weight | 252g(batteries are not included） |
| Gross weight | 321g |
| Safety Rating | EN/IEC60285-1/Class II |
| Safety Regulations | CE/FDA/FCC |
| Package（PCS/carton） | 60pcs |
| Color Box Size | 70mmx244mmx370mm |
| Carton Size | 500mmx375mmx235mm |
| G.W | 20.3kg |
| Users Manual | 2x1.5V AAA Batteries |
