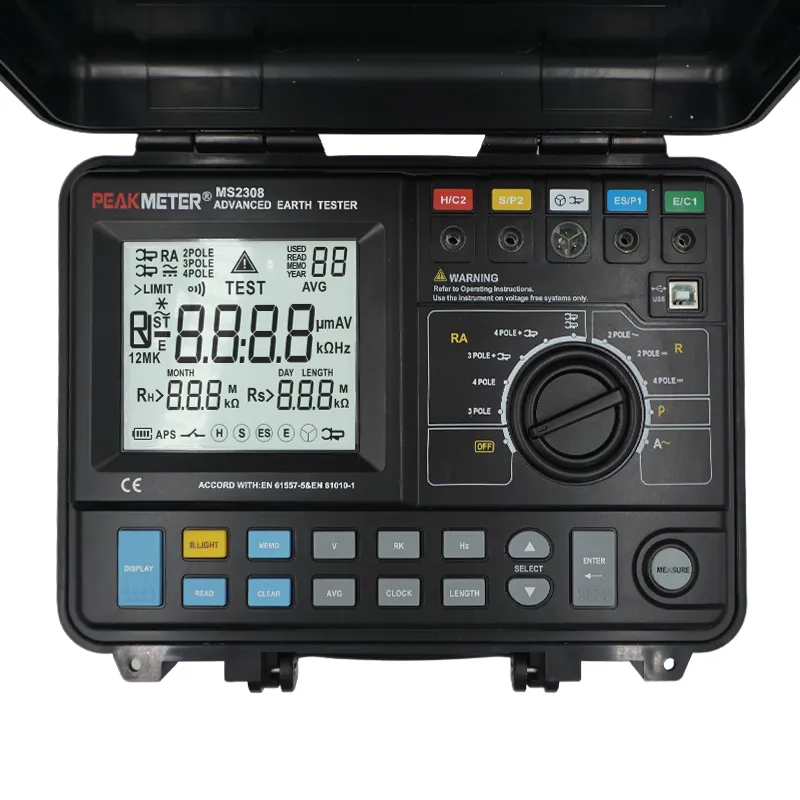

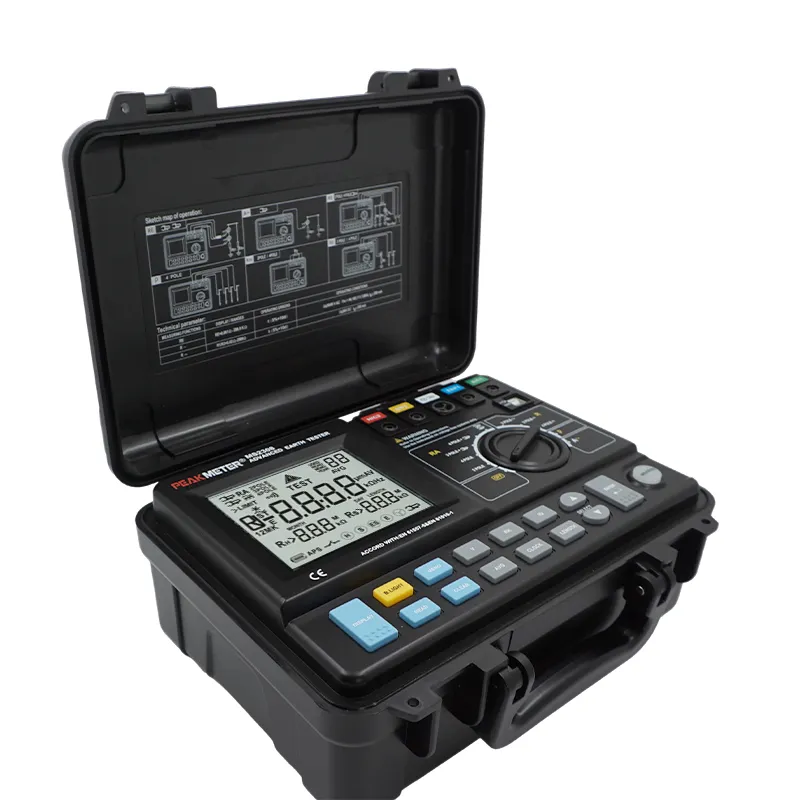

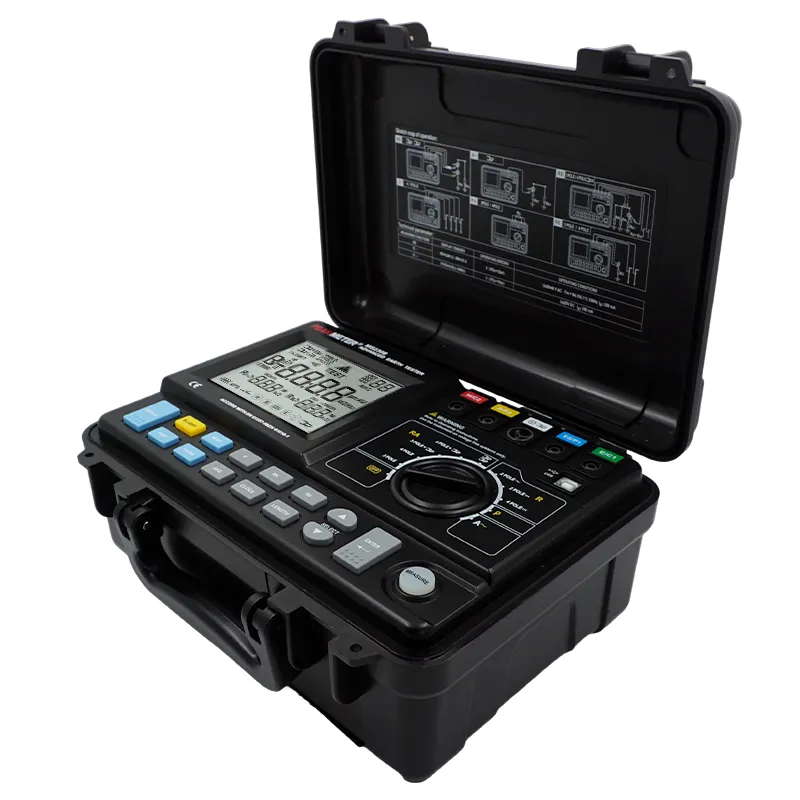

MS2308 is an advanced earthing-resistance testers integrated with multiple measuring methods, can be used for checking earthing-resistance of transformer, anti-lightning system, high-voltage power tower, and communication equipment, and its automatic frequency control (AFC) function can bring interference to an absolute minimum.With 3-pole/4-pole earthing-resistance testing function, the earthing resistance of single-point earthing system and soil resistivity can be measured. With 3 pole/4 pole method and current clamp, resistance of a single branch circuit in an inter-connecting network can be tested without disconnecting the earthing system; With current clamp and voltage clamp and voltage clamp, resistance in an inter- connecting network can be tested without disconnecting the earthing system.
For Testing the Earthing-Resistance of Electrical Equipment
For Testing the Interference Voltage of External Circuits
For Testing the Interference-Current of External Circuits
For Testing the Average Soil Resistivity
For Testing Resistance with 2-pole AC Voltage
For Testing rResistance with Positive/Reversed 2-pole DC Voltage
For Saving Test Data and Transferring Data to PC for Analysis
100 Test Data can be Stored, which can be Checked on the Meter or Upload to PC Software
Digital/Analog Dual Display, LCD with Back Light
| SPECIFICATIONS | ||
| 3Pole&4Pole | Voltage | AC20V/48V |
| Frequency | 94Hz/105Hz/111Hz/128Hz/AFC | |
| Range | 0.02Ω～300kΩ | |
| Accuracy | ±（5%+10） | |

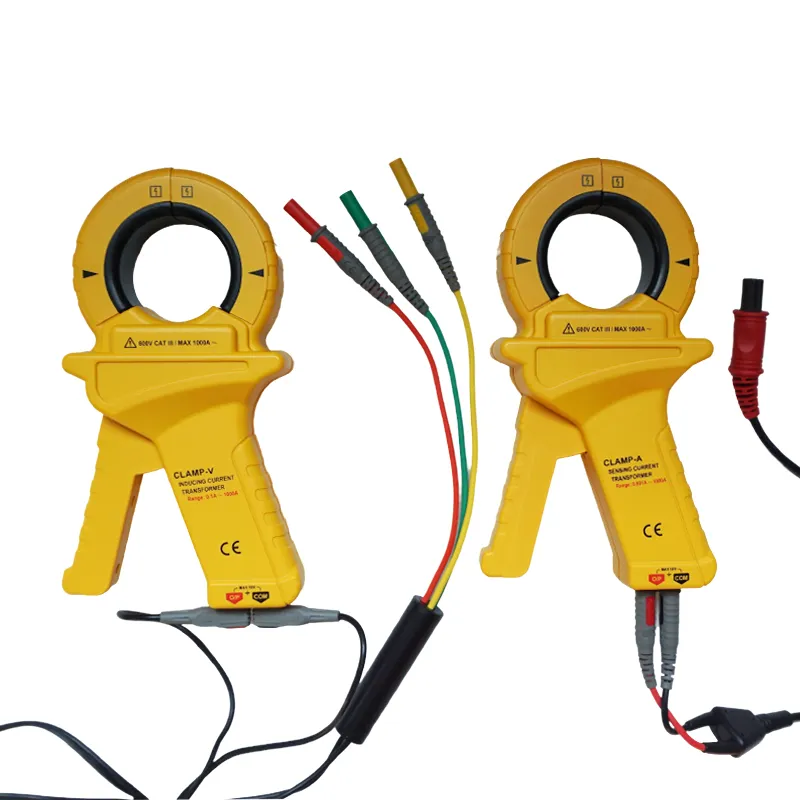

| 3Pole&4Pole with Current Clamp | Voltage | AC 20V/48V |
| Frequency | 94Hz/105Hz/111Hz/128Hz/AFC | |
| Range | 0.02Ω～20kΩ | |
| Accuracy | ±（5%+10） | |
| Double Clamps | Voltage | AC48V |
| Frequency | 94Hz/105Hz/111Hz/128Hz/AFC | |
| Range | 0.02Ω～150Ω | |
| Accuracy | ±（10%+10） | |
| R～2Pole | Voltage | AC20V |
| Frequency | 94Hz/105Hz/111Hz/128Hz/AFC | |
| Range | 0.02Ω～300kΩ | |
| Accuracy | ±（5%+10） | |
| R=2Pole or 4Pole | Voltage | DC20V |
| Range | 0.02Ω～3kΩ | |
| Accuracy | ±（5%+10） | |
| Noise Voltage Range | 1～50V AC/DC | ±（5%+5） |
| Noise Frequency Range | 16Hz～400Hz | ±（1%+10） |
| Noise Current Range | 20mA～2A | ±（5%+5） |
| Soil Resistivity | Voltage | AC20V/48V |
| Frequency | 94Hz/105Hz/111Hz/128Hz/AFC | |
| Range:0.02Ω·m～1000kΩ·m | ±（5%+10） | |
| RK(Compensation Measurement For Wire Resistance) | Voltage | AC20V/48V |
| Frequency | 94Hz/105Hz/111Hz/128Hz/AFC | |
| Range | 0.02Ω～30Ω | |
| Accuracy | ±（3%+10） | |
| Teset Circuit Current | ≤250mA | |
| USB Interface | √ | |
| BackLight | √ | |
| GENERAL | ||
| Power Supply | 1.5V(LR14)x10 Batteries | |
| Product Size | 260mmx125mmx280mm | |
| Weight | Approx.2500g | |
| Safty Rating | EN61010-1,EN61557-3,EN61326-1,CAT.Ⅲ300V | |
| Package（PCS/carton） | 1pcs | |
| Carton Size | 520mmx330mmx222mm | |
| Test Leads | Users Manual | 10x LR14 Batteries |
