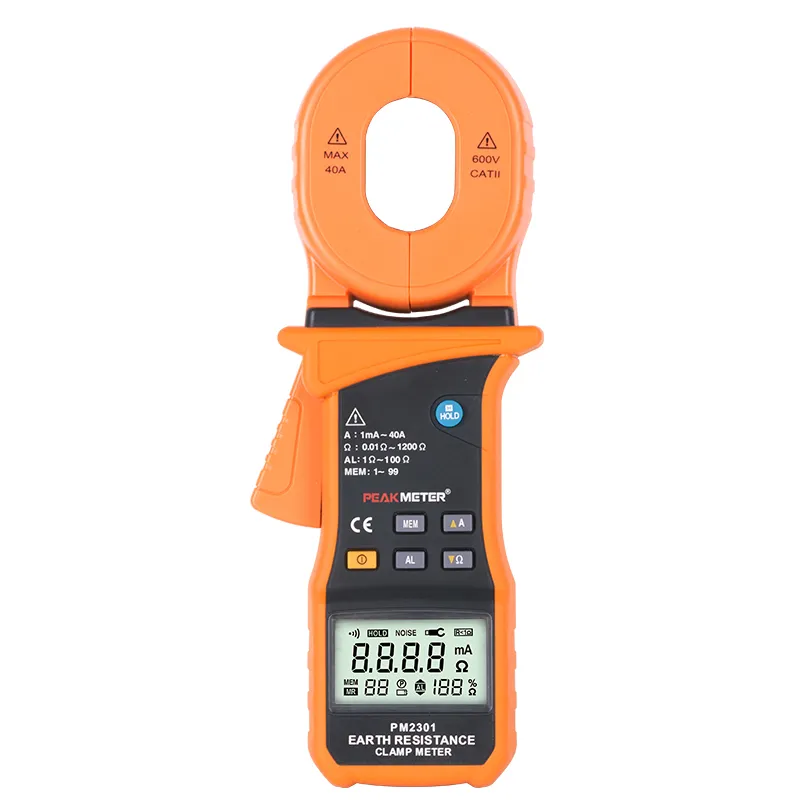

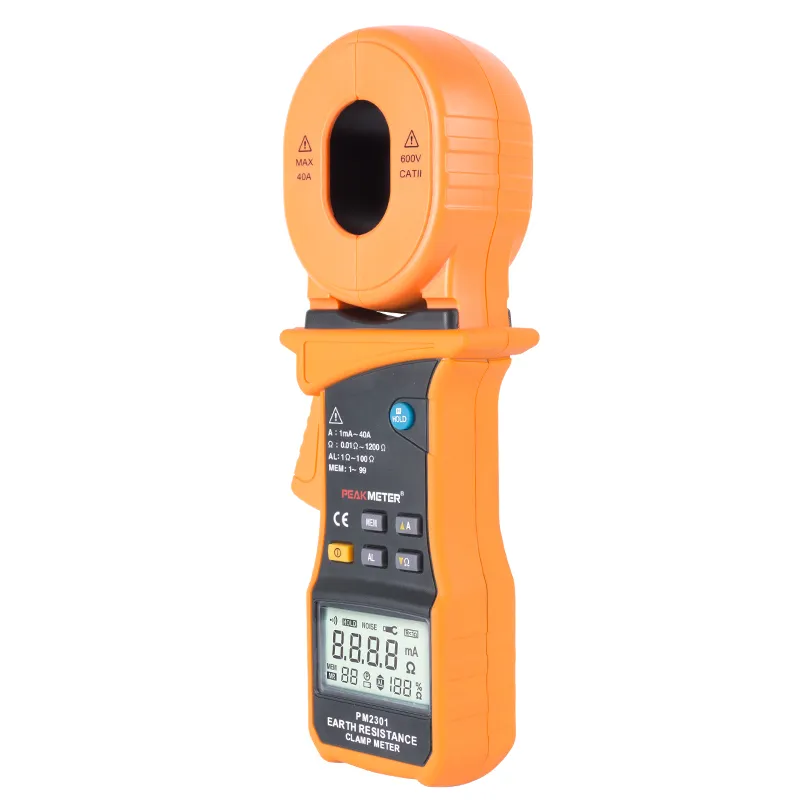

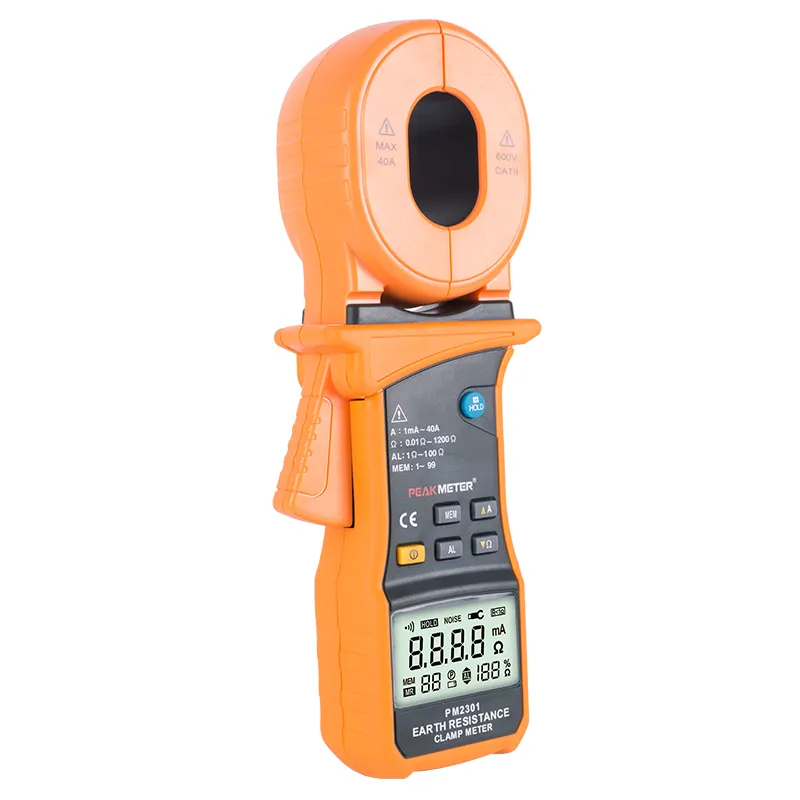

The MS2301 is a big breakthrough of traditional grounding resistance measurement technology, and is used for measuring the grounding resistance of the system with circuits, for example, the grounding resistance of power transmission lines or the grounding resistance of communication lines. Auxiliary grounding rods are not needed to use when measuring, several parallel connected grounding system can be applied, and the equipment to be tested are not interrupted. The grounding resistamce can be safety and quickly measured by champing the grounding wires or the grounding rods only with the jaws.
Auto Ranging
Display: 9999 Counts
Data Logging And Recall: 99 Groups
Alarm Limit Setting: Setting Alarm Threshold In 10 to 100Ω
Low Battery Display
Data Hold

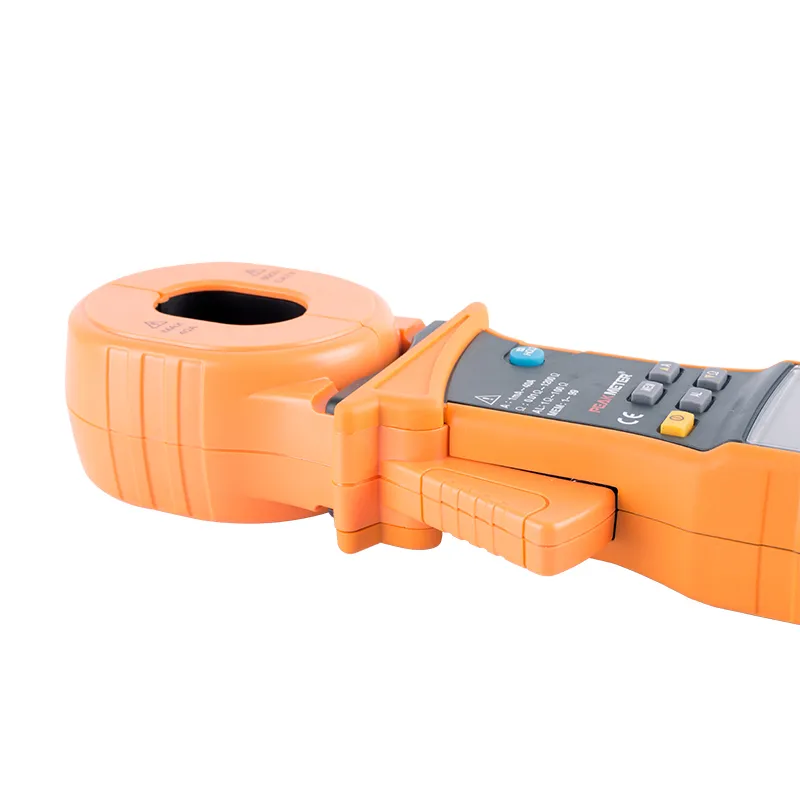

Jaw Opening: 45mm x 32mm/1.8" x1.3
| SPECIFICATIONS | |||
| Range | Accuracy | Resoultion | |
| Resistance | 0.01Ω～0.999Ω | ±(1.5%+0.01Ω) | 0.001Ω |
| 1Ω～9.99Ω | ±(1.5%+0.1Ω) | 0.01Ω | |
| 10Ω～99.9Ω | ±(2.0%+0.3Ω) | 0.1Ω | |
| 100Ω～199.9Ω | ±(3.0%+1Ω) | 1Ω | |
| 200Ω～400Ω | ±(6.0%+5Ω) | 5Ω | |
| 400Ω～500Ω | ±(10%+10Ω) | 10Ω | |
| 500Ω～1200Ω | Approx.20% | 20Ω | |
| Current | 100mA | ±(2.5%+1mA) | 0.1mA |
| 300mA | ±(2.5%+2mA) | 0.3mA | |
| 1A | ±(2.5%+0.003A) | 0.001A | |
| 3A | ±(2.5%+0.01A) | 0.003A | |
| 10A | ±(2.5%+0.03A) | 0.01A | |
| 20A | ±(2.5%+0.05A) | 0.03A | |
| 30A | ±(2.5%+0.5A) | 0.03A | |
| 40A | ±(10%+0.5A) | 0.03A | |
| FEATURE | |||
| Auto Ranging | √ | ||
| Display | 9999 Counts | ||
| Data Logging And Recall | 99 Groups | ||
| Alarm Limit Setting | Setting Alarm Threshoid In 1Ω to 100Ω | ||
| Loe Battery Display | √ | ||
| Data Hold | √ | ||
| Jaw Opening | ф32mm or 45mm×32mm | ||
| GENERAL | |||

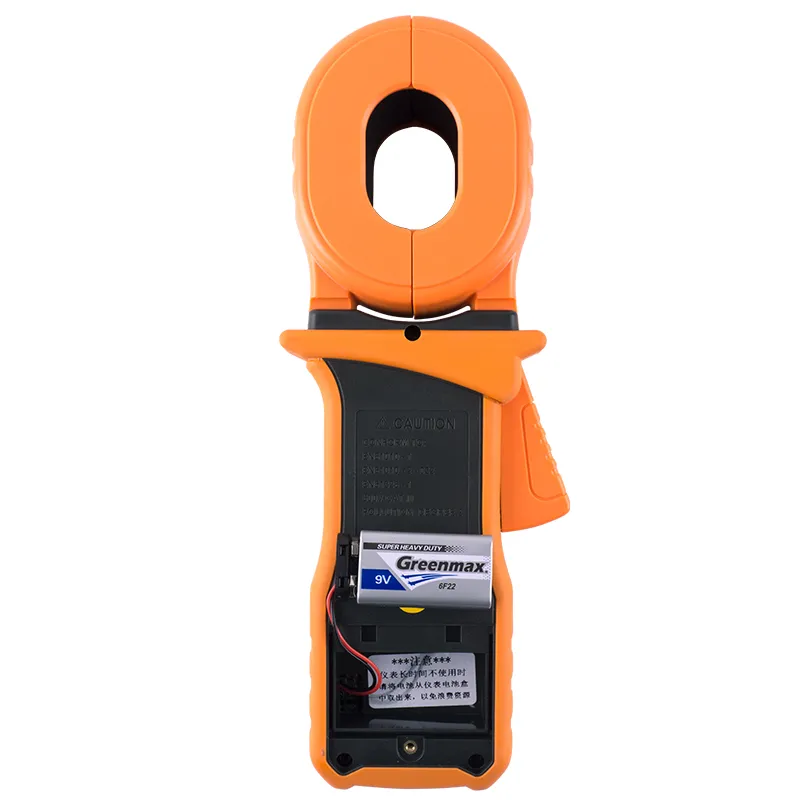

| Power Supply | 9V 6F22 | ||
| Product Size | 276mmx104mm×45mm | ||
| Net weight | 1050g (include batteries) | ||
| Gross weight | 2574g | ||
| Safty Rating | EN61010-1,EN61557-3,EN61326-1,CAT.Ⅱ600V | ||
| Package（PCS/carton） | 4PCS | ||
| Color Box Size | 370mm×323mm×140mm | ||
| Carton Size | 585mm×390mm×340mm | ||
| G.W | 11.3kg | ||

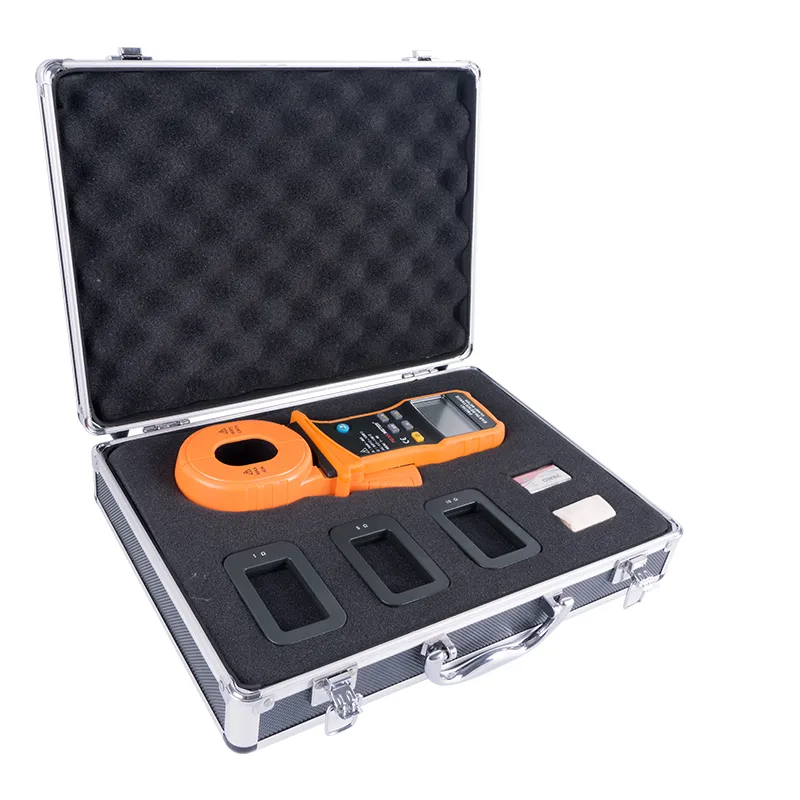

| 3xResistor ring parts | Users Manual | 1x9V 6LR61 Battery |
