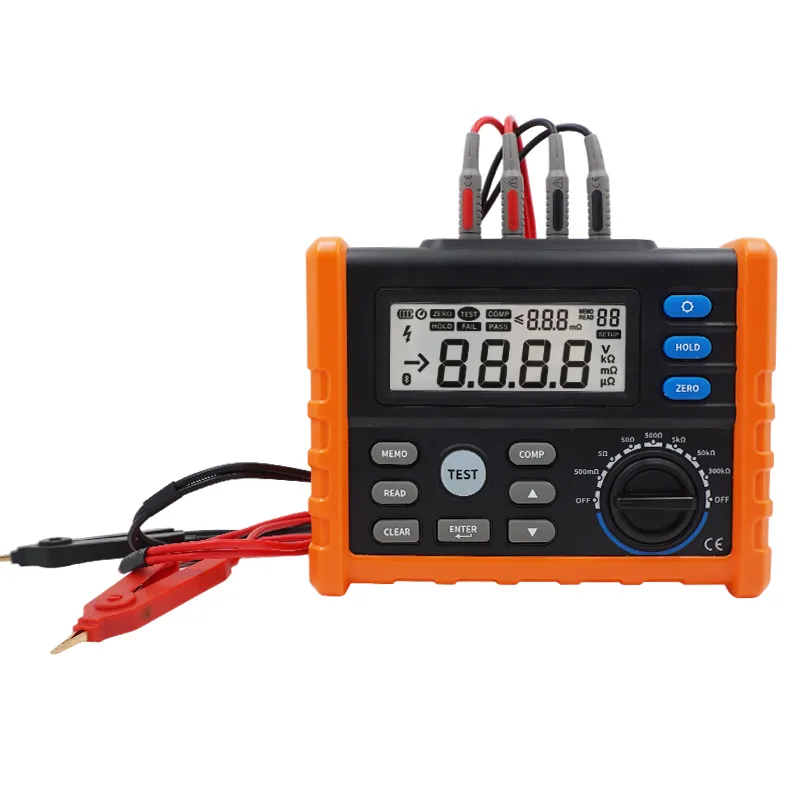

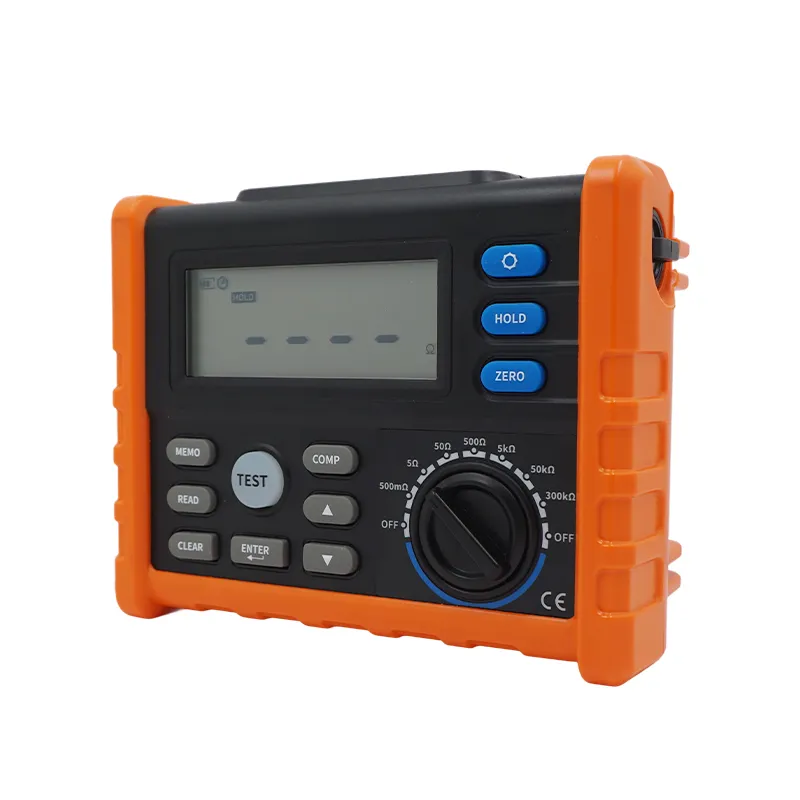

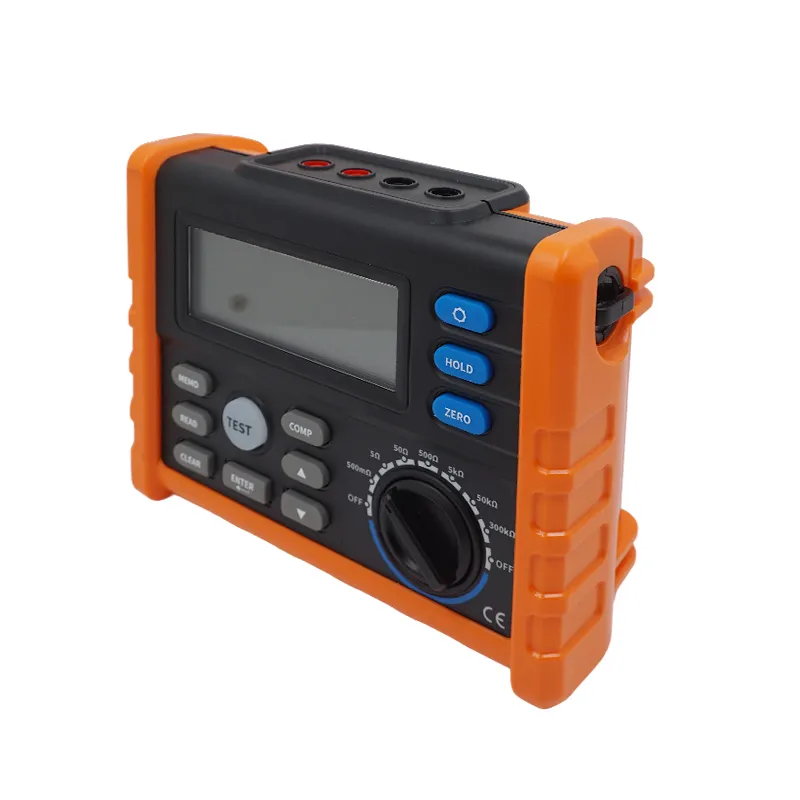

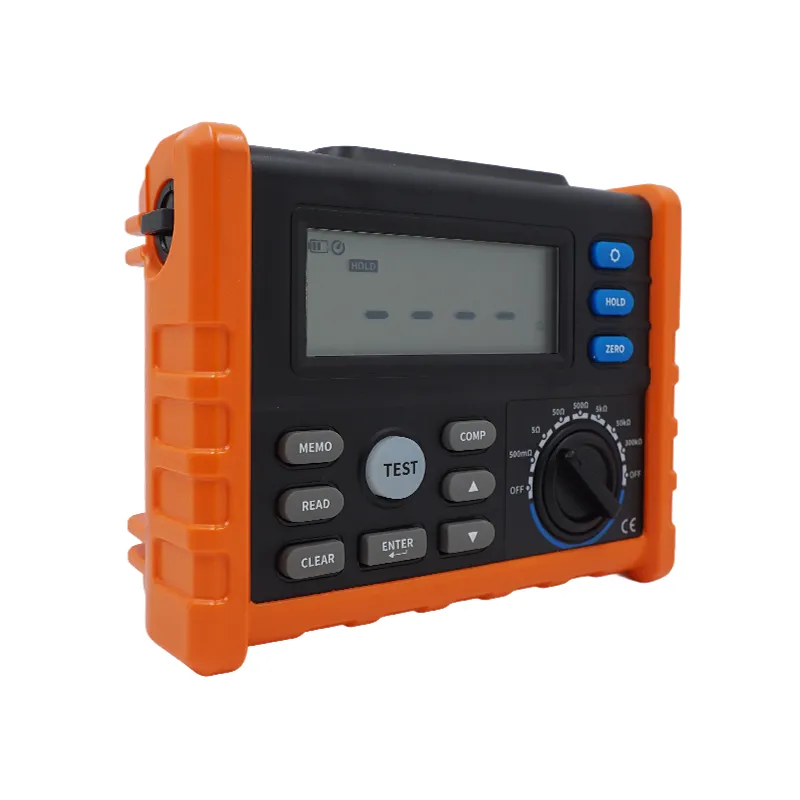

Adopting the four‑terminal measuring method, this low‑resistance tester ensures ±(0.1%FS+20dgt) high‑precision reading. Equipped with pass‑fail comparison and data‑storage functions, it suits wire, motor winding and conductive‑joint resistance detection for factory‑site testing.
Measuring Principle: Four terminal methods
Measuring Current: ≤334mA
Open-Circuit Voltage: About 5V
Compare Functions: Directly Display PASS or FAlL Results Compared to the Preset Value
Data Storage: 99 Groups
Charged Prompt at the Tested end: ≤30V DC Waring
Auto Power Off: About 5 minute
Battery Level Alert: Divided into 3 Sections for Proportional Display
Zeroing Function
Back Light Function
Data Hold Function
| MODEL | MS2303 | ||
| SPECIFICATIONS | Range | Accuracy | Maximum measurable current |
| DC Resistance Tester | 10mΩ/100.00mΩ/500.0mΩ | ±(0.1%FS+20dgt） | 333.3mA |
| 5.000Ω | 100.0mA | ||
| 50.00Ω | 10.0mA | ||
| 500.0Ω | 1.0mA | ||
| 5.000kΩ | 100.0μA | ||
| 50.00kΩ | 10.0μA | ||
| 300.0kΩ | 3.0μA | ||
| FEATURE | |||
| Measuring principle | Four terminal methods | ||
| Measuring current | ≤334mA | ||
| Open-circuit voltage | About 5V | ||
| Compare functions | Directly display PASS or FAIL results compared to the preset value | ||
| Data storage | 99groups | ||
| Charged prompt atthe tested end | ≤30V DC waring | ||
| Auto Power Off | About 5 minute | ||
| Battery level alert | Divided into 3 sections for proportional display | ||
| Zeroing function | √ | ||
| Back light function | √ | ||
| Data hold function | √ | ||
| GENERAL | |||

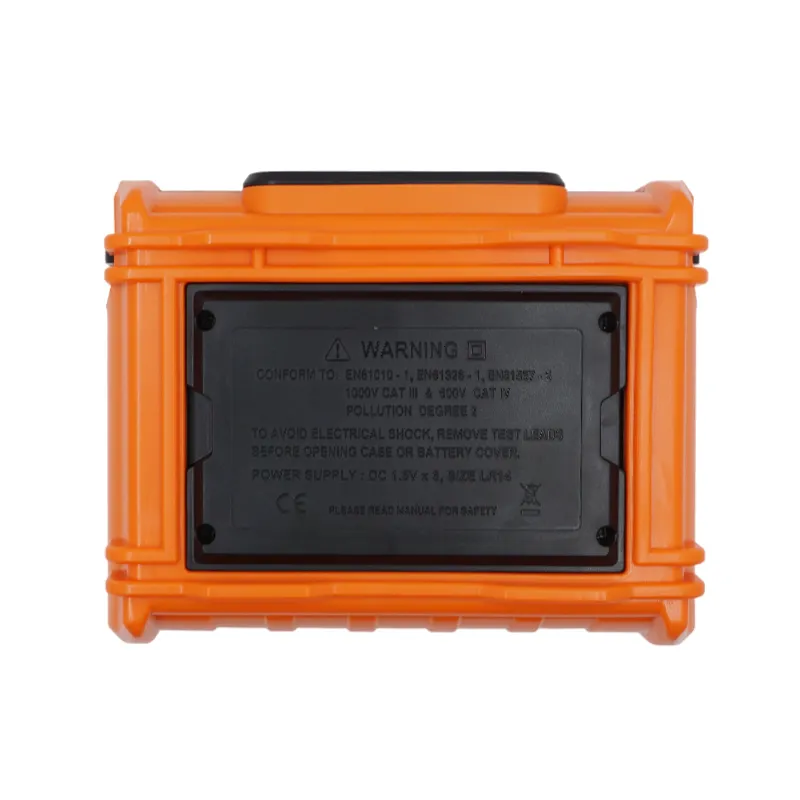

| Power Supply | DC 1.5V*6 LR14 | ||
| Product Size | 194mm×150mm×72mm | ||
| Test Leads | Users Manual | DC 1.5V*6 LR14 Batteries |
