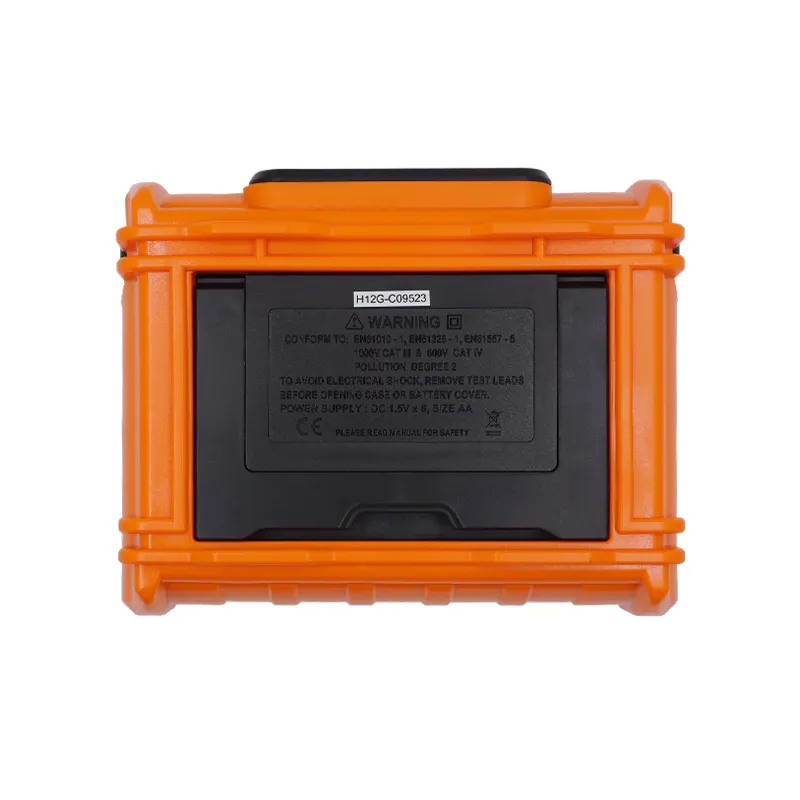

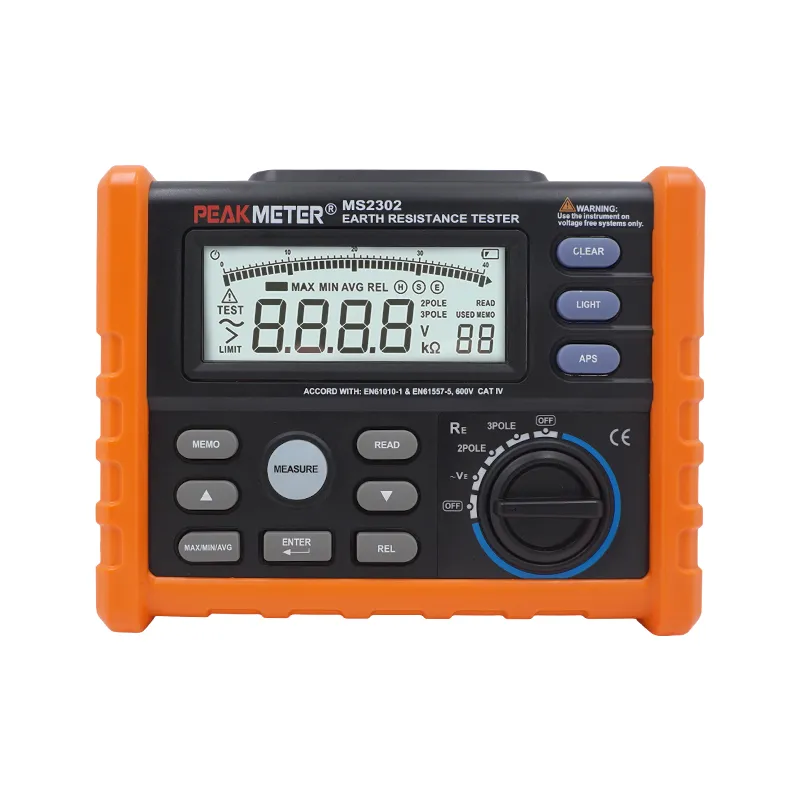

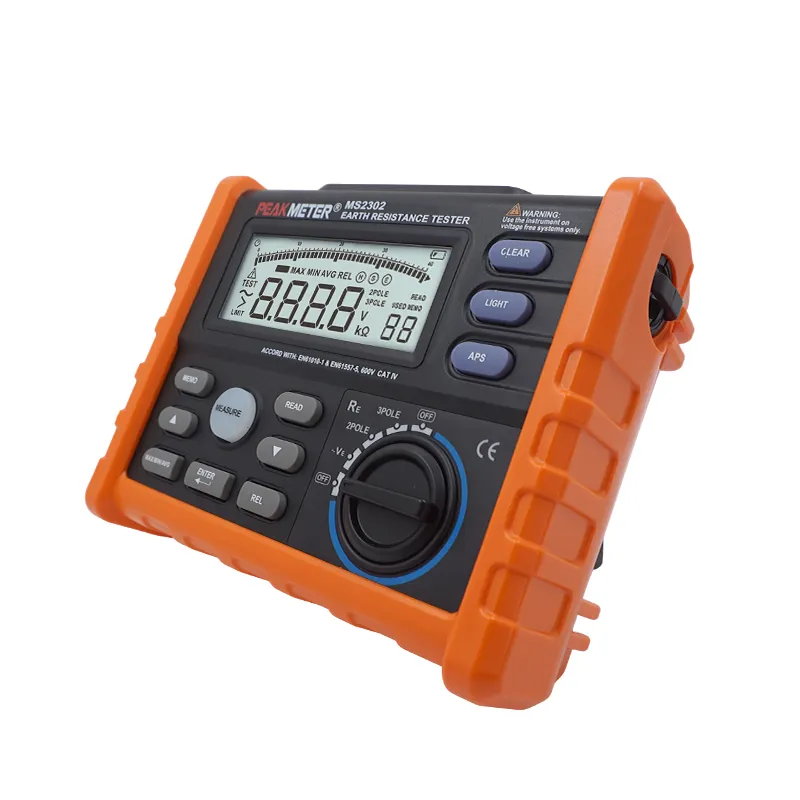

The Earth Ground Resistance Tester is a highly reliable and precise instrument designed for measuring and analyzing the resistance of grounding systems. As an essential tool for electricians, engineers, and maintenance professionals, this device ensures that grounding installations meet safety standards and function effectively to protect personnel and equipment from electrical faults. The Earth Ground Resistance Analyzer provides accurate readings that help in diagnosing grounding issues, thereby preventing potential hazards caused by improper grounding.
Digital Display & Analog Bars Display
2 Pole and 3 Pole Mode
Earth Resistance By Constant Current Inverter 800Hz/3mA
MAX/MIN/AVG/REL
Measurement Functions
Data Logging: 100 group
Display Back Light
Low Battery Indication
| SPECIFICATIONS | Range | Accuracy | Resoultion |
| Earth Ground Resistance | 0 ~ 29.99Ω | ±(2%+6dgt） | 0.01Ω |
| 30.0 ~ 99.9Ω | ±(3%+3dgt) | 0.1Ω | |
| 100 ~ 999Ω | ±(3%+3dgt) | 1Ω | |
| 1.00k~4.00kΩ | ±(3%+3dgt) | 10Ω | |
| Earth Voltage | 0V~600V(50/60Hz) | ±(1%+5dgt) | 0.1V |
| FEATURE | |||
| Digital Display &Analog Bars Display | |||
| 2Pole&3Pole Mold | |||
| Earth Resistance By Constant Current | |||
| Inventer 800Hz/3mA | |||
| MAV/MIN/AVG/REL | |||
| Measurment Functions | |||
| Data Logging:100groups | |||
| Display Back Light | |||
| Low Battery Indication | |||
| Auto Power Off | |||
| GENERAL | |||
| Power Supply | 6x1.5V AA Batteries | ||
| Product Size | 330mm×125mm×265mm | ||
| Net weight | Approx.858g (batteries are not included） | ||
| Gross weigh | 3500g | ||
| Safty Rating | EN61010-1,EN61557-3,EN61326-1 CAT.III 1000V | ||
| Package（PCS/carton） | 6PCS | ||
| Color Box Size | 340mm×265mm×103mm | ||
| Carton Size | 560mm×360mm×335mm | ||
| G.W | 18.5kg | ||
| Test Leads | Alligator clip | Users Manual | 6x1.5V AA Batteries |
