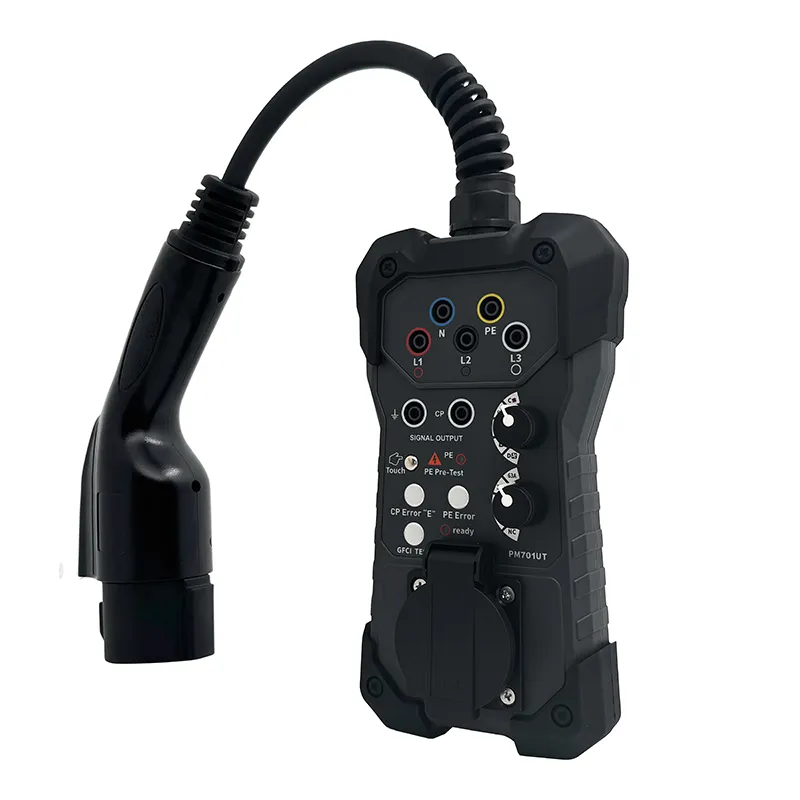

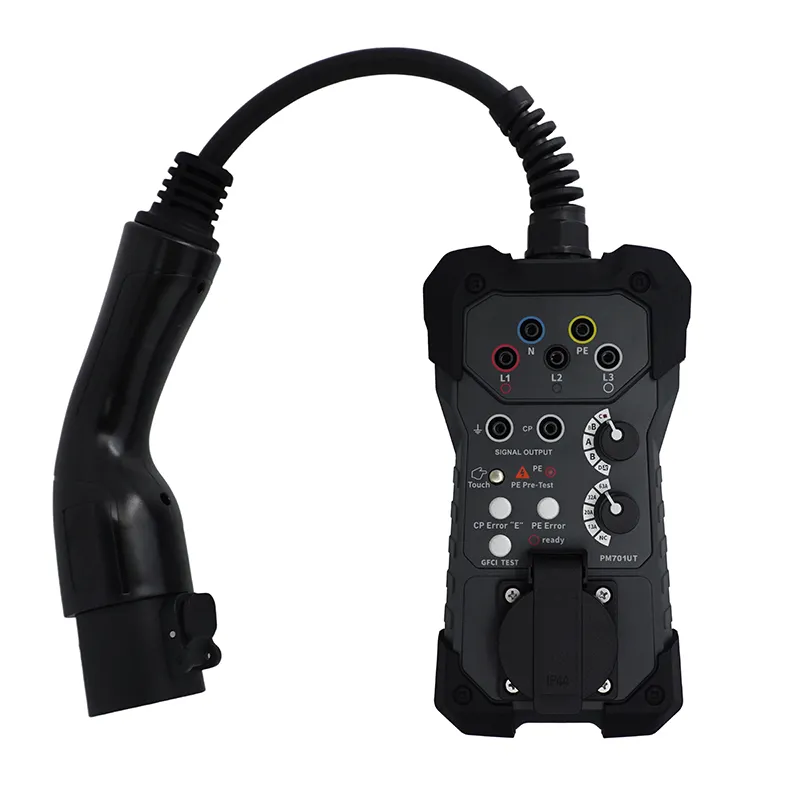

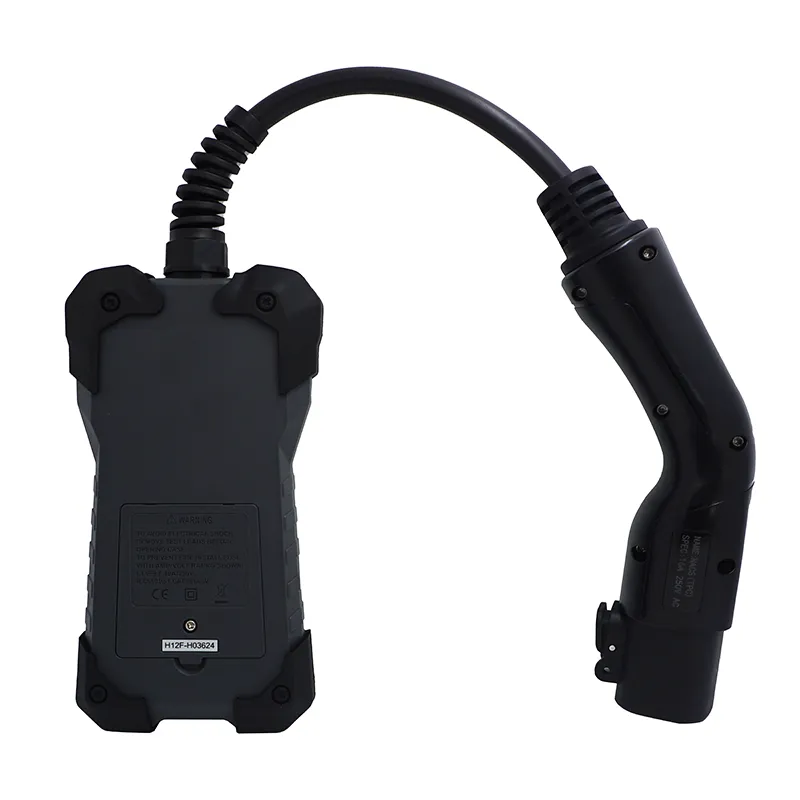

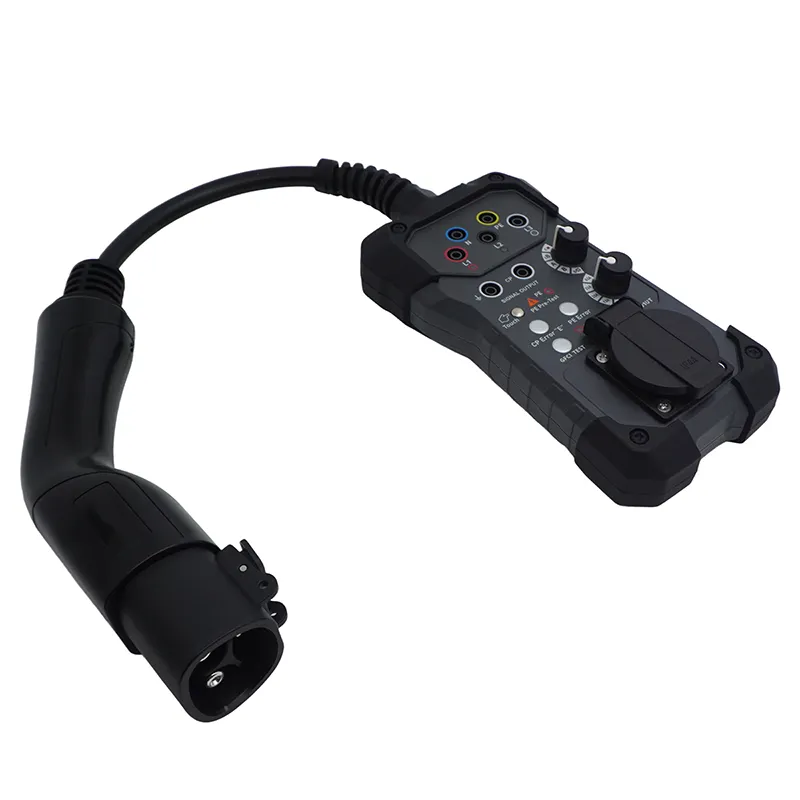

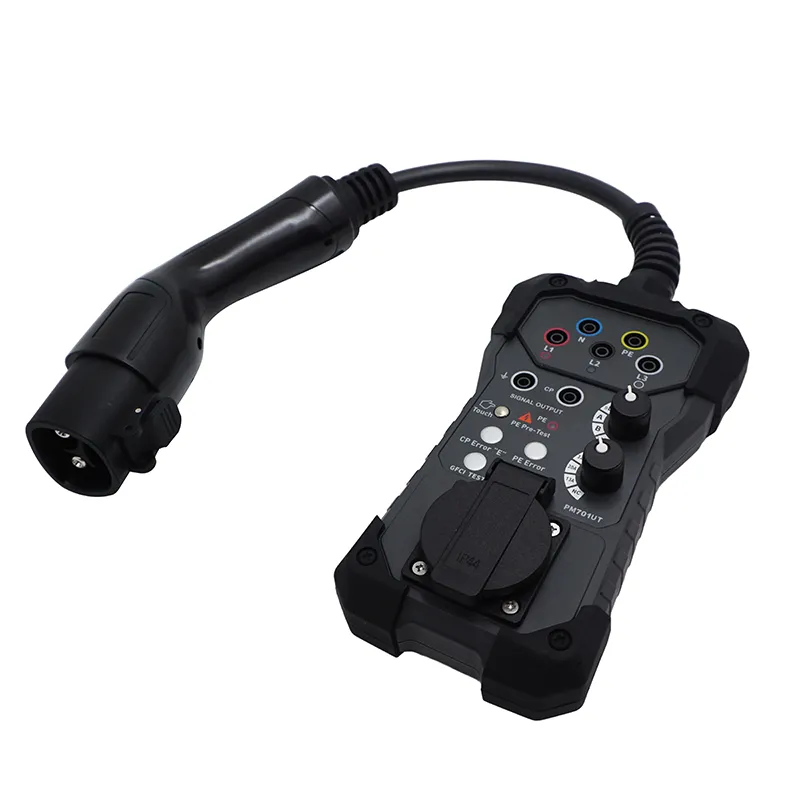

The PEAKMETER PM701UT is a professional portable EV charging station test adapter designed for NACS (Tesla) AC chargers. It can simulate A/B/C/D charging states and conduct comprehensive inspections including PE pre-test, CP pre-test, cable resistance simulation, CP error and PE error simulation, as well as leakage tripping test (≥6mA/110V).
Universal Compatibility — Multiple Standards Supported: NACS (Tesla), making it versatile for various charging station interfaces.
Comprehensive Testing Capabilities — Simulate Charging States; Pre-Testing Functions; Error Simulation
Safety and Reliability — Electrical Leakage Test; High Safety Standards (IEC/EN 61010-1, IEC/EN 61010-2-030, CAT III 600V standards)
User-Friendly Design — Indicator Light; Flexible Output Terminals
Durability and Reliability — Rated IP54 for Dust and Water Protection; High-Quality Components
Technical Superiority — Supports Various Voltage Types (Single-Phase and Three-Phase Voltage Systems); Effective Fusing (a 10A/250V Fuse)
| SPECIFICATION | |
| Test object | AC Charging Station |
| Test interface | NACS (Tesla) |
| Simulate charging state | A.B.CorD |
| PE pre testing | √ |
| CP testend | √ |
| Simulate cable resistance | √ |
| Simulated CP error | √ |
| Simulated PE error | √ |
| Electric leakage trip test | ≥6mA/110V |
| Charging output terminal | 4mm port/American standard |
| Support voltage types | Single phase or three-phase |
| Indicator light | √ |
| Fuse | 10A/250V |
| GENERAL | |
| Safety Standard/Rating | IEC/EN 61010-1.IEC/EN61010-2-030,CAT III600V |
| Testing Protocol Standard | IEC/EN 61851-1.IEC/HD 60364-7-722 |
| Users Manual*1 | Cloth Bag*1 |
