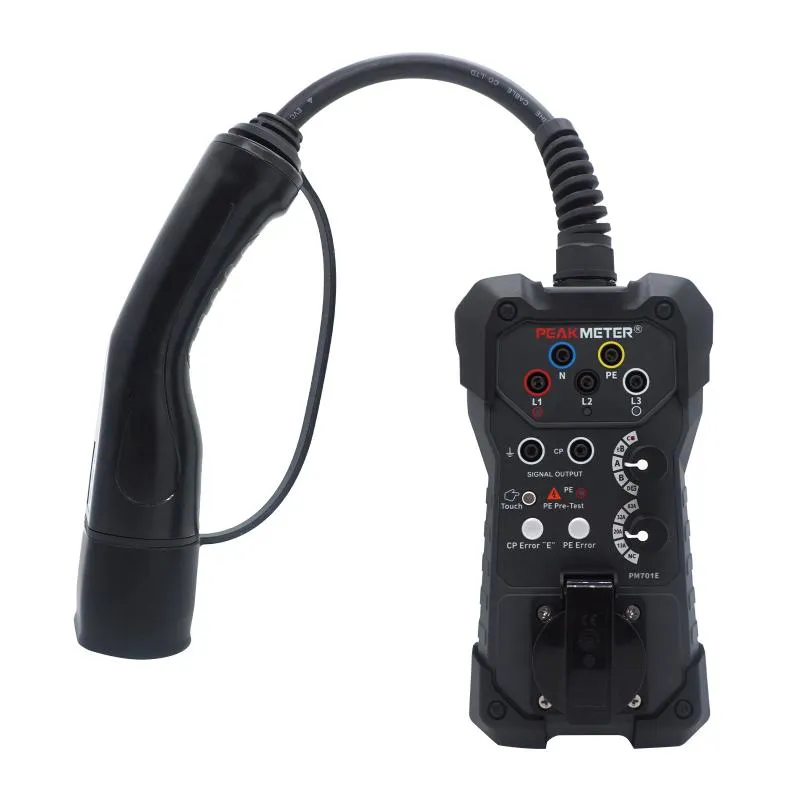

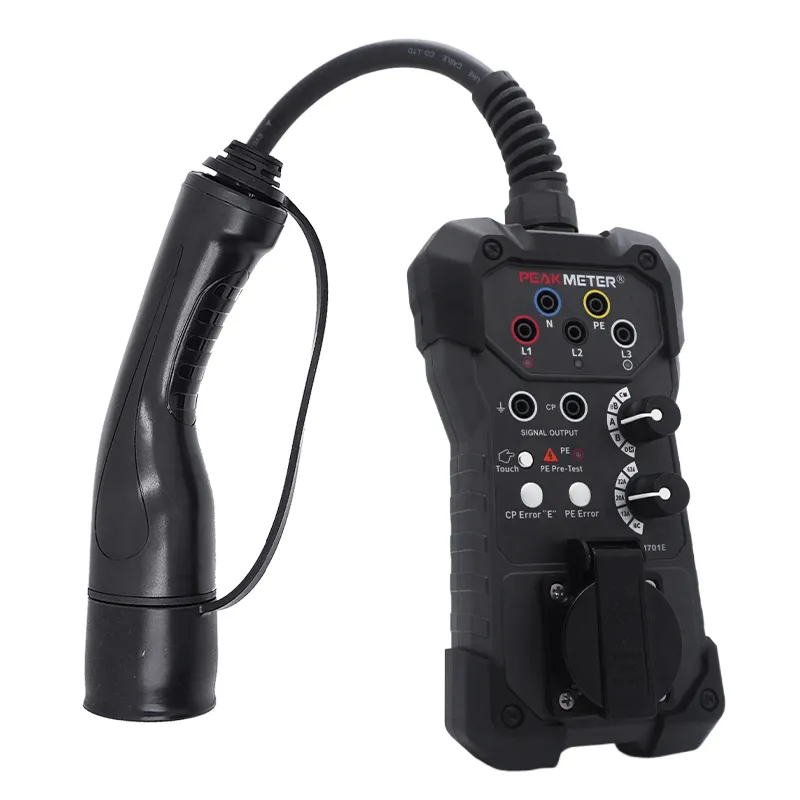

All-in-one portable EVSE test adapter fully compliant with Type 2 EU standards. Supporting 13A/20A/32A/63A multi-current simulation, it accurately verifies CP/PE/PP signals, three-phase voltage and leakage protection. Featuring IP54 rugged housing, CAT III 600V safety rating and intuitive LED indicators, it enables fast, reliable on-site testing, maintenance and fault diagnosis for AC charging piles.
Universal Compatibility — Multiple Standards Supported: Type 2 (European Standard), making it versatile for various charging station interfaces.
Comprehensive Testing Capabilities — Simulate Charging States; Pre-Testing Functions; Error Simulation
Safety and Reliability — Electrical Leakage Test; High Safety Standards (IEC/EN 61010-1, IEC/EN 61010-2-030, CAT III 600V standards)
User-Friendly Design — Indicator Light; Flexible Output Terminals
Durability and Reliability — Rated IP54 for Dust and Water Protection; High-Quality Components
Technical Superiority — Supports Various Voltage Types (Single-Phase and Three-Phase Voltage Systems); Effective Fusing (a 10A/250V Fuse)
| Test object | AC Charging Station |

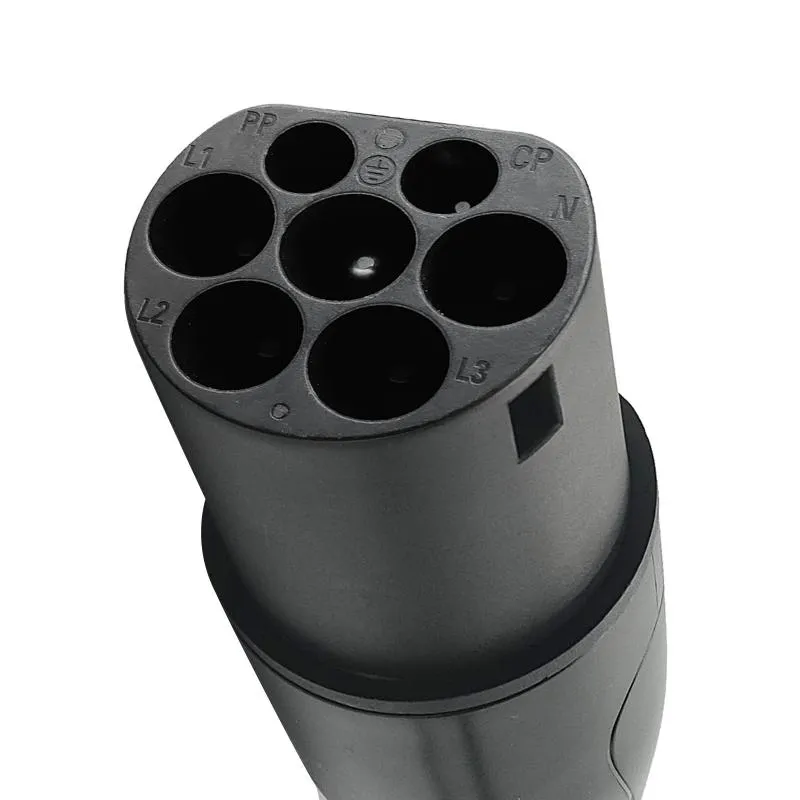

| Test interface | Type2 (EuropeanStandard) |
| Simulate charging state | A.B.C or D |
| PE pre testing | √ |
| CP testend | √ |
| Simulate cable resistance | √ |
| Simulated CP error | √ |
| Simulated PE error | √ |
| Electric leakage trip test | |
| Charging output terminal | 4mm port/European standard |
| Support voltage types | Single phase or three-phase |
| Indicator light | √ |
| Fuse | 10A/250V |
| GENERAL | |
| Safety Standard/Rating | IEC/EN 61010-1.IEC/EN61010-2-030,CAT III600V |
| Testing Protocol Standard | IEC/EN 61851-1.IEC/HD 60364-7-722 |
| Users Manual*1 | Cloth Bag*1 |
