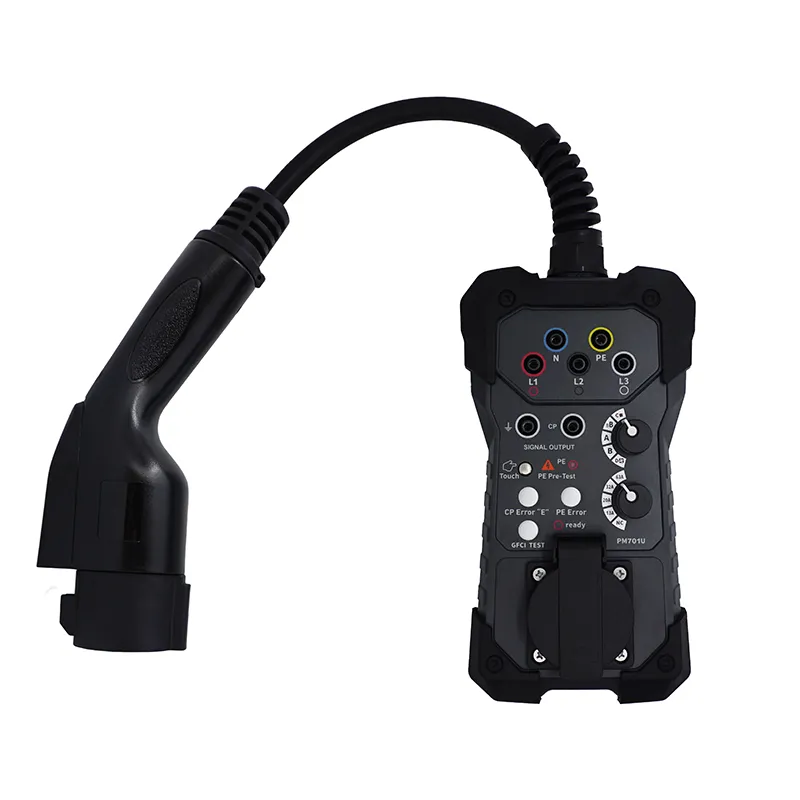

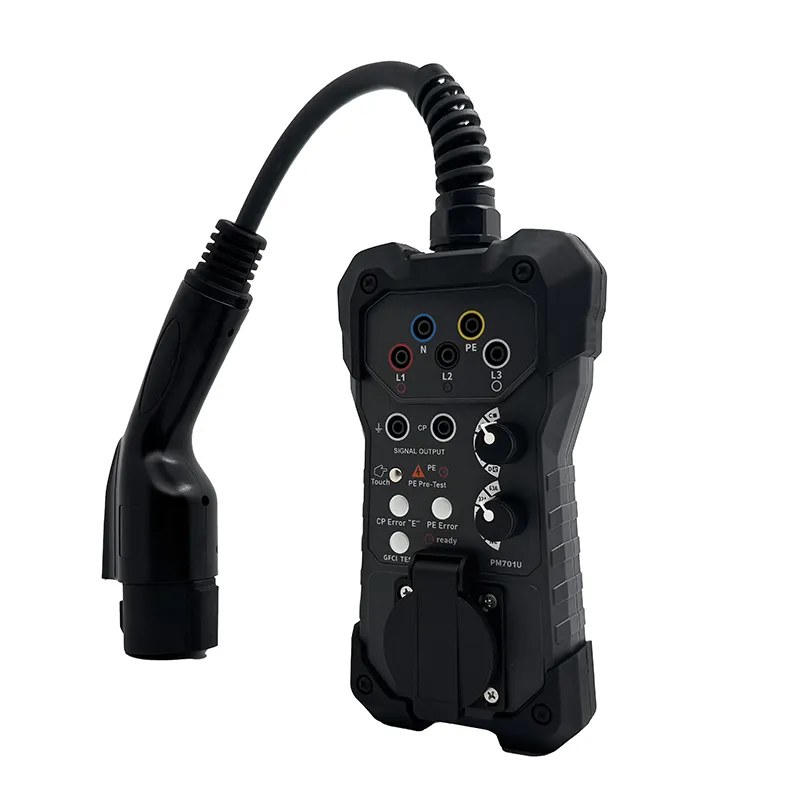

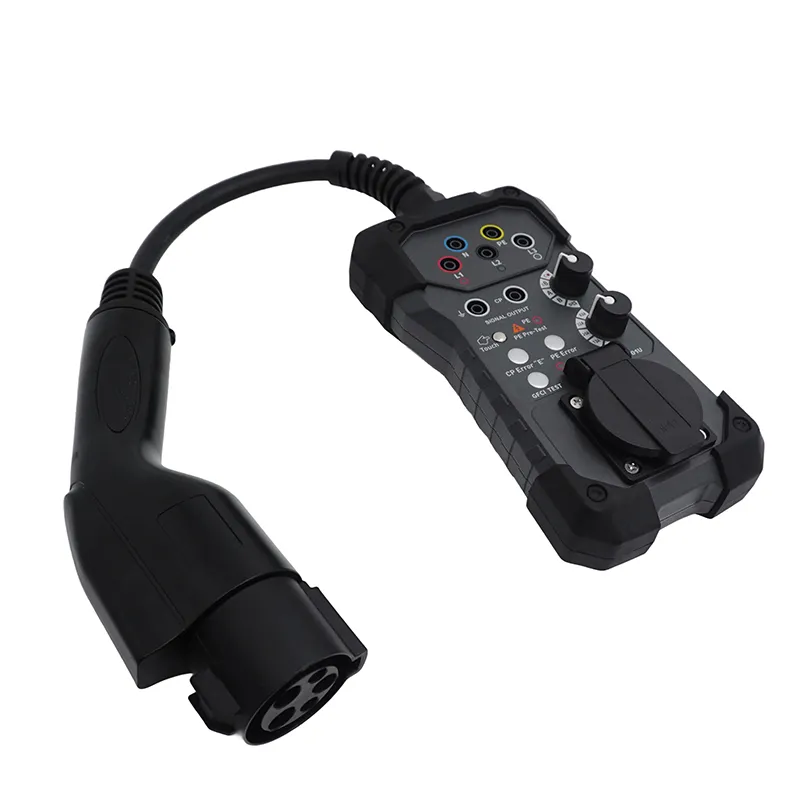

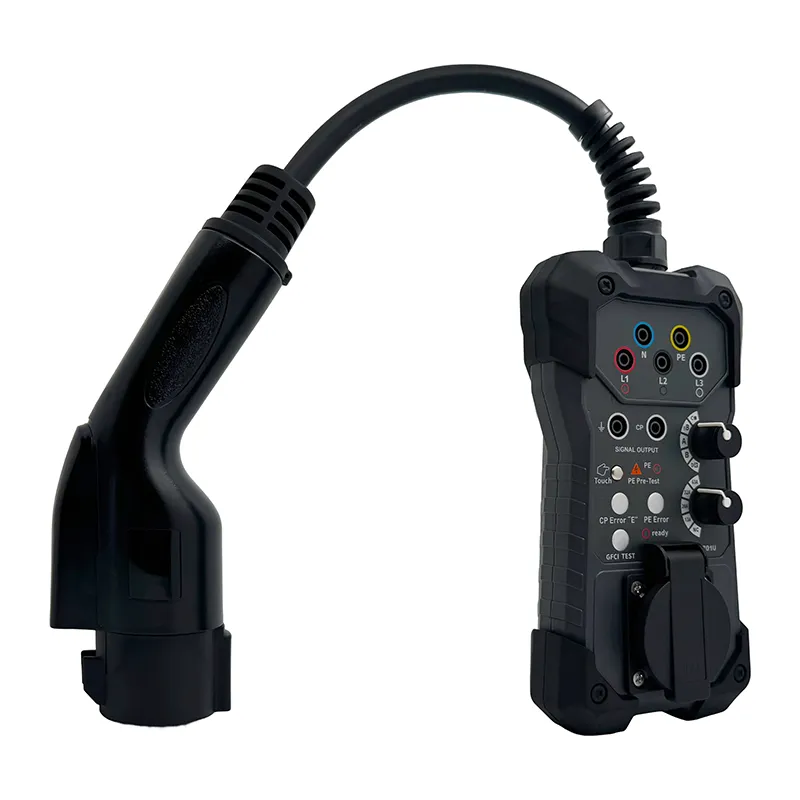

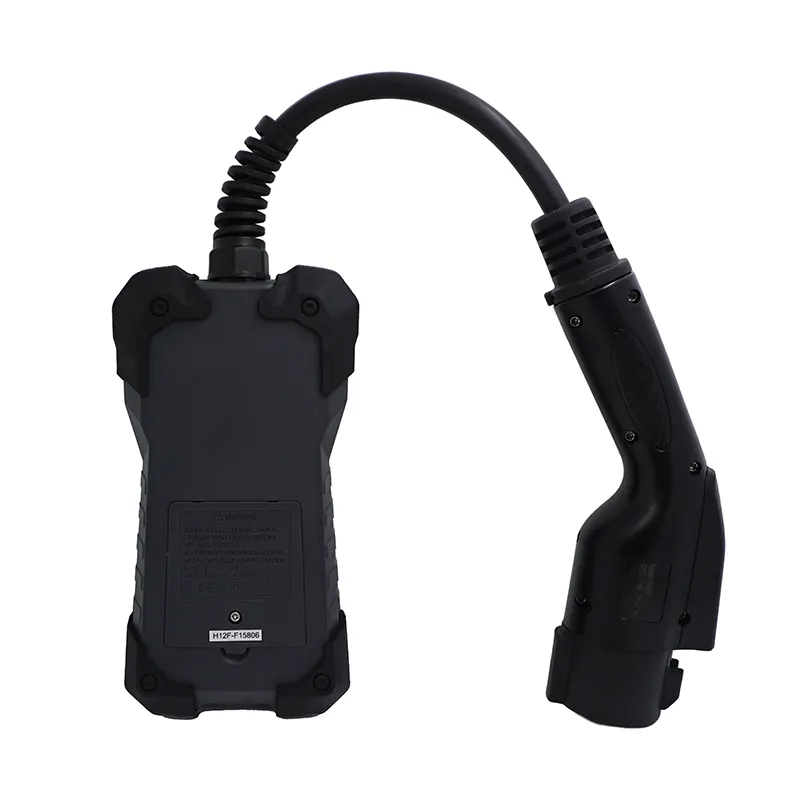

The PEAKMETER PM701U is a professional portable EVSE test adapter designed for SAE J1772 (Type 1) AC charging stations. It simulates A/B/C/D charging states and supports multi-level current simulation, enabling comprehensive detection of CP signal, PE grounding, PP status and leakage protection. IP54 dustproof & waterproof, equipped with clear LED indicators for fast on-site testing, maintenance and fault diagnosis of AC charging piles.
Universal Compatibility — Multiple Standards Supported: Compatible with SAE J1772 (Type 1), making it versatile for various charging station interfaces.
Comprehensive Testing Capabilities— Simulate Charging States; Pre-Testing Functions; Error Simulation
Safety and Reliability — Electrical Leakage Test; High Safety Standards ( IEC/EN 61010-1, IEC/EN 61010-2-030, CAT III 600V standards)
User-Friendly Design — Indicator Light; Flexible Output Terminals
Durability and Reliability — Rated IP54 for Dust and Water Protection; High-Quality Components
Technical Superiority — Supports Various Voltage Types ( Single-Phase and Three-Phase Voltage Systems); Effective Fusing (a 10A/250V Fuse)
| Test object | AC Charging Station |
| Test interface | Complies with SAEJ1772 standard |
| Simulate charging state | A.B.C or D |
| PE pre testing | √ |
| CP testend | √ |
| Simulate cable resistance | √ |
| Simulated CP error | √ |
| Simulated PE error | √ |
| Electric leakage trip test | ≥6mA/110V |

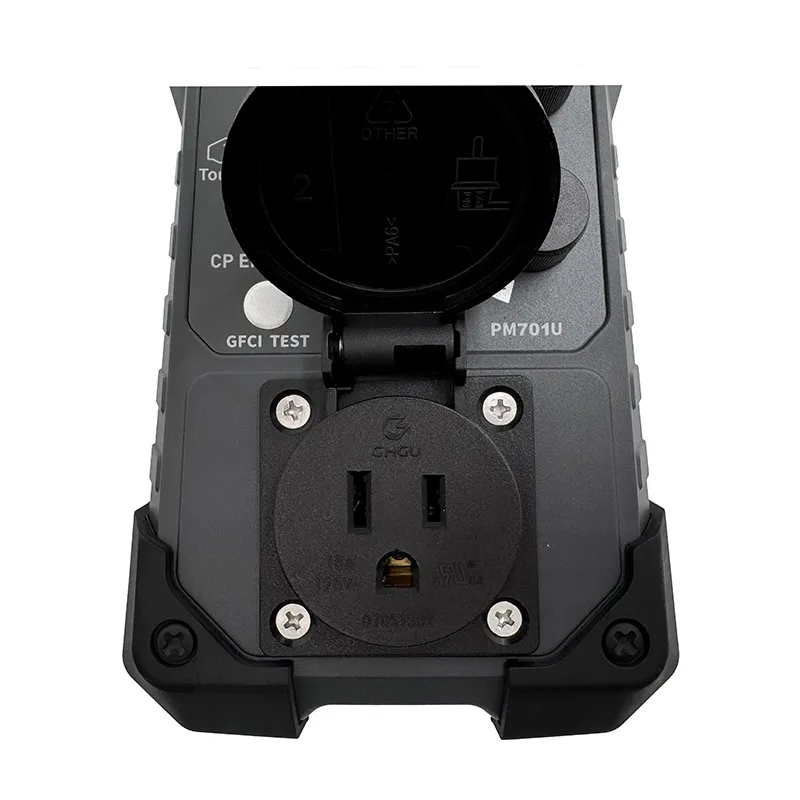

| Charging output terminal | 4mm port/American standard |
| Support voltage types | Single phase or three-phase |
| Indicator light | √ |
| Fuse | 10A/250V |
| GENERAL | |
| Safety Standard/Rating | IEC/EN 61010-1.IEC/EN61010-2-030,CAT III600V |
| Testing Protocol Standard | IEC/EN 61851-1.IEC/HD 60364-7-722 |
Users Manual*1 | Cloth Bag*1 |
