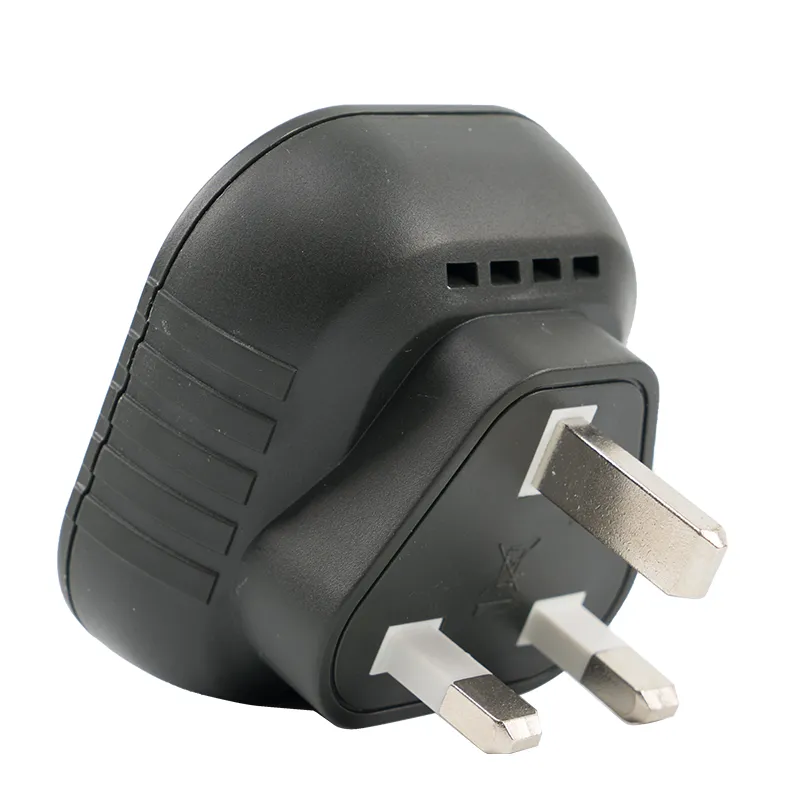

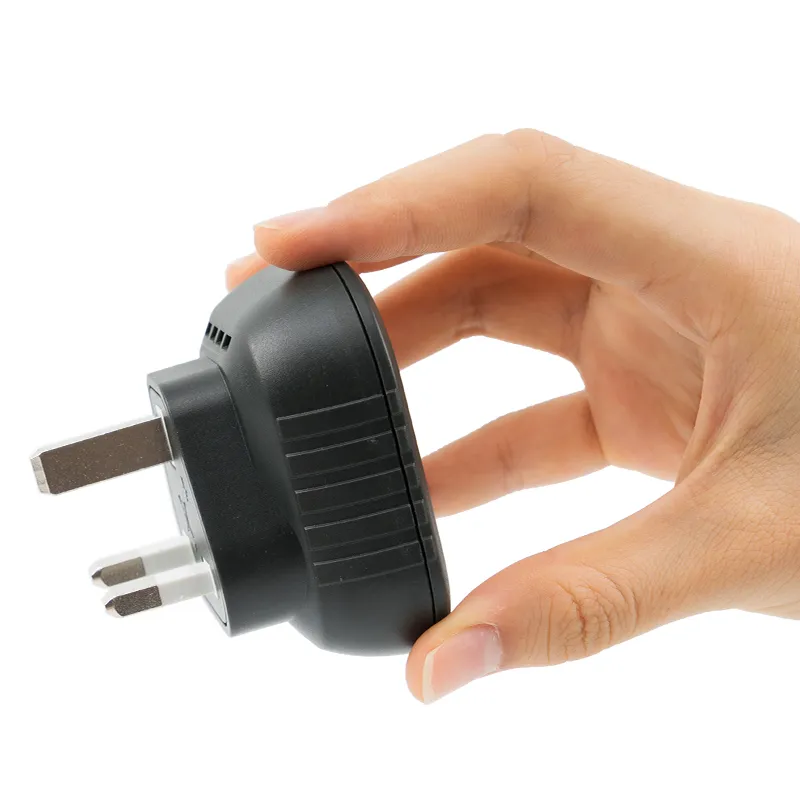

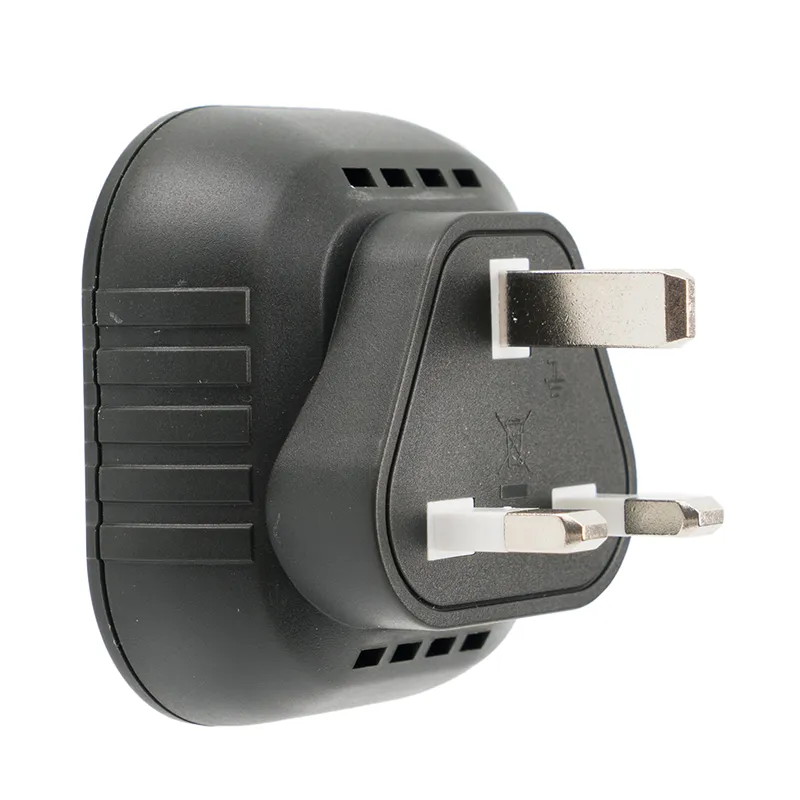

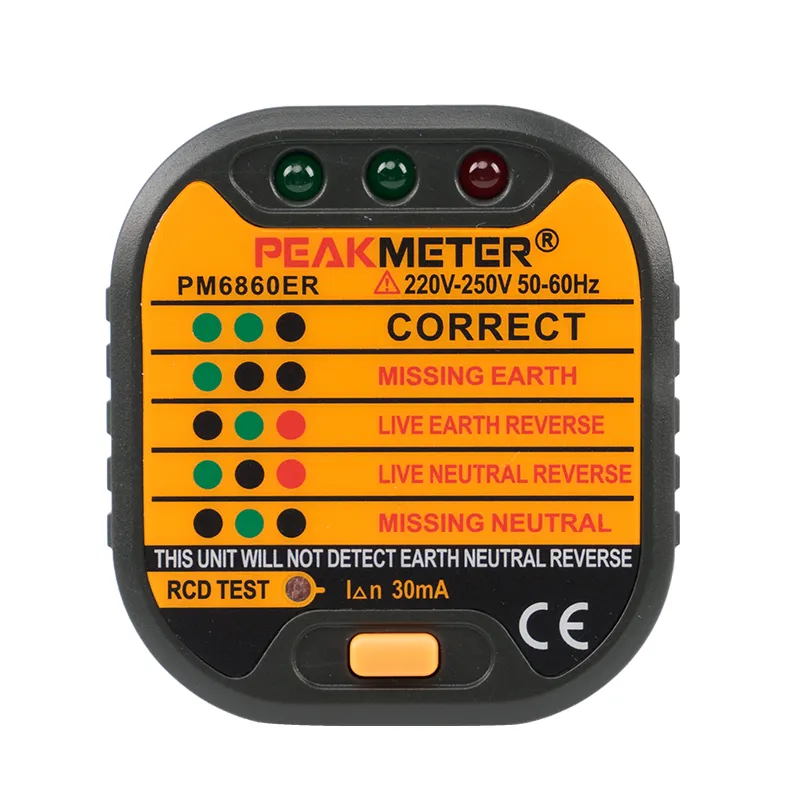

PM6860ER is a professional Socket Tester with the easy way to find out if your sockets are safe! It is reliable and easy to use Modern. Plug the unit into the socket outlet under test. Check the three (3) lights on the front panel. Then match the pattern with the legend on the face of the unit to decode, there are 5 patterns. All wiring should be carried out by a licensed Electrical Contractor, Do not leave the Tester plugged into a socket outlet for more than 2 hours.
AU Socket Tester Safety Instrument Electric Outlet Receptacle Tester PM6860CR
Comply with International Safety Standards CATII 600V IEC1010-1
Designed for Easy Testing of 220V Sockets
Simple and Intuitive Test
Clear Display Socket Line Status
Zero Line and the Line of Fire
Grounding and Firing Line
Lack of Zero Line
Lack of Ground
Correct
| FEATURES | |
| Voltage Rang | 230V |
| GFCI/RCD Test | √ |
| Tripping Curren | ＞30mA |
| LED Indicate Condition Of The Socket's Wiring | Correct |
| Missing Earth | |
| Live-Earth Reverse | |
| Live-Neutral Reverse | |
| Missing Neutral | |
| GENERAL | |
| Net weight | 58.4g |
| Gross weight | 78.7g |
| Product Size | 66mm×61mm×61mm |
| Safety Rating | EN61010-1,EN61326,CAT.III 600V |
| Package（PCS/carton） | 20 PCS |
| Inner Box Size | 415mm×33mm×10.5mm |
| Package（PCS/carton） | 60 PCS |
| Outer Carton Size | 435mm×33.5mm×35mm |
| G.W | 6kg |
| Users Maual |
English
