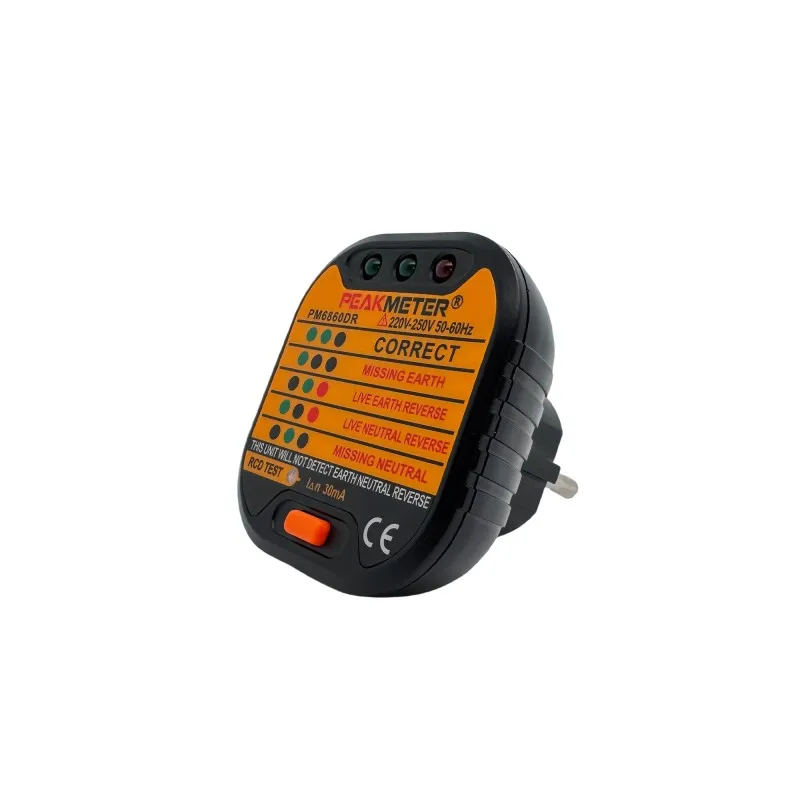

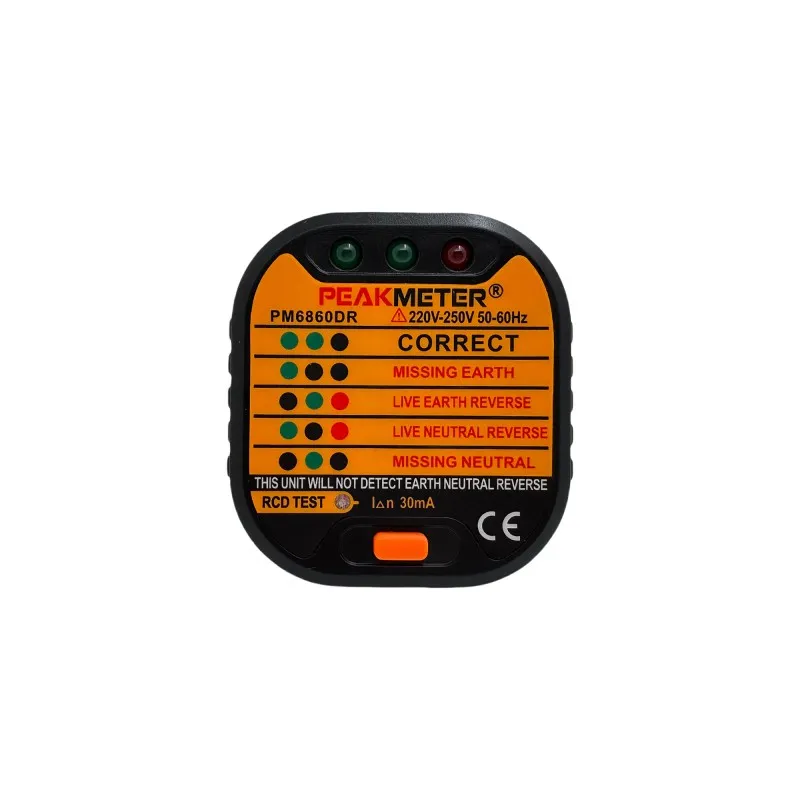

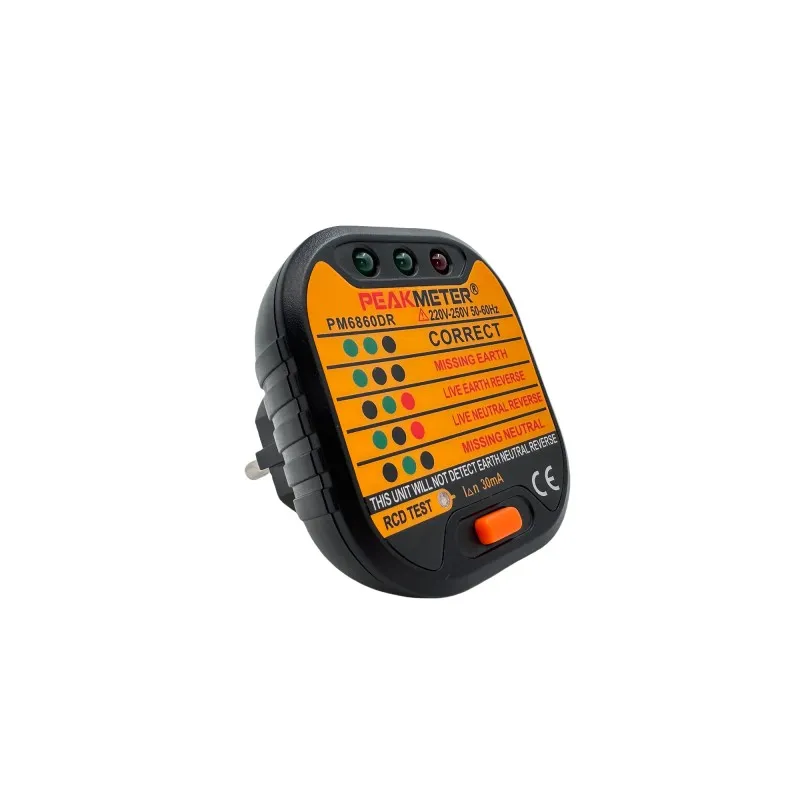

The professional Socket Tester. The easy way to find out if your sockets are safe. Reliable and easy to use. Modern, ergonomic design with unique soft finger grip Compact, durable-designed to Safety Standard EN61010Clear LEDs indicate a range of wiring condition including: CorrectMissing EarthLive / Earth ReverseLive / Neutral ReverseMissing Neutral. Plug the unit into the socket outlet under test. Check the three (3) lights on the front panel. Then match the pattern with the legend on the face of the unit to decode, there are 5 patterns.
Designed for Easy Testing of 220V Sockets
Live-Earth Reverse
Live-Neutral Reverse
Correct
| FEATURES | |
| Voltage Rang | 230V |
| GFCI/RCD Test | √ |
| Tripping Curren | ＞30mA |
| LED Indicate Condition Of The Socket's Wiring | Correct |
| Missing Earth | |
| Live-Earth Reverse | |
| Live-Neutral Reverse | |
| Missing Neutral | |
| GENERAL | |
| Net weight | 53.5g |
| Gross weight | 73g |
| Product Size | 66mm×61mm×57mm |
| Safety Rating | EN61010-1,EN61326,CAT.III 600V |
| Package（PCS/carton） | 20 PCS |
| Inner Box Size | 415mm×33mm×10.5mm |
| Package（PCS/carton） | 60 PCS |
| Outer Carton Size | 435mm×33.5mm×35mm |
| G.W | 5.5kg |
| Users Maual |
English
