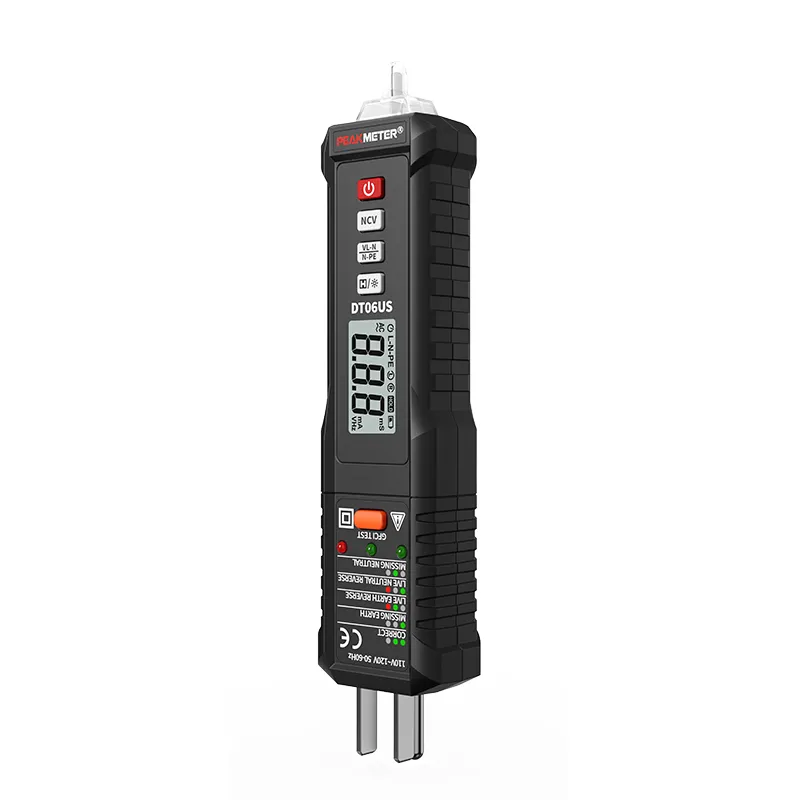

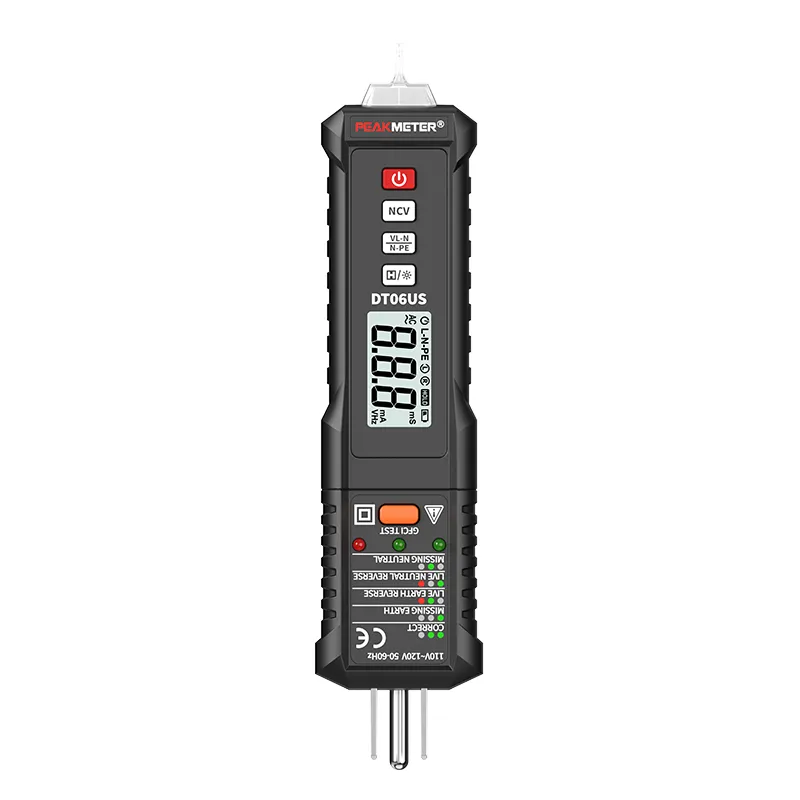

DT06 is a professional electrical safety tester for socket wiring check and GFCI residual current test. It measures 30–250V DC voltage, residual current and 1.0–500ms trip time, with NCV non-contact voltage detection and triple sound-light-screen alarm. It identifies reversed wires and missing earth/neutral faults, equipped with data hold, backlight and auto power-off. Ideal for home renovation acceptance, electrician on-site wiring inspection and building power distribution safety verification.
Non-Contact Voltage Detection Range: AC 36~1000V, 50Hz/60Hz
Measurable Voltage Type: Live-Neutral (VL-N), Live-Earth (VL-PE)
Alarm Mode: Sound + Light + Screen Triple Indication
Socket Test: Judge Correct Wiring, Neutral/Live Reverse, Live/Earth Reverse, Missing Neutral, Missing Ground
Service Temperature: 0~40℃
Storage Temperature: -10~50℃
Altitude:＜2000m
Auto Power Off About 5 Minutes
Low-Battery Indication
Data Hold
Back Light
| SPECIFICATION | RANGE | ACCURACY |
| DC Voltage | 30V~250V | ±(1.5%+5) |
| Residual current test | Test current 6mA (American standard version) | 0%~+20% |
| Test current 30mA(China standard version) | 0%~+20% | |
| Trip time measurement | 1.0ms~500ms | ±(2.0%+5) |
| FEATURES | ||
| Non contact voltage detection range | AC voltage 12~600V,50Hz or 60Hz | |
| Measurable voltage type | Between live wire and neutral wire, between live wire and ground wire | |
| Alarm Mode | Sound,light and display screen indication | |
| Socket test | Correct wiring, live line, neutral line reverse connection, live line ground line reverse connection, lack of neutral line, lack of ground | |
| Service Temperature | 0~40°C | |
| Storage Temperature | -10~50°C | |
| Altitude | <2000m | |
| Auto Power Off | About 5 minutes | |
| Low-Battery Indication | √ | |
| Data Hold | √ | |
| Backlight | √ | |
| GENERAL | ||
| Power Supply | CR2032×1 button cell | |
| Weight | Approx.83g(included batteries） | |
| Size | 181mm×42mm×25mm | |
| Safety Standard/Rating | IEC61010-1 CAT III 600V | |
| Users Manual | CE2450x1 button cell |
