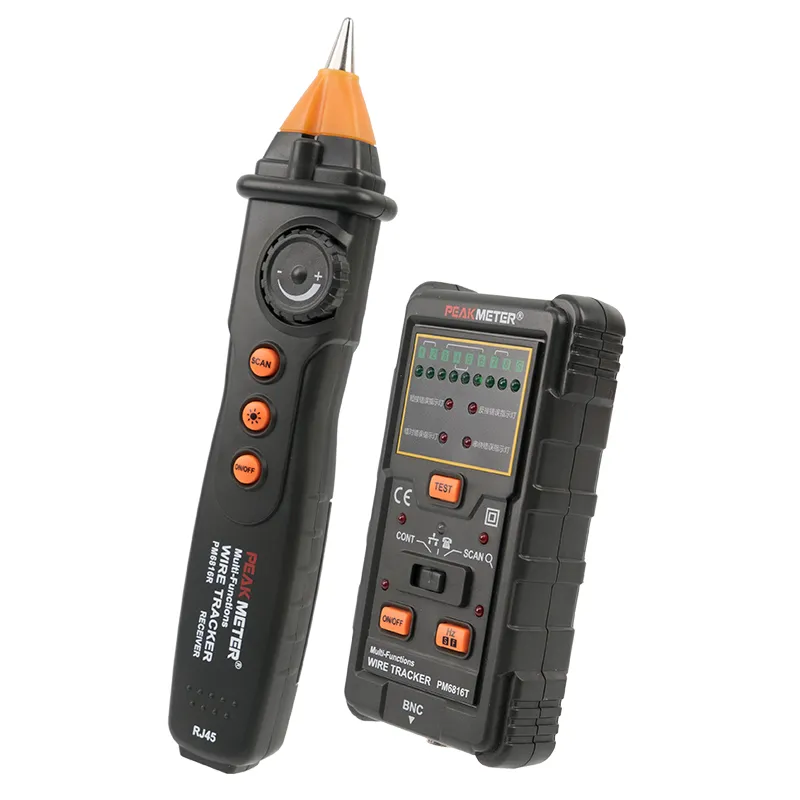

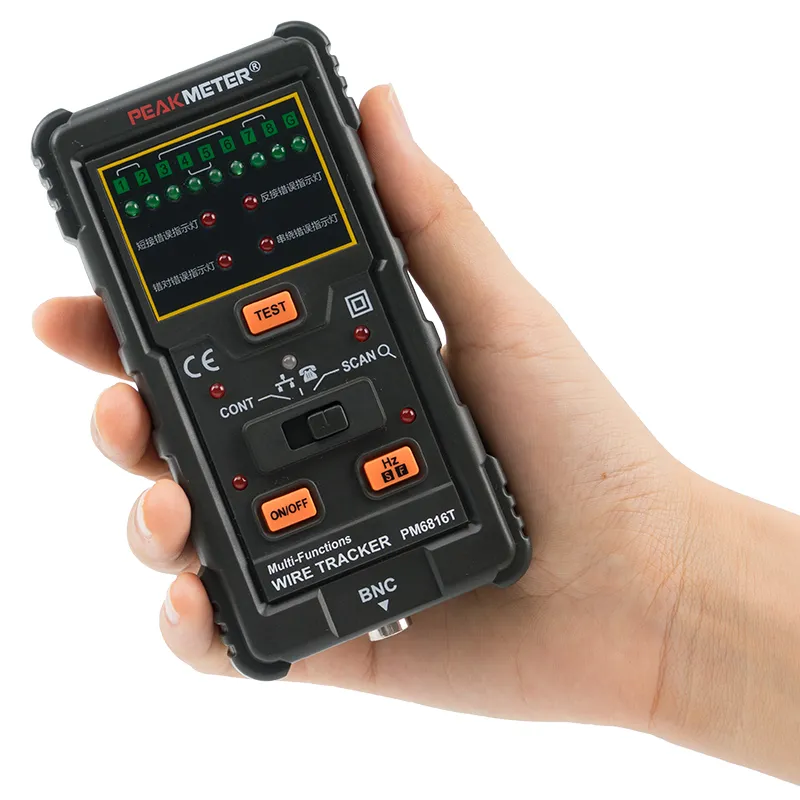

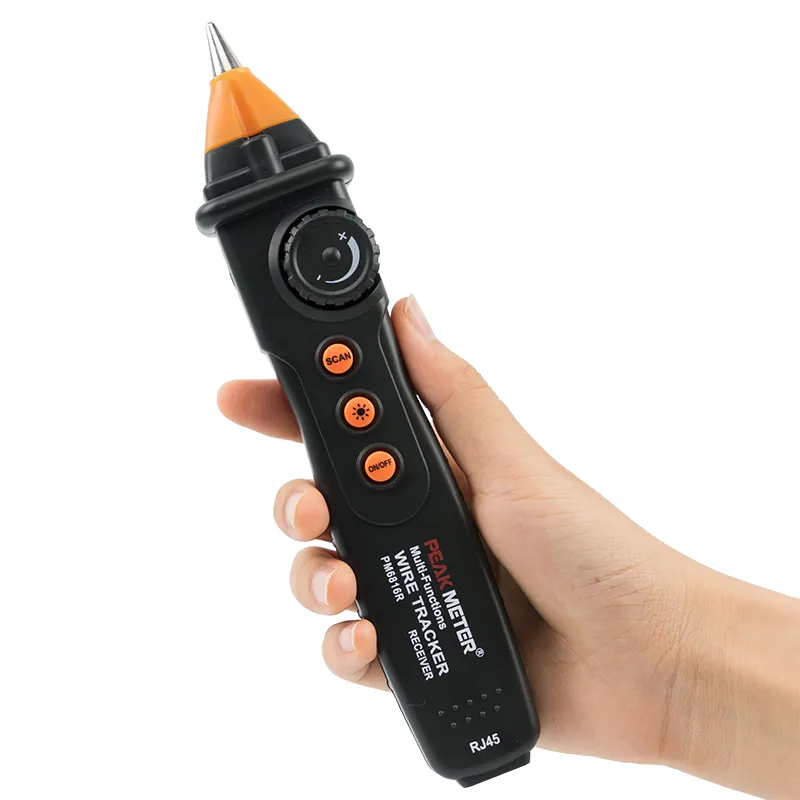

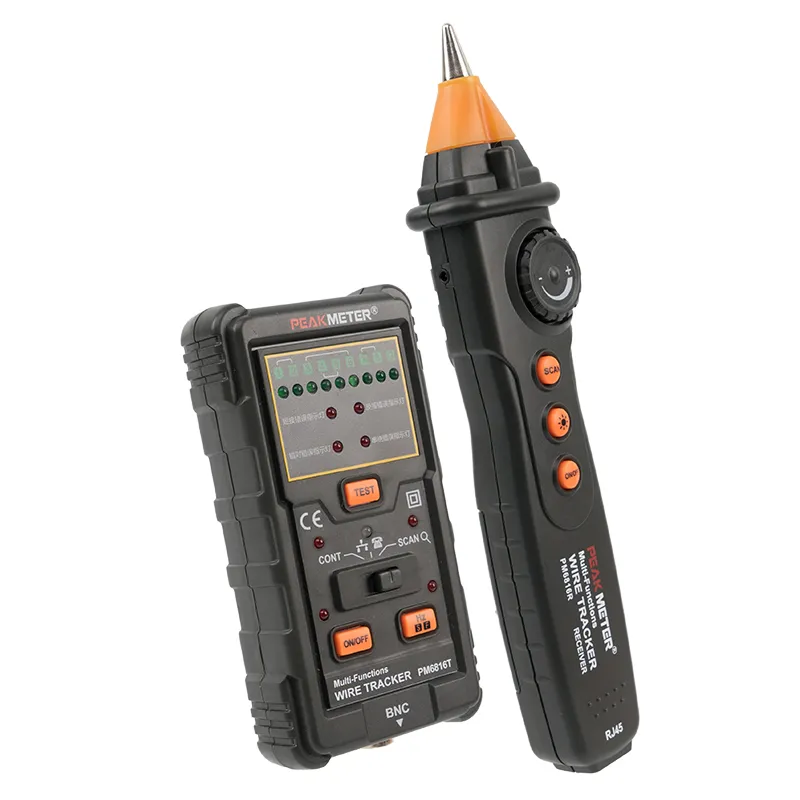

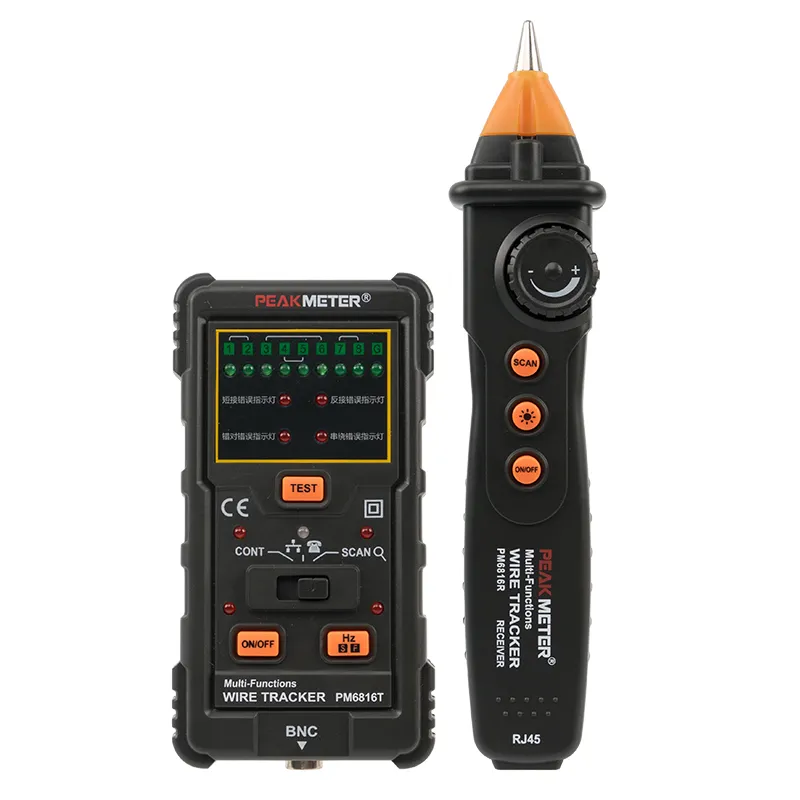

PM6816 is a wire line search and Detection Instrument which can find and adjust lines or conduct performance tests on wire wires, wire lines, BNC and wires. This is a multi-functional handheld cable tracking & testing tool, it can track RJ45, RJ11, with 2 tones selection. Whatever the above info from the manufacturer, from my experience, it has all the basic wire tracking and testing function with low battery indicator, an LED light on the receiver, a simple voltage test. The instrument is designed and manufactured strictly in accordance with the safety standard CE CAT.III 600V RoHS. Multi network cable tester BNC data Ethernet Lan RJ45 RJ11 wire Cable tester.
Wire Track: Directly track wire type: RJ45,RJ11;
Other Wire through the Attachment
Sequence Collation: Open Circuit, Short Circuit, Detection of Cable Line Sequence
Network Wire Collation：
Test Device Used with UTP (Unshield Twisted Pair) and STP (Shield Twisted Pair) wiring.
Test for open circuits, shorts, miswires,r eversals, and split pairs allow one person to tests T568A,10Base-T,and Token Ring.
DC Level Test
Telephone Line Test: Identify the State of Working Telephone Line (Clear, Ring, Busy)
Continuity: Judge Continuity of the Cables or Wires
Switch Port Collation: Detection Switch Connected Condition
| MODEL | PM6816 |
| FEATURES | |
| Wire Track | Directly track wire type :RJ45,RJ11 |
| Track other wire through the attachment | |
| Sequence Collation | Open circuit,short circuit,detection of cable line sequence |
| Network Wire Collation | It can fully test the line sequence of network cable , open circuit , short - circuit , miswire , reverse connection and splitpairs |
| DC Level Test | |
| Telephone Line Test | Identify the state of working telephone line (clear,ring,busy) |
| Continiuity | Judge continiuty of the cables or wires |
| Switch Port Collation | Detetion switch connected condition |
| GENERAL | |

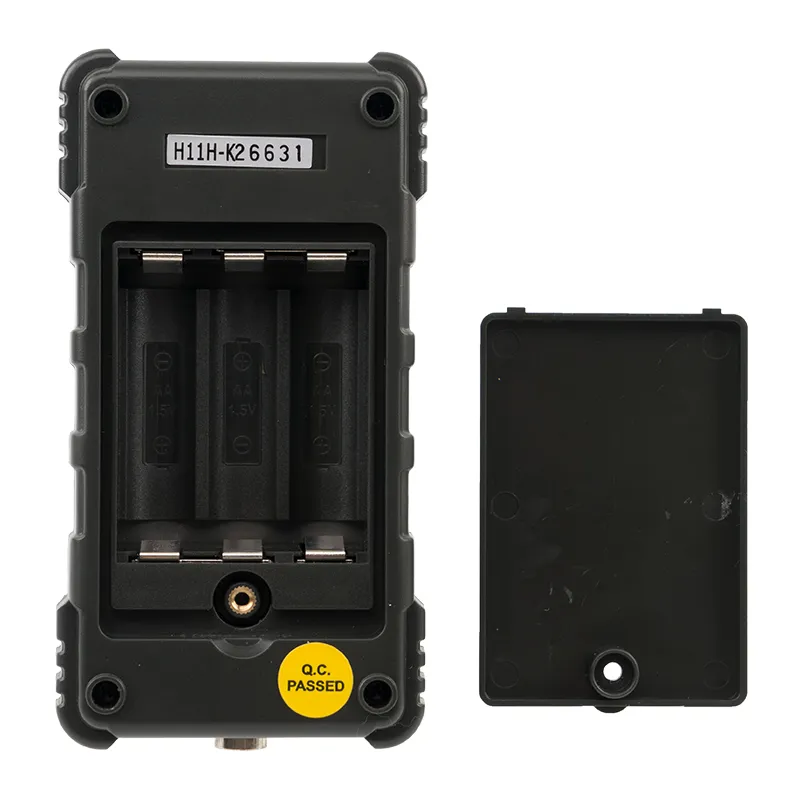

| Power Supply | Emitter：3×1.5V AA Batteries Receiver：1×9V 6F22 |
| Net weight | Emitter ：95g Receiver：70g |
| Gross weight | 449g |
| Product Size | Emitter ：125mm×66mm×30mm Receiver：210mm×45mm×23mm |

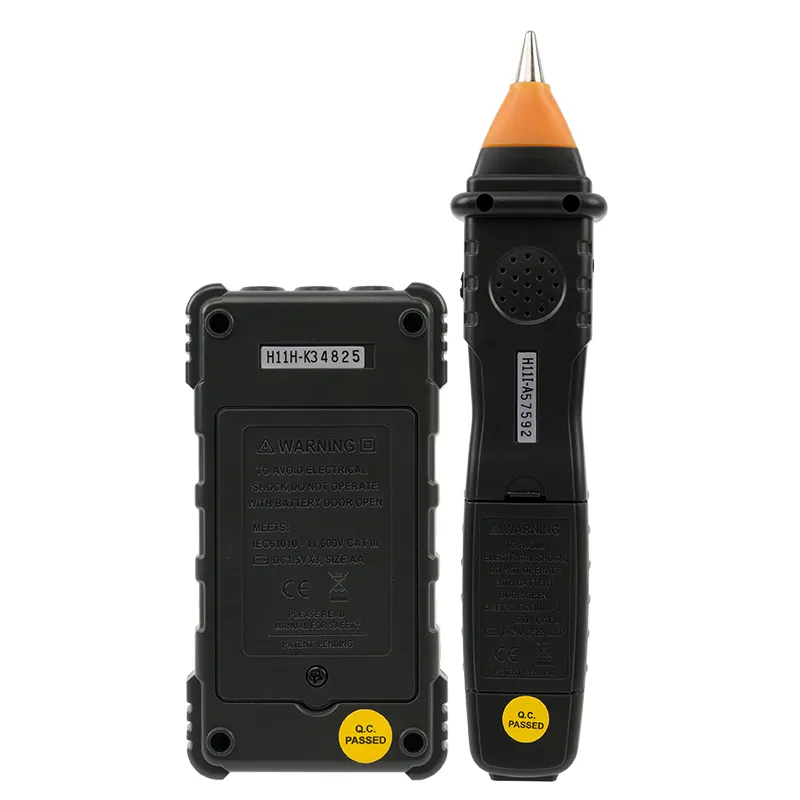

| Safety Rating | CE CAT.III 600V RoHS |
| Package（PCS/carton） | 40 pcs |
| Color Box Size | 235mm×140mm×50mm |
| Carton Size | 565mm×470mm×275mm |
| G.W | 18kg |
| Test Cable | Earphone cable | Users Manual | 1x9V 6F22 Battery | 3x1.5V AA Batteries |
