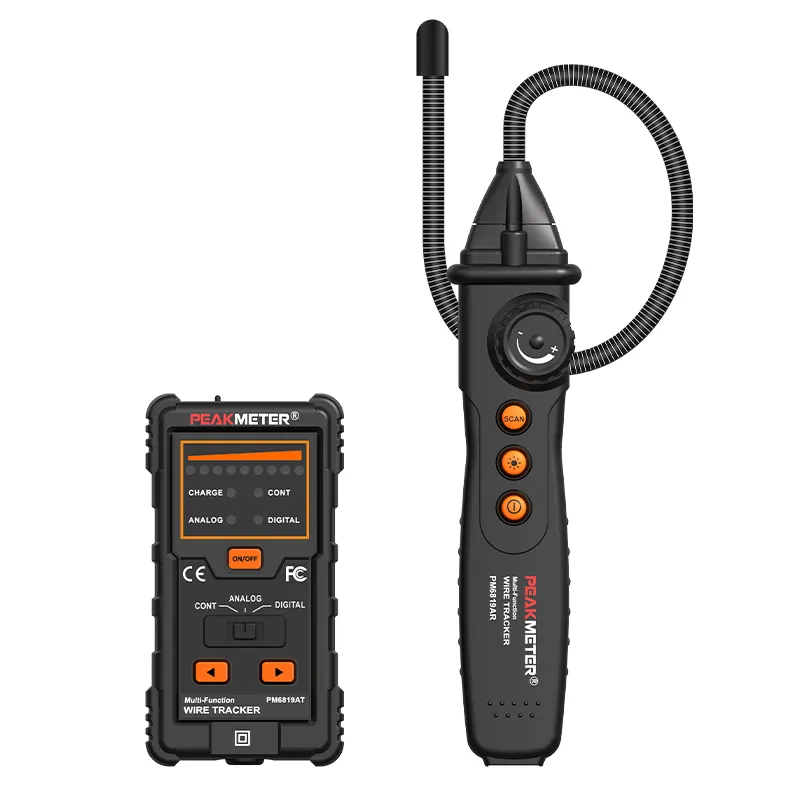

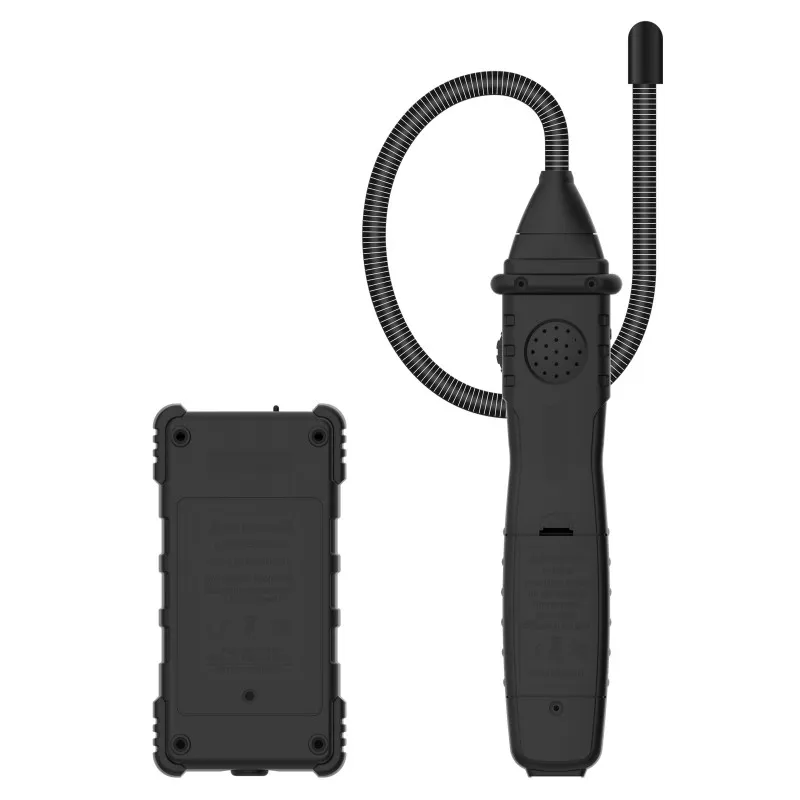

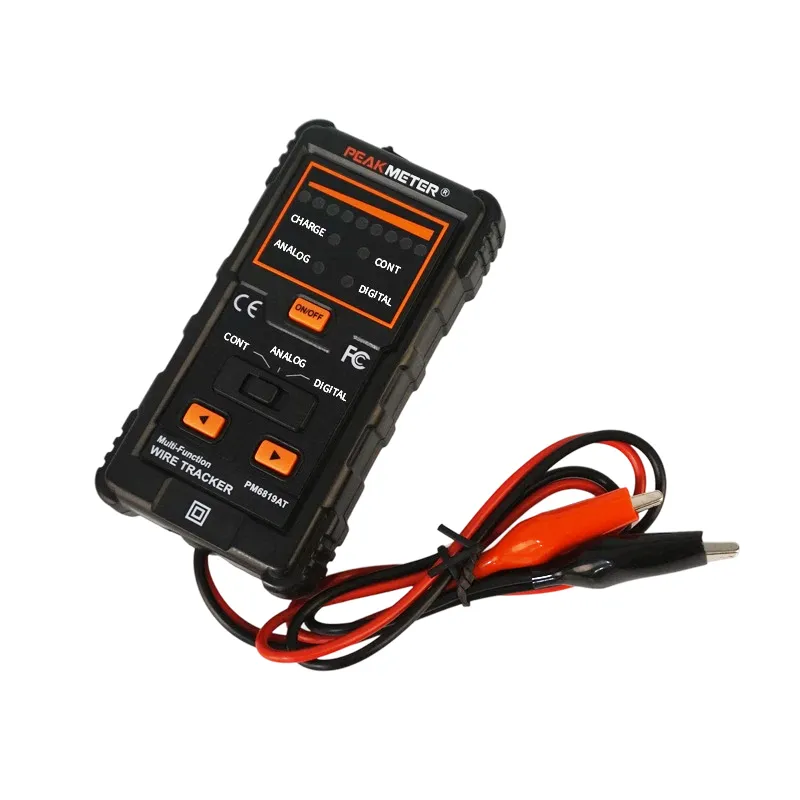

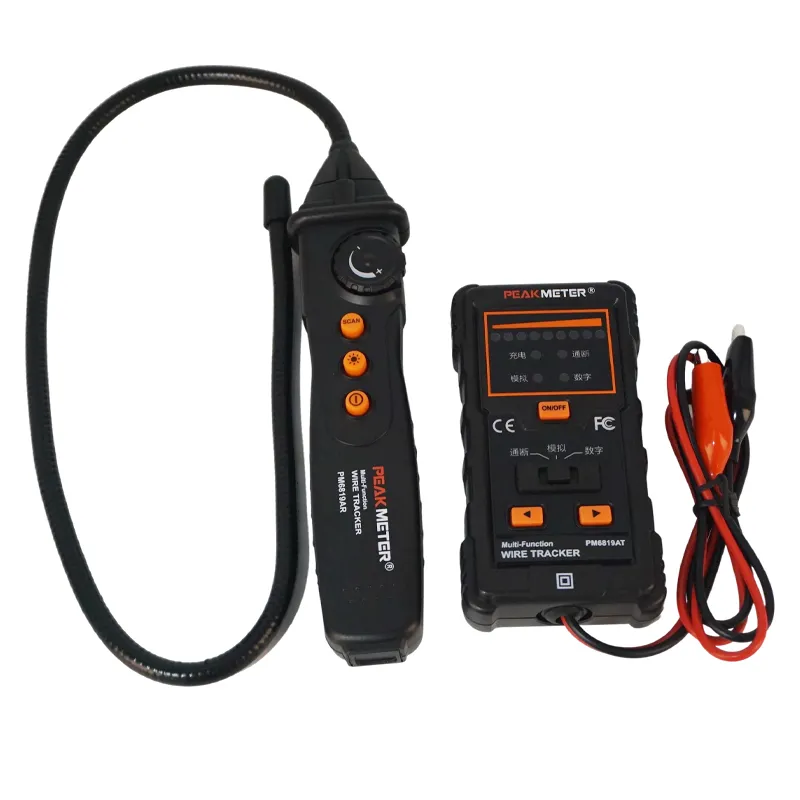

PM6819A is a multifunctional handheld cable line tester. The transmitter of the meter is powered by a rechargeable lithium battery and has a battery undervoltage indication function. Its digital and analog wire-hunting functions can find metal wires buried in the ground or in walls. When looking for the cable line, it is simple and fast without peeling the line skin, and it can identify the location of the line breakpoint. It can find the underground metal cable directly, and the line finding of RJ45, RJ11 and BNC interface can be done through the adapter.
Wire Track: Directly Track wire Type: RJ45, RJ11 Track
Other Wire Through the Attachment
Work Current: Emitter 20m~90mA
Receiver 40mA~50mA
Emitter Charging Current: 500mA
Transmission Signal Mode: Digital Signal: Multi-frequency Pulse
Analog signal: Audio Pulse
Maximum Data Transmission Distance: ＞1000m
Data Signal Detection Depth: 0~2m
Maximum Transmission Distance of Analog Signal: ＞300m
Detection Depth of Analog Signal: 0~0.3m
Continuity Indication: The signal indicator is used as the path resistance indicator, one more indicator light will be on every 100Ω, and all lights will be on above 1K
Continuity Test: Resistance value is less than 1K, it is considered as continuity
Under Voltage Indication: Transmitter: Less than 3.7V, LED Flashing
Receiver: Less than 9V, LED Flashing
| FEATURES | |
| Wire Track | Directly track wire type :RJ45,RJ11 rack other wire through the attachment |
| Working Current | Emitter 20mA～90mA Receiver 40mA～50mA |
| Emiter Charging Current | 500mA |
| Transmission Signal Mode | Digital signal : multifrequency pulse analog signal : audio pulse |
| Maximum Datal Transmission Distance | ＞1000m |
| Data Signal Detection Depth | 0～2m |
| Maximum Transmission Distance of AnalogSignal | ＞300m |
| Detection depth of analog signal | 0～0.3m |
| Continuity Indication | The signal indicator is used as the path resistance indicator , One more indicator light will be on every 100Ω, and all lights will be on above 1K. |
| Continuity Test | resistance value is less than 1K, it is considered as continuity . |
| Under Voltage Indication | Transmitter : less than 3.6V, LED flashing .receiver : less than 7V, LED flashing |
| GENERAL | |
| Power Supply | Emitter：DC 1×3.7V Receiver：DC 1×9V 6LR61 |
| Net weight | Emitter ：144.6g Receiver：179.6g |
| Gross weight | 606g |
| Product Size | Emitter ：125mm×66mm×30mm Receiver：210mm×45mm×23mm |
| Safety Rating | CE CAT.III 600V RoHS |
| Package（PCS/carton） | 30pcs |
| Color Box Size | 270mm×150mm×50mm |
| Carton Size | 565mm×470mm×275mm |
| G.W | 19.2kg |
| Earphone cable | Test Cable | Data Cable | Users Manual | DC 1x9V 6LR61 Battery | DC 1x3.7V Batteries |
