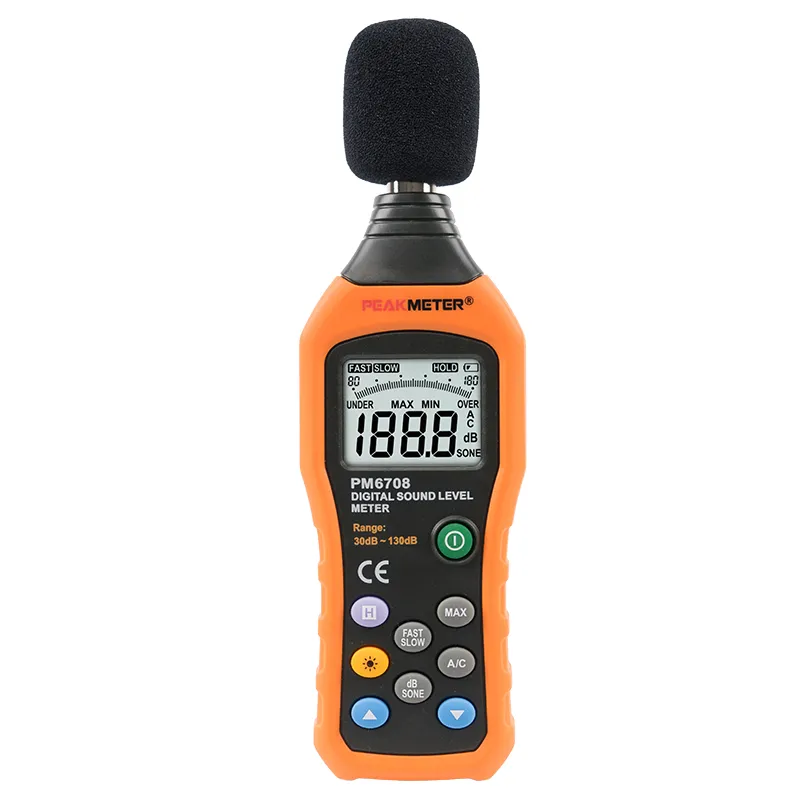

PM6708 is an instrument used to measure the ambient sound level, such as sound level around factories, workshops, schools, residentials, offices, road, audio ec. this sound level meter complies with IEC651 type 2 and ANSI S1.4 type 2 with the measuring scope from 30 to 130 dB and automatic shifting function A and C weighting network selection. With the backlight feature, it is appropriate for gathering the sound data at night. To save power, backlight auto power off function is provided Composite material injection molding process is adopted for casing with anti-drop structure design. It is not only extremely wear-resisting, but also elegant.
Accuracy: ±1.5dB/±5dB
Sound Pressure Frequency Response: 30Hz~8kHz
Dynamic Range of Sound Pressure: 50dB
Sound Pressure Measurement Scope: 30~130dBA/35~130dBC
Dynamic Range of Sound Pressure: A and C Characteristics
Dynamic Characteristic of Sound Pressure: FAST 125ms, SLOW 1sec
Microphone: Polarized Capacitive Microphone
Analog Bar Display: Each Analog Bar Represents 1 dB, Sampling Rate is 20 times/sec
Automatic Shifting Gear Level: Microcomputer will automatically select the best gear level in the range from 30 to 130dB.
Fast/Slow Selection
Data Hold
Back Light
MAX
| SPECIFICATION | |||
| Accuracy | ±1.5dB(sound pressure standard,94dB@1KHz) | ||
| ±5 dB (sound pressure standard, 94 dB@8KHz) | |||
| Sound pressure Frenquency Response | 30Hz-8KHz | ||
| Dynamic range of sound pressur | 50dB(for each measurement gear level） | ||
| Sound pressure measurement scope | 30-130dBA 35-130dBC | ||
| Dynamic Range Of Sound Pressure | A and C chacracteristics | ||
| Dynamic chacracteristic Of Sound Pressure | FAST 125ms,SLOW 1sec | ||
| Microphone | polarized capacitive microphone | ||
| Analog bar display | Each analog bar represents 1 dB, sampling rate is 20 times/sec. | ||
| Automatic shifting gear level | microcomputer will automatically select the best gear level in the range from 30 to 130 dB. | ||
| FEATURE | |||
| Auto Power Off | √ | ||
| Fast/Slow Selection | √ | ||
| MAX | √ | ||
| Back Light | √ | ||
| Low Battery Indication | √ | ||
| GENERAL | |||
| Power Supply | 4x1.5v AAA Batteries | ||
| Product Size | 193mm×60mm×29mm | ||
| Net weight | 190g(included batteries ) | ||
| Gross weight | 361g | ||
| Safty Rating | CE RoHS | ||
| Package（PCS/carton） | 30 pcs | ||
| Color Box Size | 230mm×110mm×56mm | ||
| Carton Size | 480mm×300mm×350mm | ||
| G.W | 11.8kg | ||
| Users Manual | 4x1.5V AAA Batteries |
